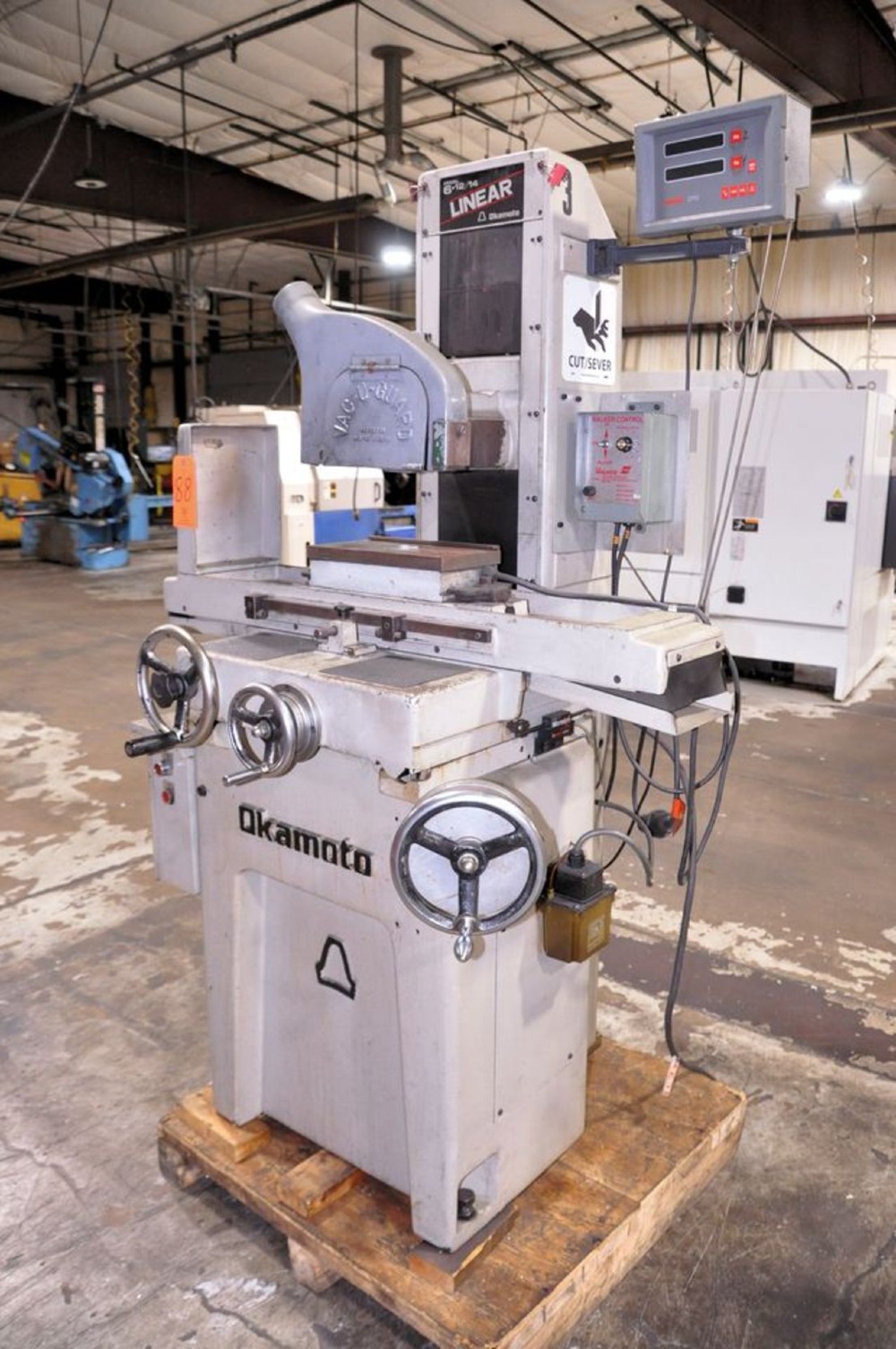

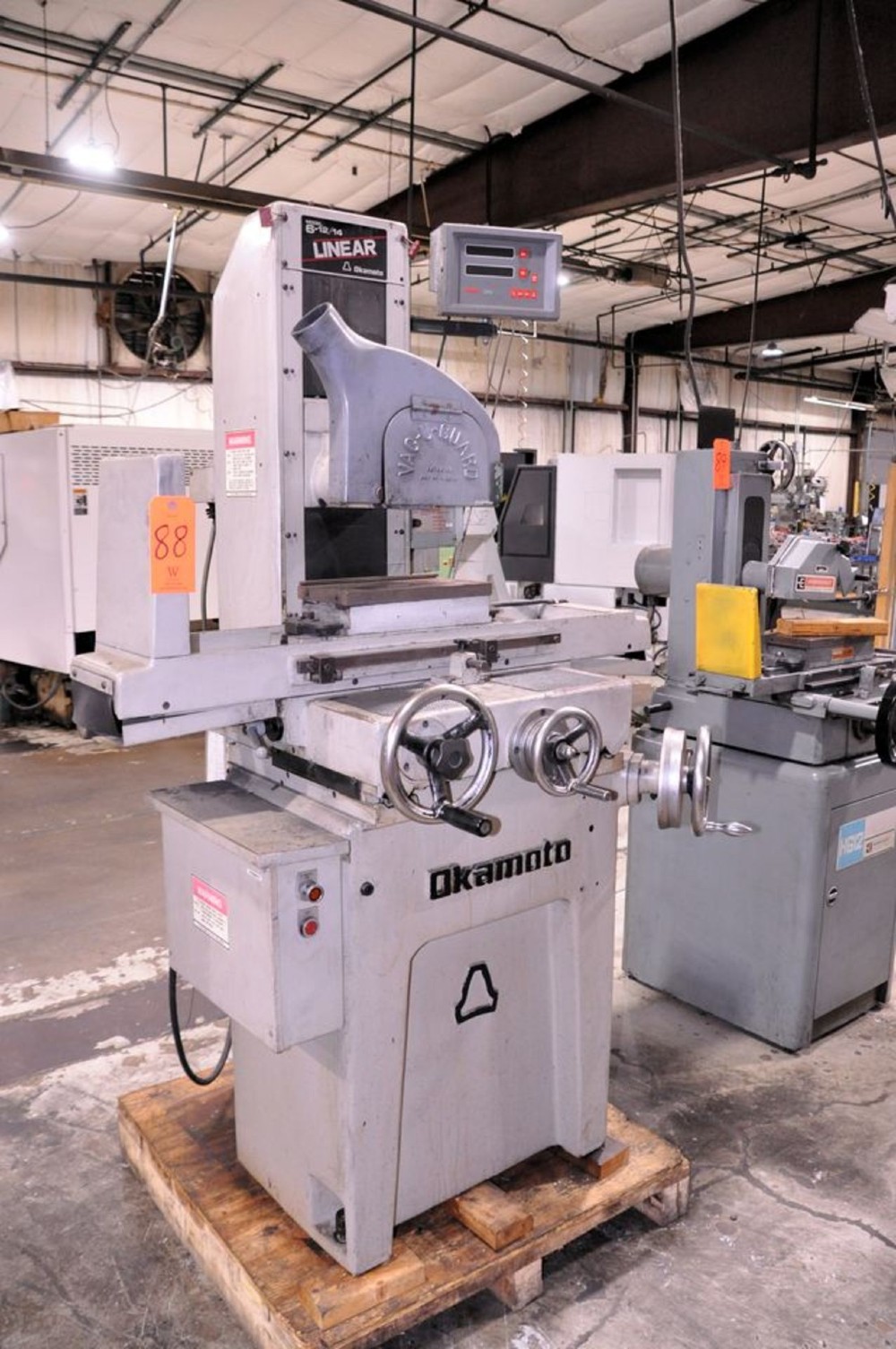

7.5" x 14" Okamoto #612/14 Linear, precision surface grinder with DRO's, 2 HP

ONE USED OKAMOTO PRECISION SURFACE GRINDER

Model - 6-12/14 Linear

Standard chuck size - 6" x 12" (14)

Grinding capacity - 7.5" x 14"

Max. Travel – 8” x 15”

Wheel size - 8" x 3/4" x 1.25" (max)

Motor - 2hp, 230-460v/3ph/60hz, wired 230v

Table to underside of 8" grinding wheel - 14.27"

Table to center line of spindle – 3.35” to 18”

Table movement/hand wheel revolution – 4”

Saddle movement/hand wheel revolution - 0.1"

Wheelhead movement/handwheel revolution - 0.050"

Handwheel graduation - 0.0002"

Dimensions - 1,850# x 70.4” high x 58.7” long x 46.5” wide

Standard Equipment

One shot Lubrication Table & saddle clamps

Wheel adapter Spindle "On" pilot light

Solid table reverse stop

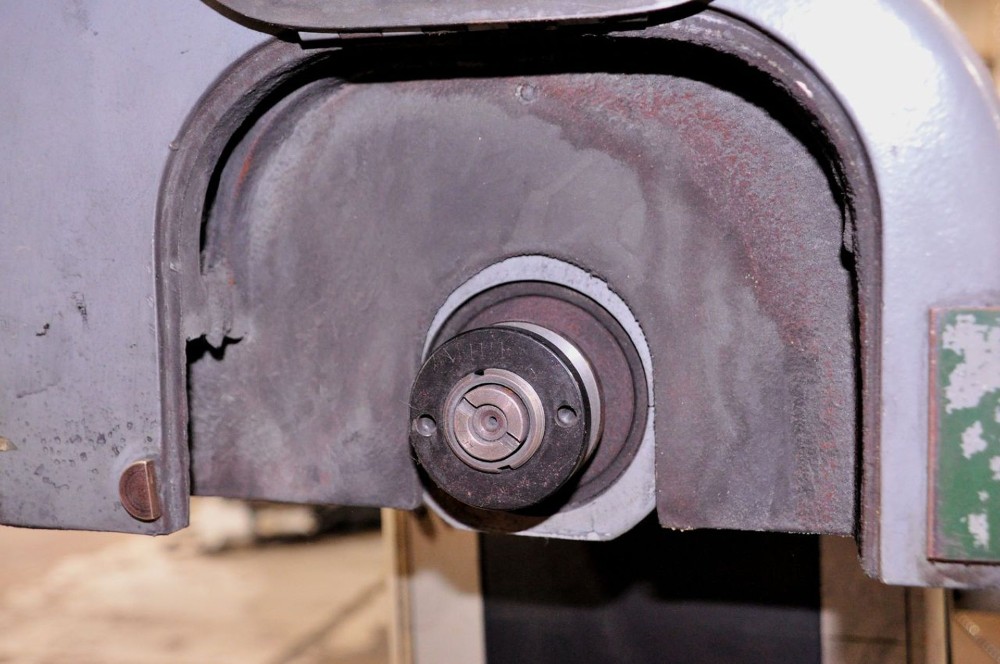

Vacu Guard Wheel guard w/dust scoop (4) 110v outlets

Swivel wheel guard

Leveling pads & bolts Timing belt table drive

Table moves on Linear ways

Included Optional Accessories:

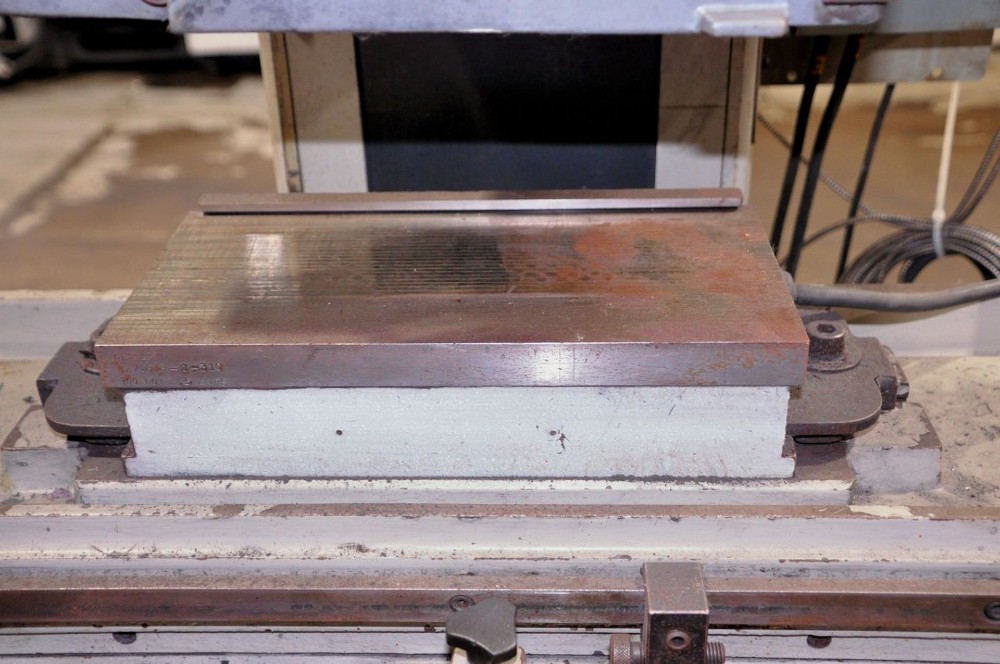

Walker Md. LBP Fine Pole electro-magnetic chuck

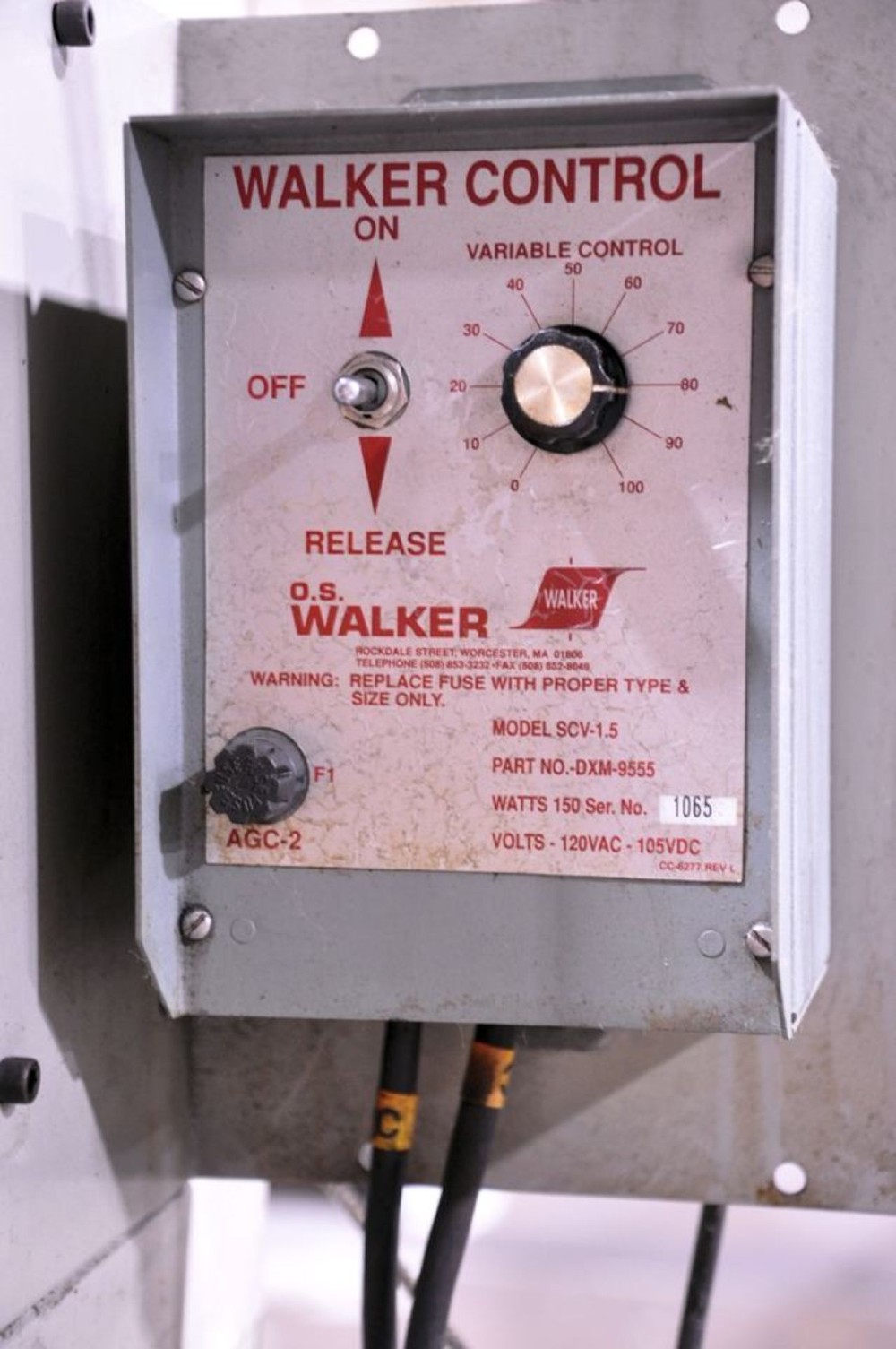

Walker Md. SVC-1.5 Variable Electro magnetic control, SN: 1065

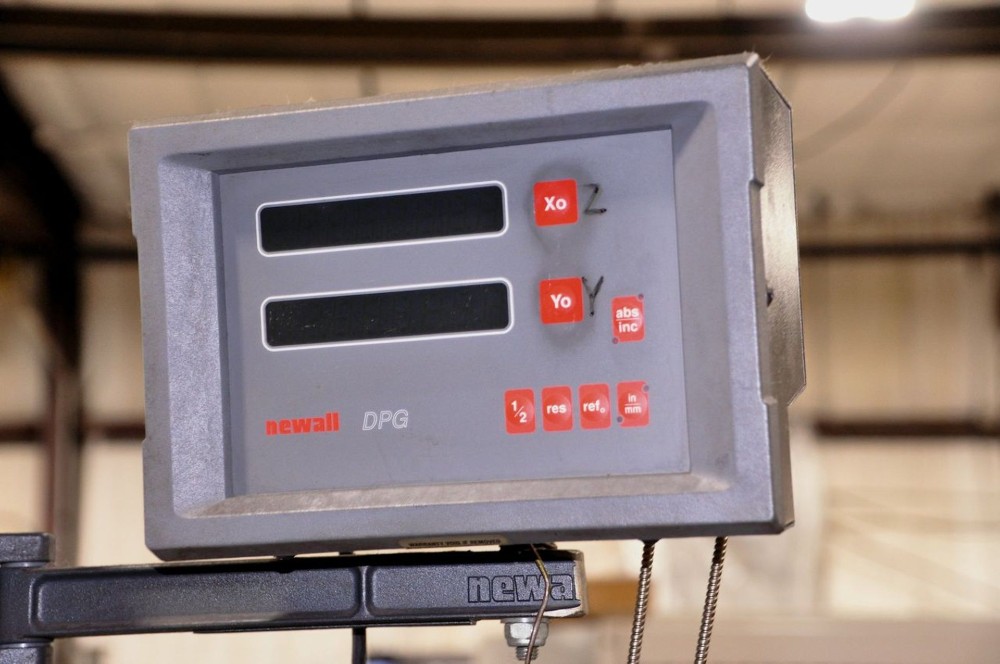

Newall Md. DPG 2-axis DRO’s

$6,950.00
