7" x 14" Mitsui #200MO, Surface Grinder, 18" Table to Spindle Center, 8" x 15" max Table Travel, 7" diameter x 1/2" width x 1.25" bore Grinding Wheel, 1.3 HP, 2900/3400 RPM

Description

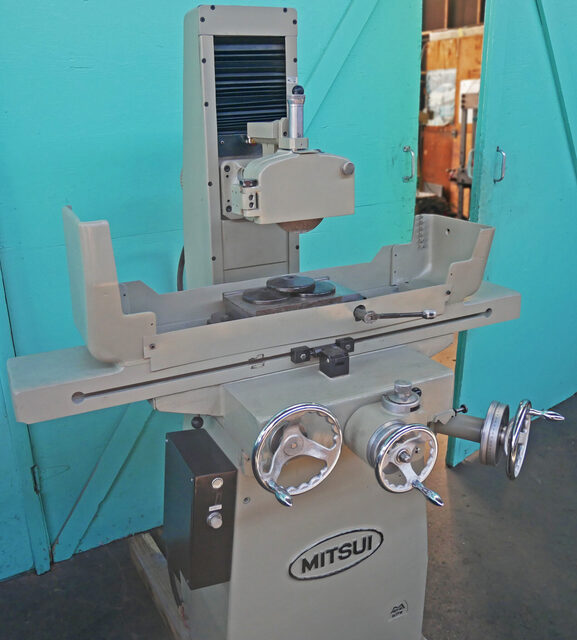

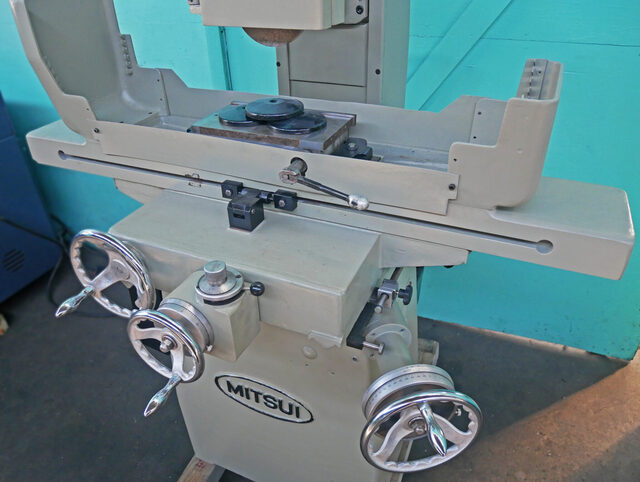

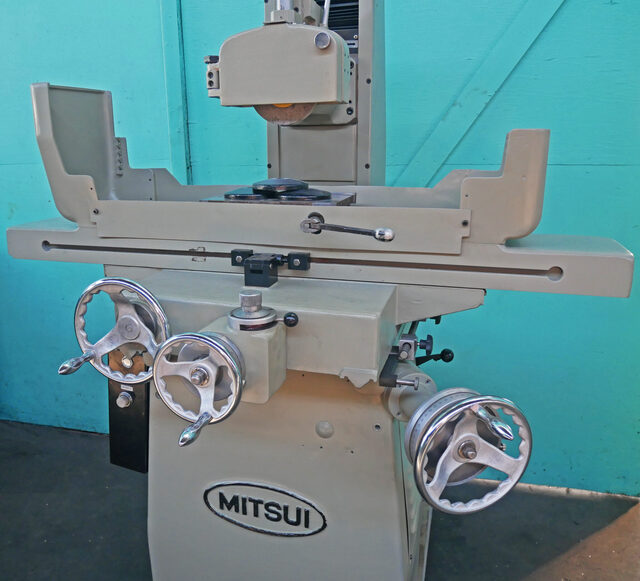

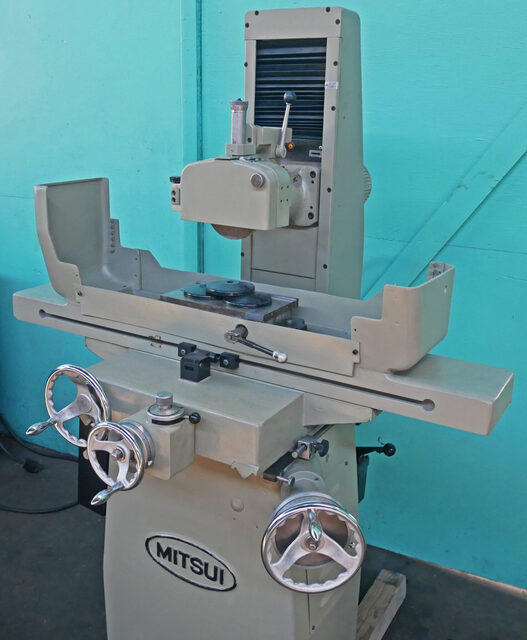

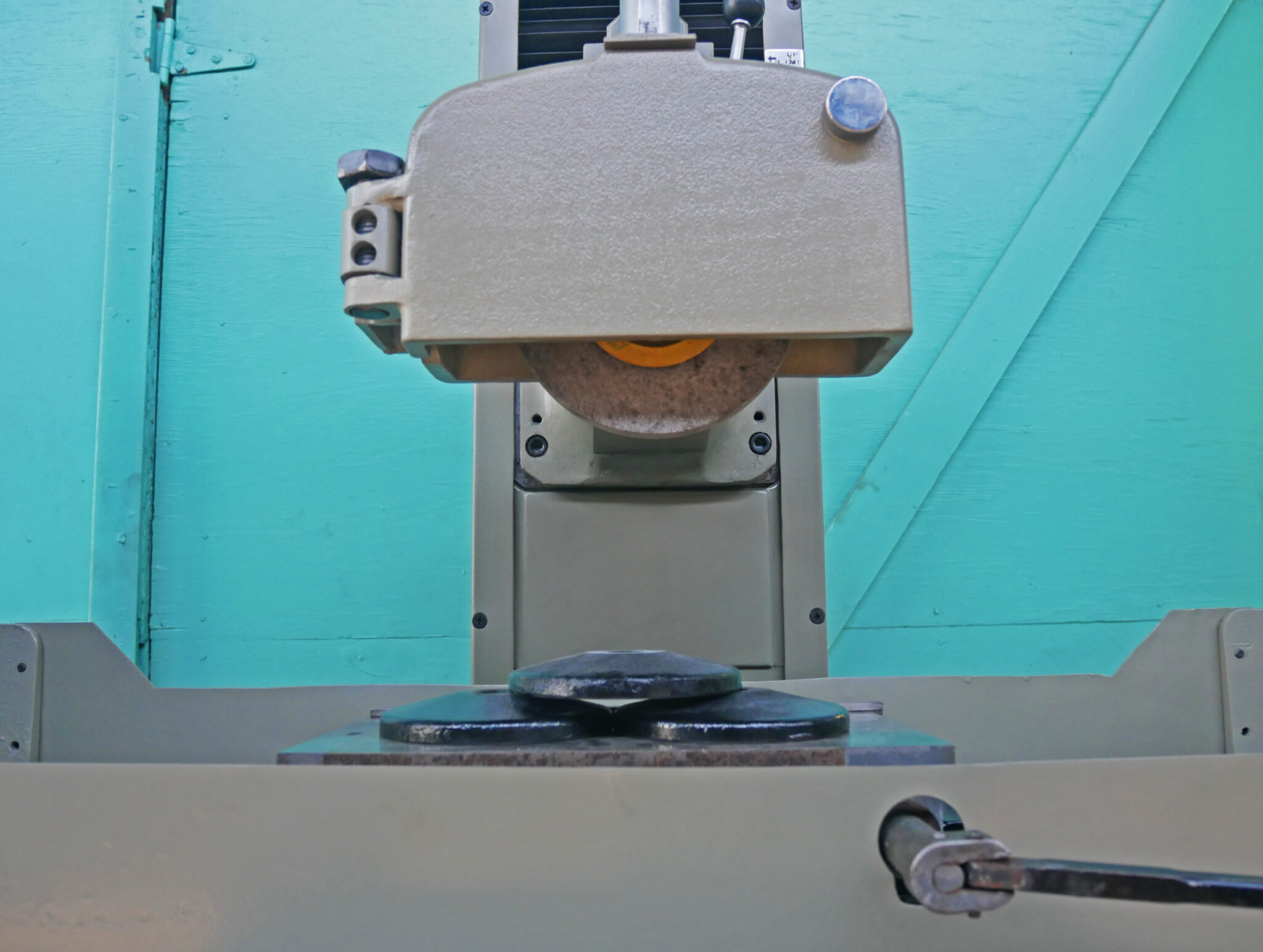

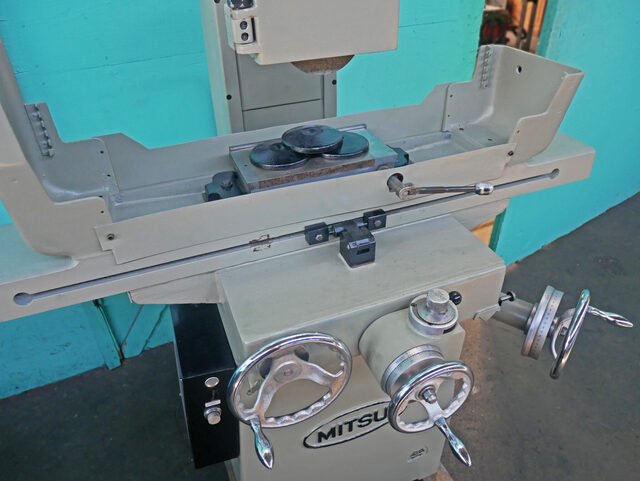

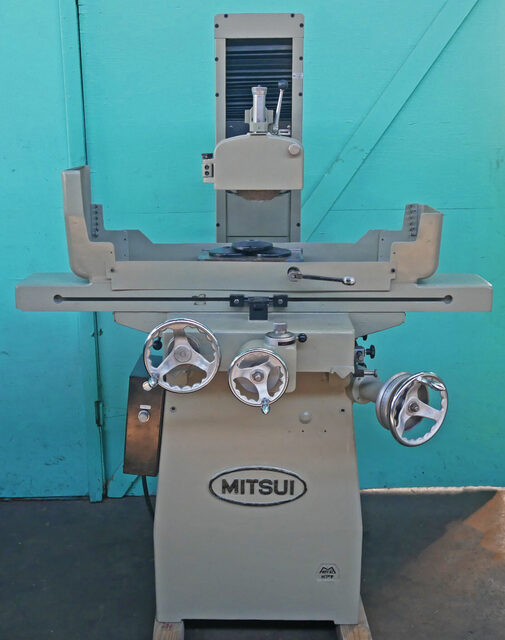

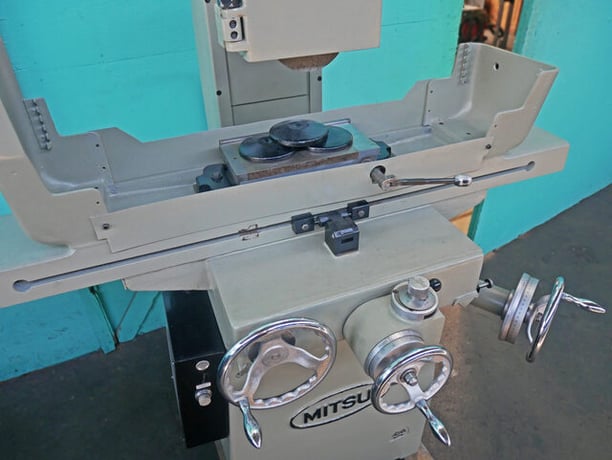

Mitsui 7″ x 14″ Surface Grinder, 200MO

Inventory # 9819-P

Model: 200MO

S/N: 80011546

Specifications:

Max. Longitudinal Movement of Table: 15″

Max. Cross Movement of Table: 8″

Max. Height from Table Surface to the Grinding Wheel Spindle Center: 18″

Max. Grinding Length x Width: 14″ x 7″

Dimensions of Table Working Surface: 14″ x 6 1/4″

Table Movement per Handwheel Revolution: 4″ /Rev.

Handwheel for Vertical Feed:

per One Revolution: 0.05″

per One Division: 0.0001″

Handwheel for Cross Feed:

per One Revolution: 0.1″

per One Division: 0.001″

by Vernier: 0.0001″

Height from Floor to Table Working Surface: 42″

Overall Length x Width of Table: 43″ x 9″

Number of Revolution of Wheel Spindle: 2,900 RPM, 50Hz / 3,400 RPM, 60Hz

Size of Grinding Wheel: 7″ Outer Diameter x 1/2″ Width x 1 1/4″ Bore

Motor for Wheel Spindle: 1 1/3 HP

Mechanical Specifications:

Weight: approx. 1,830 lbs.

FOB Our Baltimore, MD Warehouse
