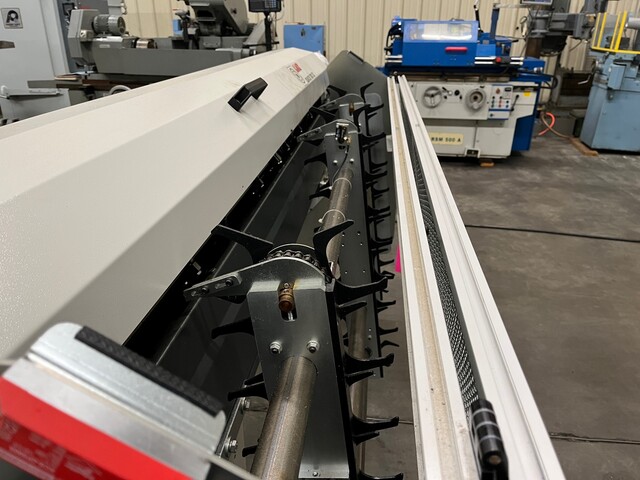

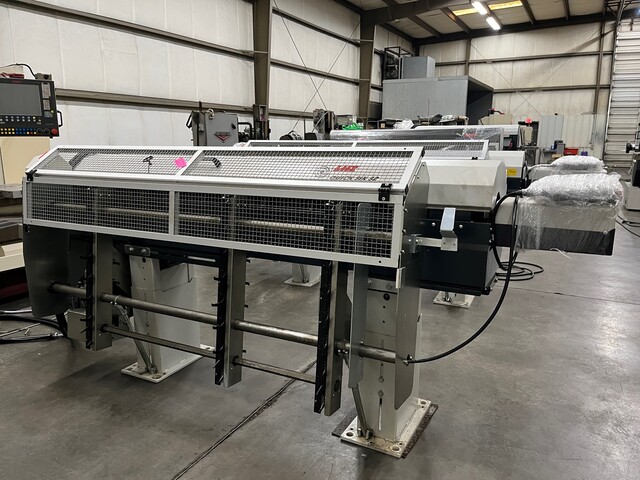

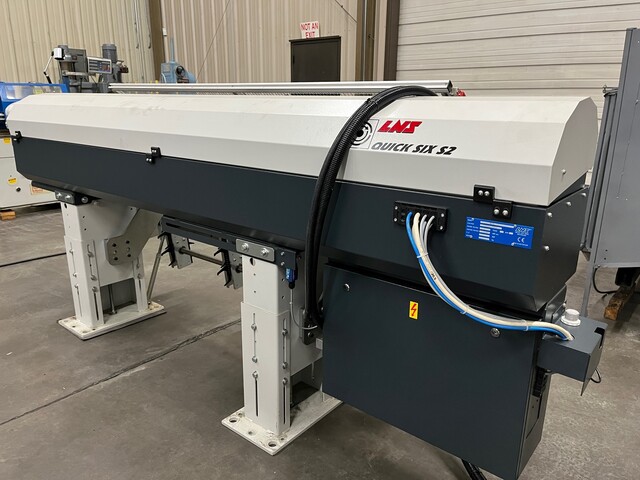

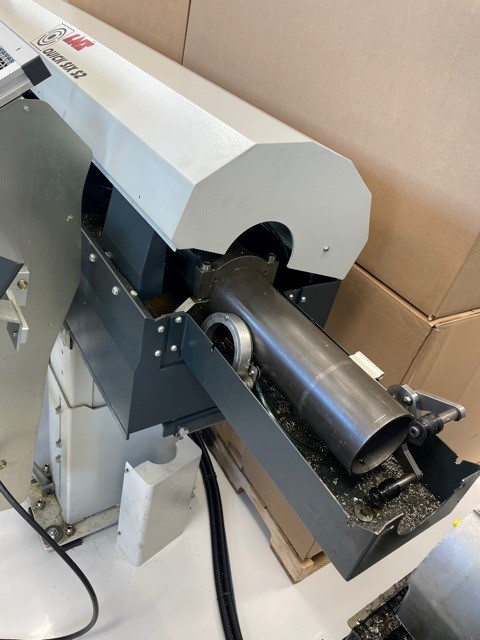

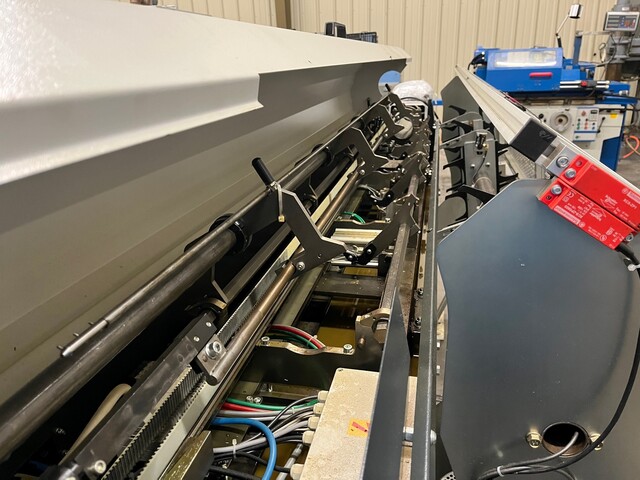

LNS #Quick-Six-Move-S2, Bar Feeder, w/0.5"-2.4" Spindle Liners, 0.25"-3.15" diameter x 14"-63" L Bar, 26" Loading capacity, 200-480 V., 2012

Specifications:

Diameter: 1/4" - 3.150" (6-80 mm)
Bar length: 14" - 63" (350 - 1600 mm) - Not to exceed headstock spindle length
Chain loading rack magazine holds 16 pieces
Maximum bar weight: 150 lbs.
Maximum table load: 1,100 lbs.
Pushing force: 125 ft-lb
Loading system: Side load rack
Loading capacity: 26" (650 mm)
Loading: Front/rear
Headstock type: Fixed / Traveling
Z-axis retraction for spindle liner replacement: 19" travel
Diameter set up: 15 sec (automatic)
Motor: Servo
Drive: Notched belt
Parts library: 500 parts program storage
Electrical power: 200 - 480 volts (50hz-60hz)
130" long x 32" wide x 48" high
Weight: 900 lbs.
Includes spindle liners: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-3/4", 2", 2-1/4", 2-3/8"
