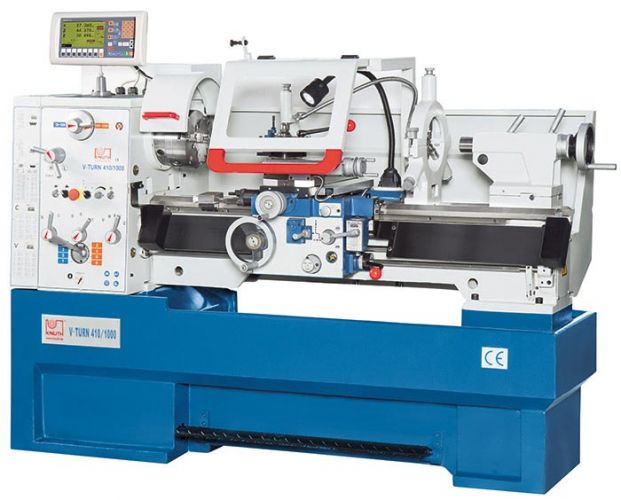

Knuth #V-Turn, Engine Lathe

• Constant speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
• A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
• Wide, hardened and ground guideways ensure superior turning results and long life
• Large spindle bearings and high-precision headstock ensure excellent concentricity
• Headstock gears and shafts are hardened and ground for quiet operation und constant speed
• 7 Hp headstock motor ensures powerful machining
• Spindle speeds are infinitely variable from 30 to 550 and 50 to 3000 rpm
• Micrometer and turret stop are included
• Integrated central lubrication at the support for low maintenance
• The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
• Incl. 3-axis position indicator with integrated spindle speed display, fully assembled

3-axis position indicator

• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.0004 / 0.0002"
• Default coordinates
• Axis position is maintained when display is turned off
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
