Description

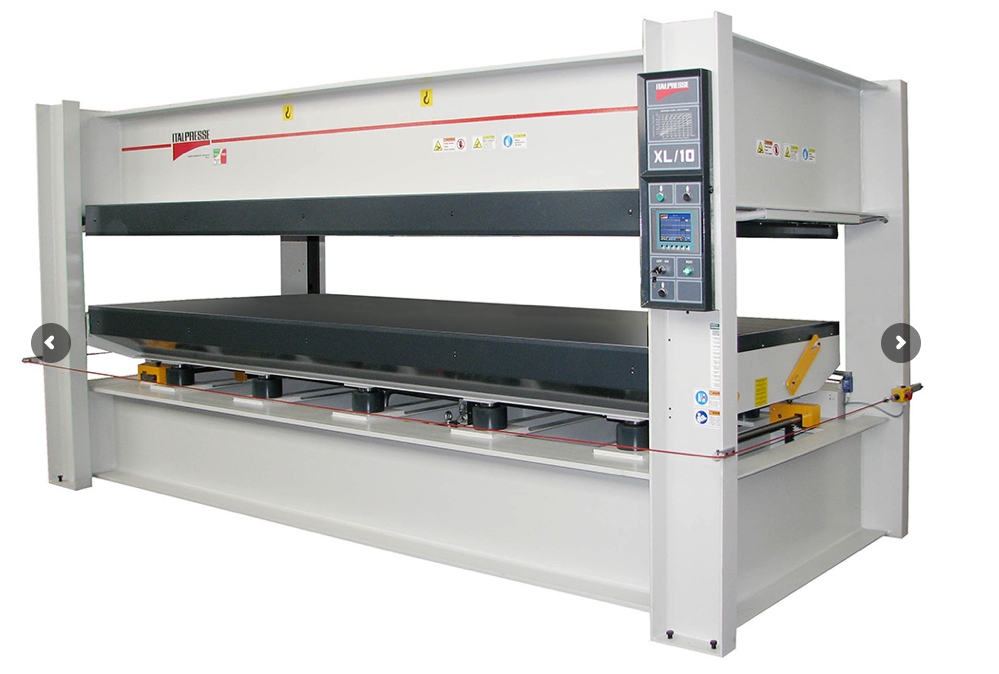

- Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press
- Platen dimensions: 3,800 x 1,600 mm (149 x 63 in.)
- Number of daylights: 1
- Total cylinder stroke: 400 mm (15-3/4 in.)
- Number of pressing cylinders: 10
- Diameter of pressing cylinders: 85mm each
- Total thrust: 190 metric tons (418,878 lbs)
- Max. laminating pressure on 80% of platen area 4.17 kg/cm2 (60 psi)
- Max. laminating pressure on 100% of platen area: 3.34kg/cm2 (48 psi)
- Hydraulic pump: 3 kw (4 hp)
- Boiler power: 36 kw
- Maximum platen temperature: 120C (248F)
- Torsion free, heavy-duty press frame fabricated from welded structural steel
- Massive, solid steel platens drilled for circulation of thermal oil - superior heat characteristics!
- Platens covered with easy to replace, glue resistant Mylar film Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing
- Automatic regeneration of pressure during press cycle
- Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer
- TS-400 color graphic touch screen controller with the following features:
- Memory for 200 programs containing different panel dimensions, laminating pressures, cycle times, and platen temperatures Automatic calculation of the hydraulic pressure based on programmed panel dimensions
- Automatic exclusion of one or two pairs of press cylinders based on programmed panel dimensions
- Digital temperature control of the platen temperature
- Digital pressing timer with automatic initiation of press opening and panel unloading
- 7-day auto startup and shut down timer for the thermal oil boiler PLC I/O status monitoring for troubleshooting
- Display of fault and warning messages
- EFC System - sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels
- Dual cycle-start buttons requiring two hands to initiate cycle for safety
- Safety pull rope on all four sides with emergency stop switch
- Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system
- UL approved electrical components
