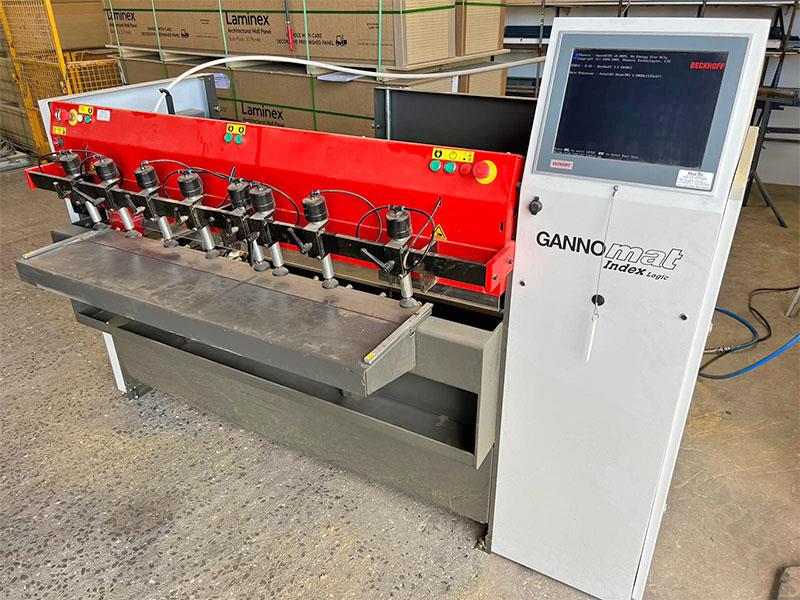

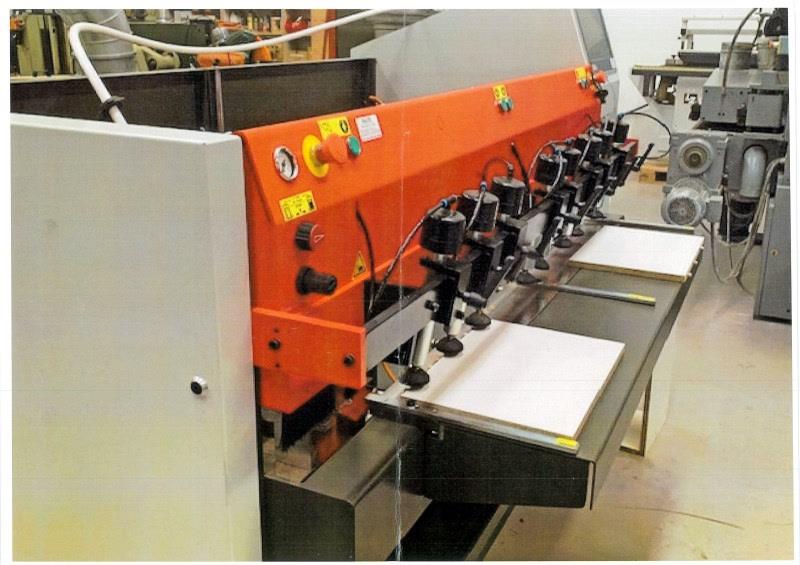

Gannomat #Index-130-Logic, CNC Bore, Glue & Dowel Inserter, w/Laser Measuring, 51" x 0.75"-7.75" width x 0.5-3.13" thickness Work capacity, 4.5" x 52.75" x 35" H Table, 2019

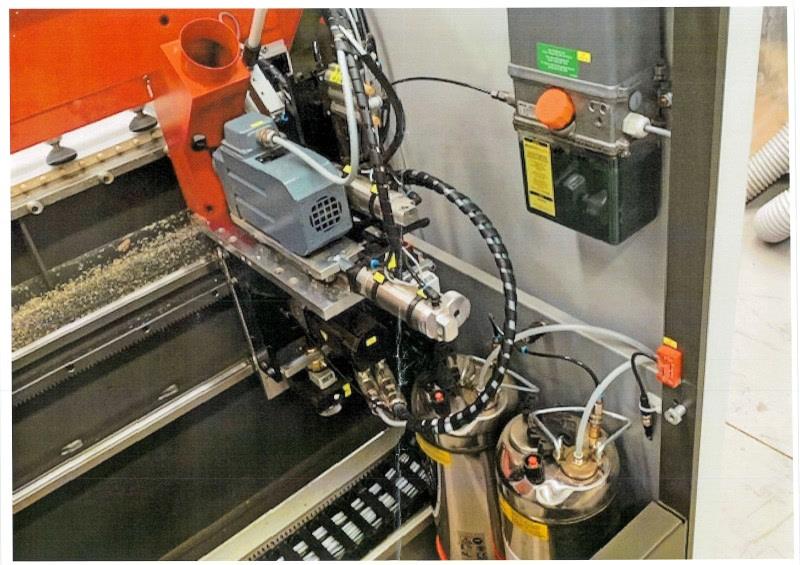

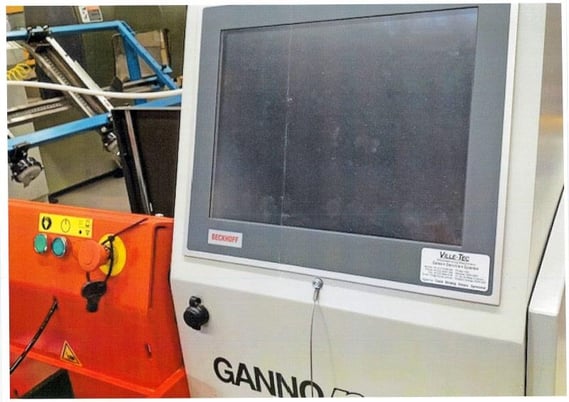

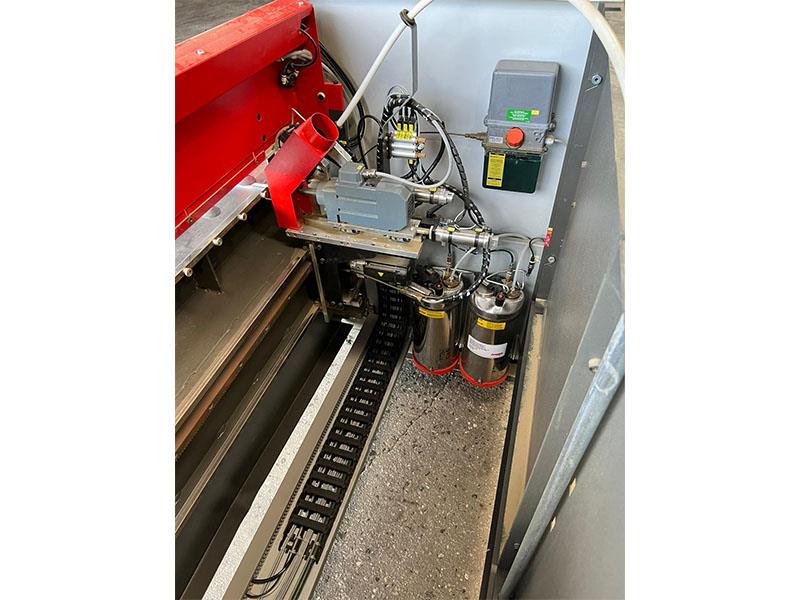

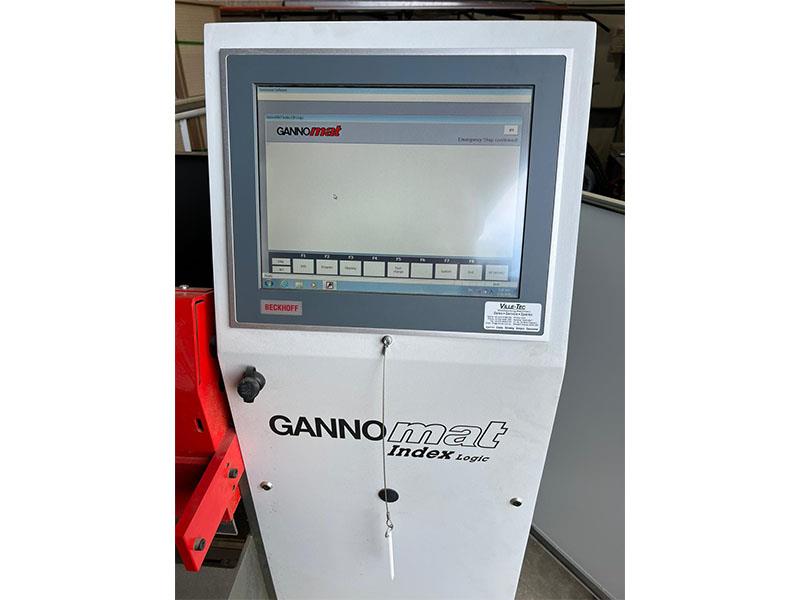

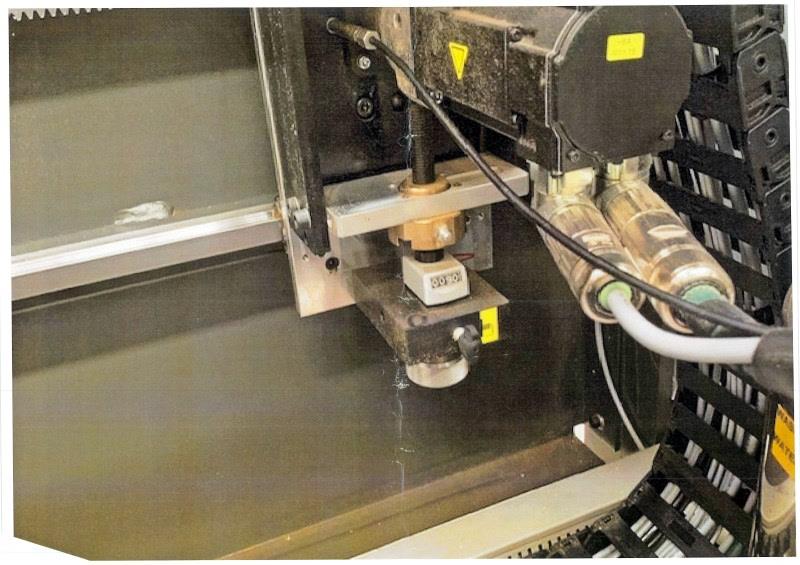

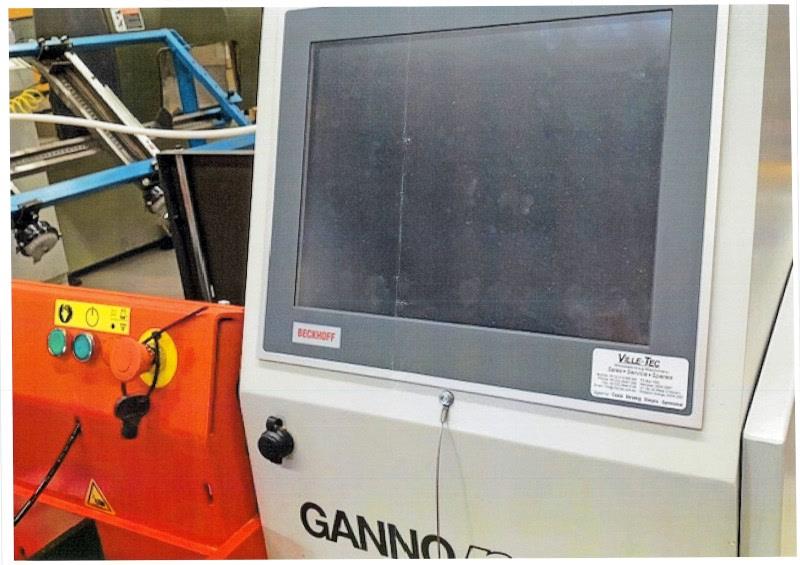

GANNOMAT - INDEX 130 LOGIC: CNC Bore, Glue & Dowel Inserter + Laser Measuring Device -- SpecificationsGANNOMAT "INDEX LOGIC": CNC Controlled Point-to-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns. -- "X" & "Y" Axis set by manual digital indicators; "Z" Axis adjusted via CNC controlled Servo drive. -- Working Width1,300 mm (51") x 3/4" - 7-3/4" Width x 1/2" - 3-1/8" material thickness with: (4) Independent working zones & LH/RH (mirror image).Table size: 4-1/2" x 52-3/4" x 35" H with 9" x 52" extension. -- (8) Vertical holddown cylinders & zero center stop for horizontal part processing. -- Dowel Driving & Horizontal Boring integrated into (1) station: Dowel driving unit is located alongside the Boring station; both units are mounted on (1) support. -- Horizontal Boring Station. Head can be setup for 6 - 8 or 10 mm; dowel length from 25 - 50 mm (currently set up for 8 mm dia. x 50 mm long dowels). -- Doweling Station. Vibrating hopper; insertion head & dowel driving with air impulse; glue valves are controlled individually at the control cabinet; central adjustment for the amount of glue by means of a digital timer. -- Operator Interface. MS-XP & GANNOMAT Production software; 15" color touchscreen monitor interface; USB drive; bar code capable. -- Controller & Drive. BECKHOFF "C3620 TWINCAT V2.10". -- Complete with: (1) Glue tank; (1) water tank; auto lubrication system, and all original manufacturer's machine documentation. -- Actual Model: GANNOMAT INDEX 130 LOGIC.
