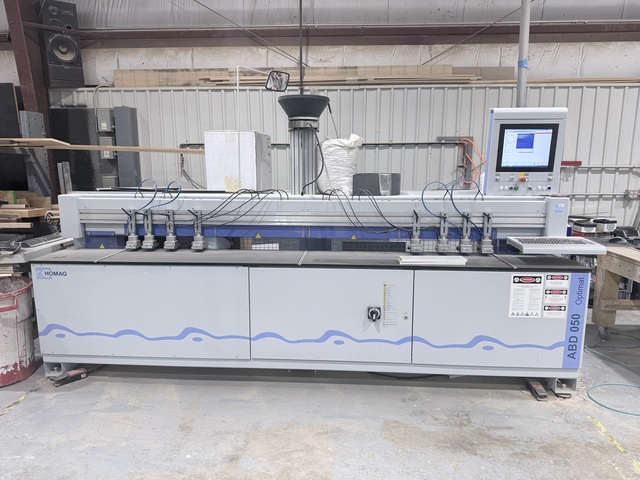

Homag #Optimat-ABD050, Bore/Dowel Machine

Description:

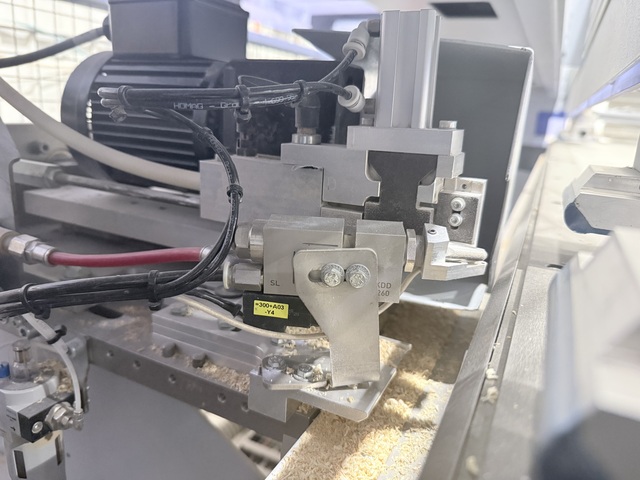

CNC dowel inserter for horizontal drilling and dowel inserting

Engineered to spray glue or water (has been used with water)

Features a Sorbtech™ main beam to minimize vibration

Pneumatic control of center stop and right and left fences

Open end table for machining longer parts

Vibrating hopper for automatic feeding of dowels

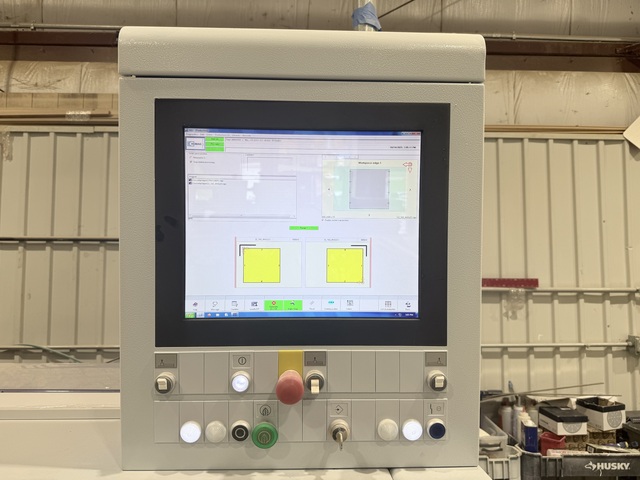

Larger 17" display and Woodwop™ programming

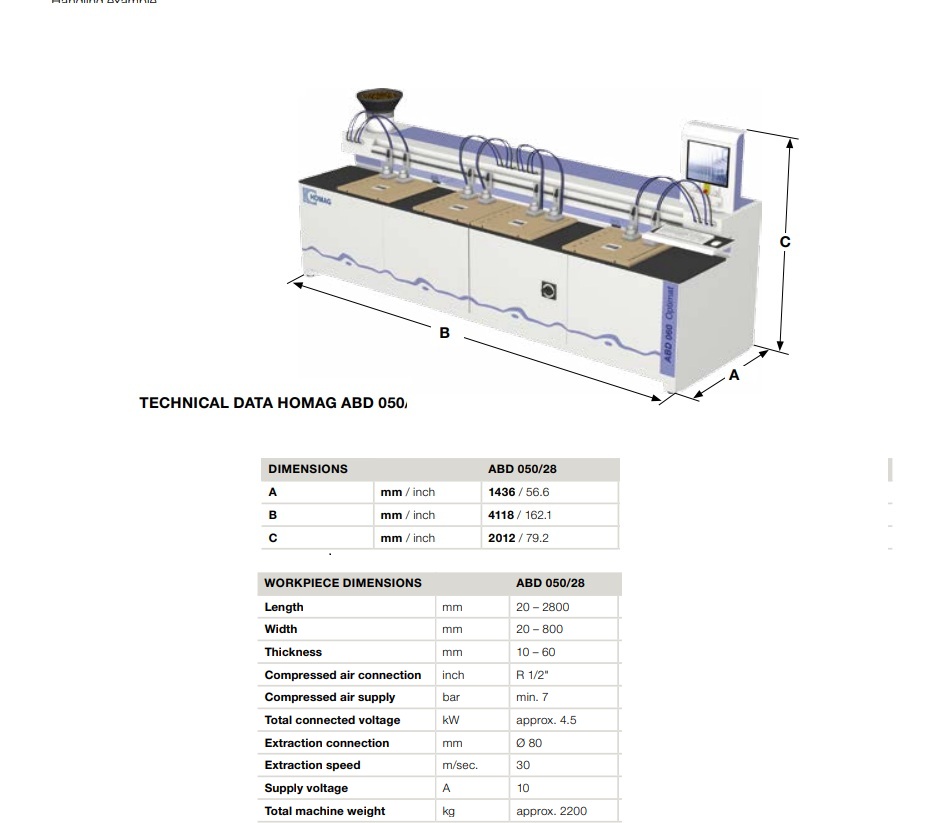

Technical Specs:

Maximum part length; 2800 mm / approx. 110"

Minimum part length; 20 mm / approx. 0.79"

Maximum part width; 800 mm / approx. 31.5"

Minimum part width; 20mm / approx. 0.79"

Maximum part thickness; 60 mm / approx. 2.36"

Minimum part thickness; 10 mm / approx. 0.39"

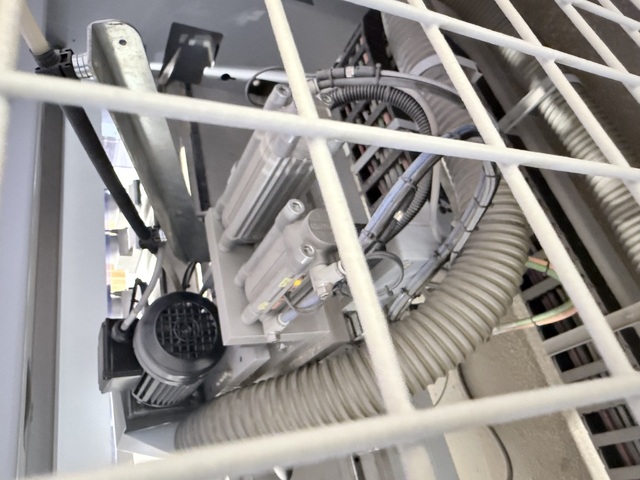

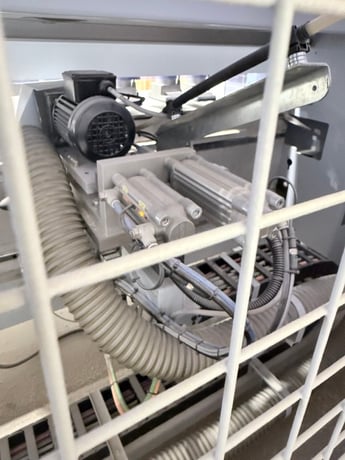

Horizontal drilling aggregate; (1) spindle, 7,500 rpm

Standard dowel dimensions; 8 x 30 mm / 8 x 35 mm

Drill shank diameter ; 10 mm

Total length of drill bit; 70 mm
