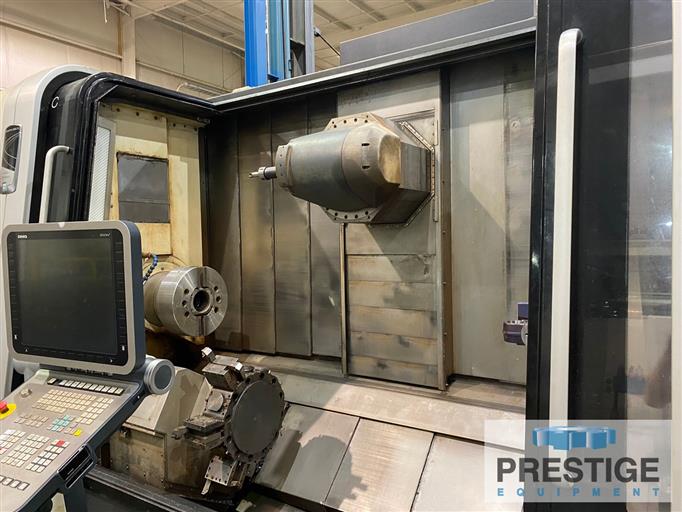

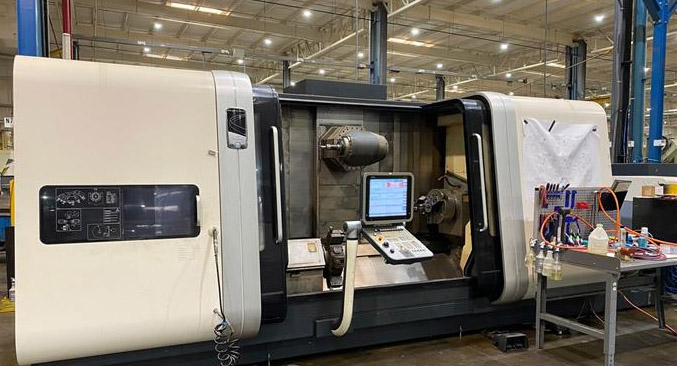

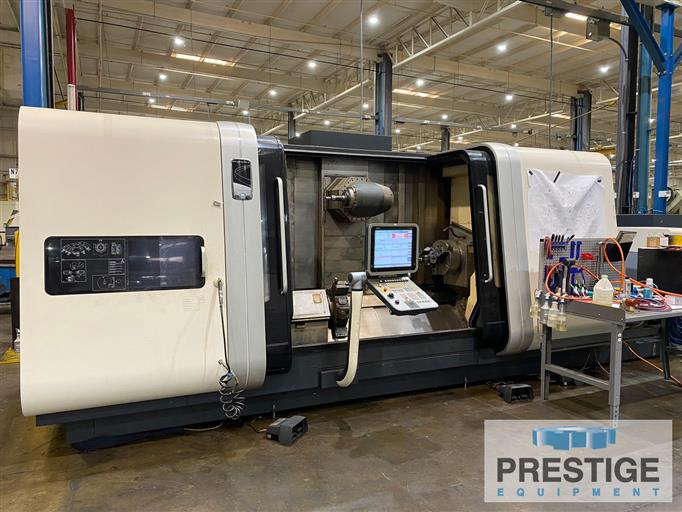

Dmg Mori Mori #CTX-Gamma-2000TC, Siemens 840D, 27.6" swing x 78" centers, 36 ATC, 70 HP, 1000 psi, 2012, #32247

  Play Video

CAPACITY:
Maximum Workpiece Diameter: 27.6"
Maximum Workpiece Length: 78.74"
Maximum Bar Capacity: 4.1"
X1 Travel: 25.59"
Y1 Travel: +/-7.87"
Z1 Travel: 80.70"
Z2 Travel: 75.19"
Z3 Travel: 75.19"
B-Axis: +/- 0.001 Degrees

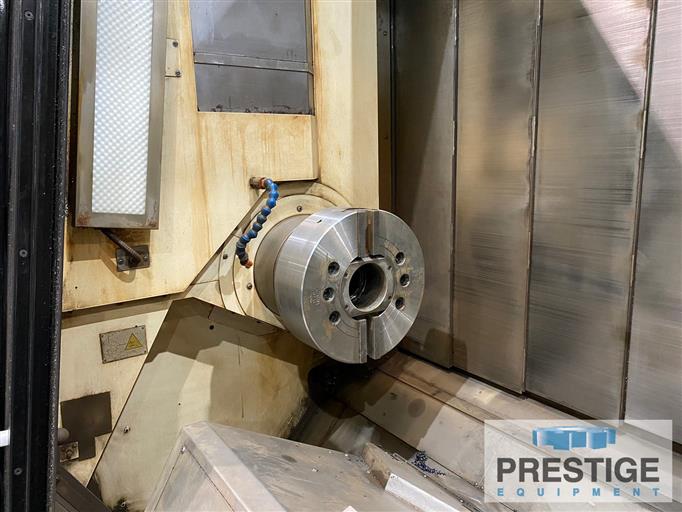

MAIN SPINDLE:
Chuck Size: 20"
Maximum Speed: 2,500 RPM
Motor Output (30 minute rating): 70 HP

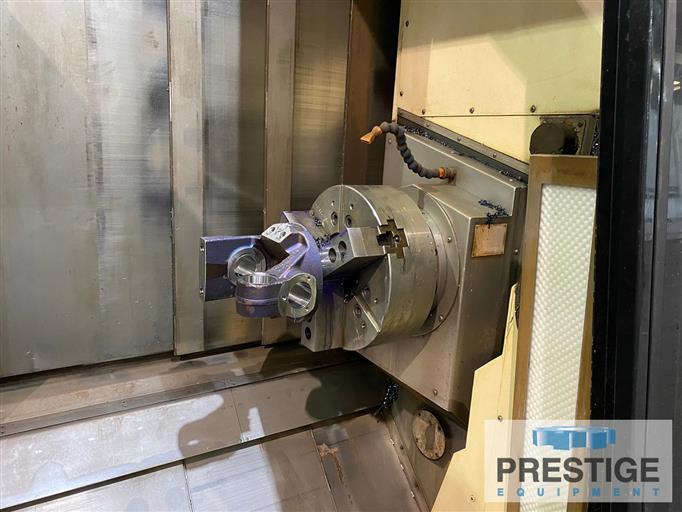

SECOND SPINDLE:
Chuck Size: 13"
Maximum Speed: 4,000 RPM
Motor Output (30 minute rating): 61 HP

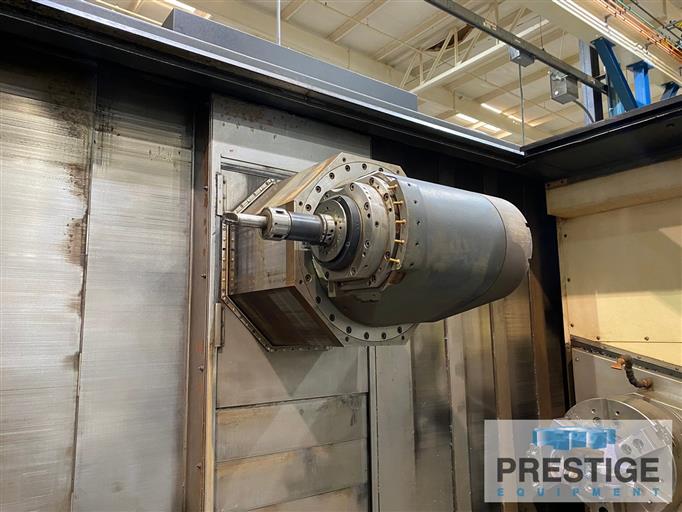

MILLING SPINDLE:
B-Axis Travel: 240 Degrees
Tool Magazine: 36 ATC
Tooling: HSK63
Maximum Speed: 8,000 RPM
Motor Output: 43 HP
Approximate Dimensions: 299" x 166" x 100"
Approximate Weight: 52,910
Equipped With:

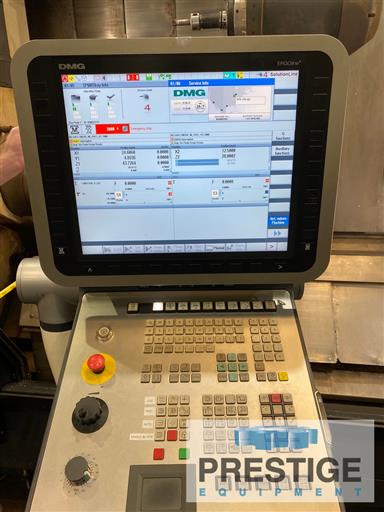

Siemens 840D CNC Control
Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle

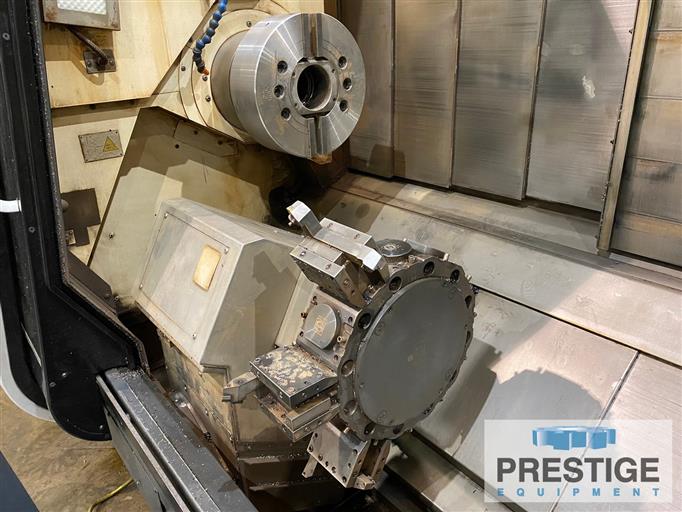

Lower Turret
High Pressure Coolant System

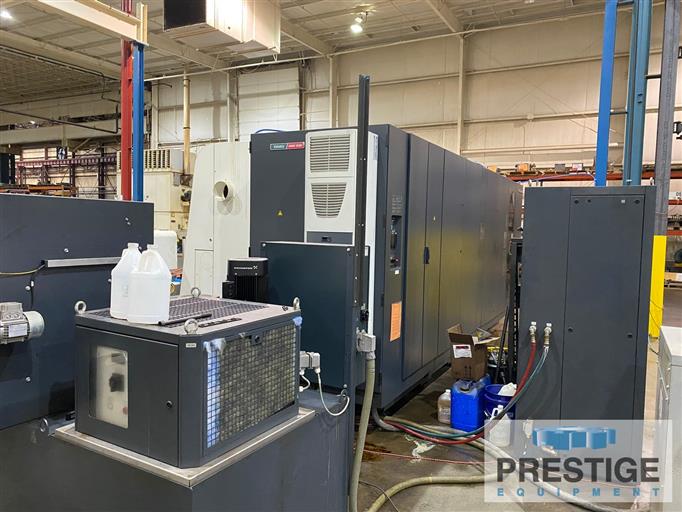

Factory Coolant Chiller
Dual CTS 300 PSI & 1000 PSI Pumps
Balanced Pressure Clamping for Main and Sub-Spindles
Flushing of Chucks, Steady Rest, Way Covers
Chiller System, Cooling of the Milling/Turning Spindle and Counter Spindles
Sub Spindle as Tailstock Option with Programmable Movement and Force
36 Station Automatic Tool Changer
Automatic Cabin Doors
Chip Conveyor
Tooling
NOTE:
Machine in Plant Under Power. Was used for 5-Axis Machining of Prototype Parts
Features:
Siemens 840D CNC Control
Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle
Lower Turret
36 Station Automatic Tool Changer
Tooling
