Manufacturer: Mori Seiki
Model: NT-4250DCG/1500SZM
Year: 2006
Swing: 28.7
Chuck: 10
Bar Capacity: 3.1
Centers: 73.3
Stock # 10140
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Mike Oracko
224-53...> Show Seller's Phone Number 224-537-0982 Let the seller know you found their listing on Surplus Record!
Description

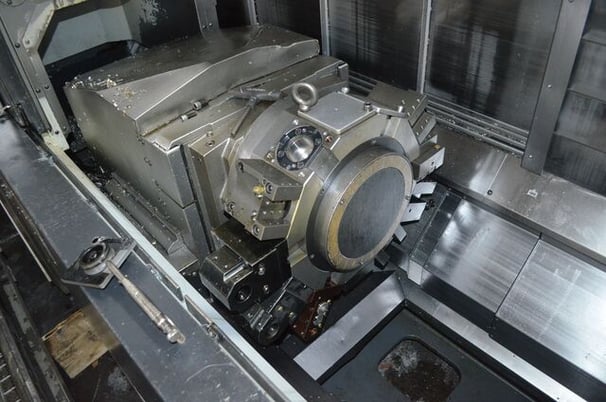

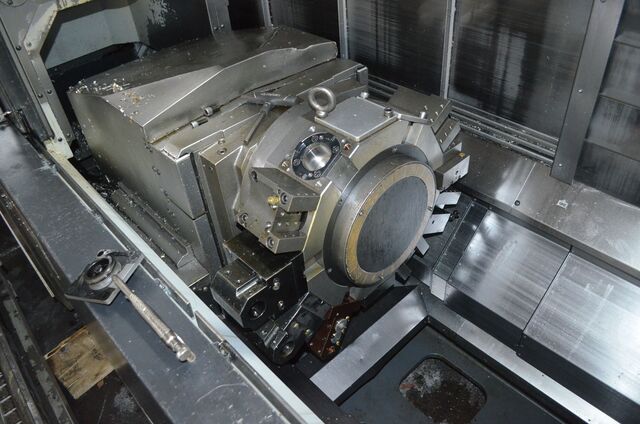

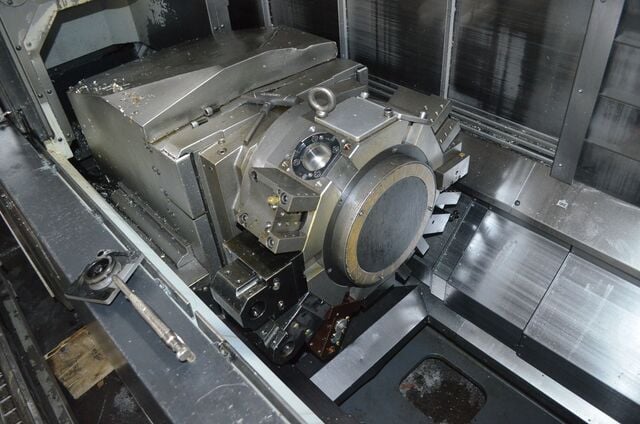

2006 MORI SEIKI NT 4250 DCG/1500SZM CNC multitasking turning center, featuring Y-Axis, 5-axis control, 28.7" swing, 60.7" turning length, dual 30 hp spindles at 4,000 RPM. Equipped with MSX-711 III control, MAPPS III conversational programming, and Renishaw probing system.
2006 MORI SEIKI NT 4250 DCG / SZM
SPECIFICATIONS:
Swing Over Bed......................... 28.7"
Turning Length......................... 60.7"
Distance Between Spindles.............. 73.3"
Chuck Size 1........................... 10"
Spindle Nose 1......................... A2 - 8
Spindle Bore Diameter 1................ 3.6"
Bar Capacity 1......................... 3.1"
Spindle Speeds 1....................... 4,000 RPM
Spindle Horsepower 1................... 30 hp
Chuck Size 2........................... 10"
Spindle Nose 2......................... A2 - 8
Spindle Bore Diameter 2................ 3.6"
Bar Capacity 2......................... 3.1"
Spindle Speeds 2....................... 4,000 RPM
Spindle Horsepower 2................... 30 hp
B - Axis Head Travel................... = _ 120 DEGREES
B - Axis Head Indexing................. 0.0001
B - Axis Milling Spindle Taper......... CAPTO C6
B - Axis Milling Spindle Speed......... 12,000 RPM
B - Axis Milling Spindle Horse Power... 25 hp
ATC For Milling Spindle................ 40
Tool Diameter.......................... 2.7", 5.5"
Tool Length............................ 15.7"
Tool Weight............................ 17.6 lb
X1 - Axis Travel....................... 29.5"
X2 - Axis Travel....................... 7.7"
Z1 - Axis Travel....................... 68.3"
Z2 - Axis Travel....................... 60"
Y1 - Axis Travel....................... 16.6"
C - Axis Indexing 1.................... 0.0001
C - Axis Indexing 2.................... 0.0001
Rapid Traverse Rate - X1............... 1968 ipm
Rapid Traverse Rate - X2............... 1181 ipm
Rapid Traverse Rate - Z1............... 1968 ipm
Rapid Traverse Rate - Z2............... 1181 ipm
Rapid Traverse Rate - Y1............... 1181 ipm
Turret Tool Positions 1................ 12 station
Turret Rotary Tool Speeds 1............ 6,000 RPM
Turret Rotary Tool Horse Power 1....... 7.5 hp
Machine Weight......................... 56,320 lb
Control................................ CNC (MORI SEIKI MSX - 711 III CNC COLOR CONTROL)
Weight................................. 35000.00
EQUIPPED WITH:
MORI MSX-711 III CNC COLOR CONTROL CONTROL
MAPPS III CONVERSATIONAL PROGRAMMING
MANUAL PULSE GENERATOR
TOOL PRE SETTER
RENISHAW WORKPIECE MEASURING SYSTEM
ROYAL MIST COLLECTOR
COOL JET HIGH PRESSURE COOLANT THROUGH SPINDLE
4 EXTERNAL M-CODES
COORDINATE SYSTEM ROTATION
SUB TURRET WITH MILLING SPINDLE
5-AXIS SIMULTANEOUS CONTROL
B-AXIS .0001 DEGREE POSITONING / FULL CONTOURING
(2) 10 3 JAW HYDRAULIC CHUCKS
(2) NEW 12" CHUCK 3 JAW HYDRAULIC CHUCKS
2006 MORI SEIKI NT 4250 DCG / SZM
SPECIFICATIONS:
Swing Over Bed......................... 28.7"
Turning Length......................... 60.7"
Distance Between Spindles.............. 73.3"
Chuck Size 1........................... 10"
Spindle Nose 1......................... A2 - 8
Spindle Bore Diameter 1................ 3.6"
Bar Capacity 1......................... 3.1"
Spindle Speeds 1....................... 4,000 RPM
Spindle Horsepower 1................... 30 hp
Chuck Size 2........................... 10"
Spindle Nose 2......................... A2 - 8
Spindle Bore Diameter 2................ 3.6"
Bar Capacity 2......................... 3.1"
Spindle Speeds 2....................... 4,000 RPM
Spindle Horsepower 2................... 30 hp
B - Axis Head Travel................... = _ 120 DEGREES
B - Axis Head Indexing................. 0.0001
B - Axis Milling Spindle Taper......... CAPTO C6
B - Axis Milling Spindle Speed......... 12,000 RPM
B - Axis Milling Spindle Horse Power... 25 hp
ATC For Milling Spindle................ 40
Tool Diameter.......................... 2.7", 5.5"
Tool Length............................ 15.7"
Tool Weight............................ 17.6 lb
X1 - Axis Travel....................... 29.5"
X2 - Axis Travel....................... 7.7"
Z1 - Axis Travel....................... 68.3"
Z2 - Axis Travel....................... 60"
Y1 - Axis Travel....................... 16.6"
C - Axis Indexing 1.................... 0.0001
C - Axis Indexing 2.................... 0.0001
Rapid Traverse Rate - X1............... 1968 ipm
Rapid Traverse Rate - X2............... 1181 ipm
Rapid Traverse Rate - Z1............... 1968 ipm
Rapid Traverse Rate - Z2............... 1181 ipm
Rapid Traverse Rate - Y1............... 1181 ipm
Turret Tool Positions 1................ 12 station
Turret Rotary Tool Speeds 1............ 6,000 RPM
Turret Rotary Tool Horse Power 1....... 7.5 hp
Machine Weight......................... 56,320 lb
Control................................ CNC (MORI SEIKI MSX - 711 III CNC COLOR CONTROL)
Weight................................. 35000.00
EQUIPPED WITH:
MORI MSX-711 III CNC COLOR CONTROL CONTROL
MAPPS III CONVERSATIONAL PROGRAMMING
MANUAL PULSE GENERATOR
TOOL PRE SETTER
RENISHAW WORKPIECE MEASURING SYSTEM
ROYAL MIST COLLECTOR
COOL JET HIGH PRESSURE COOLANT THROUGH SPINDLE
4 EXTERNAL M-CODES
COORDINATE SYSTEM ROTATION
SUB TURRET WITH MILLING SPINDLE
5-AXIS SIMULTANEOUS CONTROL
B-AXIS .0001 DEGREE POSITONING / FULL CONTOURING
(2) 10 3 JAW HYDRAULIC CHUCKS
(2) NEW 12" CHUCK 3 JAW HYDRAULIC CHUCKS
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed …

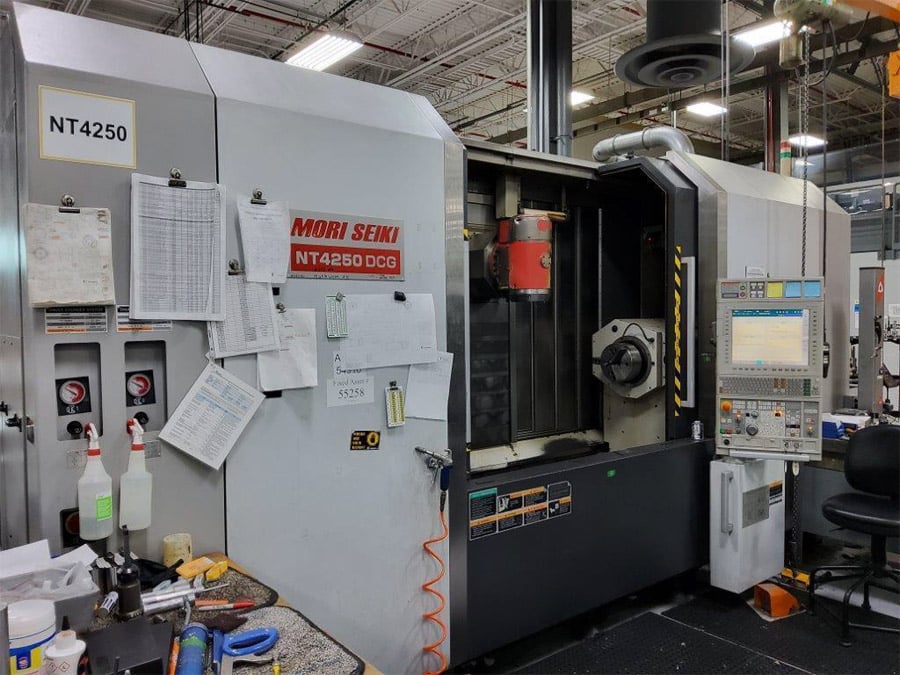

Mori Seiki #NT-4250DCG/1500SZ, CNC multi-axis turning center, Moric MSX-711III Control, 28.7" swing, 73.3" centers, 3.1" bar, 10" chuck, 2006
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Mori Seiki
Model: NT-4250DCG/1500SZ
Year: 2006
Mori Seiki NT-4250DCG /1500SZ CNC Multi-Axis Turning Center (subject to buyer verification):CapacityMax Swing of Workpiece28.7”Swing Over Cross Slide28.7” / 15.7” Turret 2Max. Distance Between Centers73.3”Max. Turning Diameter25.9” / Turret 2: 13.7”Max Turning Length60.7”Car ...more
JUST ADDED!

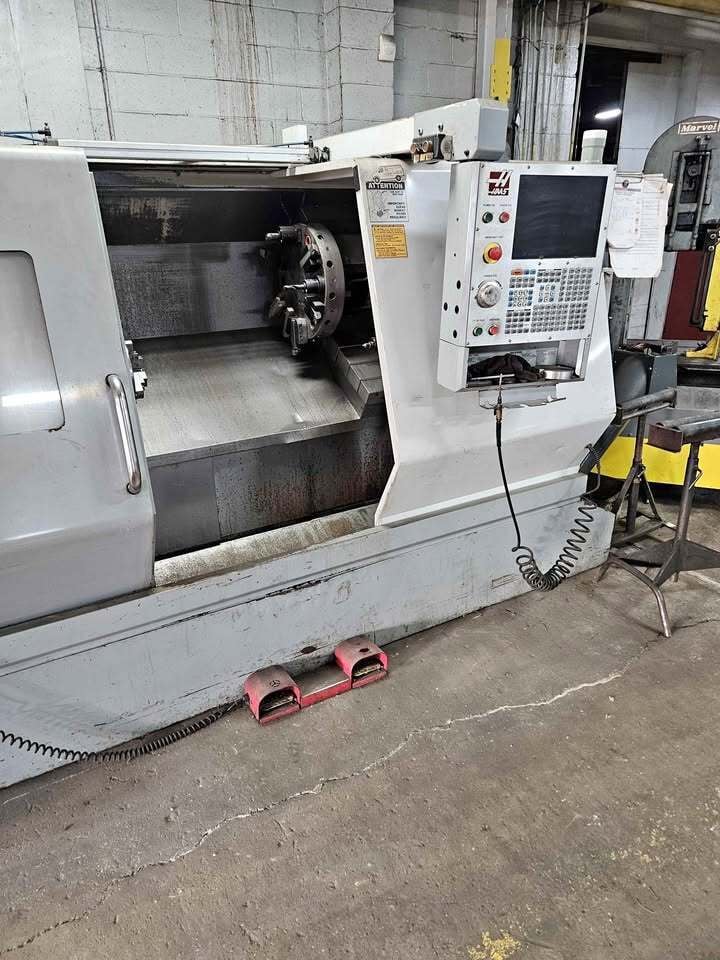

Haas #SL-30, CNC turning center, 30" swing, 10" chuck, 3-jaw, 3" bar, 14.5" dia., 34" lgth, 12 turret, 3400 RPM, 30 HP, 2000
Category: CNC Lathes and Turning Centers
Seller: ACT Machinery
Location: Fullerton, CA
Mfr: Haas
Model: SL-30
Year: 2000
, Spindle Max. Speed, 3400 rpm, Bar Capacity, 3", Spindle Motor, 30 HP, Max Swing, 30", Max Turning Length, 34", Max Turning Diameter, 14.5", Turret, 12 Station, Weight, 16,000 lb, Dimensions, 180" x 80" x 85", Haas SL30 CNC Turning Center Year 2000 10" 3 Jaw Chuck Chip Auger Chucker ...more
JUST ADDED!
Daewoo Doosan #Puma-2600SYII, CNC lathe, 30.7" swing, 10" chuck, 3-jaw, 3.2" bar, 14.8" dia., 29.9" lgth, Fanuc I, sub spindle, C-Axis, Y-Axis, live tooling, 2021
Category: CNC Lathes and Turning Centers
Seller: MachineStation
Location: Lake Elsinore, CA
Mfr: Daewoo Doosan
Model: PUMA-2600SYII
Year: 2021
Disclaimer: All and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all prior to purchase. Accessories shown are included only if listed on the invoice., Equipment is sold AS-IS, WHERE-IS. All sales are final., s:, Doosan-Fanuc i-Plus Series CNC Control, 2,513 ...more
JUST ADDED!
Mazak #Quick-Turn-Nexus-250-II, CNC Lathe, 2-Axis, 26.5" Swing, 22.7" Machining length, 10" Chuck, 3" Bar, 35 HP, 4000 RPM, tailstock, 2007
Category: CNC Lathes and Turning Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Mazak
Model: QUICK TURN NEXUS 250-II
Year: 2007
2007 MAZAK QUICK TURN NEXUS 250-II CNC Lathe. 26.5" swing, 22.7" machining length, 2-axis, and 10" chuck. s automatic tool eye and chip conveyor. Powered by 35 hp, max RPM of 4,000. Tailstock included, no live tooling or sub spindle., 2007 MAZAK QUICK TURN NEXUS 250-II, Swing. 26.5", Machining Length. 22.7", # Axis. ...more

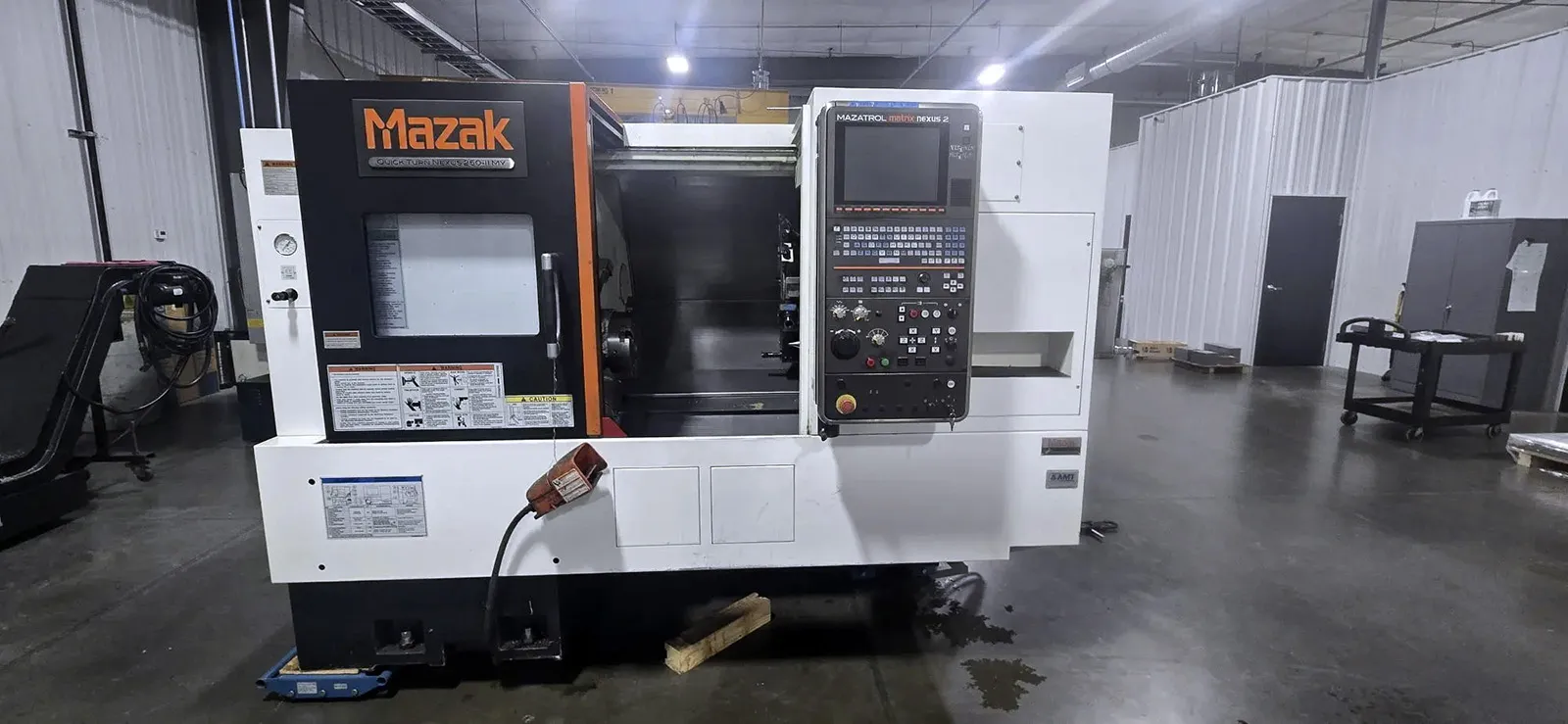

Mazak #QTN-250MSY, multi spindle lathe, 26.5" swing, 10" chuck, 3" bar, 21.2" centers, tool presetter, Mazatrol Matrix Nexus, LNS MOVE S-2 bar feeder, 2011
