8 Results
Featured

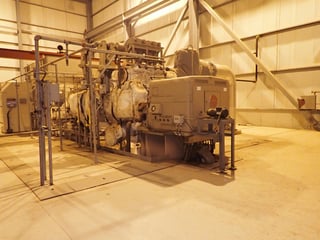

40000 KW General Electric Steam Turbine Generator
BMI Group | Tillsonburg, ON
Category: Steam Turbine With Generators
Seller: BMI Group
Location: Prince Albert, SK
Mfr: General Electric
Installed in the late 1990's, Lightly used, ~ 6 years, This turbine is a modern axial singe extraction backpressure GE turbine generator, The name plate capacity is 40.8 MW, The turbine admission steam comes directly from a recovery boiler, The unit was overhauled the year before the mill was shut down in 2006 ...more
JUST ADDED!
8500 KW Shin-Nippon, Back Pressure Steam Generator
BMI Group | Tillsonburg, ON
Category: Steam Turbine With Generators
Seller: BMI Group
Location: Thorold, ON
Mfr: Shin-Nippon
Year: 2008
1-1. Type of Steam Turbine :, Type:, Horizontal, impulse, multi-stage, multi-valve, axial flow, back pressure, non-extraction & geared, (UPPER EXHAUST TYPE), Manufacturer’s model No.:, B6-R3-R, 1-2. Output :, Rated output, (at generator terminal):, 8,500 kW, 1-3. Operating Conditions :, Speed ...more
16 MW MAN Turbo #MARC4-B00, Steam Turbine Generator Assembly
Aaron Equipment Co | Schaumburg, IL
Category: Steam Turbine With Generators
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Man Turbo
used- man turbo 16 mw steam turbine generator assembly, model marc4-b00. 12,000 - 26,800 hp. maximum flange diameter, live steam up to 250 mm, exhaust up to 1,500 mm. maximum live steam conditions, 120 bar(a) / 520 degree c, 1,740 psi(a) / 968 degree f. 7,000 - 10,000 rpm. includes: jeumont electric generator, model ...more
JUST ADDED!
40000 KW General Electric Steam Turbine Generator
BMI Group | Tillsonburg, ON
Category: Steam Turbine With Generators
Seller: BMI Group
Location: Prince Albert, SK
Mfr: General Electric
Installed in the late 1990's, Lightly used, ~ 6 years, This turbine is a modern axial singe extraction backpressure GE turbine generator, The name plate capacity is 40.8 MW, The turbine admission steam comes directly from a recovery boiler, The unit was overhauled the year before the mill was shut down in 2006 ...more
40554 KW Man #DK080/250R, Diesel Steam Turbine, 97/101 bar Inlet, 977/995 F temp., 4648 RPM, 13993 hours, 2018
Aaron Equipment Co | Schaumburg, IL
Category: Steam Turbine With Generators
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Year: 2018
man diesel & turbo se model dk080/250r diesel steam turbine 40554 kw; speed 4648 rpm; inlet pressure normal/max 97/101 bar, (normal/max 1455/1515 psi). inlet temperature normal/max 525/535 ?; (normal/max 977/995 f). includes htac extractor, sulter dalian condensate pump, and additional infrastructure. new year ...more
450 MW Hitachi #TC4F-26, Steam Turbine Generator, unused
Aaron Equipment Co | Schaumburg, IL
Category: Steam Turbine With Generators
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Hitachi
unused - 450mw hitachi tc4f-26 steam turbine generator. nominal rating 400mw. max continuous rating 450mw, type tc4r-26, 2,400psig, 1,000f, reheat steam 1,000f, exhaust pressure 2.5 inch hg. abs., 3,600rpm, 7 extractions, number of stages: hp 6, ip 4, lp 7x four flow, last stage bucket height 26in., governor type: fly ...more
Get email updates for newly added Steam Turbine With Generators
Steam Turbines with Generators (also known as steam turbine generator sets or STGs) are integrated systems that use steam to drive a turbine, which powers a generator to produce electricity. Commonly used in industries like power generation, chemical processing, and manufacturing, these systems offer reliable energy conversion and efficient use of steam from boilers or other sources. Steam turbine generators are essential for large-scale power production and industrial cogeneration applications.
22670 KW Stal-Laval, dual generator radial single extraction backpressure turbine
BMI Group | Tillsonburg, ON
Category: Steam Turbine With Generators
Seller: BMI Group
Location: Prince Albert, SK
Mfr: Stal-Laval
Year: 1968
Installed in 1968, operated until 2006 (38 years) Major Overhaul in 2011 Ran for another 14 months (2012 -2013) Out of operation since ~2013 Potentially 370,000 hours on this turbine Inlet pressure 600 psig / 42,4 bar(a) Inlet temperature 750°F / 398,9°C Inlet flow 600 klb/h / 272 t/hr Extraction flow 175 ...more
Steris Finn Aqua #1500-S-1, Pure Steam Generator, single still with pump
TNT Industrial | Orange, CA
Category: Steam Turbine With Generators
Seller: TNT Industrial
Location: Orange, CA
Mfr: Steris
STERIS Finn Aqua Pure Steam Generator, Model 1500-S-1. Single still with pump. Upon reaching the bottom of the column, the evaporated part of the feed water continues vertically up the riser space of the column and around spiral shaped guides..
Triveni #TST-2100LR, Steam Turbine Generator, 9.8 MW, 1800 RPM, 57 tons/hr, unused, 2018
Aaron Equipment Co | Schaumburg, IL
Category: Steam Turbine With Generators
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Year: 2018
unused triveni steam turbine generator model tst-2100lr, 9.8 mw, 1800 rpm. 38.57 bar at 395 degrees c (743 degrees f.) inlet, 57 t/h. 0.288 bar at 68.2 degrees c (154.76 degrees f.) exhaust. 19.7 bar at 316.1 degrees c (600.98 degrees f.) bleed. 1800 rpm. built 2018.
