7 Results
50 Ton, Stamtec #OCP-45, C-Frame Press, 3.2" stroke, 33.5" x 14.2" bed, 130 SPM, 480 V., 2014
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: OCP-45
Year: 2014
CAPACITY 50 US TON STROKE 3.2″ MAX DIE HEIGHT 9.9″ SDAU OVER 3.5″ H BOLSTER BED AREA 33.5″ X 14.2″ (RL X FB) SPEED 65 – 130 SPM SLIDE ADJUSTMENT 2.4″ (MOTORIZED) SLIDE AREA 16.9″ RL X 13.8″ FB (T-SLOT) BOLSTER PLATE 3.5″ H X 33.5″ RL X 14.2″ FB ...more
66 Ton, Stamtec #G1-60H, 2.3" stroke, 13" die height, 2.95" slide adjustment, 35.43" x19.69" bolster, 2000
Wenco Machinery Corp | Ringwood, NJ
Seller: Wenco Machinery Corp
Location: Ringwood, NJ
Mfr: Stamtec
Model: G1-60H
Year: 2000
TONNAGE 60 METRIC (66 US), STROKE 2.36", DIE HEIGHT 13", SLIDE ADJUSTMENT 2.95", BOLSTER 35.43" X 19.69", WEIGHT APPROX 12,100 LBS, CONTROLS - NEW CIECO PPC1100R-4 OR WINTRISS - WPC1000 CONTROL, - ALL NEW PRESS CONTROL WIRING, - ALL NEW MOTOR CONTROLS.

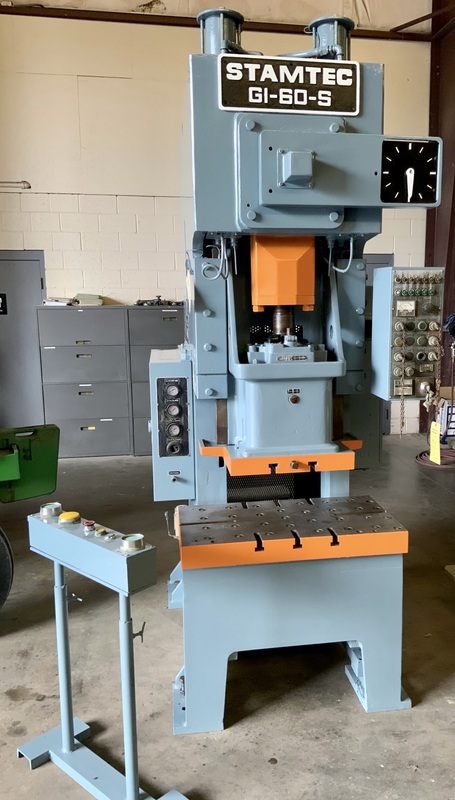

66 Ton, Stamtec #G1-60S, OBI press, 4.7" stroke, 11.8" Shut Height, 45-90 SPM, air clutch, 1988
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: G1-60S
Year: 1988
CAPACITY66 US TONS STROKE4.7" max die height11.8" sdau over 3.5" BOLSTER BED AREA35.4" X 15.8" (RL X FB) SPEED45 - 90 SPM slide adjustment2.95" MOTORIZED slide area19.7" X 15.8" (RL X FB) BOLSTER PLATE35.4" X 15.8" (RL X FB) X 3.5" HIGH DIST UPRIGHTS / FLOOR TO BED19" / 31.5" CLUTCHSTAMTEC AIR CLUTCH / BRAKE ...more

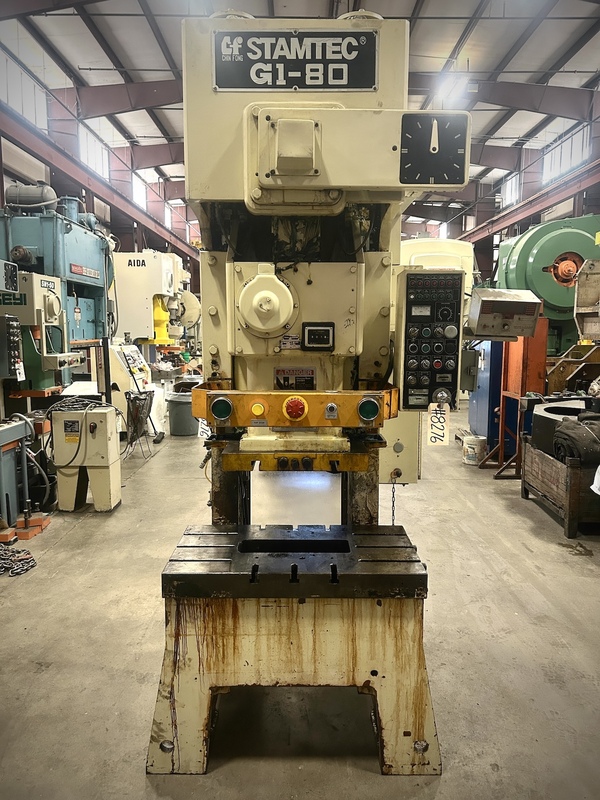

88 Ton, Stamtec #G1-80, Back Geared OBI Press, 2.8" stroke, 14.6" daylight, 80-120 SPM, 3.2" adj, 39.4" x 21.7" bed, 21" between housing, air clutch & brake, 1998
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: G1-80
Year: 1998
capacity88 us ton stroke2.8" max die height14.6" sdau over 4" H BOLSTER bed area39.4" x 21.7" (RL X FB) speed80 - 120 spm slide adjustment3.2" motorized slide area22.1" x 16.5" (RL X FB) t-slotted bolster plate39.4" x 21.7" (RL X FB) 4" THICK t-slotted distance between uprights21" distance floor to bed29" ...more

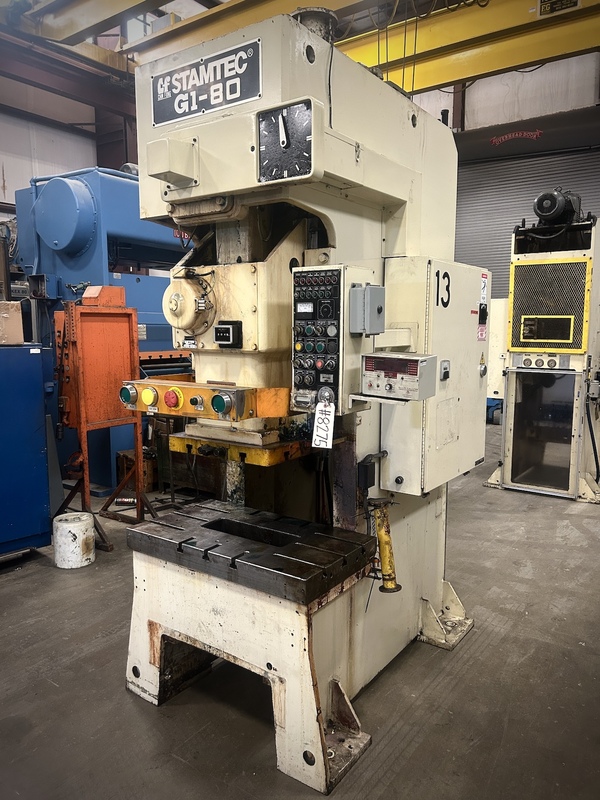

88 Ton, Stamtec #G1-80, Back Geared OBI Press, 2.8" stroke, 14.6" daylight, 50-120 SPM, 3.2" adj, 39.4" x 21.7" bed, 21" between housing, air clutch & brake, 2001
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: G1-80
Year: 2001
capacity88 us ton stroke2.8" max die height14.6" SDAU OVER 4" H BOLSTER bed area39.4" X 21.7" (RL X FB) speed50 - 120 SPM slide adjustment3.2" MOTORIZED slide area22.1" X 16.6" (RL X FB) T-SLOTTED bolster plate39.4" x 21.7" (RL X FB) 4" THICK t-slotted distance between uprights21" distance floor to bed29" shank hole ...more
Get email updates for newly added Single Cranked Back Gear OBI Press Machines
Single Cranked Back Gear OBI Press Machines (also known as single crank presses) are mechanical presses that use a single crank mechanism to apply force for stamping, punching, or forming metal parts. Commonly used in industries like automotive, manufacturing, and metalworking, they are ideal for high-precision, medium-force applications. These presses are essential for efficient production of components requiring consistent shaping and forming.
Featured
286 Ton, Stamtec #STD-260-380-125, Press, 7.9" stroke, 35.4" Shut Height, 159.6" x 49.2" tbl, 25 SPM, 141.7" BH, 1995
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: STD-260-380-125
Year: 1995
CAPACITY286 TONS STROKE7.9" max die height25.6" sdau over 7.1" bolster SLIDE ADJUSTMENT5.9" motorized BED AREA129.9" X 49.2" (RL X FB) SLIDE AREA124" X 49.2" (RL X FB) t-slotted BOLSTER SIZE7.1" x 129.9" X 49.2" (th x RL X FB) t-slotted SPEED25 SPM WINDOW SIZE35.5" wIDE x 27.5" hIGH FLOOR TO BED HEIGHT52.4" without ...more
286 Ton, Stamtec #STD-260-380-125, Press, 7.9" stroke, 35.4" Shut Height, 159.6" x 49.2"tbl, 25 SPM, 141.7"BH
Alma Machinery Co-Columbia TN | Columbia, TN
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Stamtec
Model: STD-260-380-125
CAPACITY286 TONS STROKE7.9" max die height35.4" SDAU over 7.1" bolster SLIDE ADJUSTMENT5.9" motorized BED AREA149.6" X 49.2" (RL X FB) SLIDE AREA141.7" X 49.2" (RL X FB) t-slotted BOLSTER SIZE7.1" x 149.6" X 49.2" (th x RL X FB) t-slotted SPEED25 SPM WINDOW SIZE35.5" wIDE x 27.5" hIGH FLOOR TO BED HEIGHT52.4" without ...more
