12 Results
4' x 12 gauge Webb #450, initial pinch type slip roll, 1.5 HP, 3 rolls, NEW
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Webb
Model: 450
Capacity 48" x 12 Gauge # Rolls 3 Power 1.5 horsepower Roll Diameter 4.25 inches Motor Voltage: 480/3/60 or 230/3/60 (Must specify when ordering), * Squirrel cage main drive * Motor with magnetic brake, * Overload and under-voltage protection on main drive motor, * Full length safety treadles across front and back of ...more
6' x 1/2" Webb #6L-CPR, initial plate rolls, 9" roll diameter, 3 rolls driven, rebuilt 2011, #75890
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Webb
Model: 6L-CPR
Year: 2011
SERIAL. 2011-RB5108, MODEL. 6L-CPR, REBUILT. 2011, CAPACITY. 1/2", LENGTH OF ROLLS. 78", DIMETER OF ROLLS. 9", FRONT ROLL ADJUSTMENT. POWER, REAR ROLL ADJUSTMENT. POWER, AIR DROP END. YES, ROLLS DRIVEN. 3, FORWARD & REVERSING. YES, ADJUSTMENT ROLLS MOTORS. 5, MAIN DRIVE MOTOR. 10, **** THIS IS A BARREL ROLING ...more
8' x 1/4" Webb #R3LR8008, plate bending rolls, 8" roll diameter, air drop end, forward/reverse, 1972
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Webb
Model: R3LR8008
Year: 1972
SERIAL. #12354, MODEL. R3LR8008, CAPACITY. 1/4", YEAR NEW. 1972, OVERALL LENGTH OF ROLLS. 98", DIAMETER OF ROLLS. 8", SPEED. 15 FPM, AIR DROP END. YES, FORWARD/REVERSE. YES, POWER REAR ROLL ADJUSTMENT. YES, FOOT BRAKE. YES, REAR ROLL ADJUSTMENT MOTOR. 5 HORSEPOWER, MAIN MOTOR HORSEPOWER. 7.5.
8' x 1/2" Webb #7L-1108, 11" roll, air drop end
Mid Atlantic Machinery | Harrisburg, PA
Seller: Mid Atlantic Machinery
Location: Harrisburg, PA
Mfr: Webb
Model: 7L-1108
8 ft. x 1/2” capacity.11” rollOptions or Upgrades, air drop end.

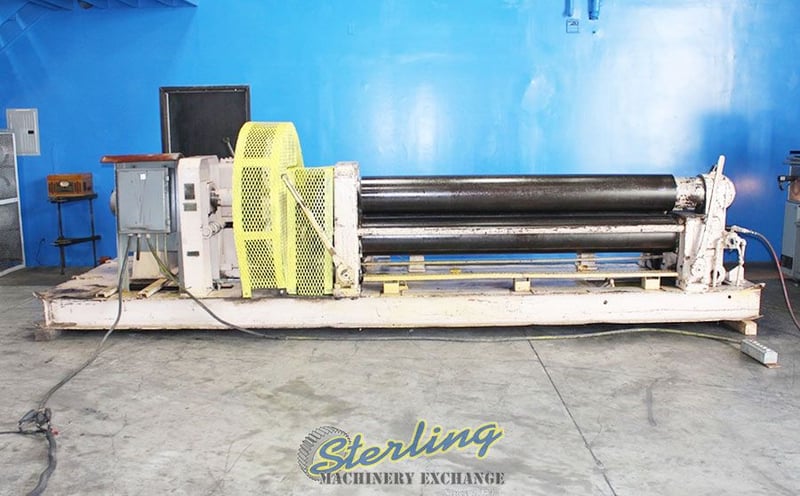

8' x 5/8" Webb #9L-1208, initial pinch power roll, 12" roll diameter, 6-12 FPM, air drop end, power rear roll adj.
Sterling Machinery Exchange | South El Monte, CA
Seller: Sterling Machinery Exchange
Location: South El Monte, CA
Mfr: Webb
Model: 9L-1208
Max. Forming Length 8' Roll Diameter 12" Rolling Speed (Variable) 6- 12 FPM Dimension (L x D x H) 232" x 85" x 78" Horsepower 20/ 7 1/2 s Power Rear Roll Adjustment Air Drop End.
Get email updates for newly added Initial and Double Pinch Plate Bending Rolls
Initial and double pinch plate bending rolls (also known as plate rollers) are machines used to bend metal sheets into cylindrical shapes. Initial pinch rolls feature two central rollers for gripping and one adjustable roller for bending, ideal for lighter materials. Double pinch rolls have two adjustable outer rollers, allowing for pre-bending on both edges, offering higher precision.

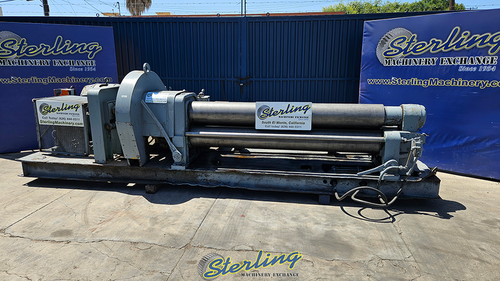

8' x 5/8" Webb #9L-1208, initial pinch power roll, 12" roll diameter, 6-12 FPM, air drop end, power rear roll adj., emergency foot pedal stop
Sterling Machinery Exchange | South El Monte, CA
Seller: Sterling Machinery Exchange
Location: South El Monte, CA
Mfr: Webb
Model: 9L-1208
Max. Forming Length 8' Roll Diameter 12" Rolling Speed (Variable) 6- 12 FPM Dimension (L x D x H) 232" x 85" x 78" WEIGHT 23,400 Lbs Horsepower 15 s Power Rear Roll Adjustment Air Drop End Emergency Foot Pedal Stop Remote Hand Pendant Control Horsepower: 15.

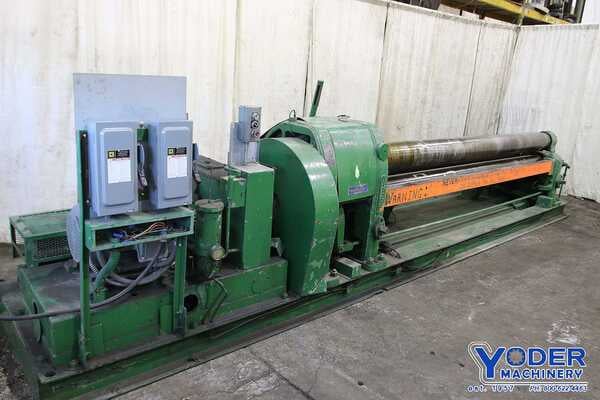

10' x 1/4" Webb #6L, initial pinch plate roll, 9" roll diameter, 15 FPM, air drop end, #70511
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Webb
Model: 6L
SERIAL. 5162, MODEL. 6L, CAPACITY. 10' X 1/4", LENGTH OF ROLLS. 10'2", DIAMETER OF ROLLS. 9", ROLL SPEEDS. 15 FPM, PINCH ROLL ADJUSTMENT. MANUAL, MOTORIZED REAR ROLL ADJUSTMENT. YES, AIR DROP END. YES, REAR ADJUSTMENT MOTOR. 5 HORSEPOWER, MAIN MOTOR. 10 HORSEPOWER.
10' x 1/2" Webb #9L-1210, mechanical plate roll, initial pinch type, 12" roll diameter, 15 HP
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Webb
Model: 9L-1210
USED Plate Roll, Webb 9L-1210, Serial: 7201, Type: Mechanical, Capacity: 10' x 1/2", Diameter of rolls: 12", Initial Pinch Type, HP: 15, Weight: 26,450 lbs, Dimensions: 90" x 255" x 66".
10' x 1/2" Webb #9L-1210, 3-roll initial pinch plate roll, 12" roll diameter, 6-12 FPM, air drop end, powered rear roll adj.
Yoder Brothers Machinery | Toledo, OH
Seller: Yoder Brothers Machinery
Location: Toledo, OH
Mfr: Webb
Model: 9L-1210
SERIAL. 7689, MODEL. 9L-1210, CAPACITY. 1/2", LENGTH. 120", ROLL DIAMETER. 12", ROLLING SPEED. 6 TO 12 FPM, DROP END. AIR, REAR ROLL ADJUSTMENT. POWERED, CONROLS. YES, MOTOR. 15 HP.
10' x 1/2" Webb, mechanical plate roll, initital pinch type, 12" roll diameter, 20 HP
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Webb
USED Plate Roll, Webb, Serial: 8AA-30159, Type: Mechical, Capacity: 10" x 1/2", Diam. of Rolls: 12", Initial Pinch Type, HP: 20, Voltage: 440 | 3 Phase, Dimensions: 105" x 525" x 76".
10' x 3/4" Webb #15L-1510, Initial Pinch 3-roll Plate Rolling Machine, 15" roll diameter, 15 FPM, 1965, Used
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Webb
Model: 15L-1510
Year: 1965
CAPACITY (MILD STEEL) 10' X 3/4" LENGTH OF ROLLS 122 inches DIAMETER OF ROLLS 15 inches ROLLING SPEED 7.5 TO 15 FPM WEIGHT OF MACHINE (APPROX.) 63200 pounds, - 30 HP., 220/440/3/60 AC SLIP RING VARIABLE SPEED MAIN DRIVE MOTOR AND CONTROLLER., - 15 HP. MOTOR FOR REAR ROLL ADJUSTMENT AND CONTROLLER., - 3 HP. MOTOR ...more
JUST ADDED!
12' x 3/8" Webb #9L-12-12, 3" initial and double pinch plate bending roll, 12" roll diameter
SMF & Machine Tools Inc | Little Rock, AR
Seller: SMF & Machine Tools Inc
Location: Abilene, TX
Mfr: Webb
Model: 9L-12-12
12' 3/8'' Webb Model 9L-12-12, 3 Roll Initial Pinch Roll, 12'' Roll Diameter.
