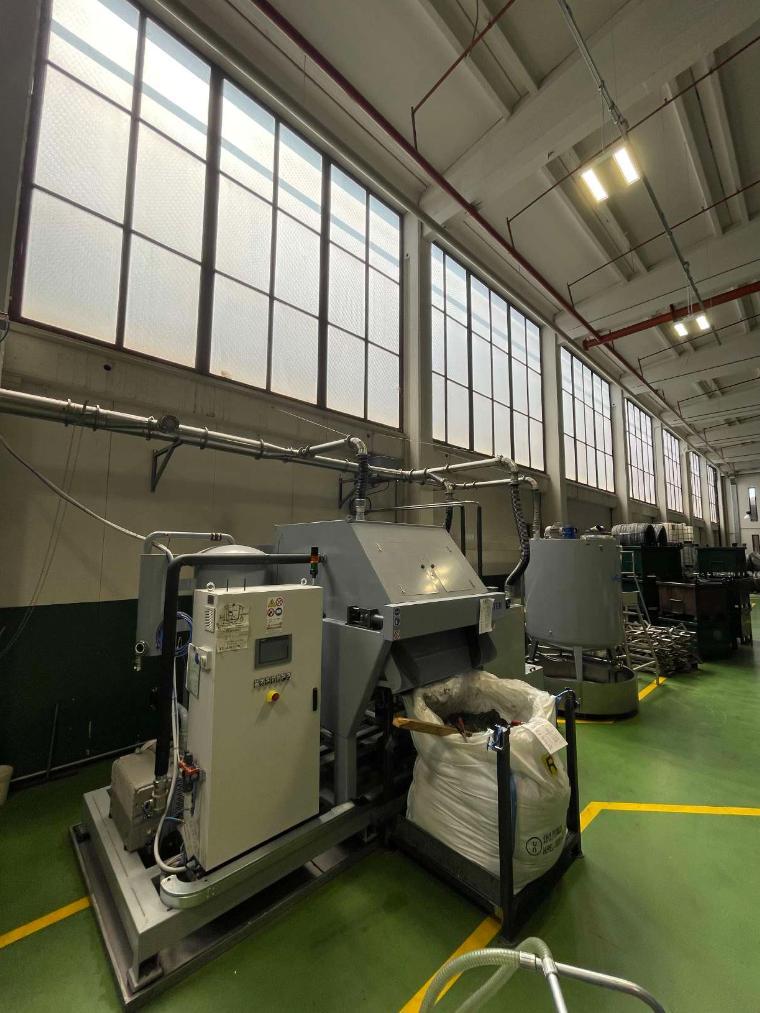

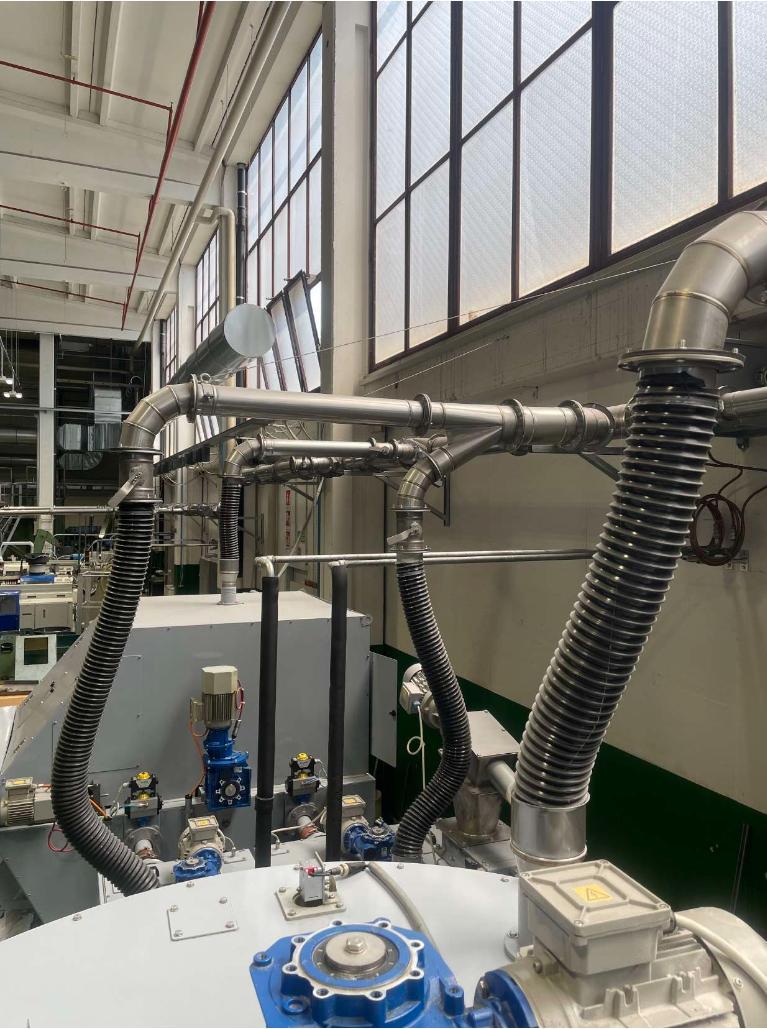

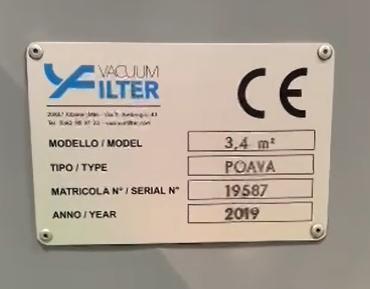

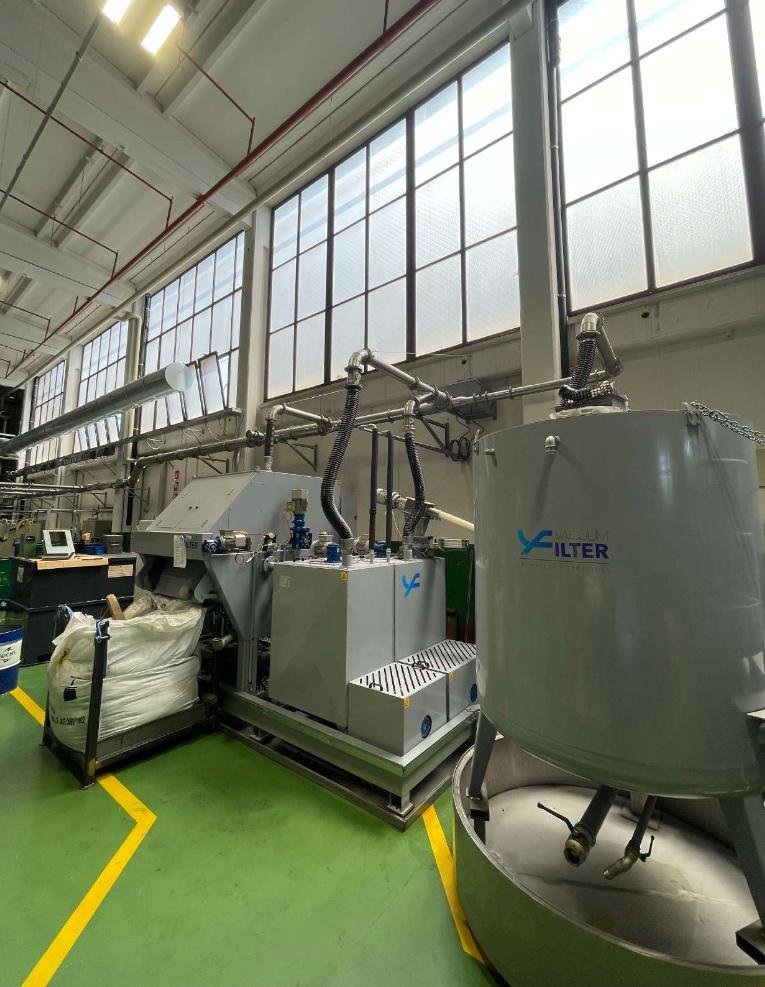

YF Vacuum Filter #3.4m, oil & coolant vacuum filtering syste, 36.6 sq.ft. filtration area, 47.2" drum diameter, 35.4" drum length, 30 oscillations/min., 2019

The Filter consists of:
Drum consisting of a horizontal cylindrical casing closed at both ends by flat bottoms and equipped with ribs and reinforcement rings. The drum is divided into sections, each of which is equipped with a pipe connecting to the support shaft, specifically designed to convey the filtrate to the extraction valve. The drum sections are delimited by special profiles that serve the dual purpose of securing the drainage grids and the filter cloth. The drum is equipped with drainage grids forming the filter surface, made of highly draining molded polypropylene.


One (1) Filter Receiver
One ( 1) Filtering Aid Preparation Tank
One (1) x Dirty Oil Preparation Tank
One (1) Volumetric Gear pump for Filter Extraction
One (1) Self Priming Pump for Internal Feeding
One (1) Self Priming Pump for Sludge Feeding
