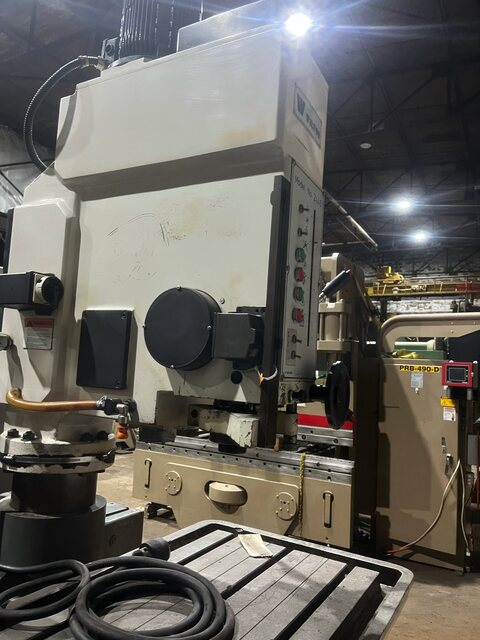

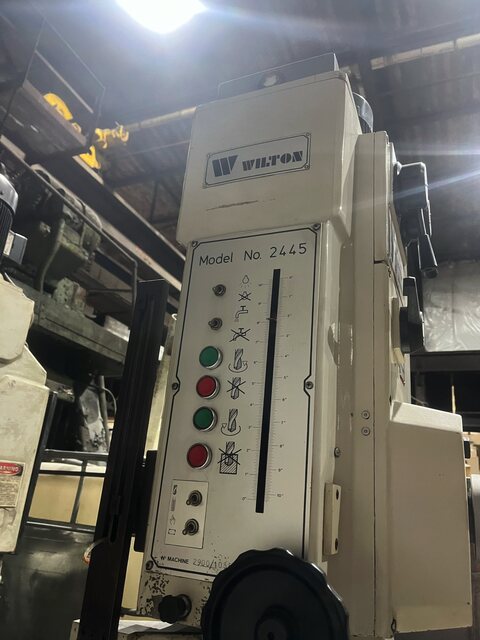

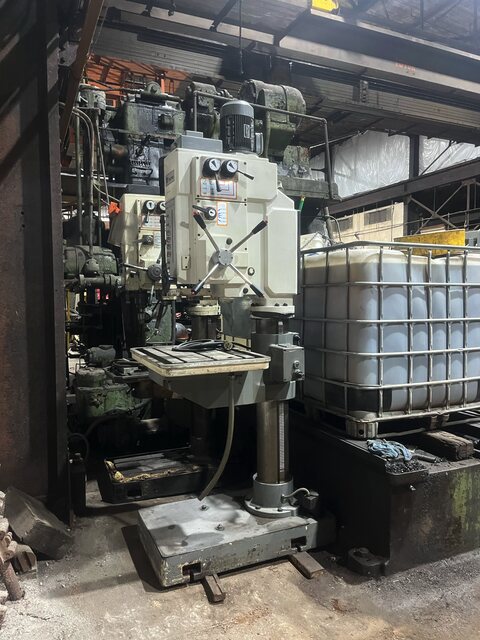

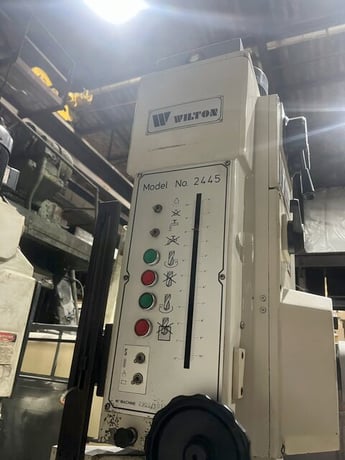

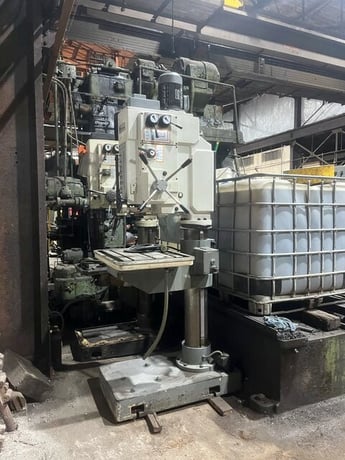

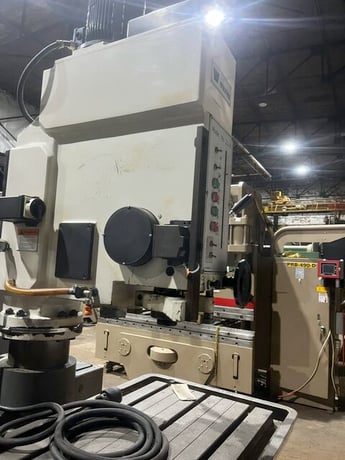

Wilton #2445V, direct drive gear head drill press, 30" swing, 4 HP, automatic tapping control

1)Pre Owned 30” Wilton Model 2445v Drect Drive Gear Head Drill Press

CATALOG SPECIFICATIONS:

Swing Diameter 30"

Drilling Capacity, Steel 2"

Tapping Capacity, Steel 1.75"

Spindle Travel, Power 10"

Spindle-Nose to Table, Maximum 30.5"

Spindle-Nose to Table, Minimum 2.75"

Spindle-Nose to Base, Maximum 50"

Spindle-Center to Column 15"

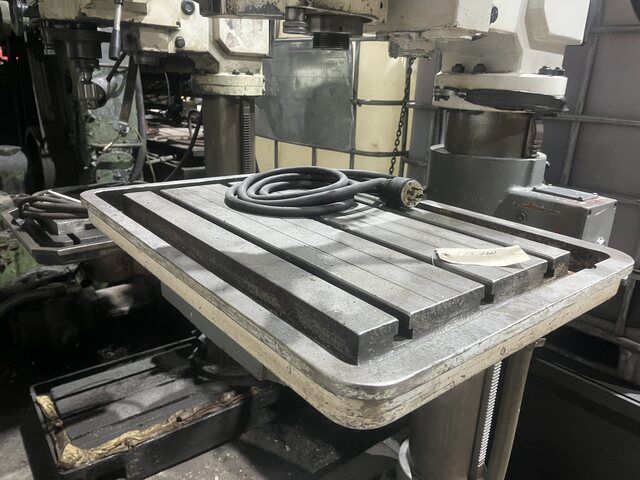

Table Working Surface, W x L 23.5" x 33.5"

Table Weight Capacity 575 LBS

Spindle Taper #4 MT

Quill Diameter 3.465"

(9) Spindle Speeds, Range 55 to 1338 RPM

(4) Spindle Feeds, Range .003 to .013 IPR

Spindle Motor Horsepower 4 HP

EQUIPPED WITH:

Power Feed Gear Box w/Electro-Magnetic Clutch

Direct Drive - Round Column

Automatic Tapping Control

Power Down-Feed to Spindle

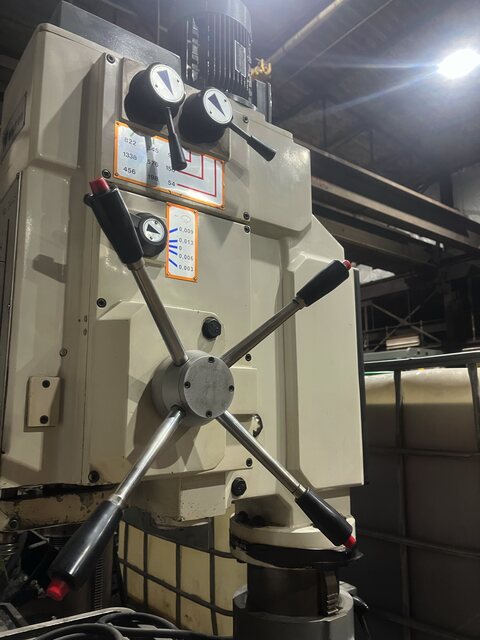

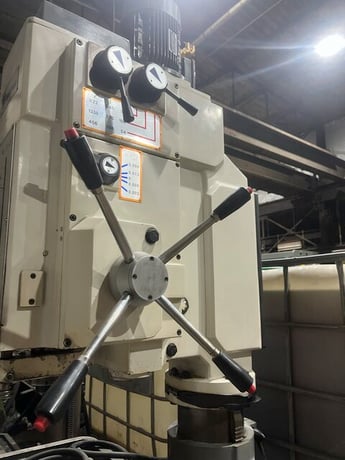

Hand Wheel For Fine Feed

Coolant System (Built-In Base)

Floor Space Required 4'5"L x 2'6"W

Overall Height 9'

Weight, Approximately 2450 LBS
