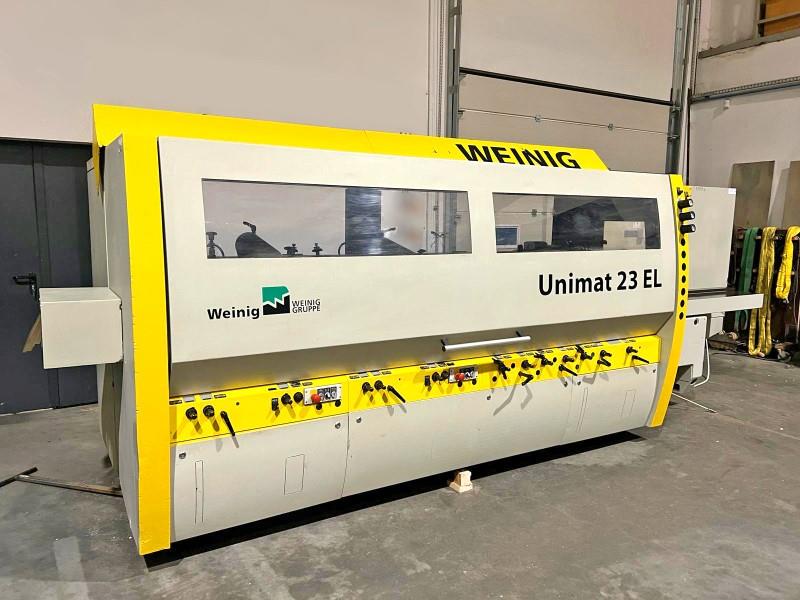

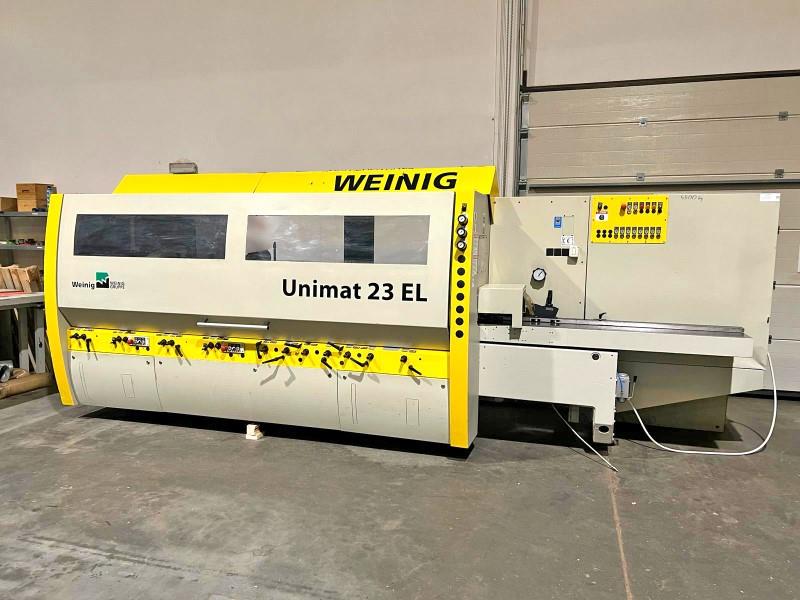

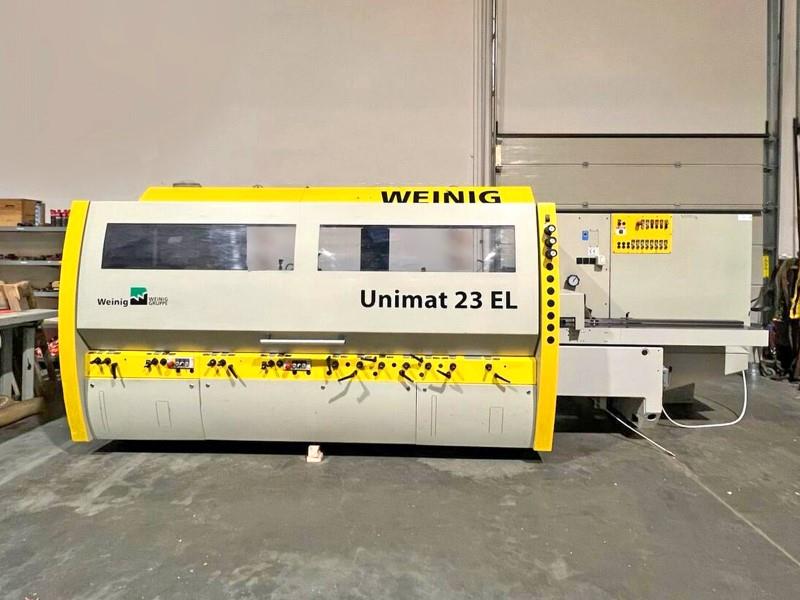

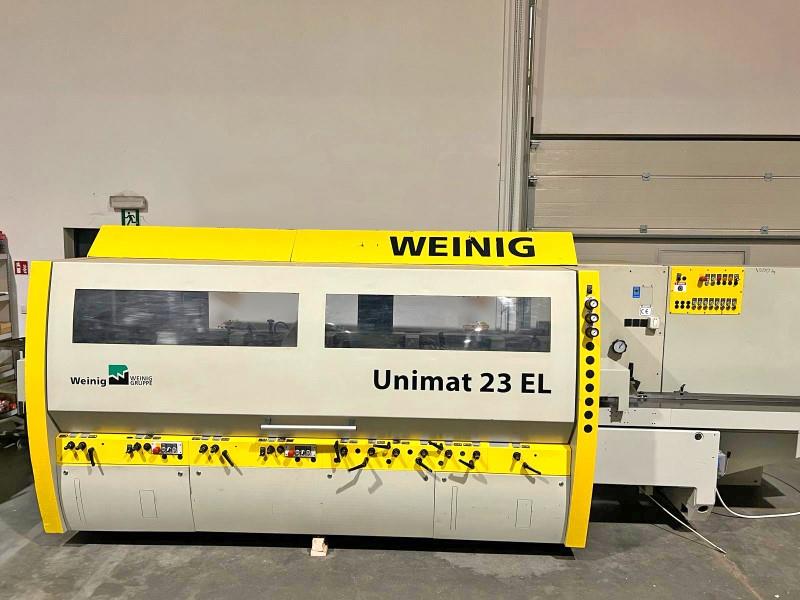

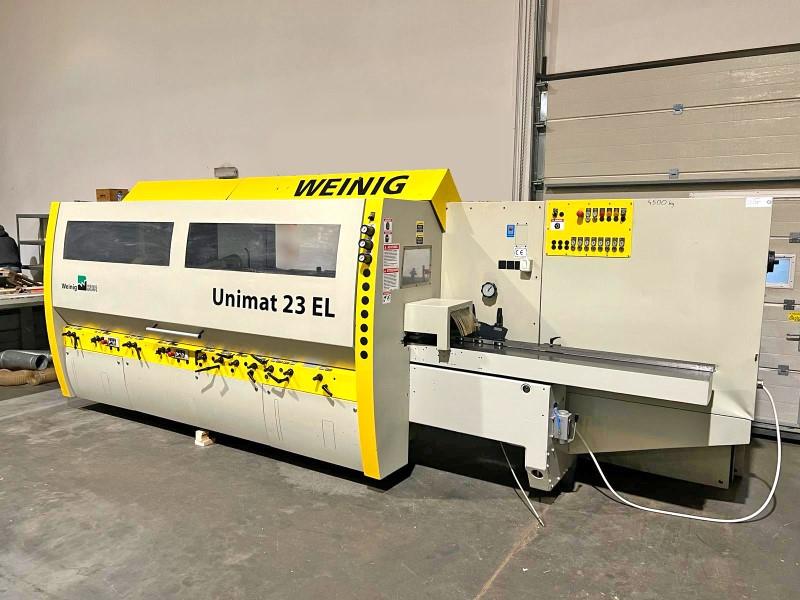

Weinig #Unimat-23-EL, feed through moulder, 8-head, 9-1/16" x 6-5/16" capacity, digital read out, 2003

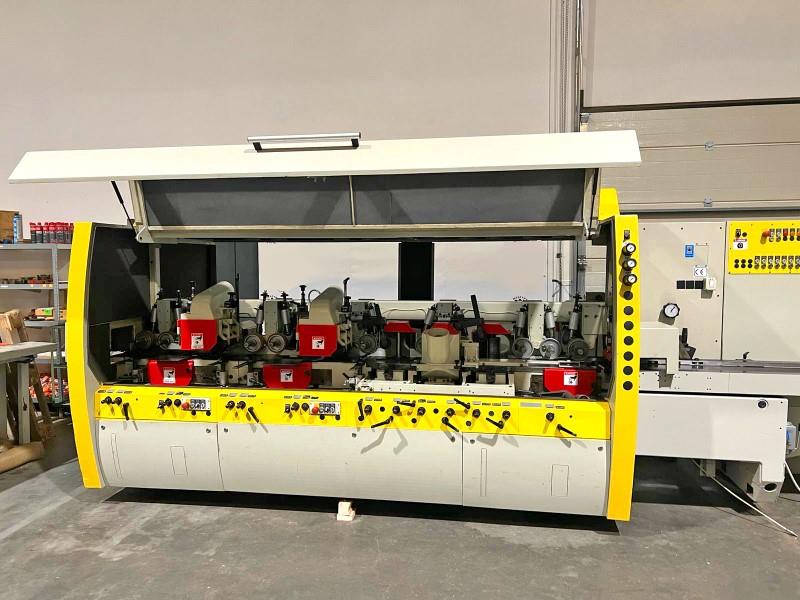

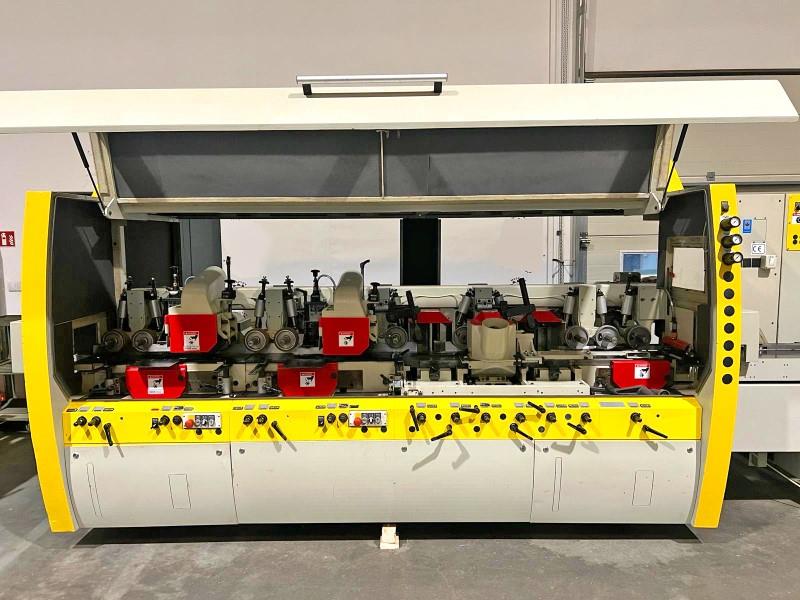

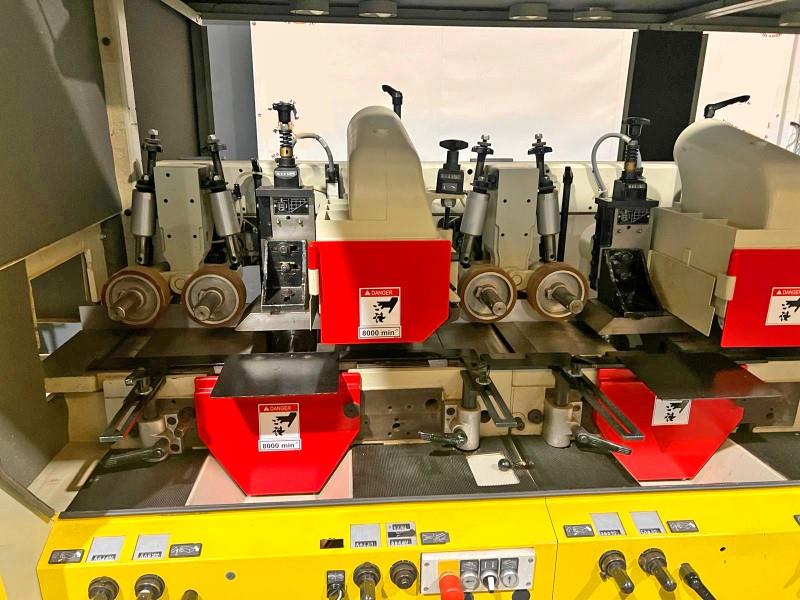

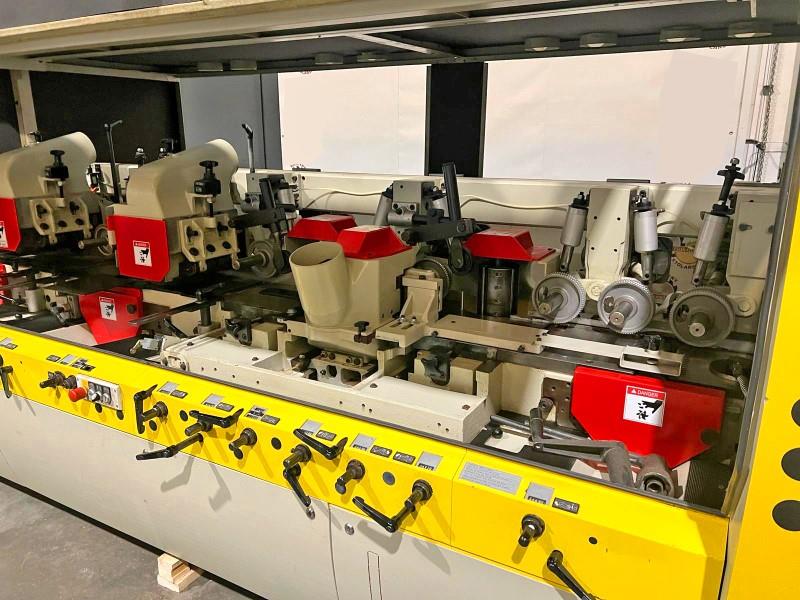

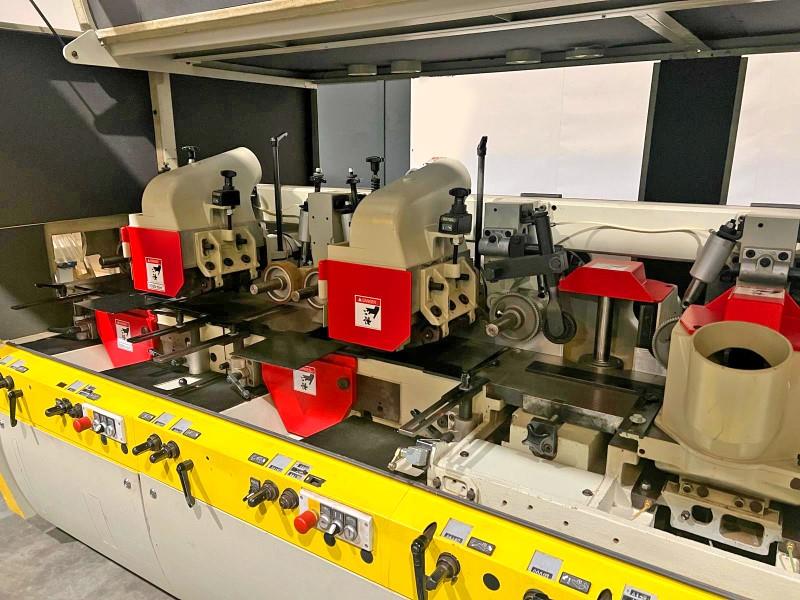

WEINIG UNIMAT 23 EL Feed Through Moulder, 8-head;Specifications: -- Head configuration: 8-Head (B-R-L-R-T-B-T-B), working capacity 230 x 160 mm (9-1/16" x 6-5/16"). -- Spindle sequence: 1. Bottom 5.5 kW (7.5 HP), 2. right 4 kW (5.5 HP), 3. left 5.5 kW (7.5 HP), 4. right 4 kW (5.5 HP), 5. top 11 kW (15 HP), 6. bottom 5.5 kW (7.5 HP), 7. top 7.5 kW (10 HP), and 8. bottom 7.5 kW (10 HP). -- Spindle dia. 40 mm. All spindles 6,000 RPM, except heads 7 & 8 8,000 RPM. All spindles with mechanical digital readouts. -- Motorized feed beam adjustment, receding chip breakers on left and top spindles. -- Variable feed speed from 6 - 36 m/Min (20 - 118 FPM) with 5.5 kW (7.5 HP) motor. Overhead feed wheels with pneumatic pressure, (3) powered table rollers in machine table. Cardan drive, chainless, maintenance-free. -- Machine Tables: Made of hardened steel. Infeed straightening table is 2,000 mm (6') with adjustable fence & adjustable outfeed table; (1) side pressure roller mounted to infeed table. -- Complete with: ● Short stock attachment. ● Central lubrication, and table bed lubrication pump. ● Full sound/safety enclosure. ● Manual lubrication pump. ● Automatic star delta starters. ● CE Compliance. ● (3) Emergency stop buttons. Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
