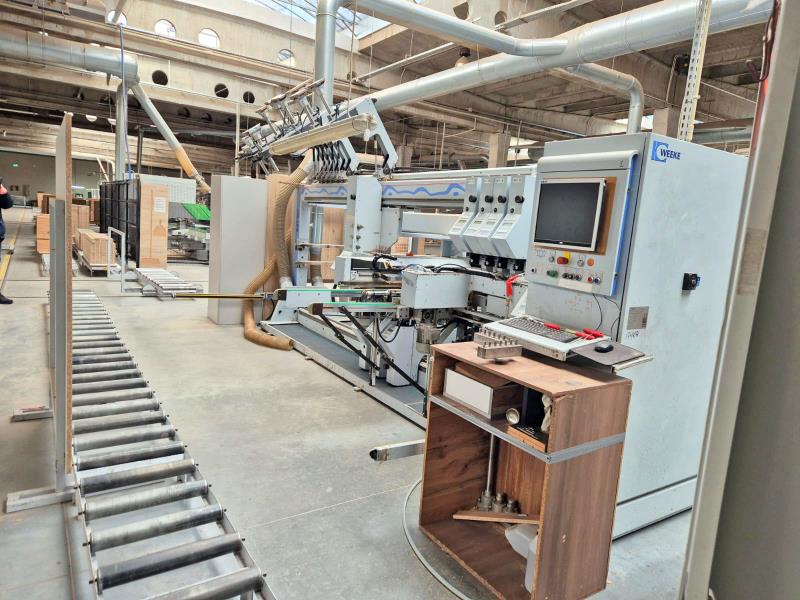

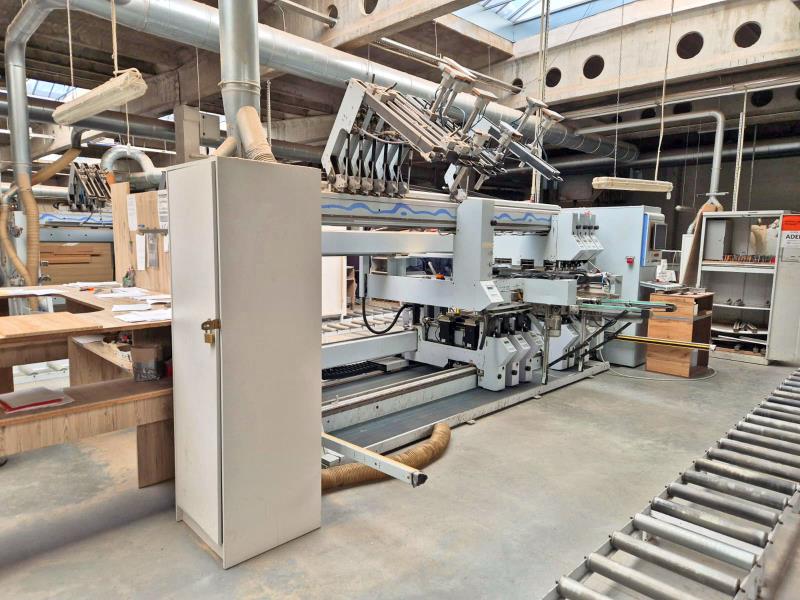

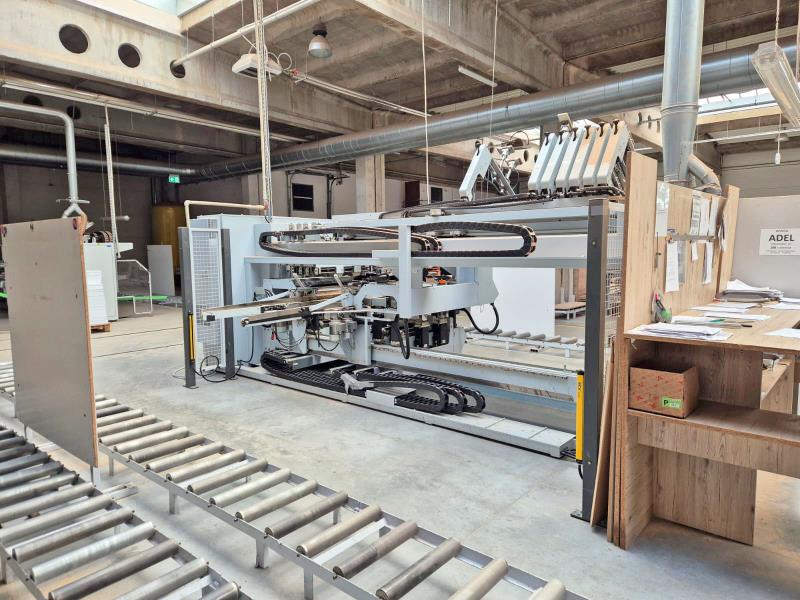

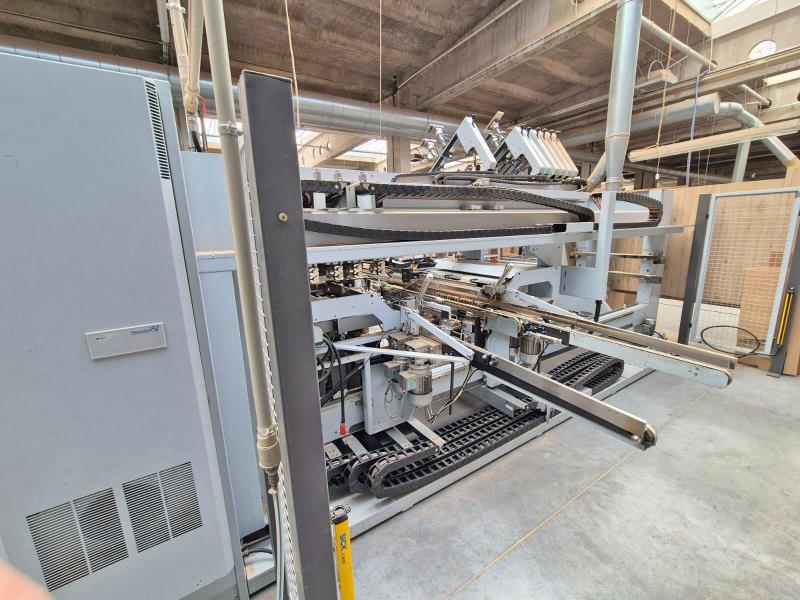

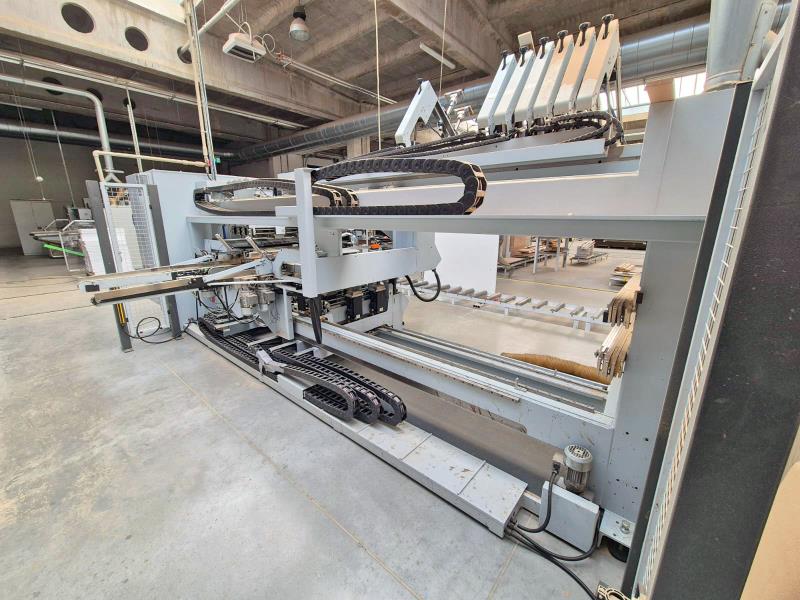

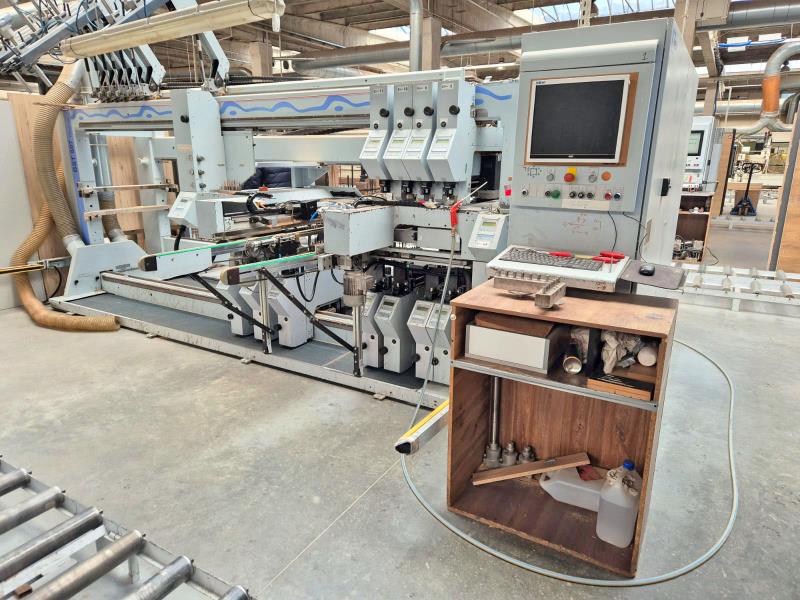

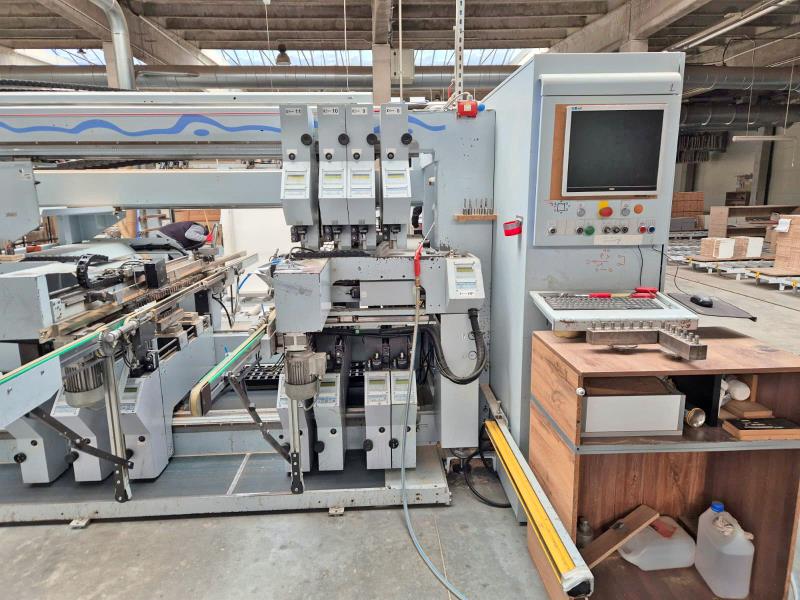

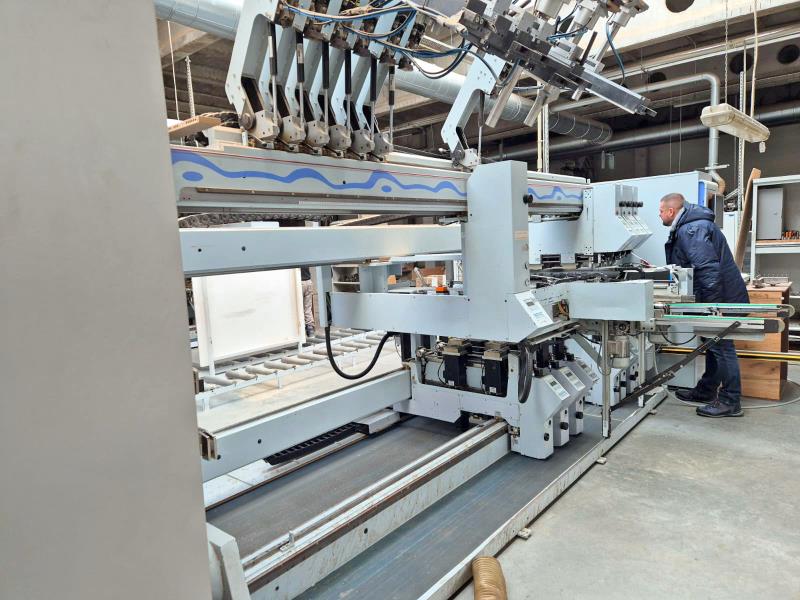

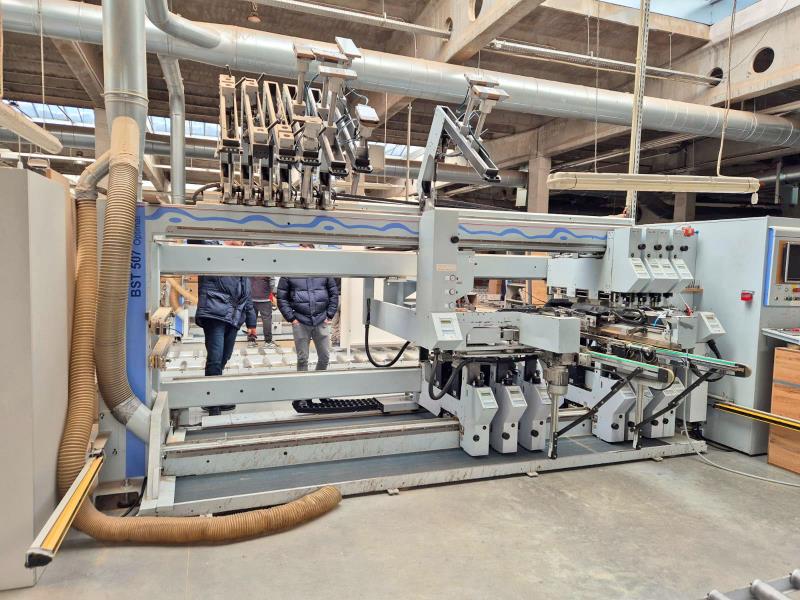

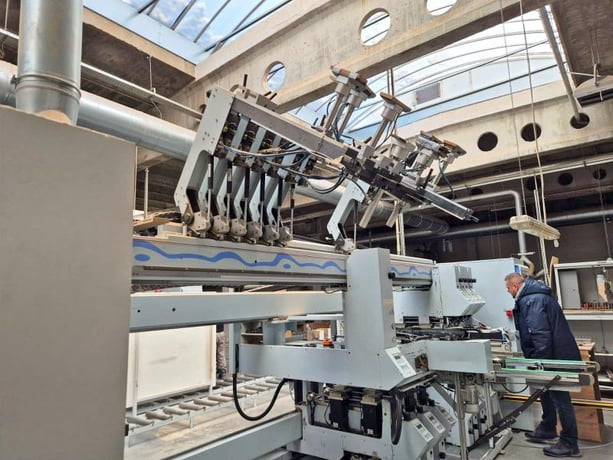

WEEKE - BST 507: Boring Machine (Feed Through CNC) -- SpecificationsWEEKE - BST 507 CNC Feed Through Boring machine with: 2,500 mm (98.4") Max. opening cap. in "X" axis left-right, 250 mm (9.8") min opening cap.; 1,000 mm (39.4") max. "Y" axis front-back cap., 100 mm (3.9") min front-back capacity. -- Horizontal UnitsRH & LH Horizontal boring with: (4) Units total; each unit is powered by a 2 HP (1.5 kW) motor; (1) 11-spindle chuck with vernier-scale for "Y" axis adjustment on each side of the machine + (1) additional 11-spindle chuck with LED display for "Y" axis adjustment on each side of the machine.RH Horizontal units are motorized for opening/closing adjustment in the "X" axis; the LH horizontal units are fixed in the "X" axis. -- Vertical Units(7) Bottom & (4) Top vertical units; 128 mm wide with: LED Display & motorized adjustment in the "X" axis; each vertical unit equipped with: (2) Boring blocks (swivel 0 - 90); each boring block driven by 2 HP (1.5 kW) motor.All vertical supports equipped with; "QUICK CHANGE CHUCK DEVICE"; pneumatic locking; LED readouts on all heads for finite adjustments. -- Transfer SystemVariable transfer belt speed control from: 35 - 75 MPM (114 - 246 FPM).1,050 mm (41") Long infeed & 1,020 mm (40") outfeed double belt transfers with: Manual up/down flip movement for ease of machine entry & adjustments; removable panel support rails. -- Operator & Machine ControlPC Front end with: HOMAG "Power Control "PC 85T" + WoodWOP for BST Operating System.The NC allows for the storage of the data within the panel program & the serial transmission of data transferred to the LED display units on the machine heads for positioning visualization of the: "X", "Y1" & "Y2" Axes for the vertical & horizontal units; the transport belt speeds & automatic working cycles.The machine opening & closing in "X" axis; the double top clamps movement in "X" axis is by means of Servomotors. -- BST 507 Complete with: (7) Over-turning double top-clamp holddown cylinders with motorized adjustment in the "X" axis; (1) chip transport belt removal system with: (2) 160 mm dia. Dust ports; safety light curtains.
Weeke ABD 060 Bore & Dowel Machine, This machine will be available in December 2023., - CNC DOWEL INSERTER FOR HORIZONTAL DRILLING AND DOWEL INSERTING, - ENGINEERED TO SPRAY GLUE OR WATER, - S A SORBTECH MAIN BEAM TO MINIMIZE VIBRATION, - PNEUMATIC CONTROL OF CEBTER STOP AND RIGHT AND LEFT FENCES, - OPEN END TABLE ...more
THE WEEKE OPTIMAT ABD 100 IS A PROCESSING CENTER DESIGNED FOR HORIZONTAL DRILLING, GLUING, AND DOWELING, CAPABLE OF OPERATING AS A STANDALONE SOLUTION. IT S A PC-BASED POWERCONTROL SYSTEM WITH WOODWOP PROGRAMMING SOFTWARE. THE MACHINE INCLUDES A HORIZONTAL DRILLING AGGREGATE WITH ONE SPINDLE, A GLUE AND DOWEL INJECTOR ...more
*Reduced Price* 2003 Silver SV-206 used Multi Spindle Boring MachineFor pricing please click REQUEST QUOTE wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.Click <[LEASE](https://www.brightonmachines.com/pages/lease)> for leasing information.Click ...more
