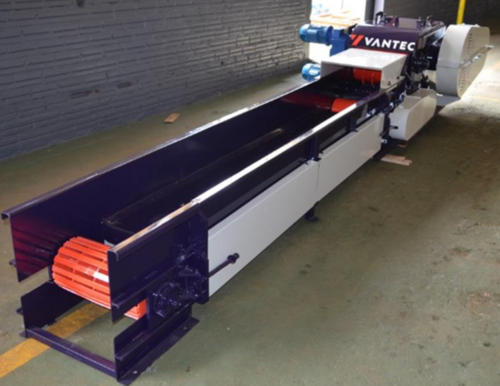

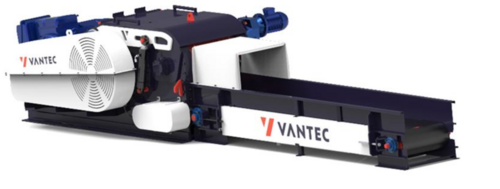

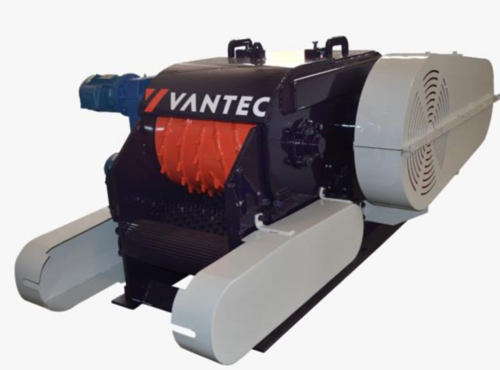

Vantec #PT600/R8 Horizontal Drum Chipper

This Wood Drum chipper PT600 is used in production of wood chips from logs and veneer waste. It has a toothed roller system that allows efficient material infeed, a rubberized conveyor belt and a Hydropneumatic unit to lift the rotor cover for maintenance. It comes with 01 chipper Knife set and 01 nose bar set. It does not come with the output conveyor.
- Width of inlet: 600 mm;
- Height: 300 mm;
- Rotor diameter: 800 mm;
- Toothed roller: 01 upper and 01 lower;
- Grooved rollers: 01;
- Rollers gear motor: GD (helical gears);
- Metal detector: Flat model;
- Rollers motor size: 5 hp (2x);
- Number of rotor knives: 02;
- Wood chip size: 25 - 40 mm;
- Main motor 125 hp 4P: Included;
- Drive panel: Included;
- Lead Time: 240 Days;
- Estimated production: 55 m3 / h (it may vary according to the type of material and time used with blade sharpening);
- Infeed conveyor length: 3 500 mm (included);
- Width: 1 850 mm;
- Height: 1 .150 mm;
- Overall length: 6 700 mm;
- Approximate weight: 4,900 kg.
