Description
Description:

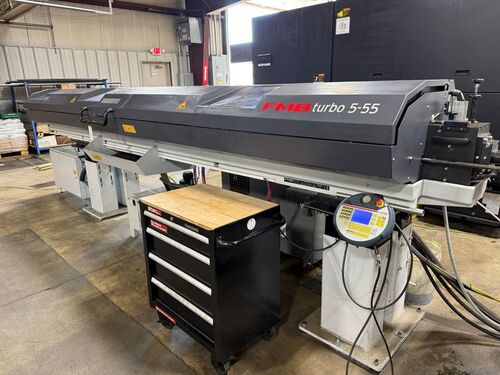

With FMB Turbo 5-55 Bar Loader, Full 12'
Specifications:
Axis Name X1, Y1, Z1, X2, Y2, Z2, C1, C2
Least Input Increment 0.001mm (Diametrical designation for X1, X2 axes)
Least Command Increment X1, X2 axes 0.0005 mm, other axes 0.001 mm
Maximum Programmable Value +/-8 digits
Interpolation Method Linear/circular
Rapid Traverse Function 32 m/min
(X1, Y1, Z1, Y2: 24 m/min)
Machining Range
Max. Chucking Diameter 38 mm
Max. Machining Length 320 mm (with Guide Bushing),
70 mm (without Guide Bushing)
Max. Drilling Diameter 13
Max. Tapping Diameter M12
Max. Back Spindle Diameter 38 mm
Max. Back Spindle Drilling Dia 12
Max. Back Spindle Tapping Diameter M12
Max. Tool Spindle Drilling Diameter 10
Max. Tool Spindle Tapping Diameter M8
Max. Tool Spindle Slotting Cutter Dia 45 (T4)
Machine Capability
Main Spindle Speed 200 to 6000 min
Back Spindle Speed 200 to 7000 min
Tool Spindle Speed 200 to 6000 min-1
(Normal speed 4800 min-1)

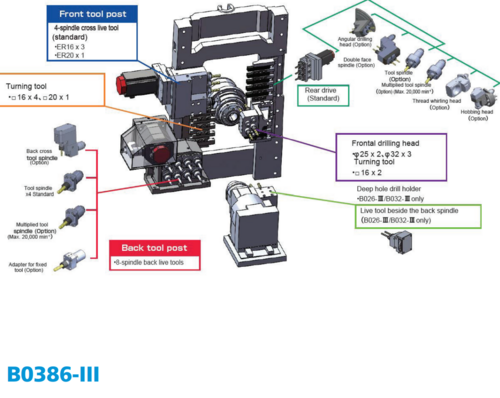

Total Tool Number (Standard Spec.) 29
Tool Size 16 mm × 100 mm (6 pcs)
20 mm × 125 mm (1 pc)
Cross Drill
Front Tool Post 200 to 6,000 min-1
(Normal spindle speed 4,800 min-1)
Rear Tool Post Drive 200 to 6,000 min-1
(Normal spindle speed 4,800 min-1)Rapid Traverse Rate 32 m/min
(X1, Z1, Y1, Y2: 24 m/min)
Spindle Index C1 Axis & C2 Axis
Motors
Main Spindle 7.5/11 kW
Back Spindle 3.7/5/5 kW
Rotary Tool Back Tool Post 1.4 kW
Rotary Guide Bushing 0.75/1.5 kW
(Direct drive guide bushing)
Y2 Axis 0.5 kW
X1, Y1, Z1, X2, Z2 axis 0.75 kW
Coolant Pump 0.4 kW
Lubricating Pump 3 W
