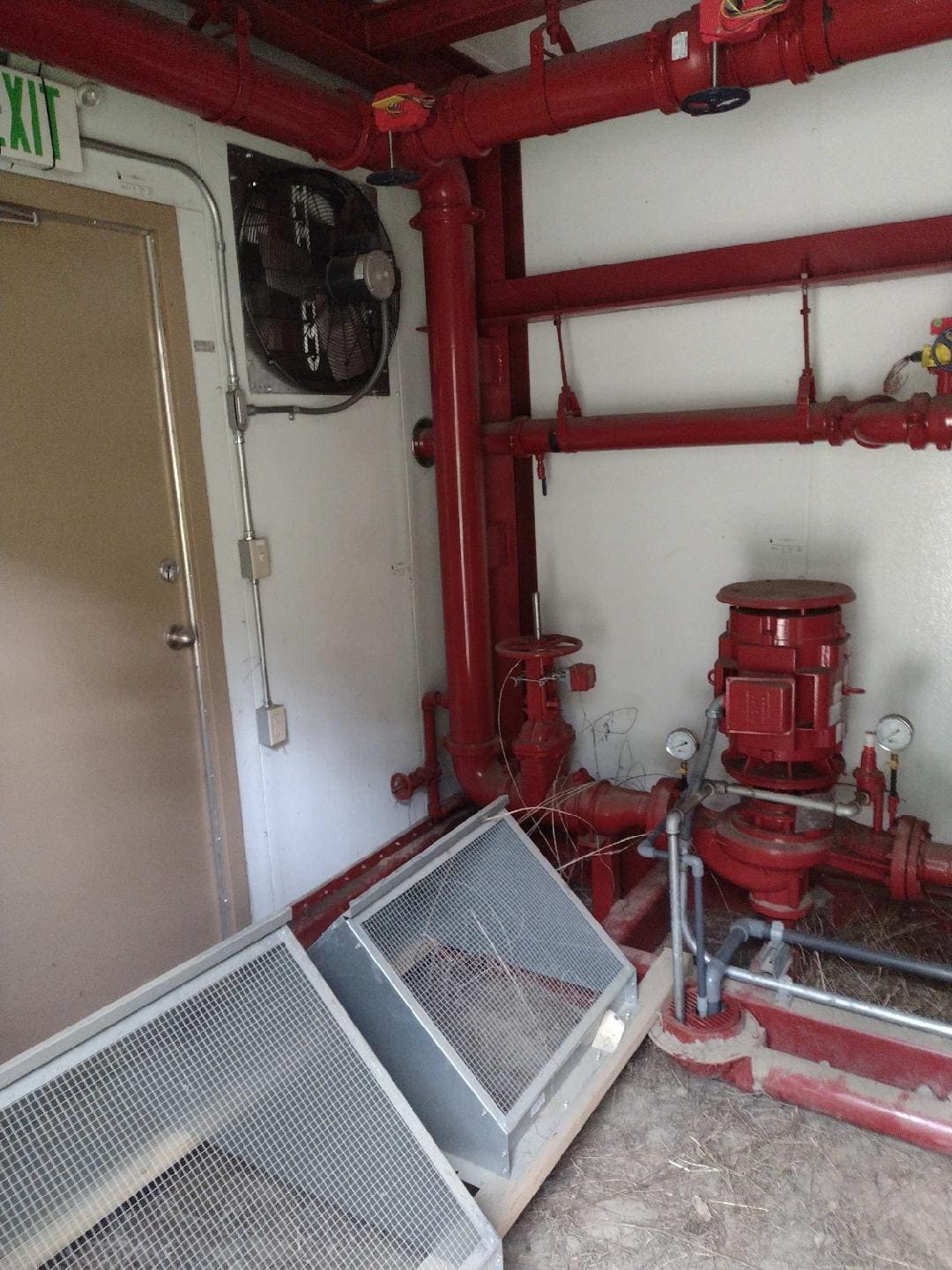

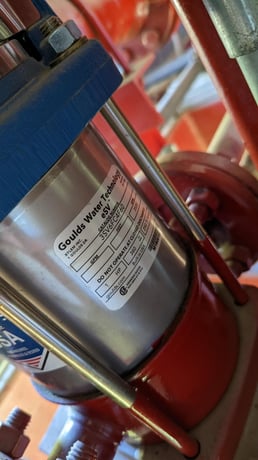

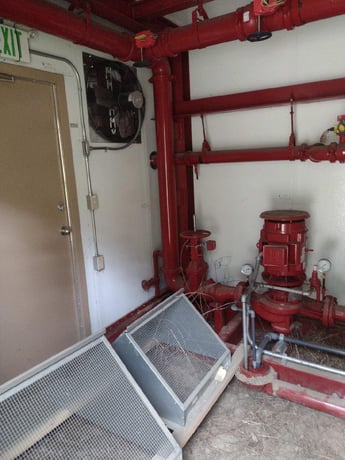

Tigerflow #FP-500-IL-ELHO-HV-BP-BF-FD, Vertical In-line Fire Pump Series, new never used, 2019

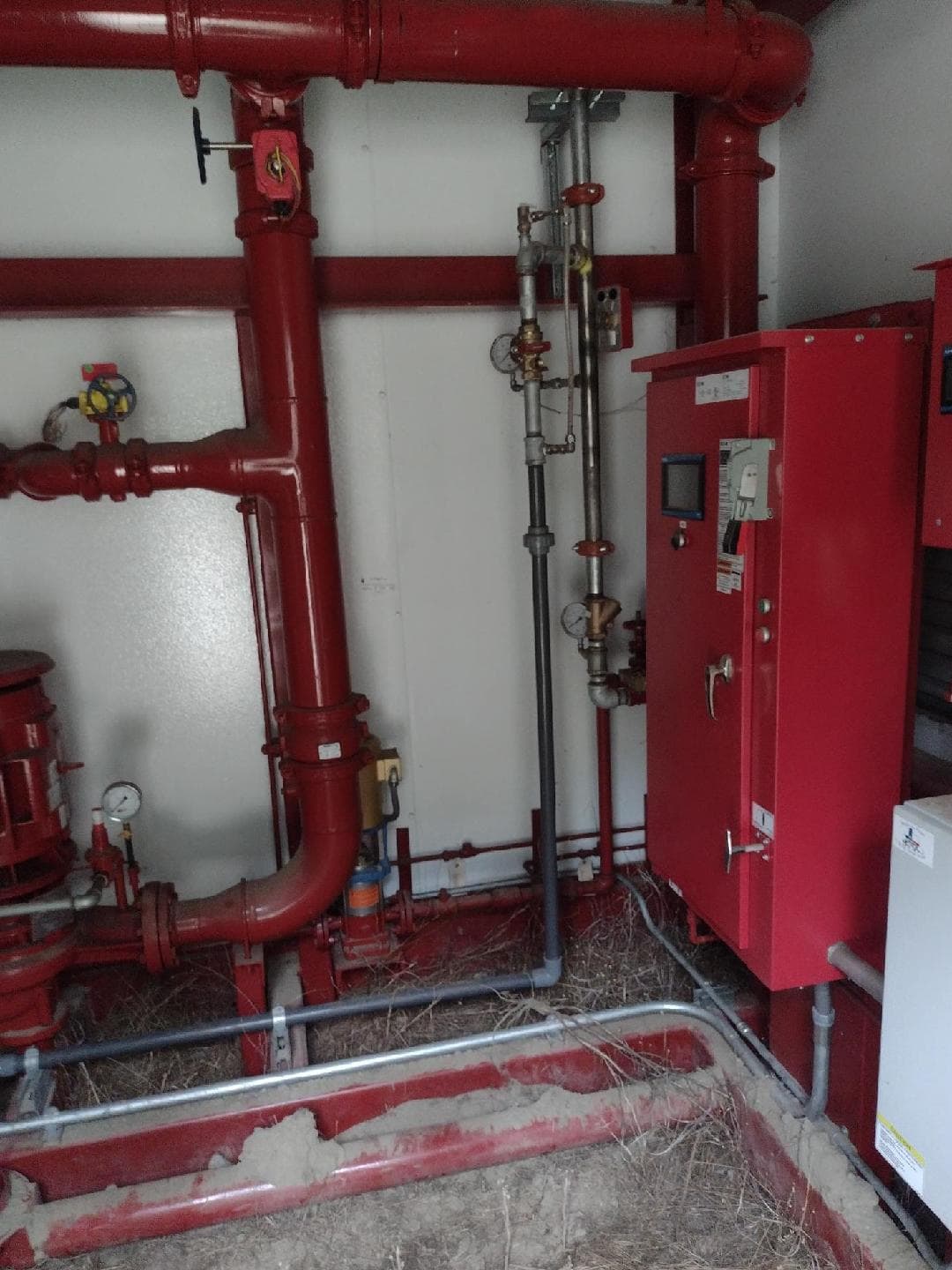

(1) Jockey Pump Piping: (2) Gate Valves and (1) Check Valve and Piping
(1) 6” UL/FM OS & Y Grooved Suction Gate Valve with Tamper Switch, Suction Thru Floor
(1) 6” UL/FM Discharge Groove Style Check Valve
(1) 6” UL/FM Discharge Groove Style Butterfly Isolation Valve with Tamper Switch, Discharge Thru Floor
(1) 4” HVH Connection with: Tee, Elbow, Manual Drain Valve, (Valves, Caps and Chains Shipped Loose)
(1) 4“UL/FM Groove Style Butterfly Test Header Isolation Valve with Tamper Switch
(1) 6” City Water By-pass Complete with: 6” UL/FM Swing Style Check Valve, (2) 6” UL/FM Groove Style Butterfly
Isolation Valves with Tamper Switches and Necessary Piping
(1) 4” Fire Department Connection w/ Potter Roemer 5710 Siamese FDC, Swing Check Valve and Piping

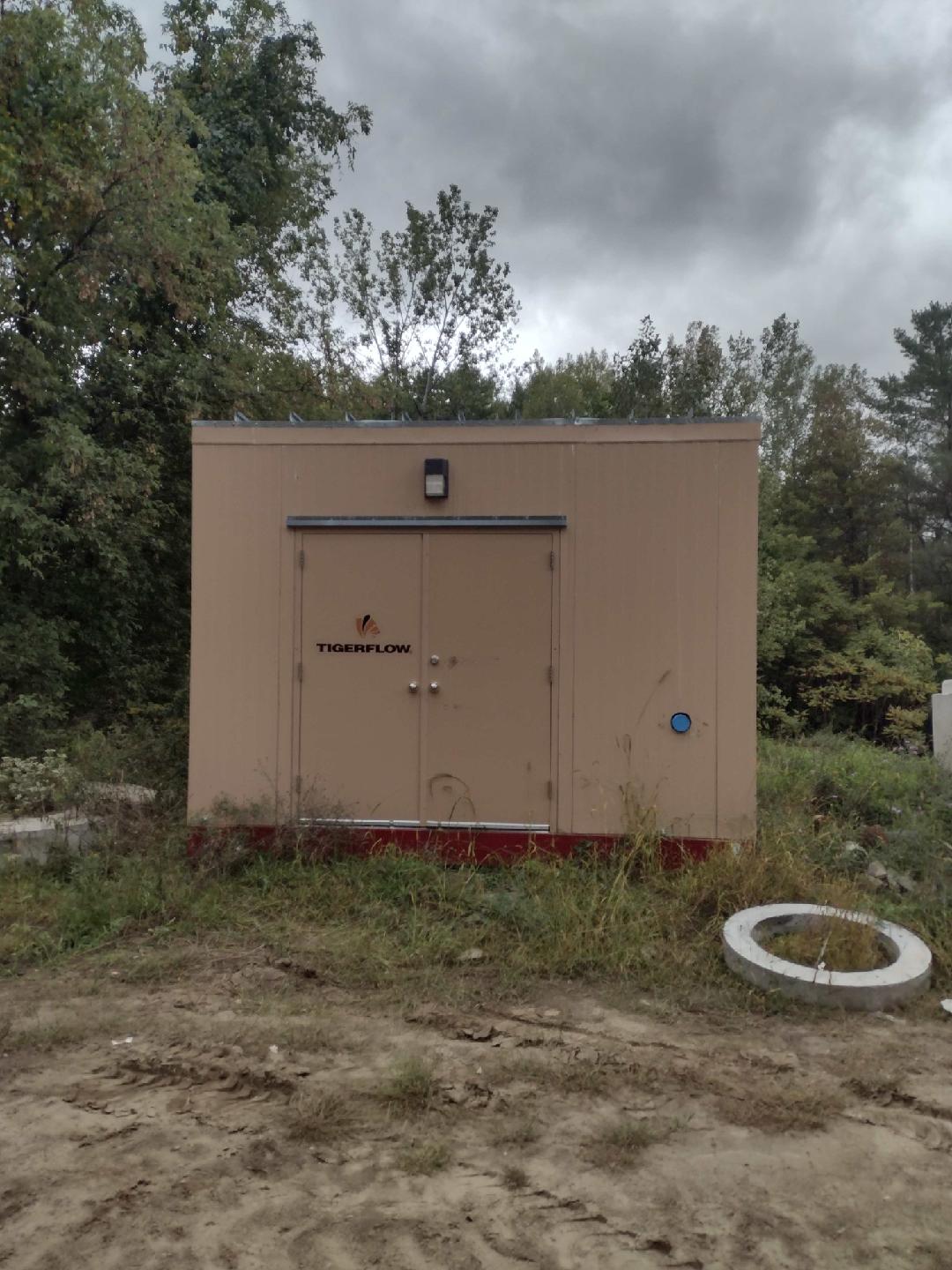

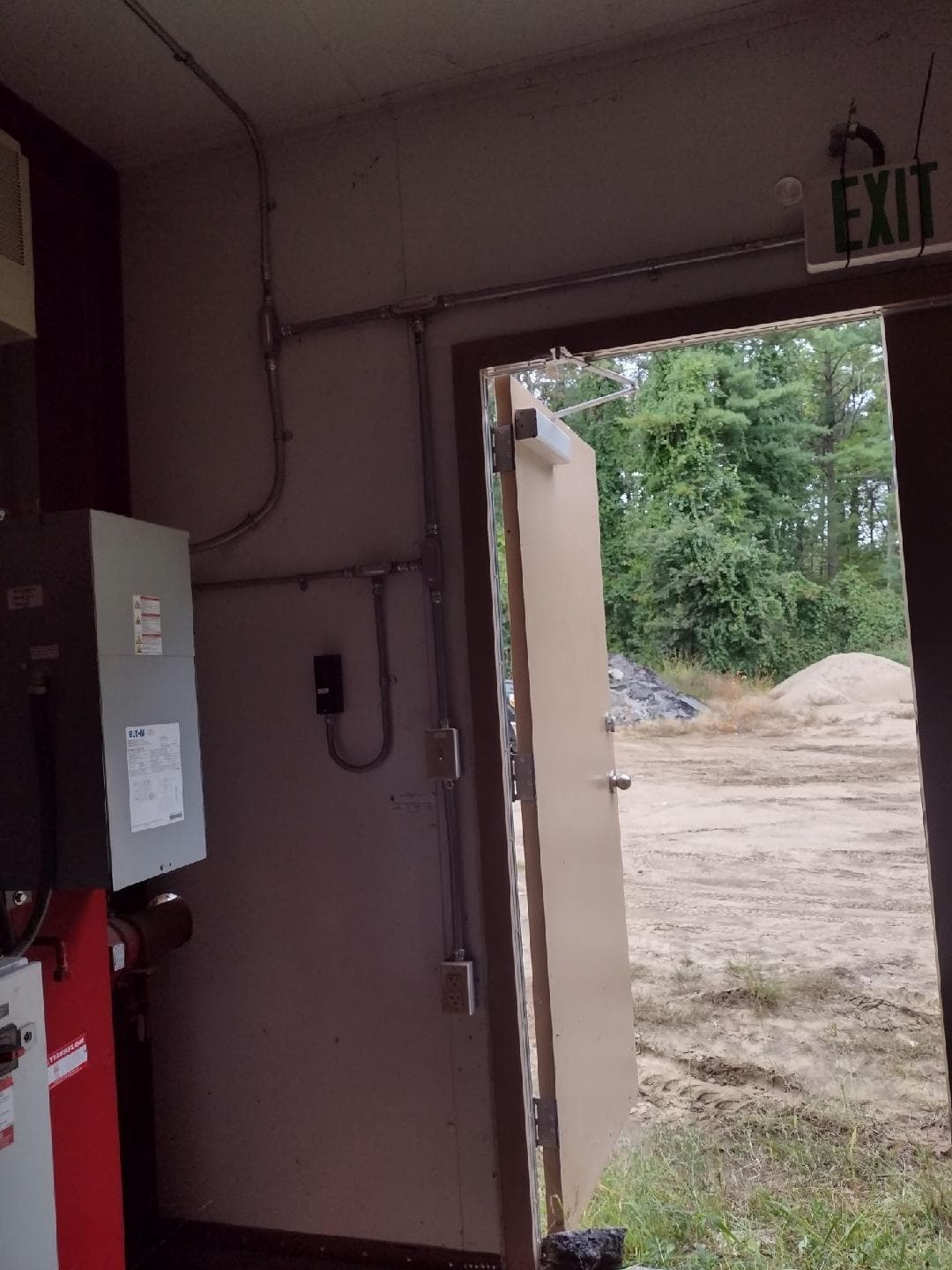

(1) 11’-6” W x 14’ L x 10’-9” H +/-, Prefabricated Environmental Enclosure Complete with:
NY P.E. Stamp on Building
120 MPH Wind Load
40 LB Live Load
8 Finished Ceiling Height
Kysor Needham Building
Moment Frame

Condition Point: 500 GPM @ 75 PSI
Working Pressure: 175 PSI Max Working pressure
Voltage: 460/3/60
Suction Pressure: 80 PSI Max.
Suction Source: City supply
