For Sale by Kays Engineering Inc
Surplus Record Dealer Since 2013
Matthew Kays
660-88...> Show Seller's Phone Number 660-886-9929 Let the seller know you found their listing on Surplus Record!
Description
- BTA Drilling Diameter: 1.00 inches
- Drilling Depth: 48 inches
- X-axis Travel: 16 inches
- Y-axis Travel: 10 inches
- Z-axis Travel: 48 inches w/ 1 vibration dampener

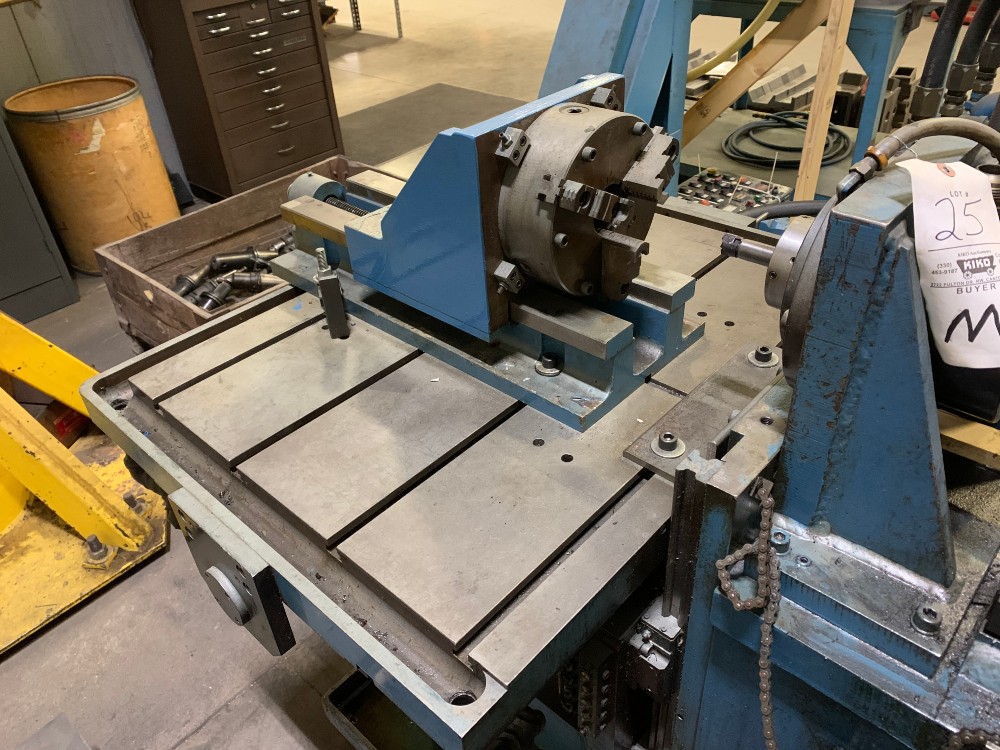

- Worktable Dimension: 32” x 26” plus troughing
- Spindle Motor: 15 HP, Infinitely variable speed
- Spindle Speeds: Infinitely variable from 500 – 2,000 RPM in two ranges
- Feeds: Variable from 0.1 – 24 inches per minute, plus rapid traverse

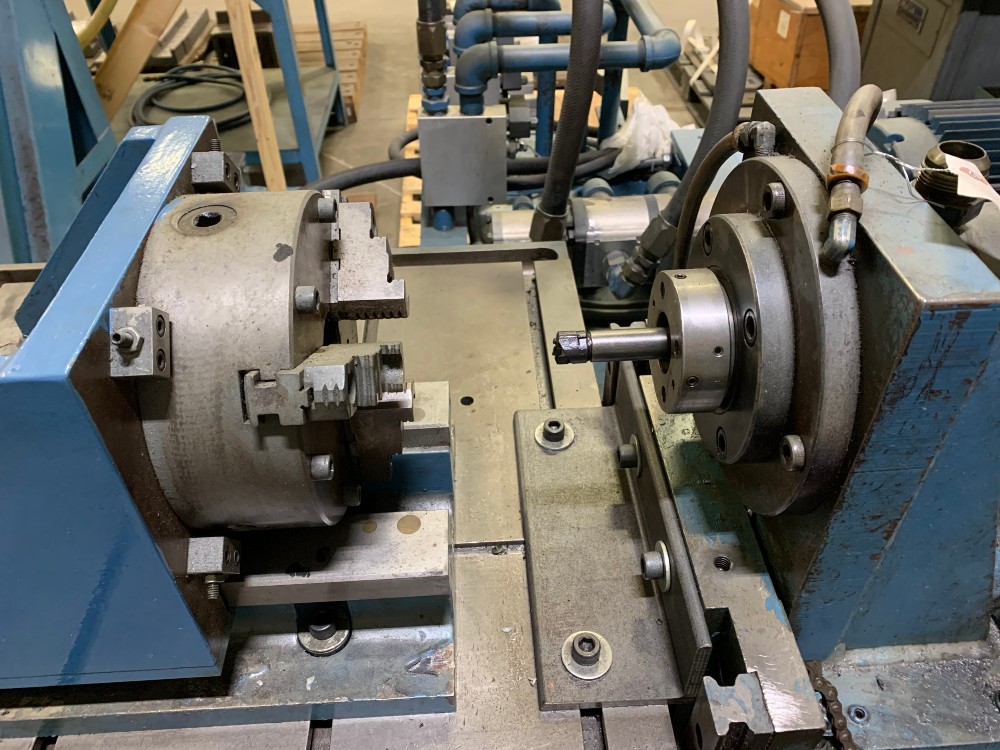

- Chipbox flying bushing: Stroke = 0.5”, capacity = 1.5” gundrill

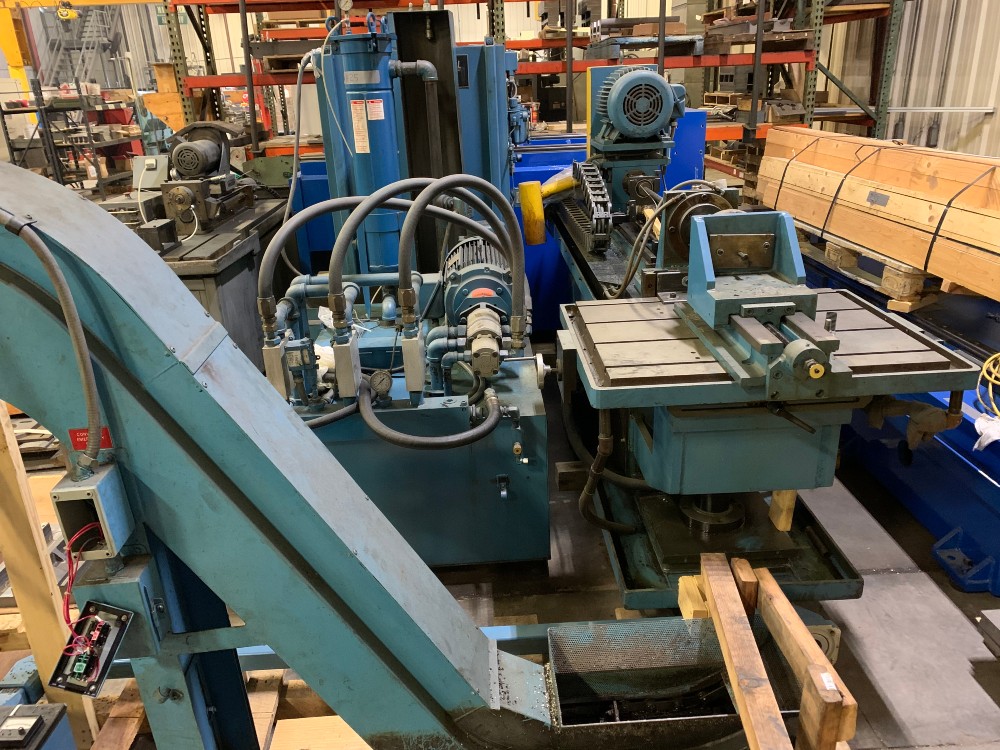

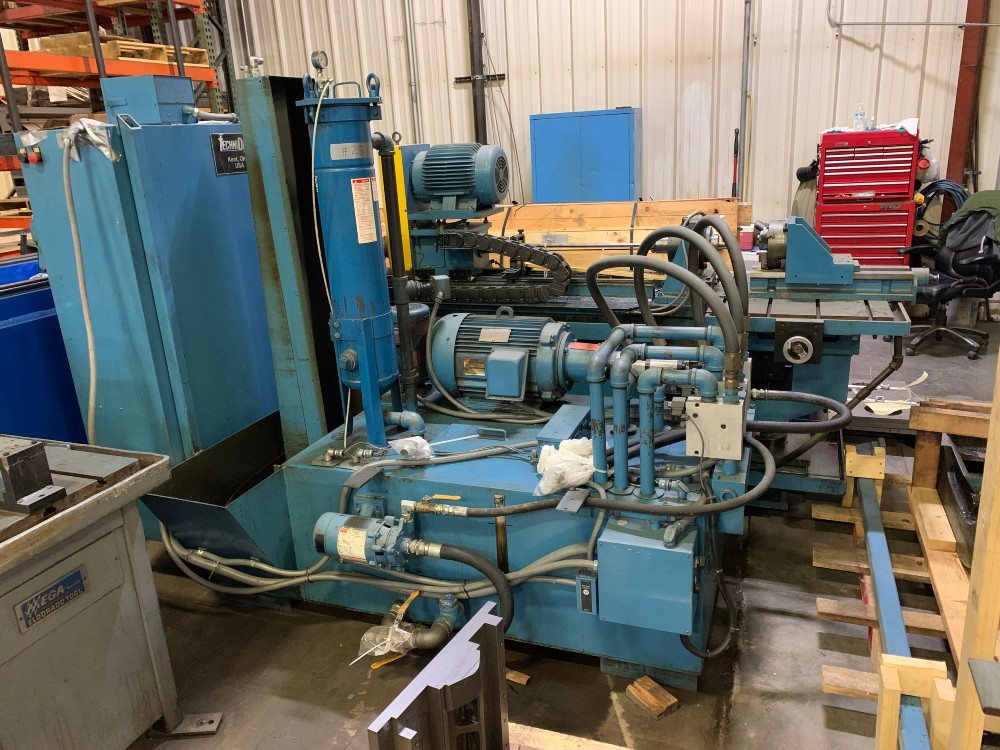

- Coolant System:
- Capacity: 200 gallons
- Coolant pump motor: 20 HP AC
- Filtration: 10 micron
- Flow rate: 40 GPM max
- Pressure: 1,500 psi max
Get Your Price from Kays Engineering Inc!
