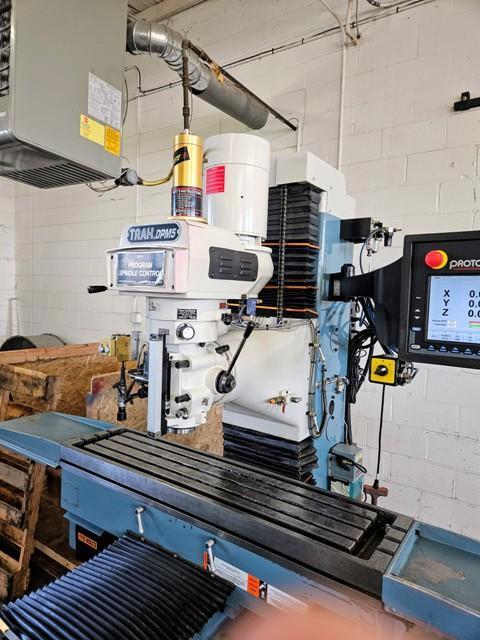

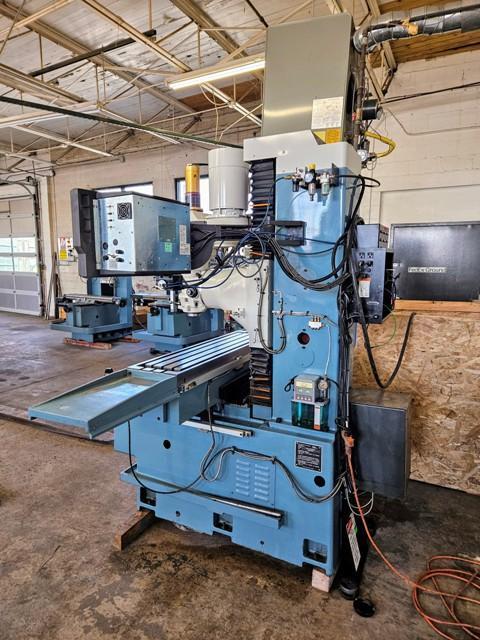

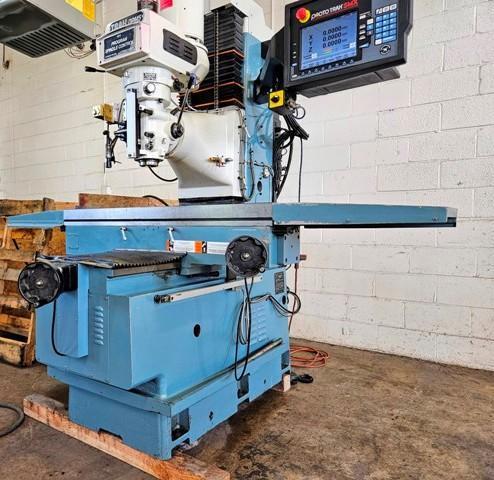

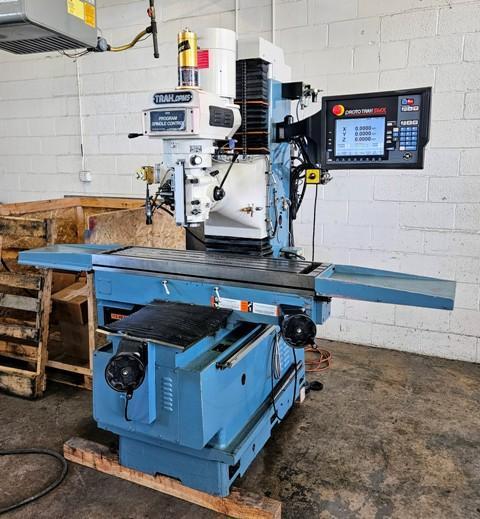

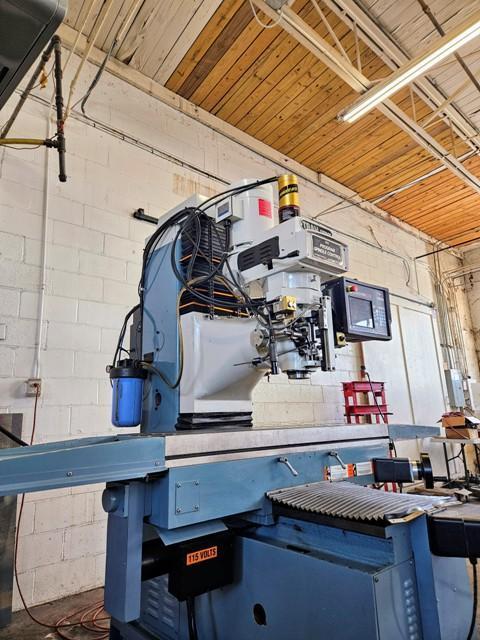

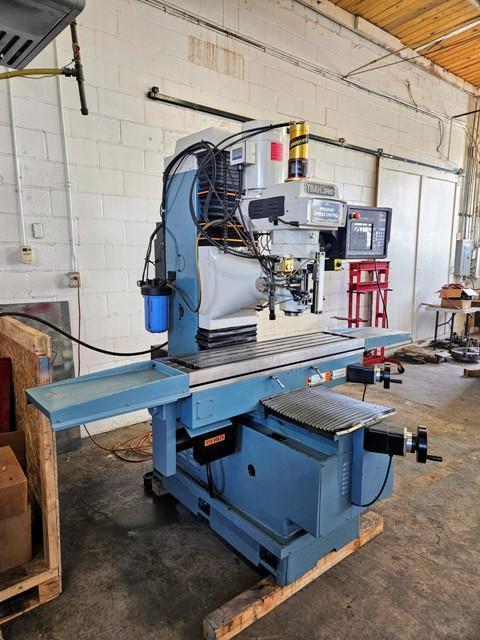

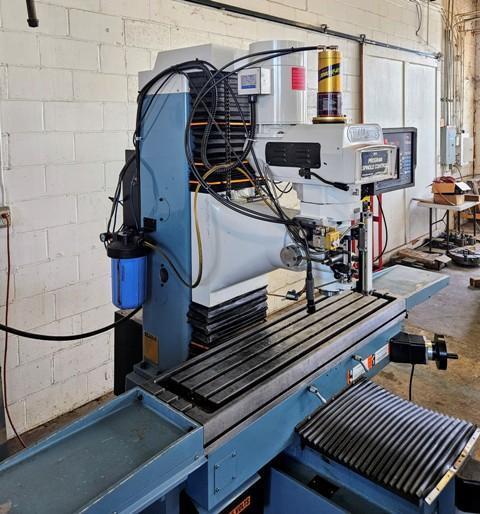

Southwestern Industries #Trak-DPM-SX5P, 12" x50"tbl., 5 HP, 40" X, 20" Y, 23.5"Z, 40-5000 RPM, #40, Prototrak SMX, power draw bar, programmable E head, 2013

https://youtu.be/YK-TDDCgpj4?si=JSJXiANImQ7YehgO

SPECIFICATIONS:

Table Size - 50" x 12"
Travel (X, Y, Z axis) - 40 x 20 x 23.5"
Quill Diameter - 3 15/16"
Maximum Quill Travel - 5"
Spindle Taper - 40
Spindle Speed Range - 40-600, 300-5000
Spindle Center to Column Face - 20"
Spindle Motor Power - 5 HP
Power requirements, control - 110V; 1P; 8A
Power requirements, machine - 220V;3P; 17A
Maximum Weight of Workpiece - 1760 lbs.
Height of table from bottom of bed - 41"
Max spindle nose to table - 23.5"
Min height - 87"
Max height - 98"
Width of machine including table - 94"
Length with electric box door closed - 71"
Overall width incl full table traverse - 136"
Overall length with electrical door open - 81"
Footprint of Machine - 24" x 48.4"
Weight net / shipping lbs. - 4400 / 4600
Rapid traverse X, Y, Z - 150 IPM
Auto Lube Pump
Precision ground ballscrews in the table, saddle and ram
Chrome hardened and ground quill
Meehanite castings
Slide ways are Turcite® coated
Wide way surfaces are hardened and ground
Drilling max capacity - 1" dia.
Milling max capacity - 5 inch3/min
Tapping max capacity - 1"

EQUIPPED WITH:

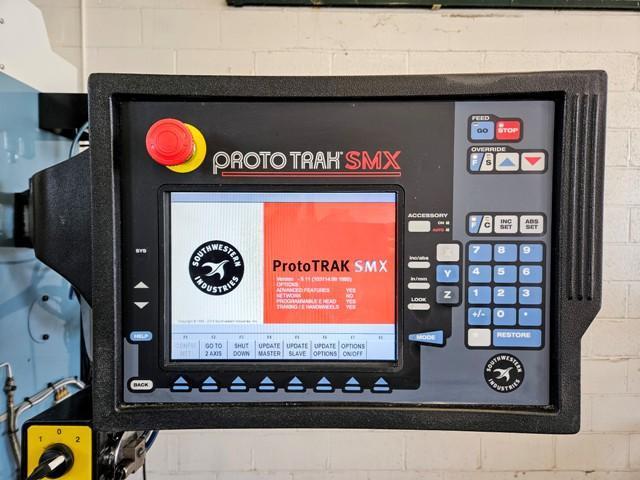

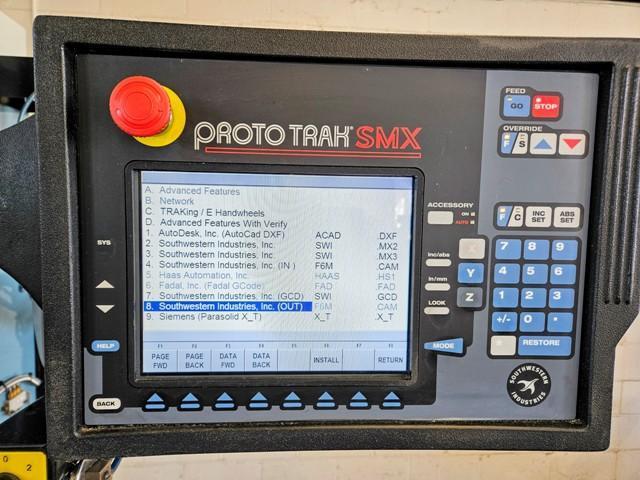

Prototrak SMX CNC Control
Glass Scales
Power Draw Bar

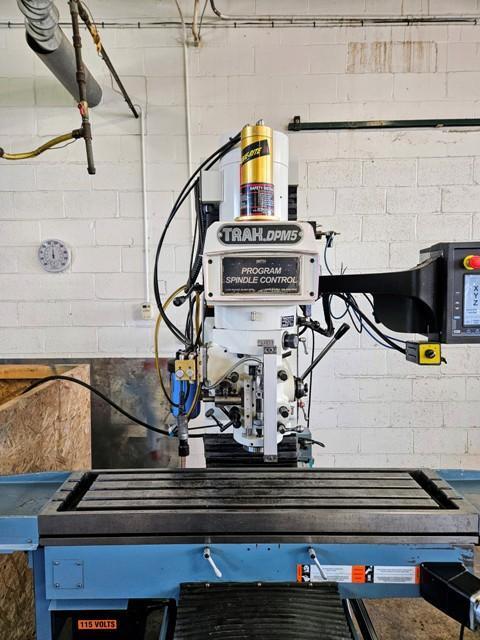

Programmable E Head
Traking/E Handwheels
Advance Feautures with Verify
Autocad DXF Files
Siemens Parasolid X-T
