Manufacturer: Sundstrand
Model: H-30
Stock # 2063
Price: $31,500 USD - Finance for as low as $639/mth
For Sale by Machinery Central
Surplus Record Dealer Since 2020
Denis Frankenberger
502-21...> Show Seller's Phone Number 502-219-7311 Let the seller know you found their listing on Surplus Record!
Description
Description:

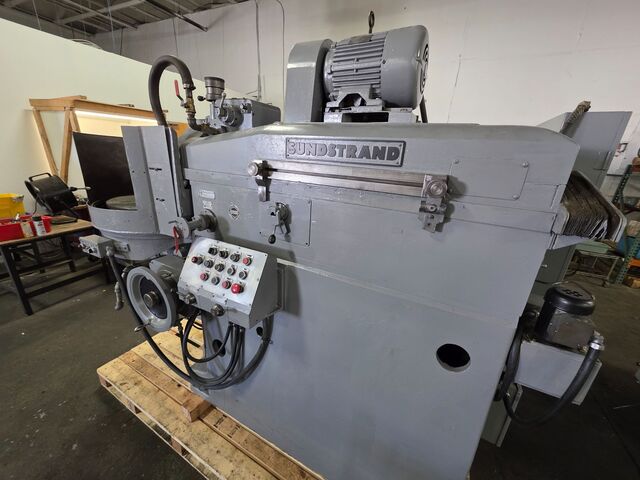

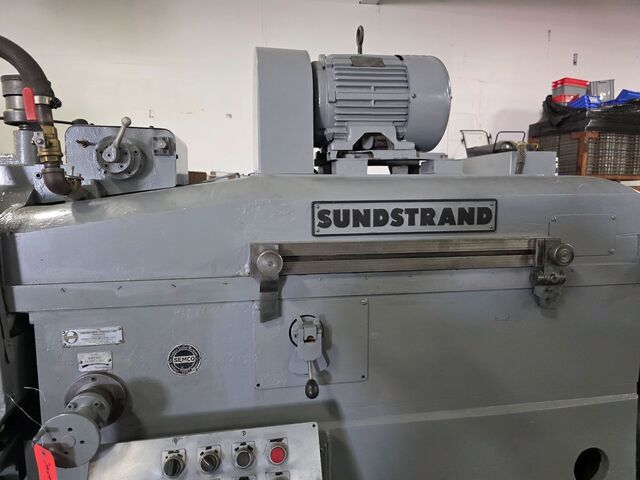

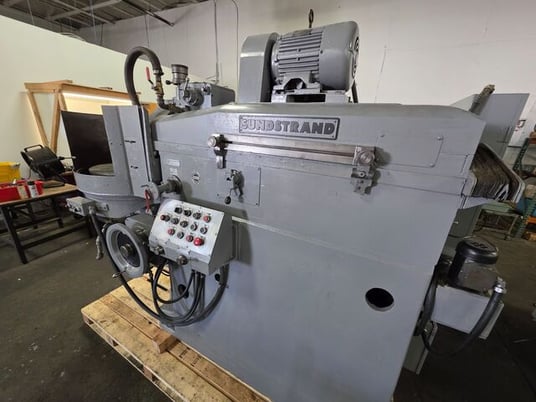

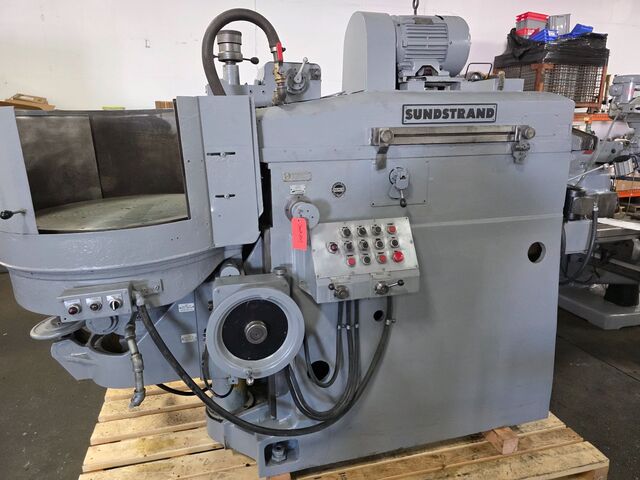

Sundstrand-Arter H30 Rotary Surface Grinder available. Features 30" x 30" table, 20 hp motor, 16" wheel, and 12" vertical travel. Comes with new hoses. Dimensions: 126 x 58 x 91, 12,600 lbs. Ideal for precise surface grinding tasks.
Spec Sheet:
Sundstrand-Arter H30 Rotary Surface Grinder
s/n 44-26
All new hoses installed 10/25
Capacity:

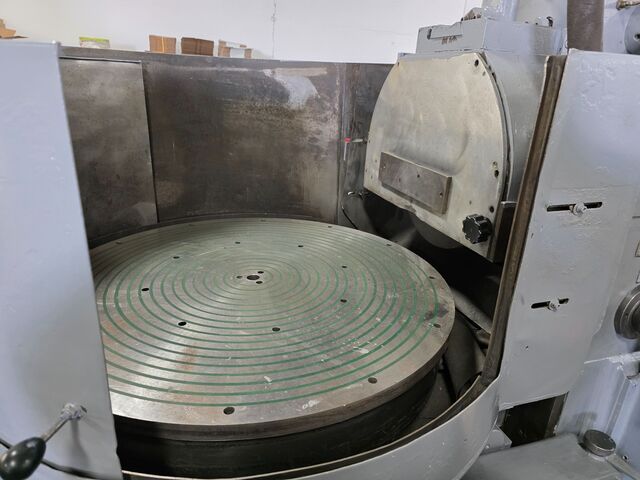

Magnetic Chuck-Nominal Diameter: 30
Magnetic Chuck-Actual Face Dia: 31
Magnetic Chuck-Pilot Hole: 1
Swing-Max, In Water Pan: 34
Work Height-Max, With New Wheel: 10
Wheel Collet Flange Dia.: 10
Standard Wheel Size: 16 x 2 x 8
Wheelhead Stroke-Max: 17
Knee-Max, Vertical Travel: 12
Angular Tilt- Convex: 10 Degrees
Angular Tilt- Concave: 10 Degrees
Speeds & Feeds:
Wheelhead Spindle RPM: 1400
Wheelhead Traverse (Inf. Adjustable): 0-10 FPM
Table Speed- Adjustable: 30-125 RPM
Feed Handwheel-One Revolution: .020
Feed Handwheel-Finest Division: .0001
Power Feed- Adjustable: .0001-.0015
Table Slide Power Positioning: 6 IPM
Electrical Data:

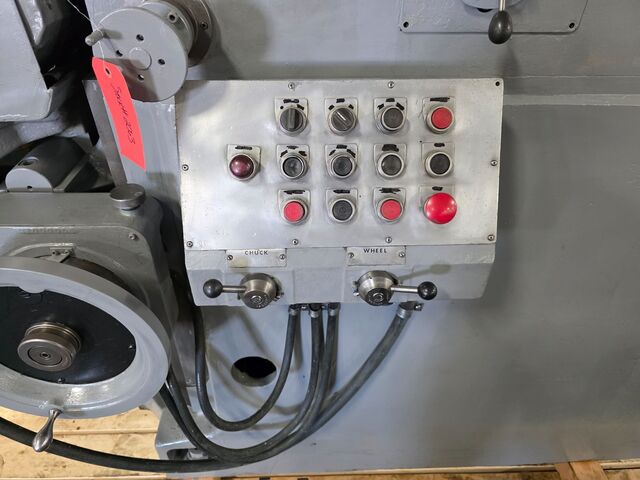

Standard Controls-All EGP-1967-1: 460V-60HZ-3 Phase
Wheelhead Spindle Motor (STD.): 20HP/1800 RPM

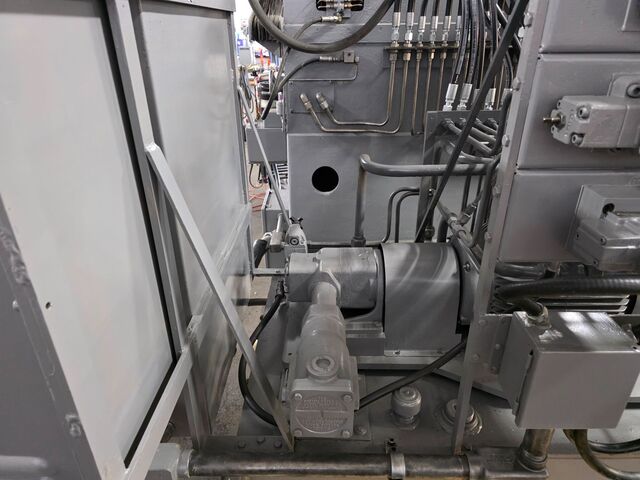

Hydraulic Pump Motor (J.I.C.): 10HP/1800 RPM
General Data:
Coolant Reservoir-Gallons: 45
Hydraulic Reservoir-Gallons (J.I.C.): 80
Dimensions: 126 x 58 x 91
Machine Weight- Net: 12,600 lbs

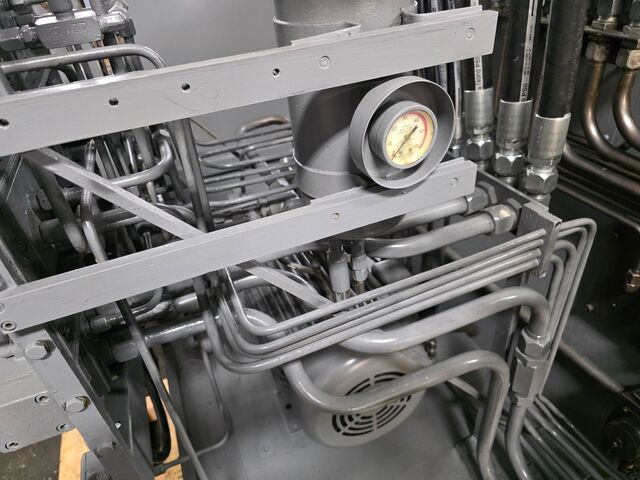

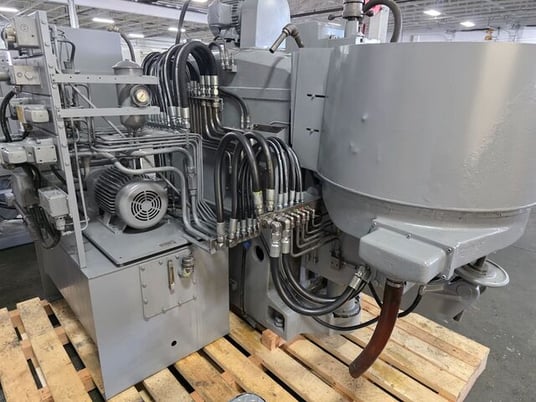

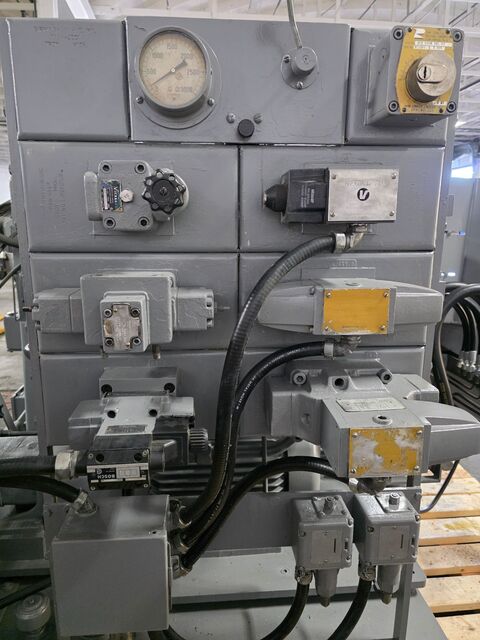

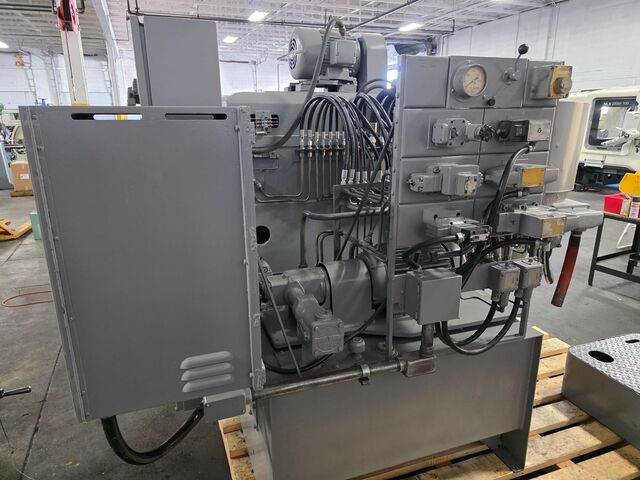

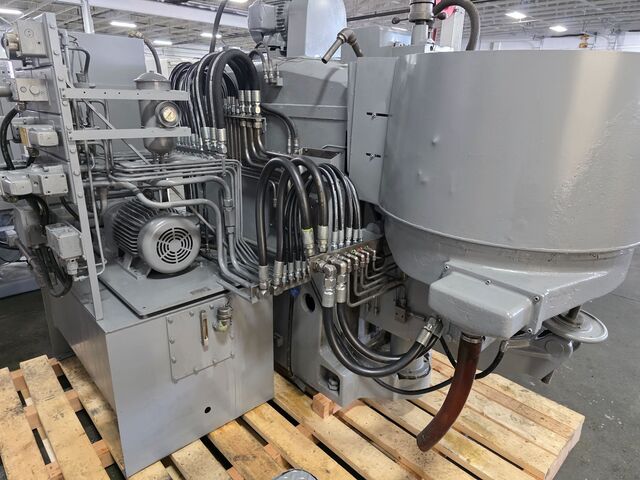

Hydraulic pump: 50" x 75" x 90" 1500 lbs
Coolant Tank: 48" x 25" x 12" 500 lbs
Machine is currently sitting on a 8' x 8' Pallet
Sundstrand-Arter H30 Rotary Surface Grinder available. Features 30" x 30" table, 20 hp motor, 16" wheel, and 12" vertical travel. Comes with new hoses. Dimensions: 126 x 58 x 91, 12,600 lbs. Ideal for precise surface grinding tasks.
Spec Sheet:
Sundstrand-Arter H30 Rotary Surface Grinder
s/n 44-26
All new hoses installed 10/25
Capacity:
Magnetic Chuck-Nominal Diameter: 30
Magnetic Chuck-Actual Face Dia: 31
Magnetic Chuck-Pilot Hole: 1
Swing-Max, In Water Pan: 34
Work Height-Max, With New Wheel: 10
Wheel Collet Flange Dia.: 10
Standard Wheel Size: 16 x 2 x 8
Wheelhead Stroke-Max: 17
Knee-Max, Vertical Travel: 12
Angular Tilt- Convex: 10 Degrees
Angular Tilt- Concave: 10 Degrees
Speeds & Feeds:
Wheelhead Spindle RPM: 1400
Wheelhead Traverse (Inf. Adjustable): 0-10 FPM
Table Speed- Adjustable: 30-125 RPM
Feed Handwheel-One Revolution: .020
Feed Handwheel-Finest Division: .0001
Power Feed- Adjustable: .0001-.0015
Table Slide Power Positioning: 6 IPM
Electrical Data:
Standard Controls-All EGP-1967-1: 460V-60HZ-3 Phase
Wheelhead Spindle Motor (STD.): 20HP/1800 RPM
Hydraulic Pump Motor (J.I.C.): 10HP/1800 RPM
General Data:
Coolant Reservoir-Gallons: 45
Hydraulic Reservoir-Gallons (J.I.C.): 80
Dimensions: 126 x 58 x 91
Machine Weight- Net: 12,600 lbs
Hydraulic pump: 50" x 75" x 90" 1500 lbs
Coolant Tank: 48" x 25" x 12" 500 lbs
Machine is currently sitting on a 8' x 8' Pallet
Inquire Further with Machinery Central!
