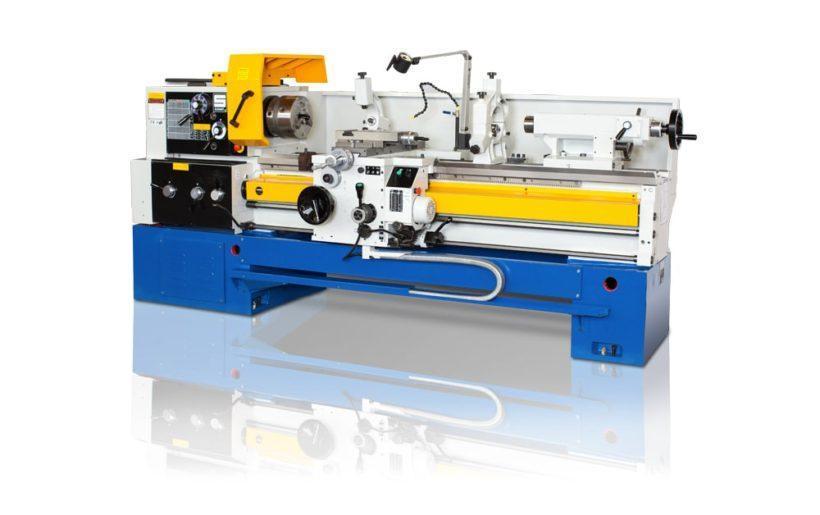

Summit #16-3x80B, Precision Engine Lathe, 18" swing, 9-1/2" swing over cross slide, 15" gap, NEW

SPECIFICATIONS:
Capacities:
Swing over bed 18”
Swing over cross slide 9 ½”
Swing over gap 26”
Length of gap 15”
Length of gap in front of faceplate 8 3/8”
Workpiece Weights:
At the headstock 350 lbs.
Between chuck and tailstock 1,500 lbs.
Between chuck and tailstock w/steady rest 3,000 lbs.

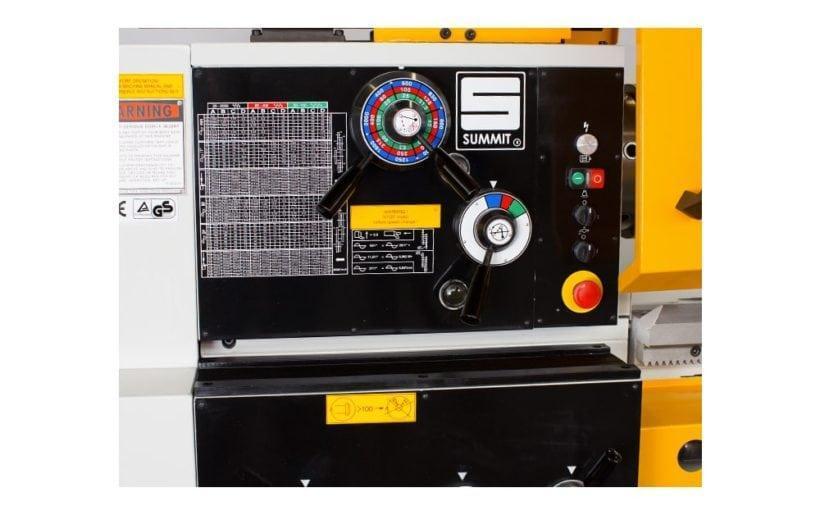

Headstock:
Spindle speeds (no.) range RPM (21) 20-2000
Hole through spindle 3”
Spindle nose D1-8 Camlock
Headstock Center #6 MT
Quick Change Gearbox:
Threads per inch (no.) range (64) ¼ - 60
Metric threads (no.) range (64) .5 - 120
Module threads (no.) range (64) .125 - 30
Diametral Pitch (no.) range (64) 1 - 240
Longitudinal feeds (no.) range (124) .00145-.44474
Cross feeds (no.) range (56) .0007-.22237
Leadscrew (Dia) range (2”) 2 TPI
Feed rod diameter 1”

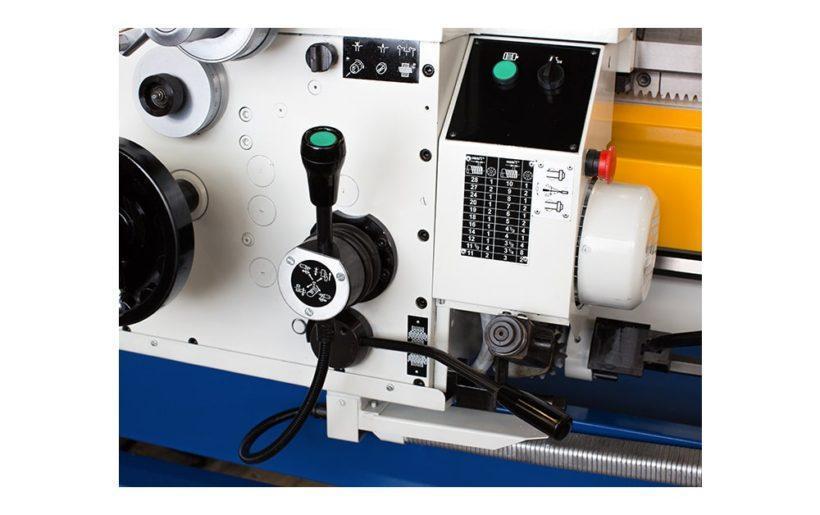

Carriage & Apron:
Cross slide travel 12 1/2”
Compound rest travel 5 3/8”
Graduation of apron handwheel .020
Graduation of cross slide handwheel .002 (Dir read)

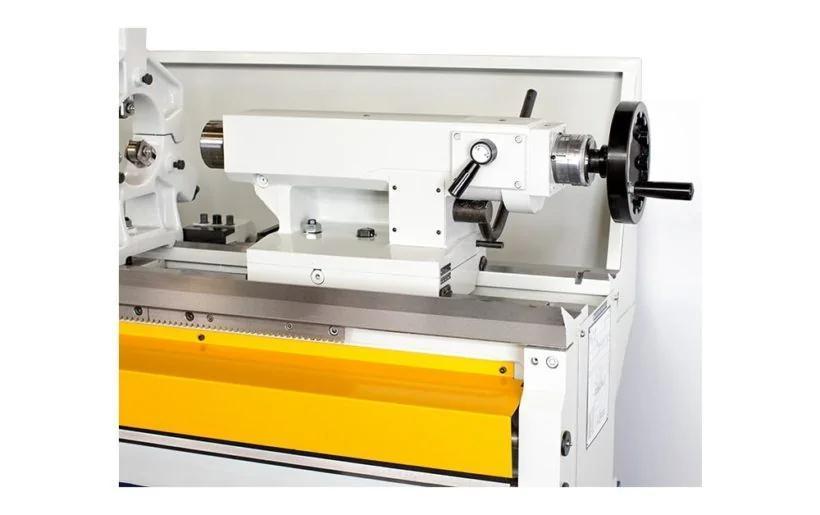

Tailstock:
Travel of spindle barrel 9 ½”
Diameter of spindle barrel 3 ½”
Taper of center #5 MT
Two Speed 1:1, 4:1
Bed:
Width of bed 15 ¾”
Depth of bed 16 7/8”
Hardness of bed (Rockwell C) 42-48
Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 15 ¾”
Motors:
Main Drive 10 HP
Coolant pump ¼ HP

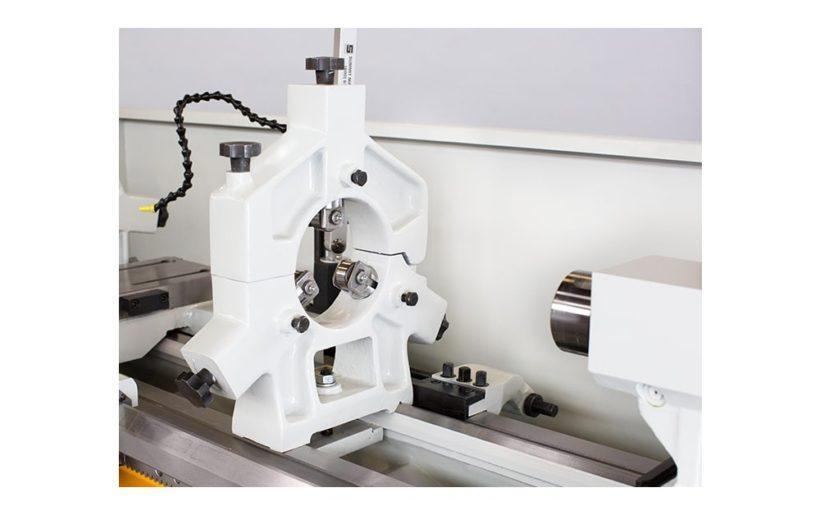

Steady and Follow Rest:
Steady rest ½”-6 1/8”
Follow rest ½”- 7 7/8”
Electrics:
220/440/3/60
Shipping Data:
Overall width 48”
Overall height 60”
Overall length 154”
Weight 7,100 lbs.
FEATURES:
* Big 3” thru hole
* Inch/metric threads w/single switch lever
* Cuts most inch/metric threads without change gears
* Hardened & ground bedways
* Force lubrication to the headstock, carriage and bedways
* Mechanical disc clutch
* Removable gap
* Precision (3) bearing spindle
* Crossfeed and threading safety interlock
* Feed reversing at the apron 4-way rapid traverse
* Single lever control for feeds and rapids
* Two Speed Tailstock
Included Accessories:
Steady Rest
Follow Rest
Thread Dial
Coolant System

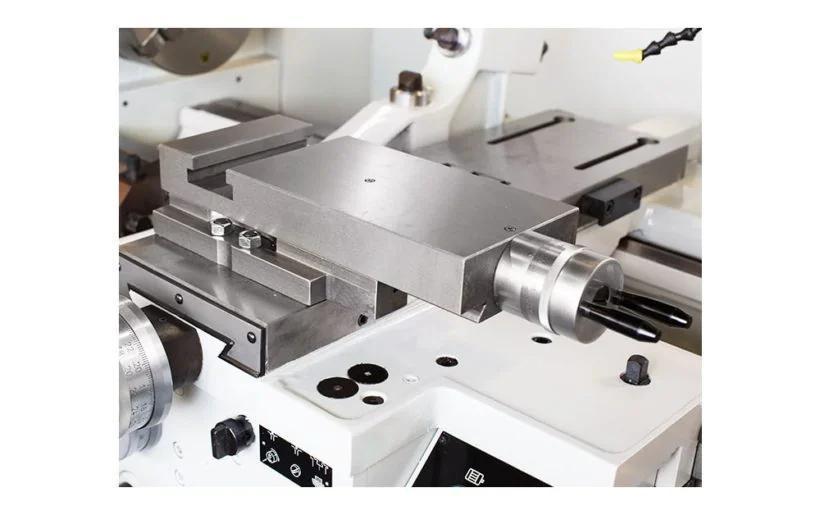

Taper Attachment

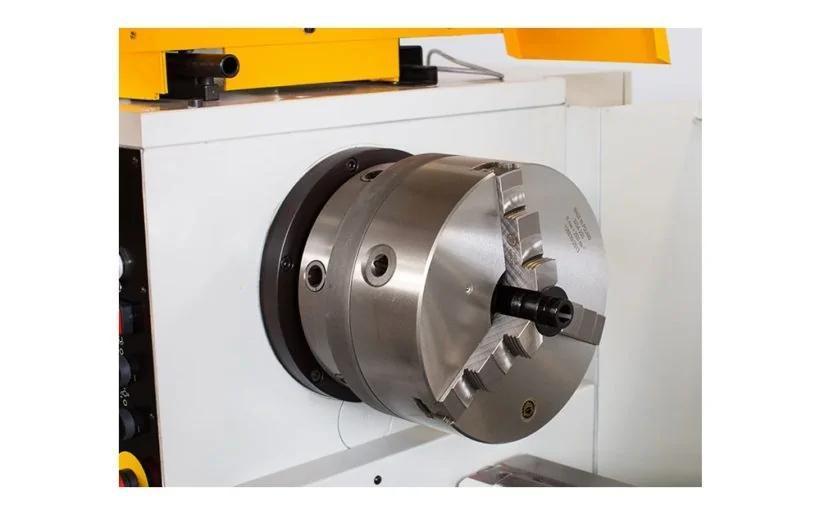

3 Jaw Chuck
Carriage Stop
Work Light
Full Length Splash Guard
Service Wrenches & Spanners
Optional Features:
12” Steel Body 3-Jaw Precision Chuck w/2 Piece Reversible Jaws in Lieu of Standard Chuck $2,600.00
15 ¾” Semi-steel 4 Jaw Chuck $3,800.00
15 ¾” Steel Body 4 Jaw Chuck w/2 Piece Reversible Jaws $4,500.00
Aloris Quick ChangeTool Post w/Holders (2#1, 2#2) $1,300.00
Fagor 2 Axis Digital Readout Installed $4,000.00
**Installation Assistance TBD
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
SUBJECT TO STOCK
