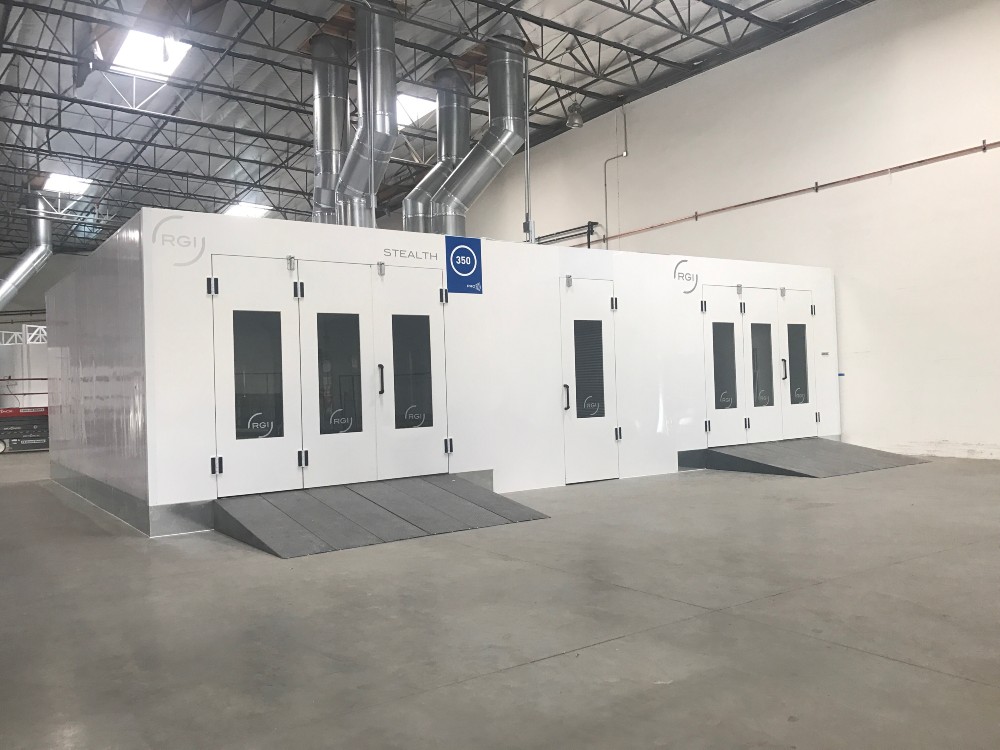

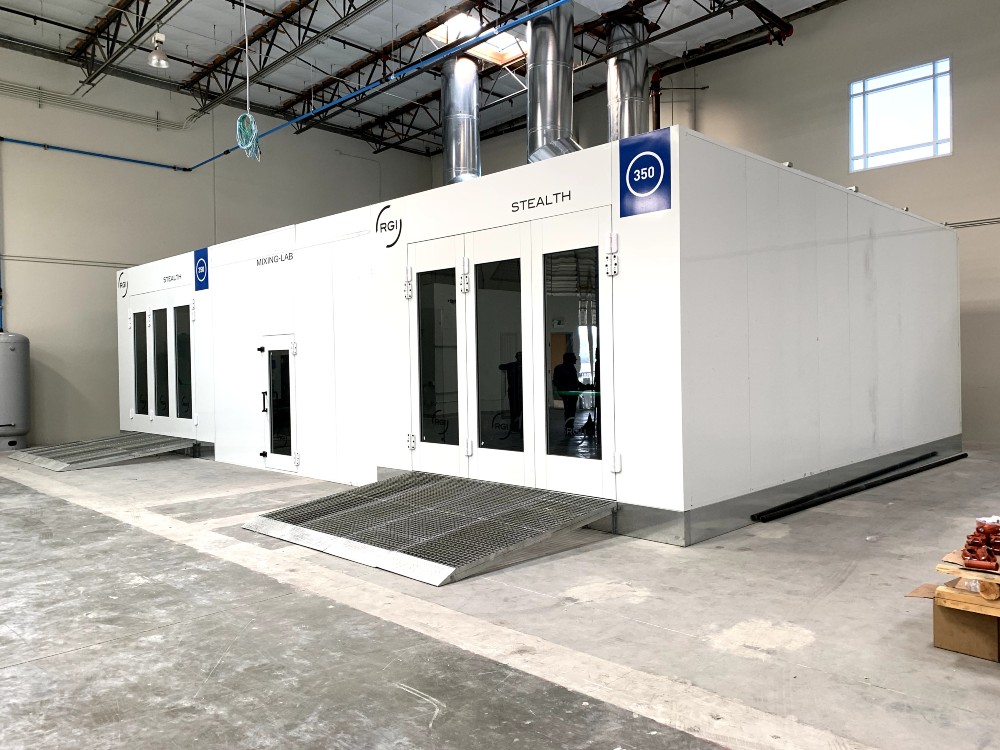

Stealth Pro automotive spray booth

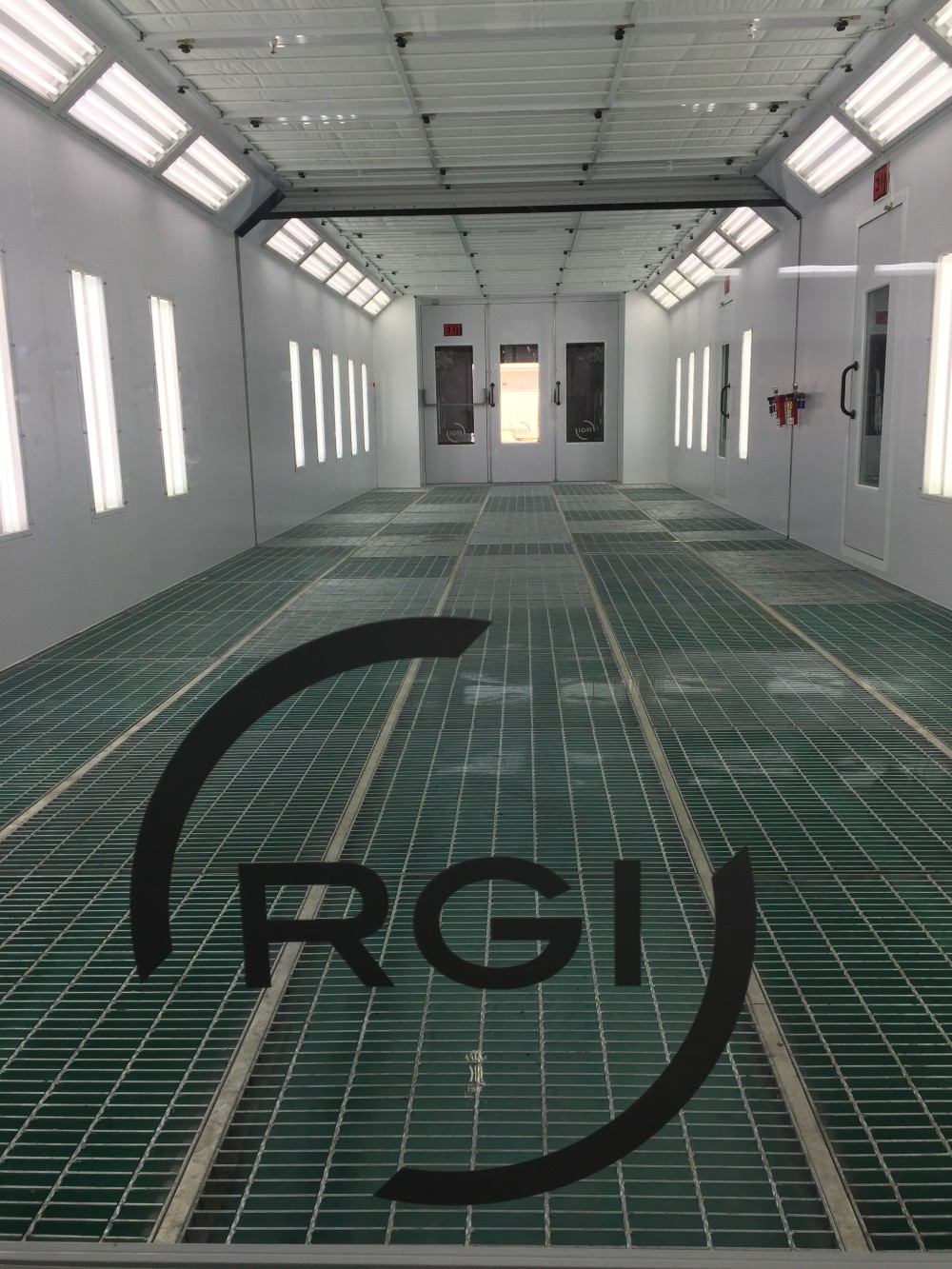

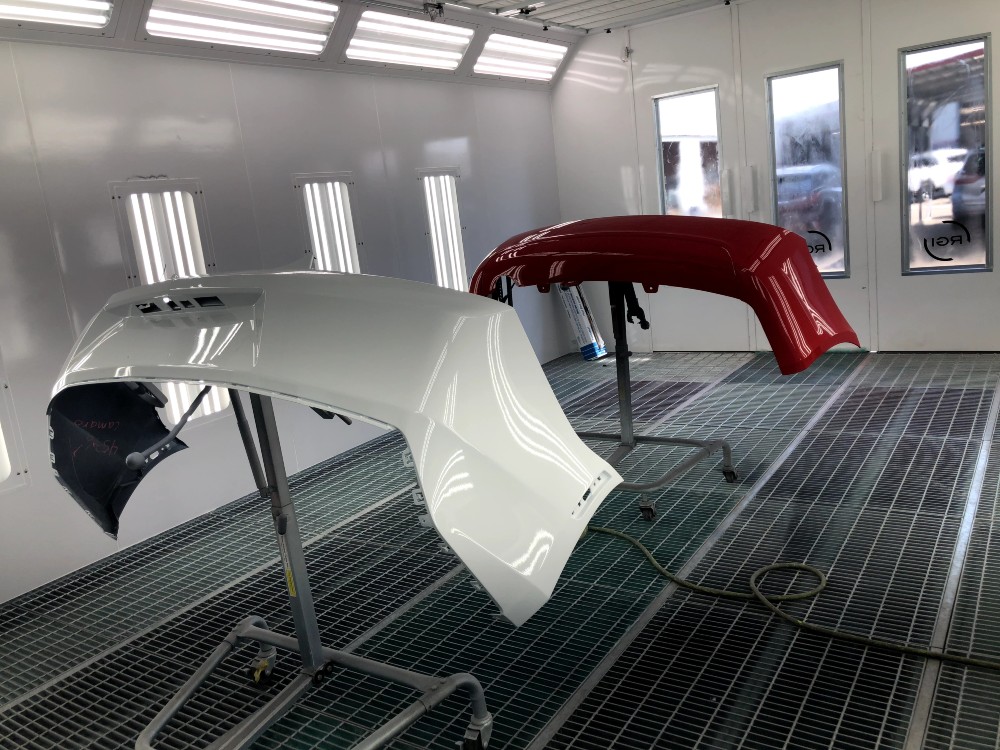

Generally accepted as the best airflow style, downdraft booths do an excellent job of controlling overspray and contamination. The Stealth 350 is a high-performance, efficient booth with increased horsepower delivering faster results. It pulls clean air from the upper fully filtered ceiling and exhausts the air through fully filtered floor plenum for optimal clean air and features enhanced lighting for detailed work. The increased power and significantly improve turnaround time reduces labor, energy costs, and overall operational expenses, making it a cost-effective solution for businesses. Double Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. They are insulated to decrease noise and ambient heat outside of the spray booth while keeping heated air inside the cabin.

Heavy Duty Construction: All of our double wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Double Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. They are insulated to decrease noise and ambient heat outside of the spray booth while keeping heated air inside the cabin. Better airflow, lighting, and strength because of gabled roof design. RGI uses Top-Quality Hardware - including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles - to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

Fans & Motors:

(1) 34" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan 16,000 CFM
(1) 10hp 3ph Belt-drive motor 208-230/460v. 60 hz
(1) Mark Dwyer manometer kit defines air flow pressure

Doors:

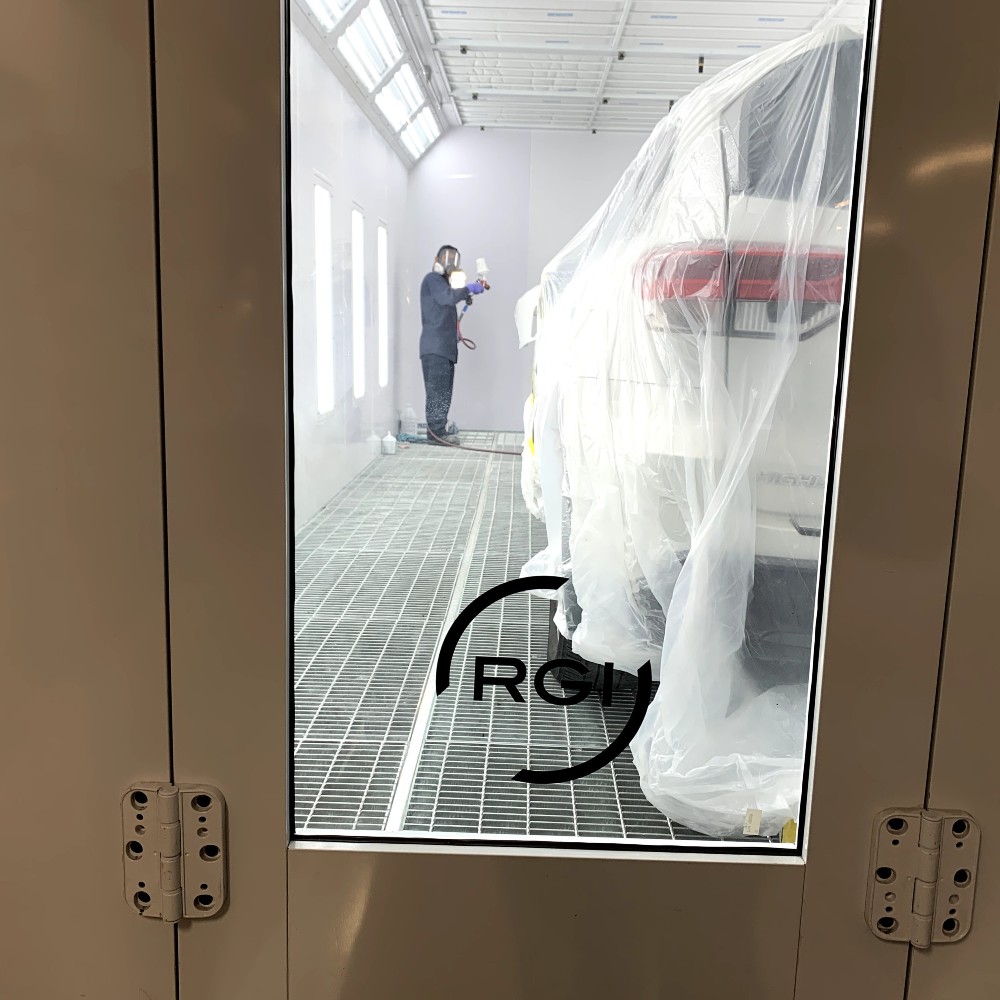

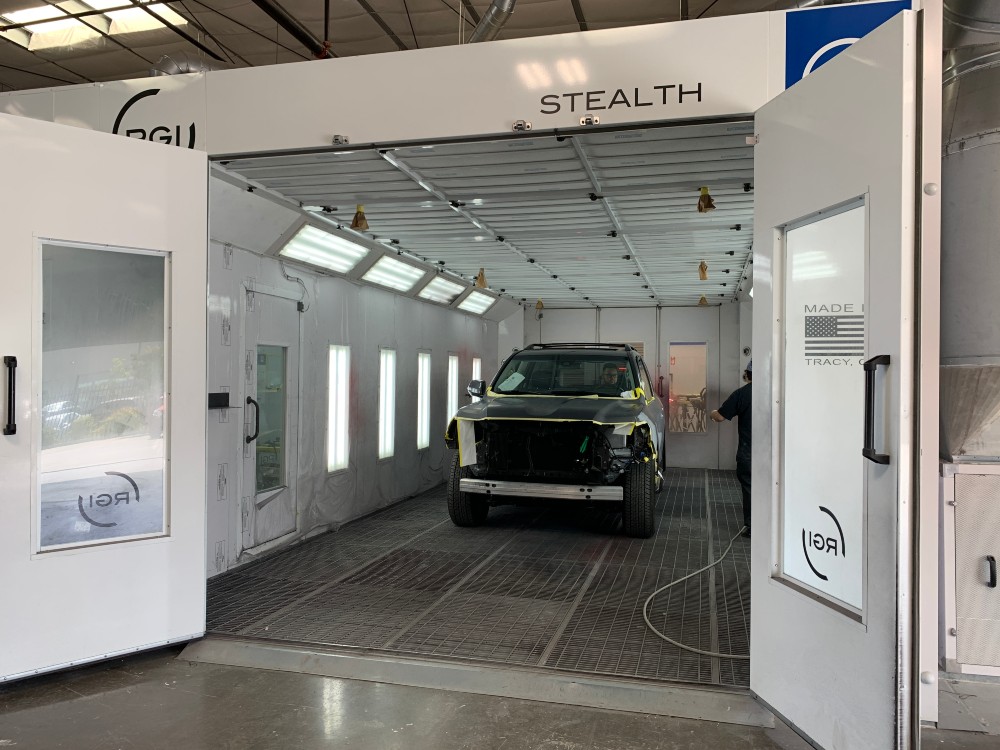

(1) Set of DOUBLE WALL TRI-FOLD drive-in doors with observation windows, opening Dimension 9'x9'
(1) Side access man door - Dim. 3'x7' with observation windows

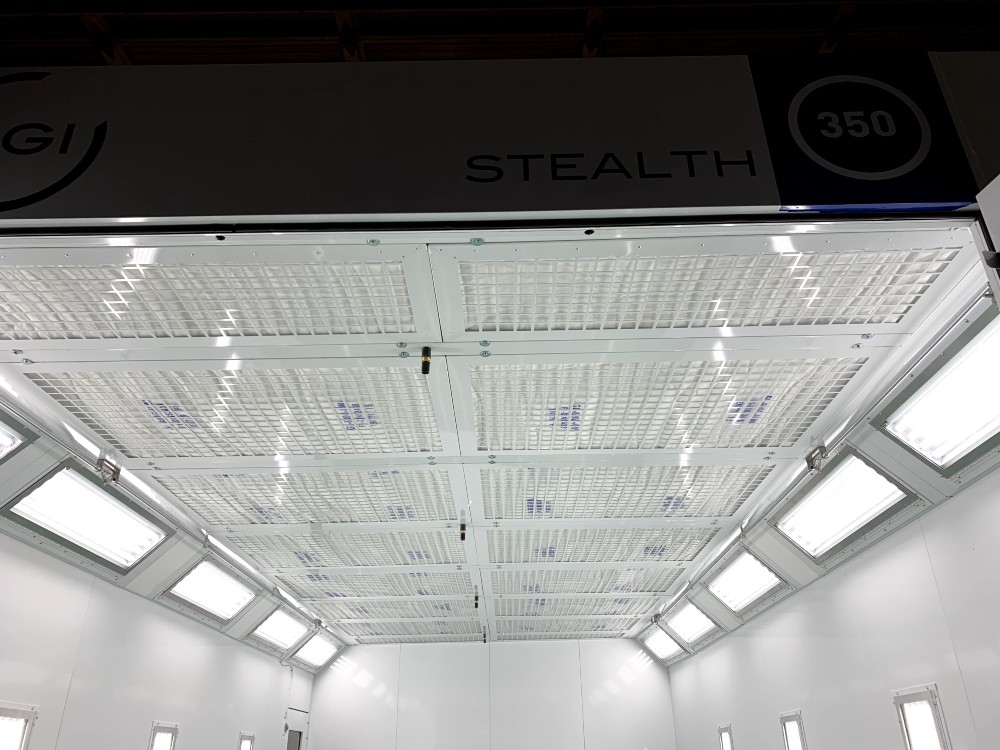

Filters: (2) Exhaust filters w/ (2) exhaust filter grids Note: Optional for extra filter exhaust Rolls (6) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed

Lighting: LED LIGHTS (standard) 4’ Long, 4 tubes LED T8 light fixtures 120v.

Booth Upgrades:

• Powder Coat or Galvanized Finish. Panels cover all walls, door frames, floor channels & ceiling panels.
• Booth Extension. Need more space to spray? Extend the length of your booth.
• Single-Phase Motor Upgrade
• Drive-Thru Doors - Add automotive exit doors to the booth to increase production time.
• AMU - Heating for your Spray Booth
• Control Center for spray booth
• Ducting Kit - Spray booth exhaust system includes:
  *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

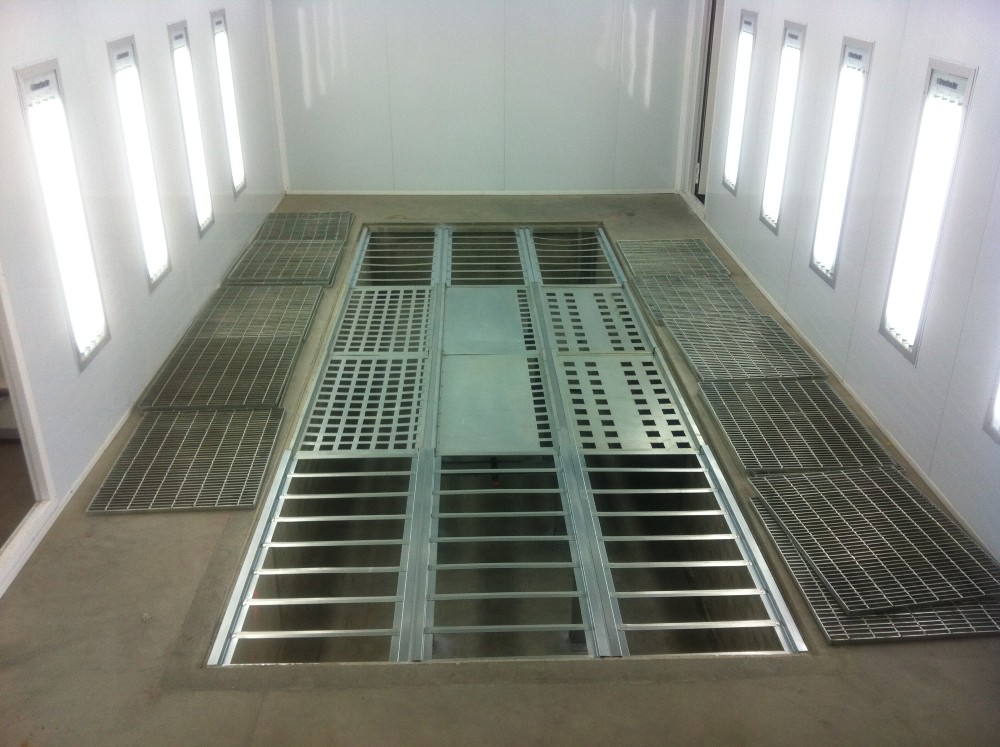

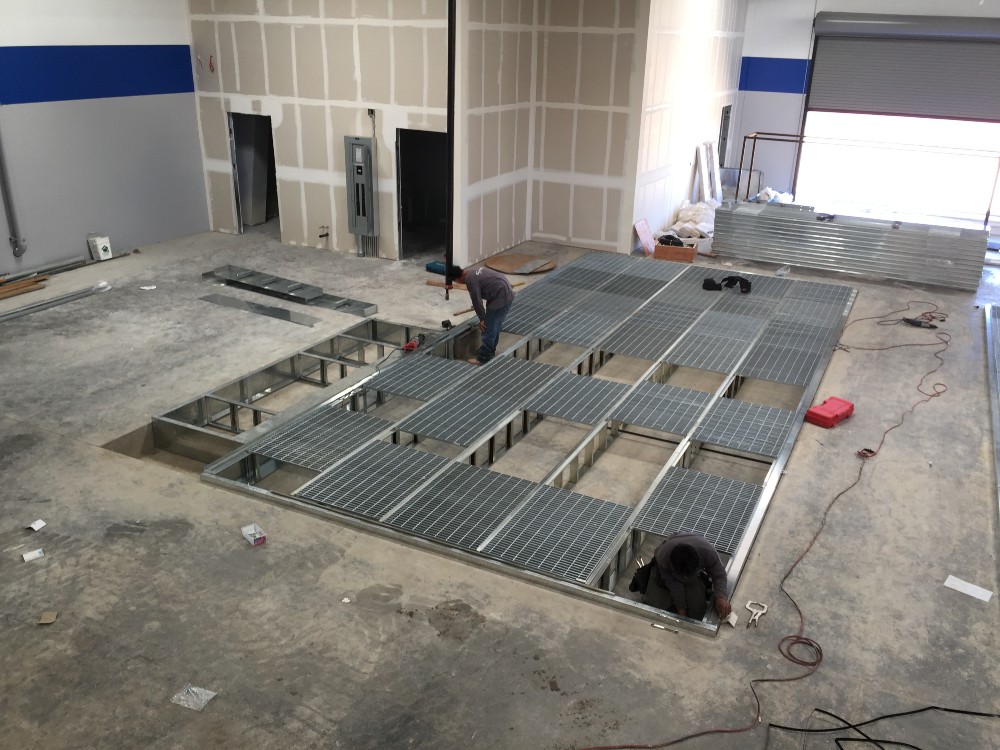

• Filtered In-Ground Pits: for Stealth Booth set up
