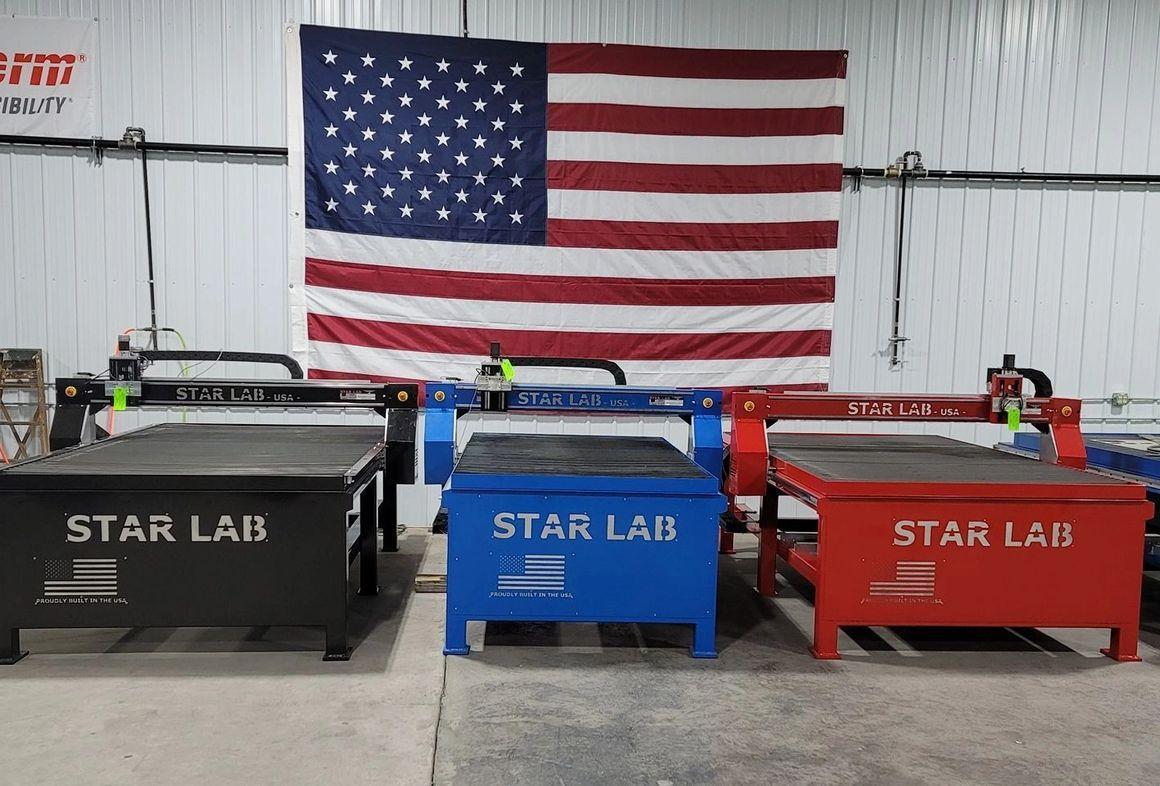

Star Lab #6x12, CNC Plasma Table, 600ipm, NEW

Features:
Super strength, long lasting profile rail X axis rails with wipers on the trucks Hardened and ground true profile linear rails for the Y axis Heavy duty gear rack with a wide tooth profile for years of constant use Hardened and ground and har.
Maintenance free motor reduction units High speed Z axis motor High torque hybrid Y axis motor Large frame, high torque, high speed dual X axis motors.
No dead spot gear rack/rigid motor mount technology Ohmic plate sensing technology * very important Gantry design to minimize UV light rays on motor cables and torch leads Z axis features ballscrew drive 500ipm capable (FAST).
Z axis also comes with our rare earth magnet MAG LOK magnetic torch breakaway with collision sensor Uni-mount torch mount holds Plasma and Oxy fuel torch bodies from 7/8 to 1.5" in diameter Z axis drive has rigid hardened, ground rails.
Extra large FULLY ENCLOSED cable carrier provides ample room for all cutting accessories Dual drive X axis Cut speeds to 600ipm (1500ipm cut speed max with our Supercharged servo option) Over 4500inoz of torque on the X axis.
Frame is 4x4 fully welded thick steel box tube that is powder coated OSHA safety blue with overload beam structure Full travels are 49.5x49.5 (4x4) 49.5x98 (4x8) 61.5x121.5 (5x10) 8" approx clearance on the Z (Z 6.25" travel).
Auto home/Auto squaring switch kit system installed Slat spacing of 2.25" with a water pan depth of 3" 5/8" thick steel feet (7 leveling feet) with 3/4-16 tapped holes.
Floating head and Ohmic system.
Extra heavy frame that will never fold up from collisions with forklifts, steel plate, ect. PC Linux based mini solid state controller PC with software. Cad Qcad Pro, Inkscape.
CAM Sheetcam with Toolset for Hypertherm Pronest LT supported (Hypertherm CAD CAM for offsite programming *optional) Torch height controller Anti dive (stops torch from diving in the corners) Ultra fast response capability 30ga to 2".
Optional:
Hypertherm Powermax 125 with 50' machine torch, CPC/CNC interface and OMHIC system) -------- $8,700.00
Rotacut 2.5 with 8" chuck and pipefit software for servo ------------- $3,850.00
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
