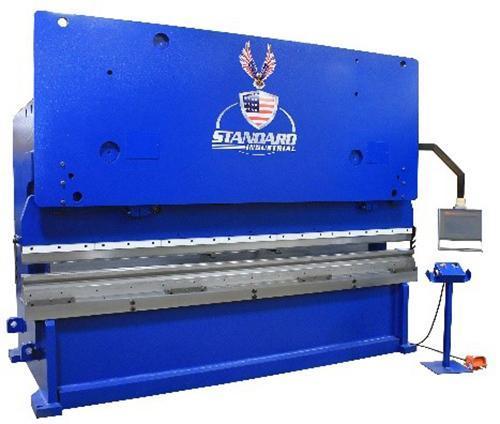

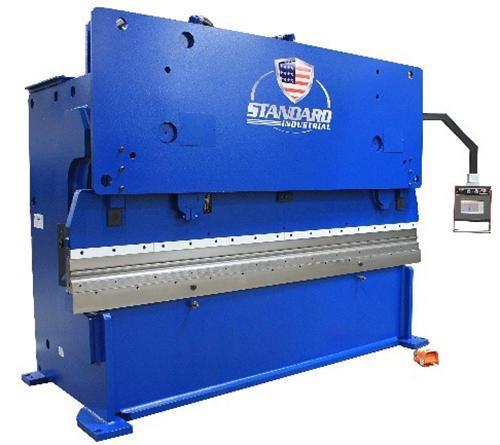

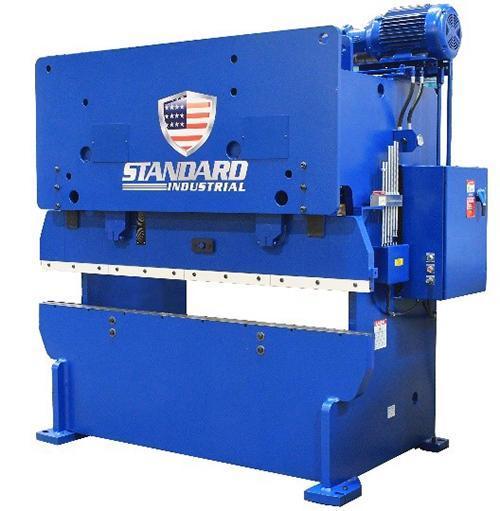

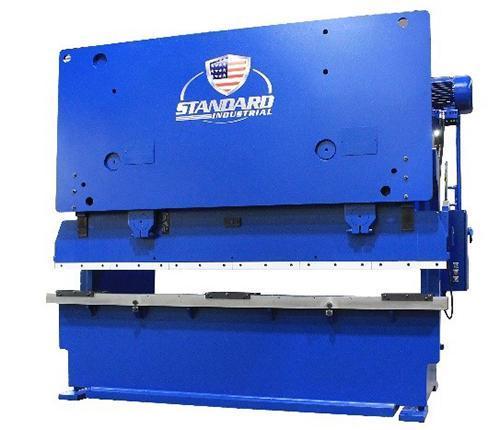

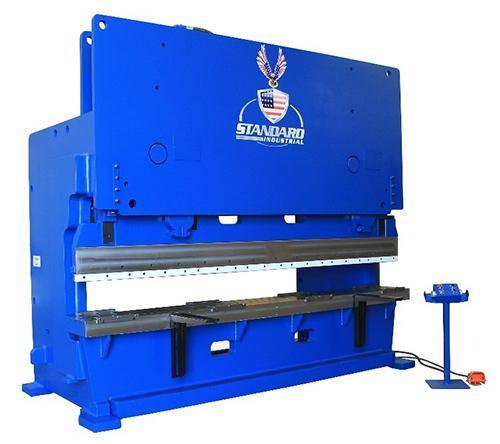

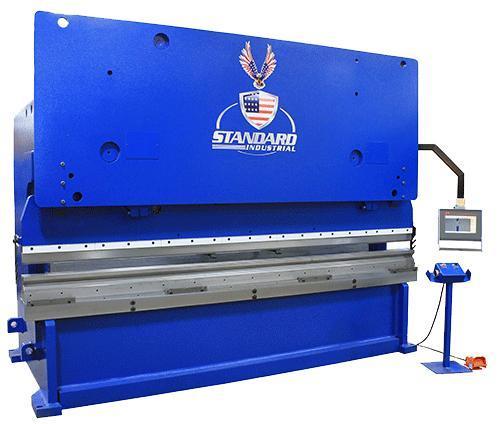

400 Ton, Standard #AB400-18-20, Press Brake, 20' overall, 10 throat, 10" stroke, 20" open, 10" Shut Height, 40 HP, NEW

SPECIFICATIONS:
PRESS BRAKE MODEL -------------------------- AB400-20
TONNAGE FORMING/PUNCHING ------------------- 400/260
DISTANCE BETWEEN HOUSINGS ------------------ 18 in 5 in
BED/RAM LENGTH ----------------------------- 20 ft
BELOW GRADE -------------------------------- YES
WEIGHT (LBS.) ------------------------------ 115,000
BED WIDTH ---------------------------------- 14 in
THROAT DEPTH ------------------------------- 10 in
RAM STROKE (FULLY ADJUSTABLE) -------------- 10 in
OPEN HEIGHT (MAXIMUM HEIGHT) --------------- 20 in
CLOSED HEIGHT (MINIMUM HEIGHT) ------------- 10 in
HORSEPOWER --------------------------------- 40
RAM SPEEDS (IN INCHES PER MINUTE)
APPROACH ----------------------- 110
PRESS -------------------------- 17
RETURN ------------------------- 106
OPTIONAL FEATURES:
See PDF attached (March 2024 MODEL AB Press Brake Options--All Sizes.pdf)
