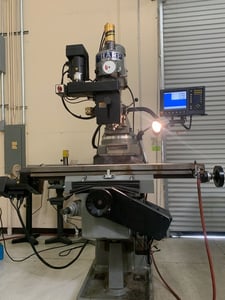

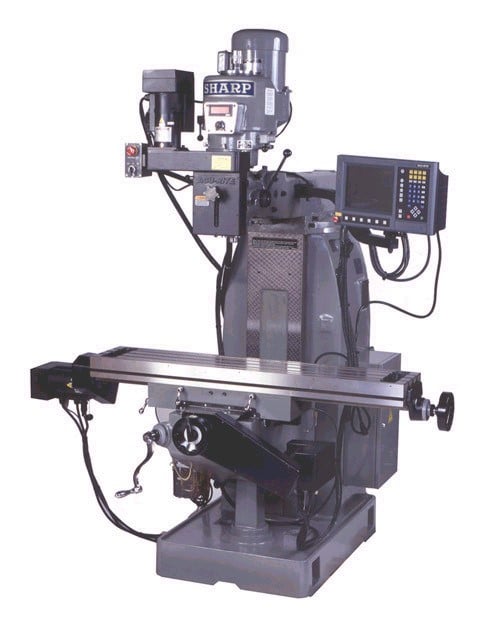

Sharp #TMV/MP-2, Vertical Mill, 10" x50" table, 3 HP

STANDARD EQUIPMENT:

• Manual Draw Bar
• Hardened and Ground Boxways
• Front and rear way covers
• Automatic Lube System
• Tool Kit includes:
• Machine manual, Half nut wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw
• driver, Flat head screw driver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator,
• Can of paint.

FULL – FEATURED:

• MILLPWR IS A FULL – FEATURED 2-AXES CONTROL/3-AXES READOUT WITH A NUMBER OF
• SOFTWARE AND HARDWARE FEATURES.
• SOFTWARE
• Dimension Functions:
• ABS/INC, POLAR/CARTESIAN, INCH/METRIC.

Programming:

• PROGRAM IN/OUT, POSITION/DRILL, MILL LINES, MILL ARC, BLEND (CORNER RADIUS)
• HOLES (BOLT CIRCLE, RECTANGULAR ARRAY, RECTANGULAR FRAM, LINE),
• CIRCLE (POCKET, FRAM, RING), RECTANGLE (POCKET, FRAME, SLOT, FACING) 9,999 STEPS OF
• PROGRAM SIZE
• Special Features:
• CUSTOM POCKETS, REPEAT, ROTATE, MIRROR IMAGE.
• Run Options:
• SINGLE STEP, DRY RUN, GRAPHICS ONLY, MANUAL POSITIONING.

Calculator Functions:

• GEOMETRY, TRIG.
• HARDWARE:
• Operator Console:
• EASY TO USE FORMAT. CONVERSATIONAL ENGLISH. THREE DIMENSIONAL HARD KEYS. 10”
• FLAT PANEL, COLOR LCD DISPLAY. REMOTE STOP/GO SWITCH.

Controller Cabinet:

• HEAVY DUTY ENCLOSURE MODULAR CONSTRUCTION, 1 GHz Intel Celeron MICROPROCESSOR.
• USB AND RS232 INTERFACE
• 12.1” HIGH RESOLUTION DISPLAY WITH 3 D GRAPHICS
• 115VAC – 20 AMPS

Positioning:

• PRECISION GLASS SCALE LINEAR ENCODERS. CLOSED LOOP FEEDBACK THROUGH SERVO
• AMPLIFIERS. DC SERVO MOTORS. PRECISION GROUND BALL SCREWS.

SPECIFICATIONS:

• Table
• Working surface 10” x 50”
• T-slot number, size 3, 5/8”
• Capacity
• Table travel; x-axis 28”
• Saddle travel; y-axis 15.5”
• Ram travel 18.5”
• Quill travel; z-axis 5”
• Knee travel 15.3”
• Spindle to column (min-max) 9.8-28.3”
• Spindle to nose to table 1.6-16.9”
• Spindle
• Motor 3 HP
• Wiring voltage 220/440V, 3 phase, 60 H
• Taper R-8
• Speed (vari speed) 60-4,500 RPM
• Quill feed (IPR) 0.0015, 0.003, 0.005”
• Accuracy 0.0002” TIR
• Head tilt; right-to-right-left (each way) 90°
• Head tilt; up-and-down (each way) 45°
