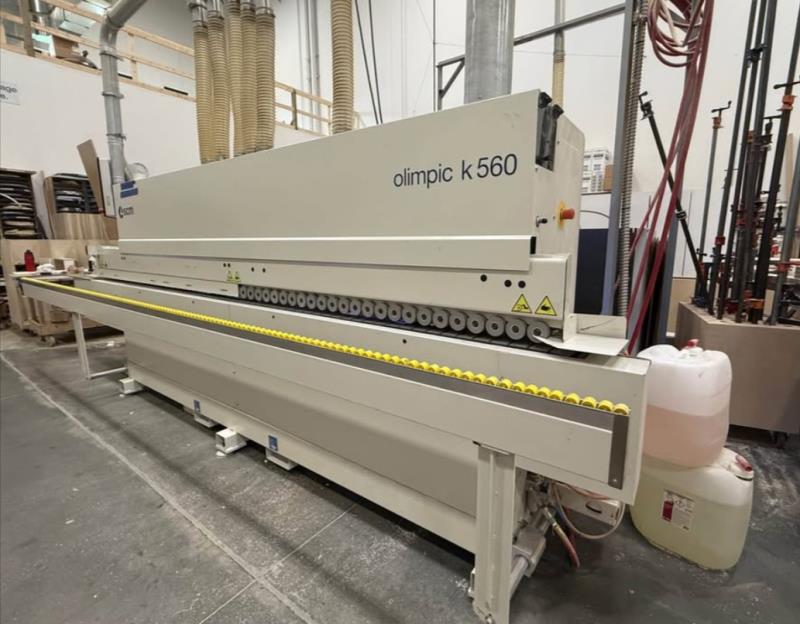

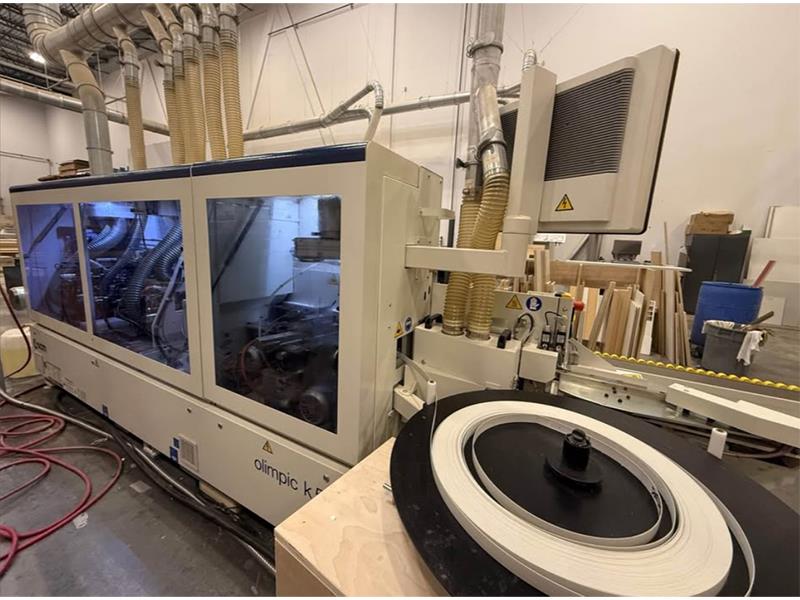

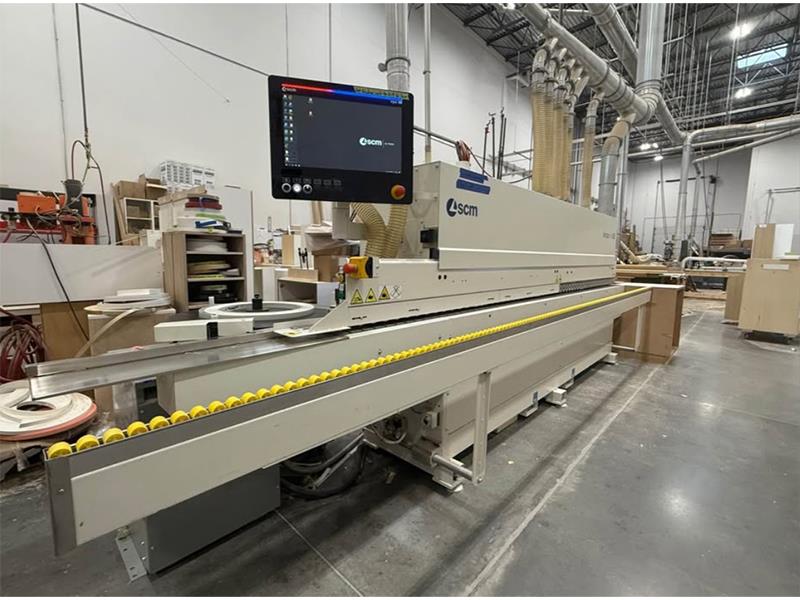

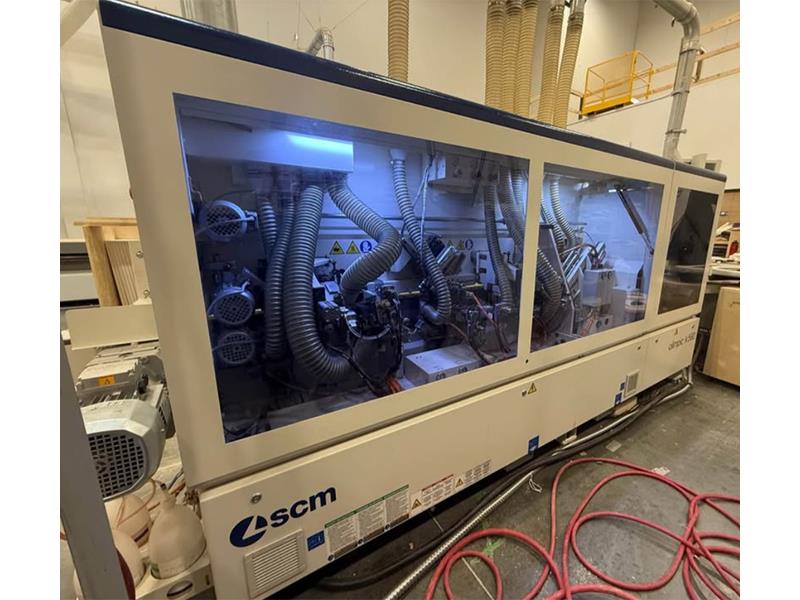

SCM #Olimpic-K560, edgebander w/ pre-mill & corner rounding, SmartTouch PLC Control, 2020

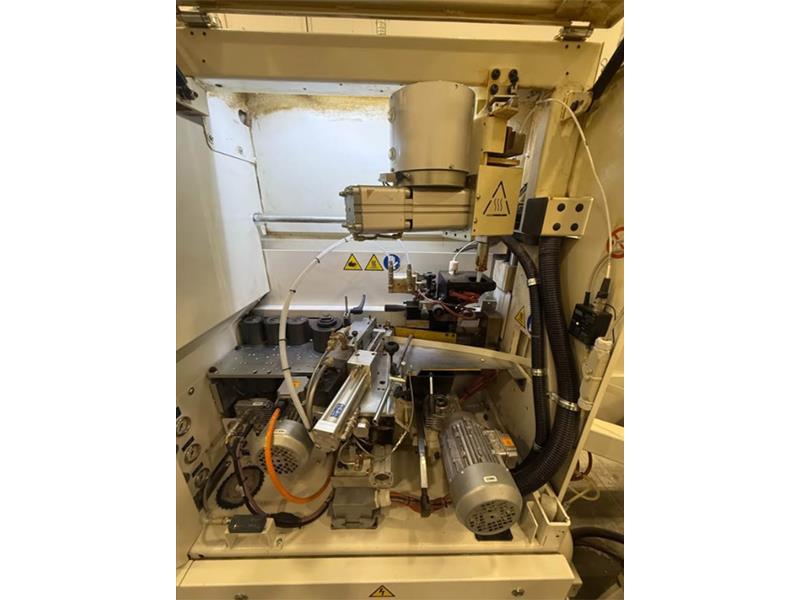

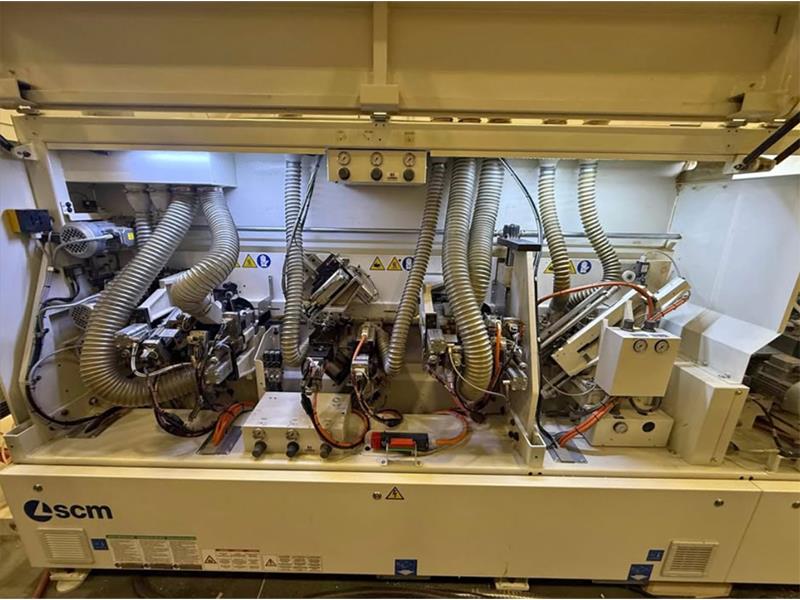

SCM - OLIMPIC K 560 R HP. Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station: (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect TEFLON glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section. Manual digital positioning: TEFLON Coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0 - 15 for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- SERVO Controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover & outboard panel support. -- This machine is: FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP
