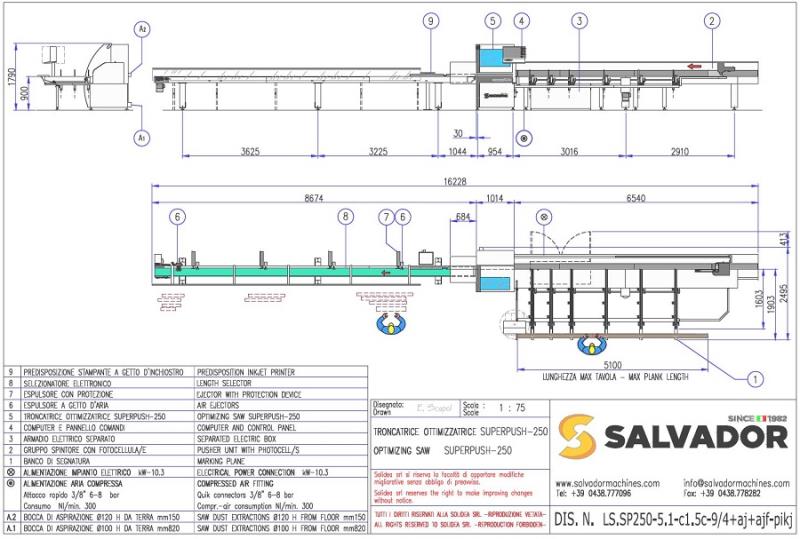

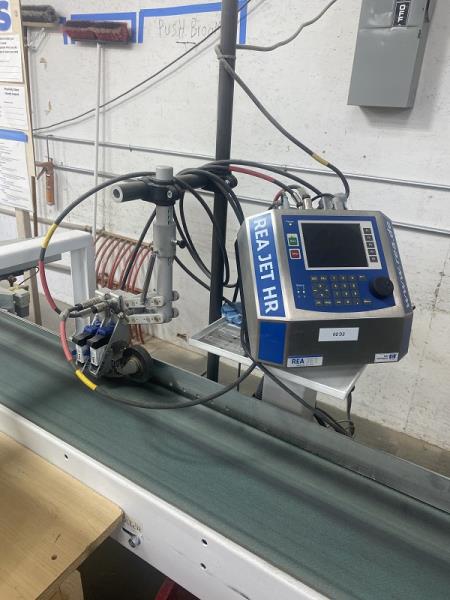

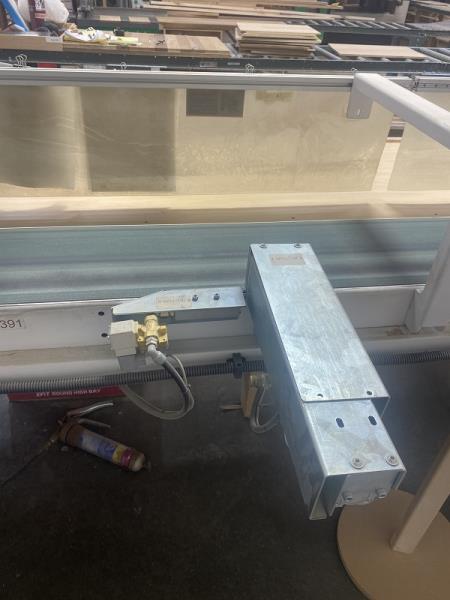

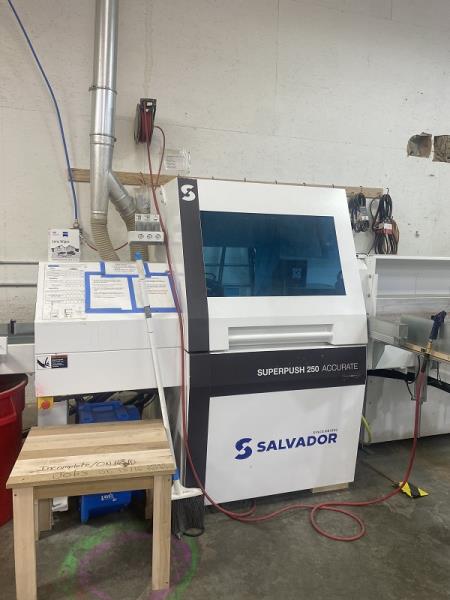

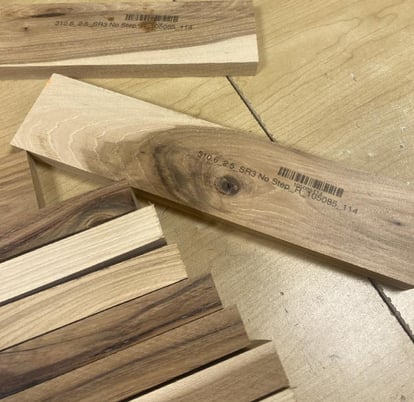

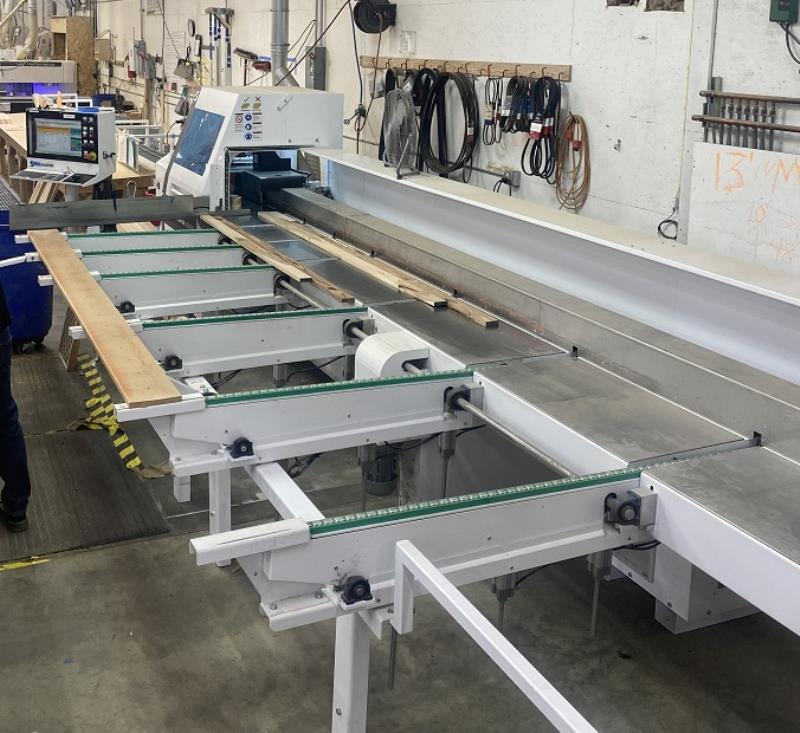

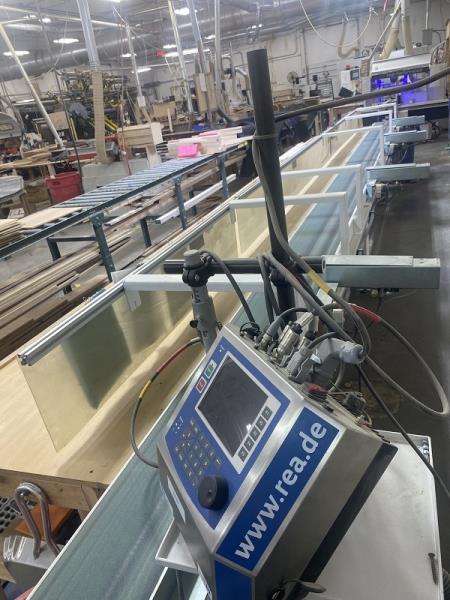

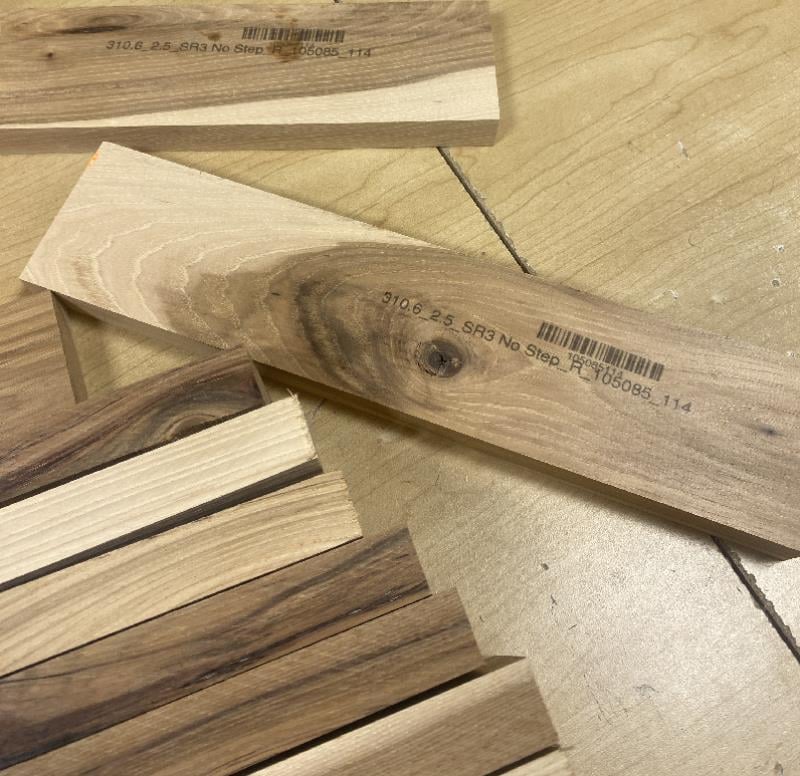

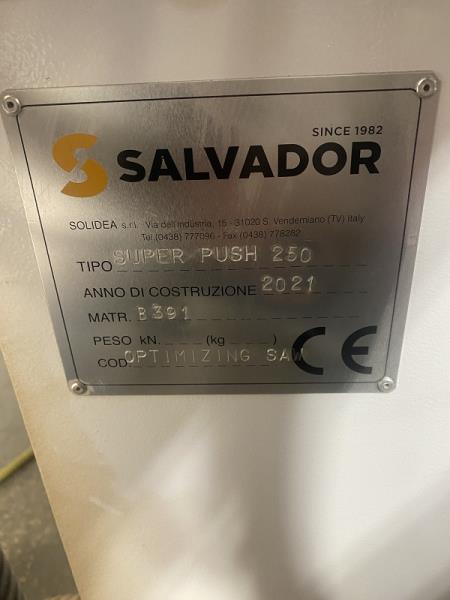

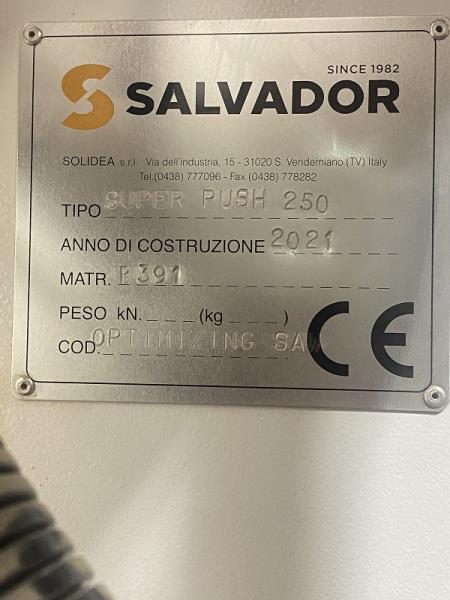

2021 SALVADOR SUPER PUSH 250 ACCURATE EDITIONThis is a very late model and low hours optimizing cut off saw that includes the ACCURATE package as well as a printer to label your parts. The Salvador super. Push 250 is a fast Robust Push Feeding Optimizing Crosscut Solution designed for high performance.The Super Push 250. Accurate Edition supports a floating pneumatic clamping device for suburb positioning accuracy. Resulting in very tight tolerance level's. The accurate package includes a predetermined outfeed table featuring a 6M outfeed belt with four pneumatic ejectors, 1 virtual ejector, 4 air jet ejectors and one air. Waste ejector.The infeed table Is comprised of heavy duty steel frame for maximum stability and longevity. The working height is 39 inches from the floor. Safety is enhanced with a standard light curtain which prevents operation if broken by worker in the cutting and working area. The 5.1 meter 16 foot in-feed table is standard with a 0 level lateral chain loading system, 5.1 meter in-feed 6 chains as standard. The chains are of heavy duty 5/8 inch width. The available loading width is 1.5 meters (59"). Minimum length for loading is 700 millimeters. 27 inches between the chains.The pusher supports automatic rising during the reading operation. The reading operation uses 2 sensors, one which detects the product overall length and the second sensor detects crayon marks which identify defects and or grade quality changes. The transmission of power from the motor to the carriage is accomplished by a steel reinforced toothed belt of 50mm / two inches. Wide. The pushing device pivots automatically up as it travels over the work piece. Once past the pusher. Positions down to the table to manage the work piece into the cutting box.The Saw Box area is completely enclosed by an interlocking steel cover. The front window provides a clear and safe view of the cutting operation. Work piece alignment is accomplished by pneumatically loaded pressure elements. The pressure beam is pneumatic in its operation to hold the work piece during the cut. The saw travels through an aluminum table insert which can be changed easily as needed. The heavy duty motor is a premium efficiency IE3 rating for cost savings in a day-to-day operation. On average, premium efficiency motors reduced your operation costs by 8 to 20% over standard motors.Microsoft. Windows Embedded software running proprietary. TROPTIM graphic software offers multiple cutting solutions from fixed length cutting, on the mark. Cutting as well as full value and yield optimized priorities period up to five grade qualities are also. Included defect and grade changes are managed by. Fluorescent crayon markings.Machine includes Zanasi Z4700 High Definition Ink Jet Printer which is controlled directly by the machine. Working Capacity:Max board length befor4 cutting 5100mm (16')Min board length before cutting 1000mm (39.3") ● Motor saw power -10 HP ● Saw blade diameter maximum--
