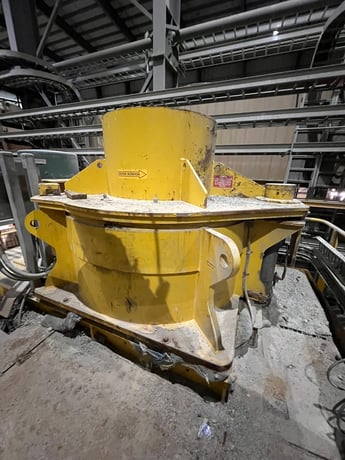

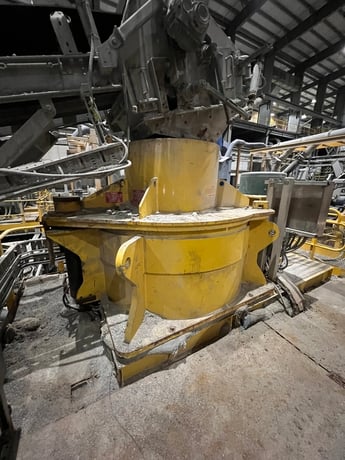

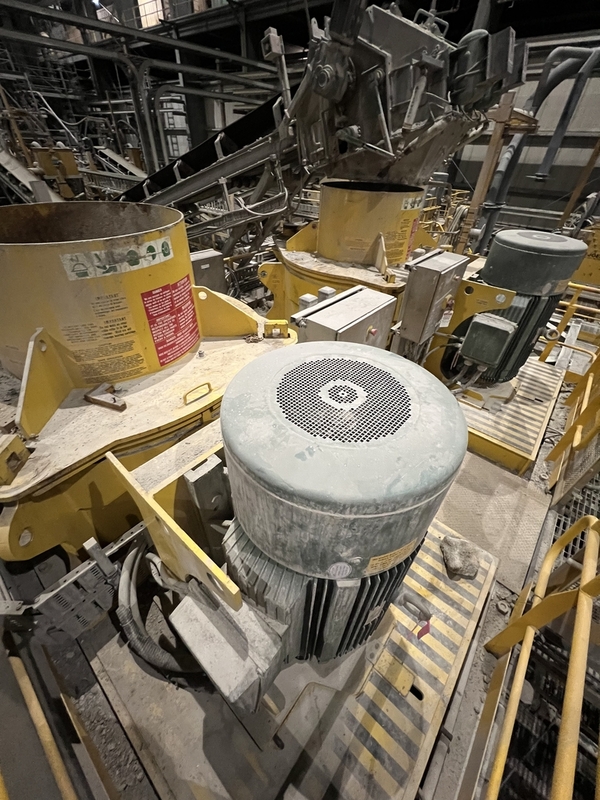

REMco #SD-GEKKO-1530-304-14, OreMax Vertical Shaft Impact Crusher, 2" A36 steel plate crusher base, 44" receiving hopper, (2) 350 HP motor, 575 V., (2 available)

SKU: 137916
Model: SD-GEKKO 1530-304-14
Condition: Used
Additional Description:
Equipment Included

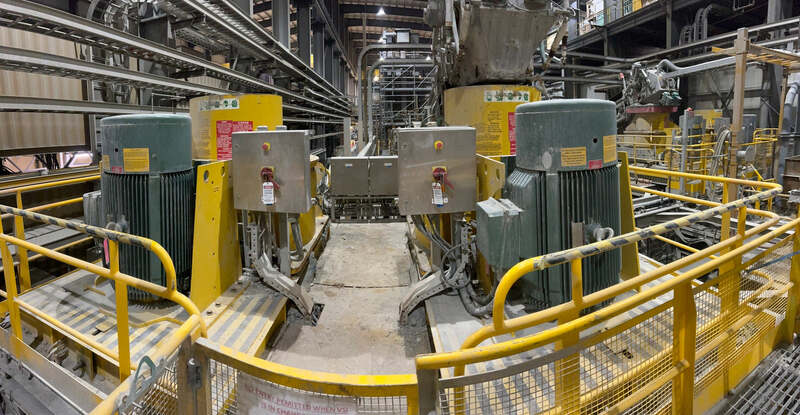

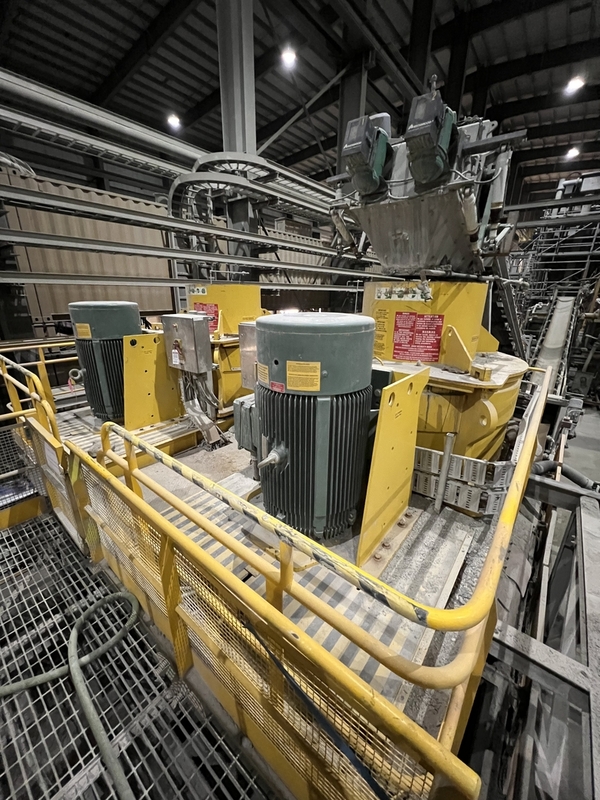

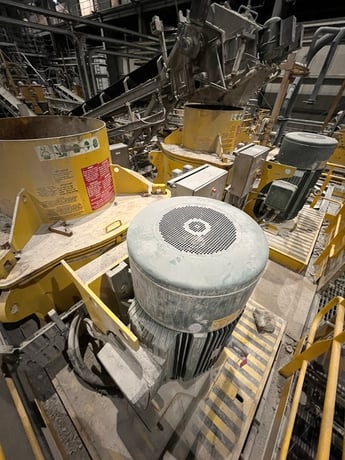

This product consists of 2 x 1530 OreMax VSI Crushers and 2 x 350HP Motors
Crusher Fabrication
- All steel, HD fabricated construction with one motor mount
- Crusher Base is2" A36 steel plate
- Four corner base-reinforcing gussets with lifting eyes, 2" thick

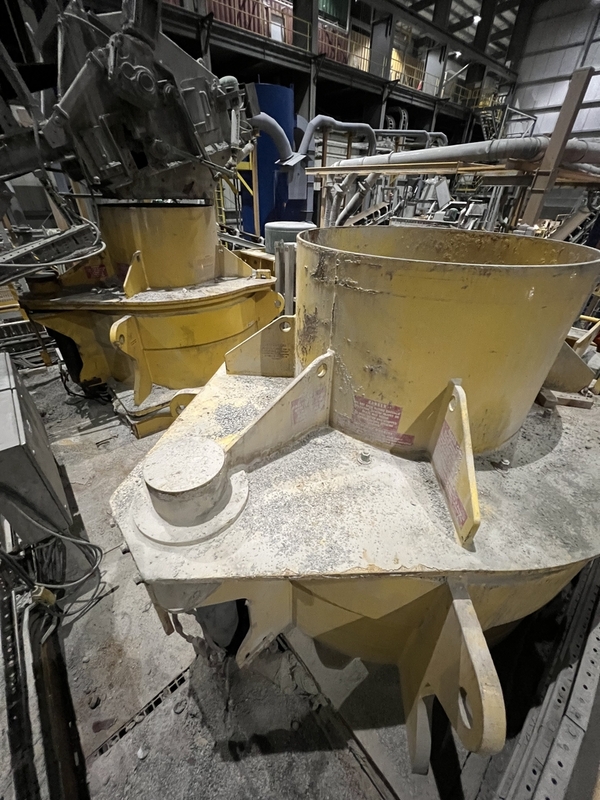

- 44" circular receiving hopper with feed diverter plate and two hopper wedge locks
- Cast steel heavy-duty feed tube assembly with feed diverter
- Two-piece autogenetic crushing chamber with 16 deep well pockets & AR gusset protectors
- One 30" 4- port, 14" open-sided rotor with all wear parts and taper lock
- Oil lubricated main shaft assembly with radial bearings and oil lines
- Oil lubrication system complete with oil tank, oil pump and safety devices
- Fabricated support frame with four self-centering laminated rubber isolation mounts
- ACME thread, single-shaft v-belt adjustment rod and tensioner
- Hydraulically lifted feed hopper assembly with lift cylinder and hydraulic ram
Specifications
Capacity: Rated up to 235 metric TPH of minus 2" feed (when powered by 225 kW)

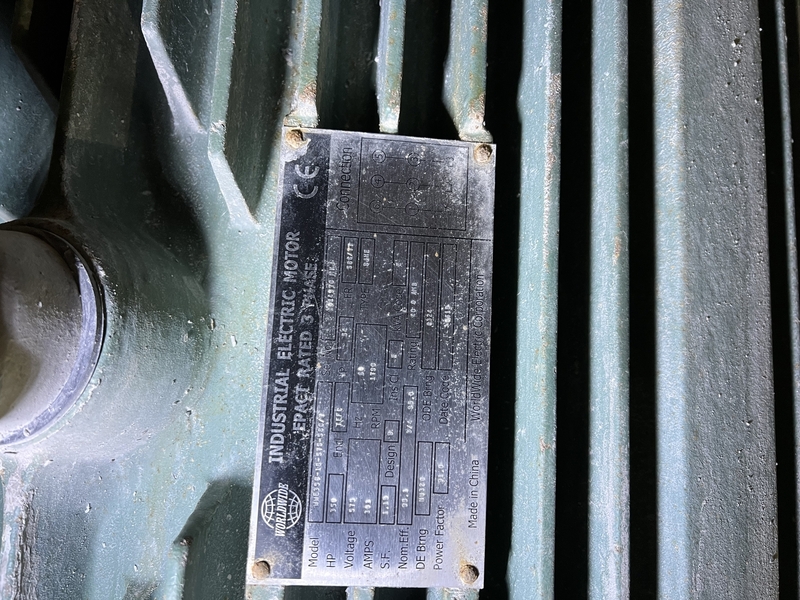

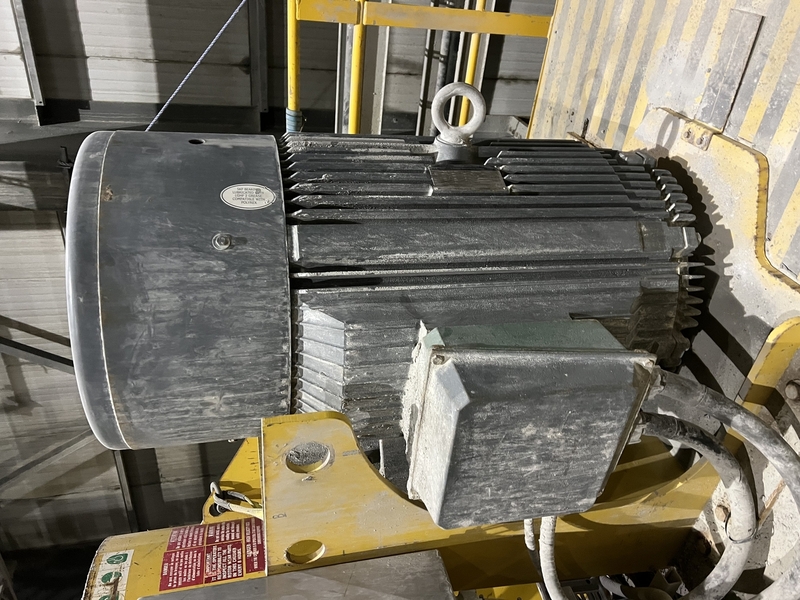

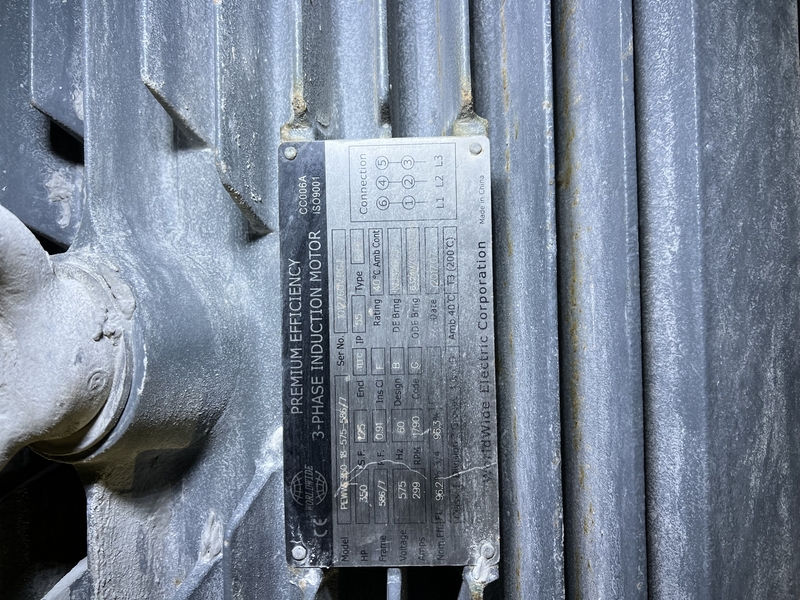

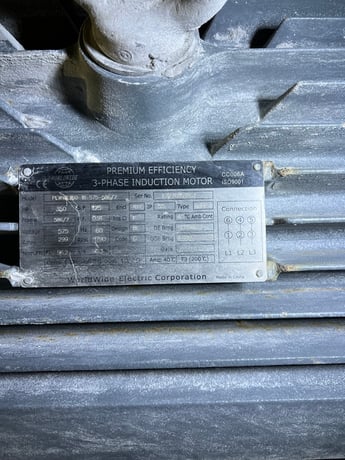

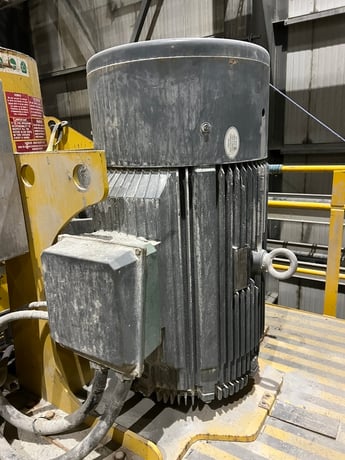

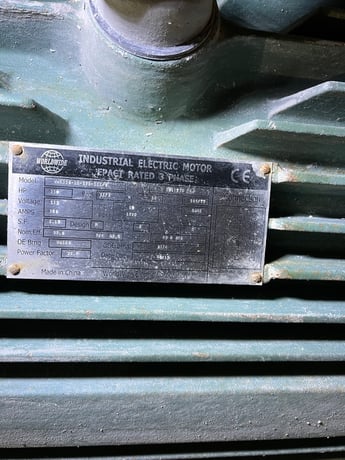

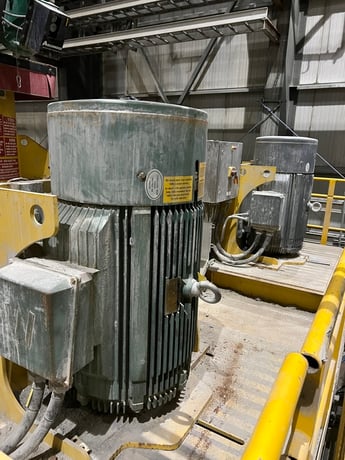

Horsepower: 350 hp
Motor Speed: 1790 rpm
Volts: 575 V, 3-ph
Current: 301 A
Rated Torque: 1157.29 lb.-ft.
Locked Rotor Torque: 212%
Breakdown Torque: 287%
