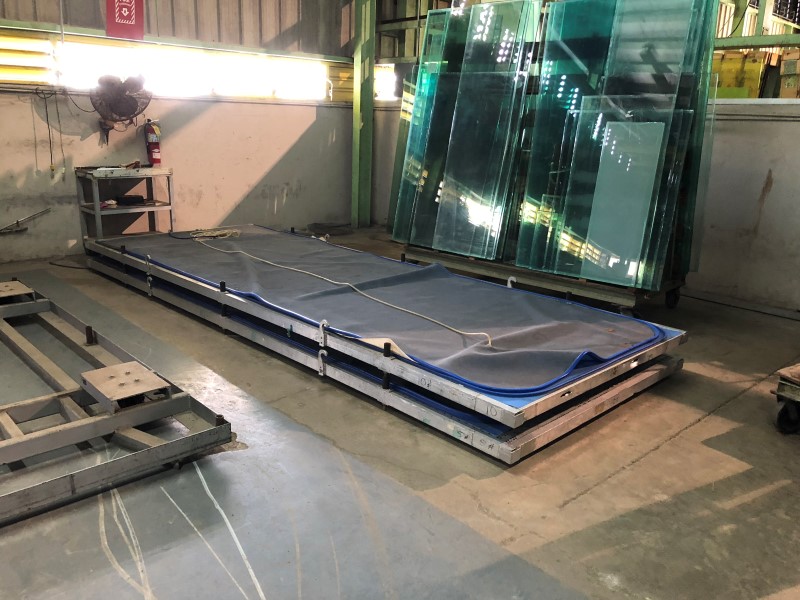

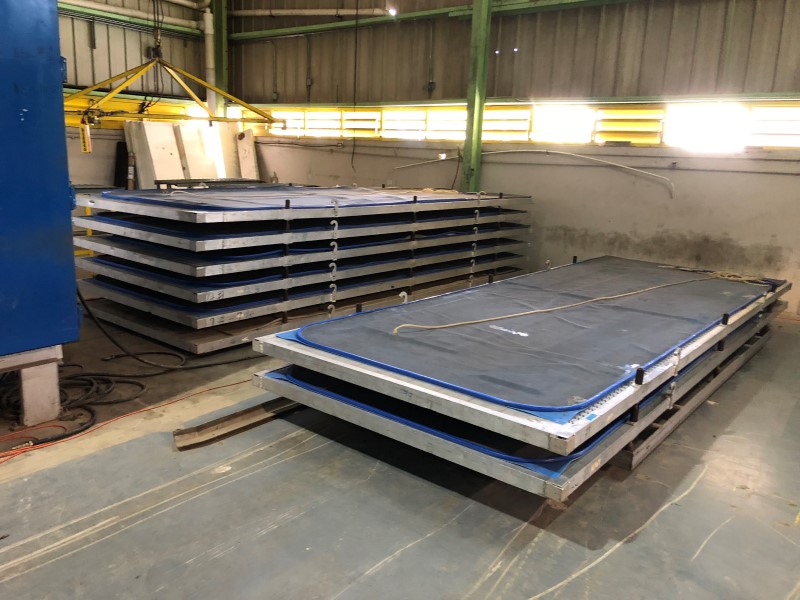

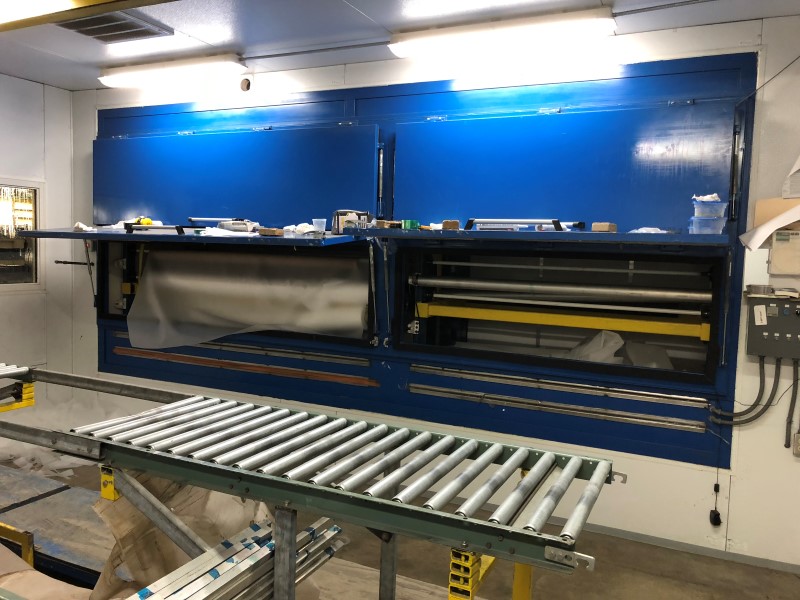

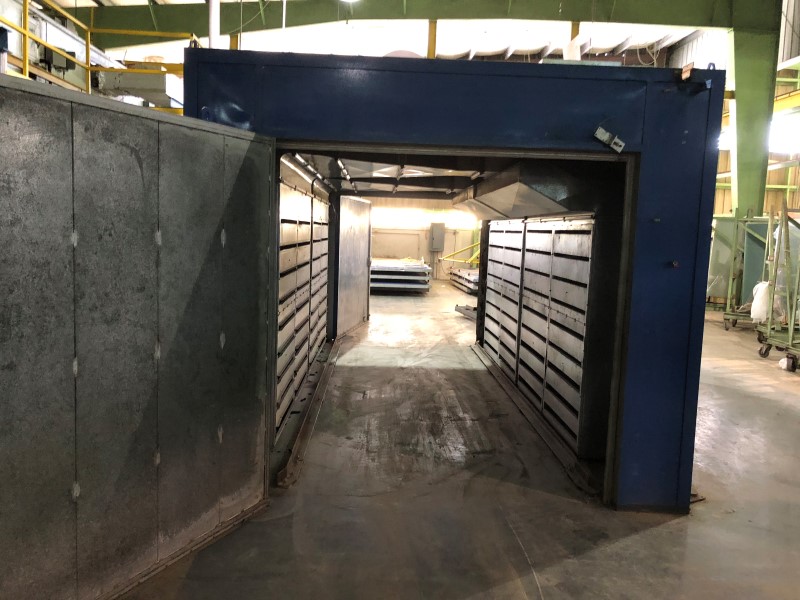

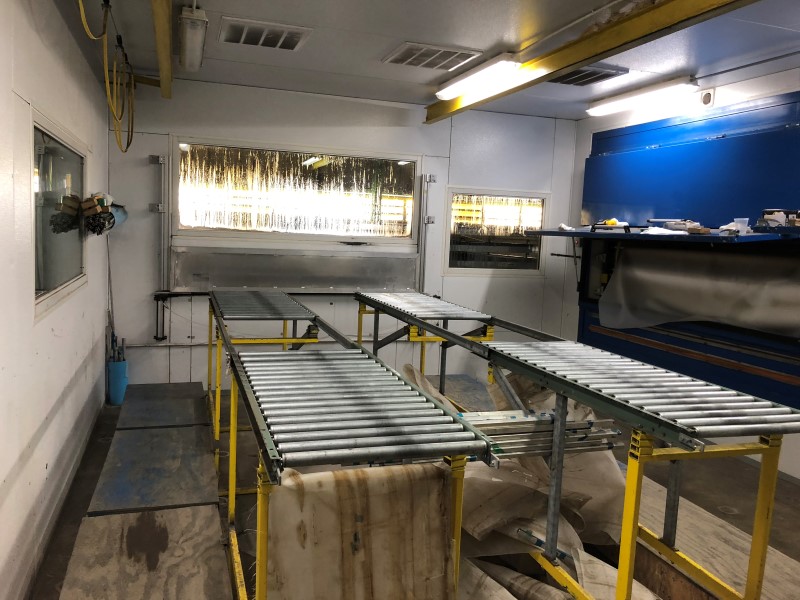

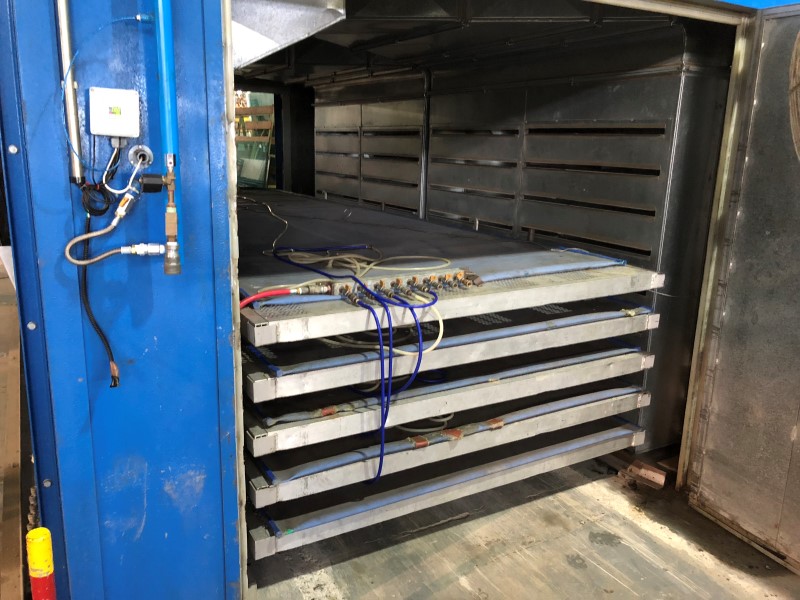

PUJOL Glass Lamination Line - PVB/EVA - 1900 x 5000 mm (75"; x 198";)This lamination line is capable of production of up to 75" wide glass and is designed for laminating architectural and automotive glasses, as well as ballistic products.The layers of glass are placed in the lay-up area with the PVB film sandwiched as an interlayer and then placed into vacuum bags.The plasticised Polyvinyl Butyral (PVB) film bonds with glass under heat and pressure to form laminated safety glass. The PVB interlayer sandwiched between the layers of glass is responsible for the enhanced performance properties of laminated glass.Glass Lamination Line Contains The Following:PUJOL Laminating Oven with (8) racks capacityAssembly Room with Air Conditioning System (Munters humidity control, 23% RH) Assembly Room ConveyorsOff Load Conveyors and Overhead Lifting Device (uniquely designed for assembly racks)EVA/PVB Storage Room opening to Assembly Room with Air Conditioning SystemElectrical Control Panel and Operator Controller(16) Assembly Racks(15) Assembly Vacuum BagsPneumatic Lifting Device (to move stacks of assembly racks)(3) Bases on wheels (for moving assembly rack stacks)Specifications: -- Max. glass size: 75" x 198" -- Min. glass size: 12" x 18" -- Product thickness capacity (design): 1/8" glass + 0.05 PVB + 1/8" glass -- Max. product thinkness: 3" overall -- Production speed: (3) Operators in (8) hour shift: 690 Sq. ft. -- Adjustable conveyor speed: 0 - 25 FPM -- Product temp rise: Preheat: 60 - 120 / Tacking: 90 - 170Dimensions: -- Control panel: 117.5" x 18" -- Line working height: 36" -- Total overall length: 35.8'NOTE: Laminating system is in very good condition with very light usage. Ready for immediate delivery.
