Description
Specifications:
Maximum Distance Between Centers:.............................................................................................. 396”
Swing Over Bed:.............................................................................................................................. 53"
Swing Over Cross Slide:................................................................................................................... 41"
Swing in Gap................................................................................................................................... 65”
Length of Gap from Spindle Nose:.................................................................................................... 22”
Bed Width:................................................................................................................................. 25.98”
Spindle Hole Diameter:.................................................................................................................. 4.72”
Spindle Nose:.............................................................................................................................. A1-15
Spindle Speeds: (24)......................................................................................................... 5 - 500 RPM
Feeds – Longitudinal............................................................................................. 0.0035” - .400” TPR
Cross Slide Feeds:................................................................................................... 0.0017 to .200 TPR
Top Slide Feeds:...................................................................................................... 0.0008 to .100 TPR
Threads - Inch (61)............................................................................................................ ½ to 60 TPI
- Metric (62) .................................................................................................. 1 – 120 mm/Rev
Cross Slide Travel:..................................................................................................................... 20-3/4”
Tailstock Spindle Diameter (No. 6 Morse Taper)............................................................................ 7-1/2”
Tailstock Travel:.............................................................................................................................. 12”
Maximum Weight Between Centers Unsupported.................................................................. 20,000 Lbs.
Maximum Weight Between Centers With (1) Steady: ............................................................ 22,100 Lbs.
Maximum Weight Between Centers With (2) Steadies:........................................................... 26,500 Lbs.
Main Motor:................................................................................................................................. 55 HP
Approximate Dimensions:...................................................................................... 65.5’ (L) x 9.41’ (W)
Approximate Weight :.......................................................................................................... 42,240 Lbs.
Equipped With:
32” 4 Jaw Chuck
Live Center Built into Tailstock
Hardened and Ground Bed Ways
Coolant system

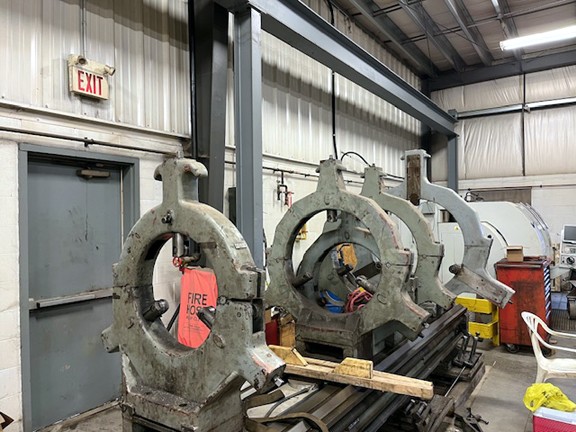

5 Roller Type Steady Rests
Power Rapid Traverse
