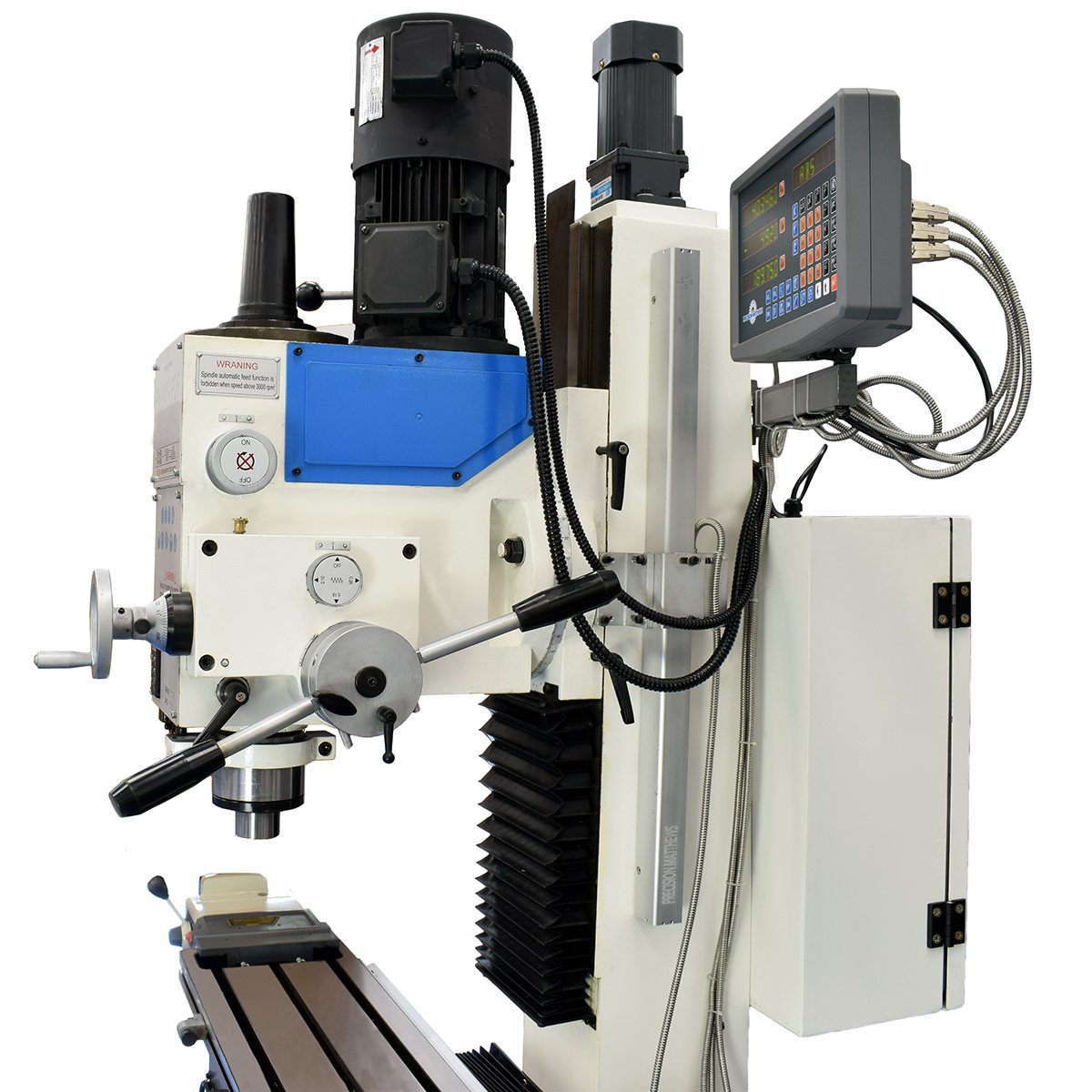

Precision Matthews PM-940V-BASIC-w/HARDWAYS Precision Bench/Bed Type Milling Machine

Main Specifications of PM-940V:

• Table Size: 9-1/2″x40″
• Max. Recommended Table Load Capacity: 400 lbs (Centered)
• Table T-Slot Size and Number: 14mm / 9/16″, 3 Slots
• Table Travel, X Axis: 28″ Hand Only, 26″ w/ Power Feed
• Cross Travel, Y Axis: 12″
• Head Vertical Travel, Z Axis: 20″
• Quill (Spindle) Travel: 5″
• Max. Distance Spindle to Table: 22″
• Table Surface Height from floor, 35″ (With base flat on floor)
• Normal Working Max Height: (top of column travel motor) 82″ (with base)
• Height with head all the way up: (top of main motor) 85″(with base)
• Stand (Base) Height to machine mounting surface: 24″
• Stand (Base) Dimension at floor approx. 18-1/2″W x 27″D, with 5/8″ Bottom Holes for leveling pads/bolts
• Lead Screw Type: Inch Pitch Acme Threads – 10TPI on X and Y Axis
• Spindle Taper: R-8, with 7/16-20 drawbar thread (U.S. Standard)
• Quill Diameter: approx. 3″
• Head Swivel: Side To Side, 90 Degrees
• Power Required: 220 Volt, Single Phase, 10 Amp Supply

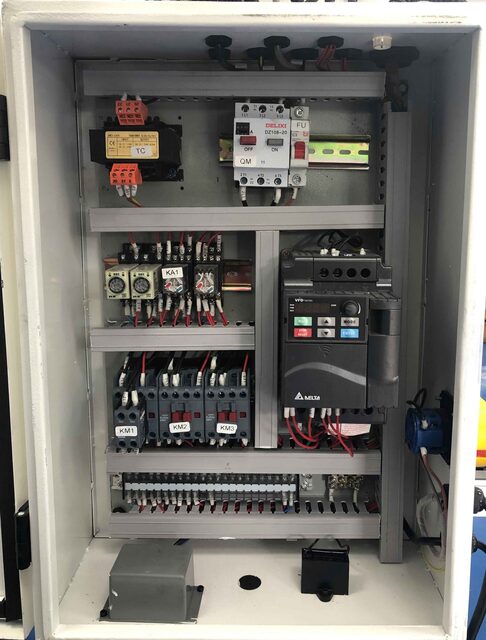

• Main Motor Horsepower: 2 H.P. (Motor runs on a VFD for the variable speed) – Current VFD Model used is a Delta VFD, Model # VFD015E21A
• Spindle Speeds: Low 100-1640 RPM, High 350-5000 RPM, Infinitely Variable Within Each Range
• Casting Type: Fine Grain Cast Iron
• Approximate Weight: 1350lbs with Base
• Country of Origin: China
• Warranty: 3 Years
• Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)

PM-940V Main Features:

• Variable Speeds to 5000 RPM for better performance in softer materials such as aluminum or brass, High RPM desirable for CNC conversions
• Heavier Class Milling Machine, (1350 LBS With Base) For More Rigidity, And Greater Cutting Ability, yet ships in 2 pieces (Base separately) so it is easier to handle
• Larger Knee Mill-Style Table Handles, for Much Better Control By Hand
• Huge 12″ Y axis travel, matched with a 26″ X axis travel and generous 20″ Z travel allows room for those larger jobs. This machine has a larger work envelope than many full sized knee mills.
• Real Inch Pitch Leadscrews on X and Y Axis, 10 TPI Screws (.100″ Per Turn) For Easier Operation – Not a close metric conversion like with many others
• Available With Power Down Feed on Spindle (PDF Model Only) For Boring Operations
• Base is Heavy Duty Cast Iron, For Excellent Vibration Dampening
• Longest In Class, 3 Year Warranty

Variable Spindle Speeds to 5000RPM!

Available Machine Options
* ALL Models below now come with knee mill style crank handles for
better feel and easier operation by hand, as shown in main

* Cast Iron Base is included as standard equipment with these models. It is recommended to use the machine with the cast iron base, as the base provides support and accuracy to the longer Y Axis. This model is not available without the base. You are free to use the machine without the base, but we recommend to use this model with the included base.

#1 PM-940V-BASIC – Includes: Quill DRO, Cast Iron Base, Manual Down Feed on spindle – This model is for those who want a basic machine, and do not need the X and Z feed motors

#2 PM-940V-BASICw/HRDWYS – Same as #1, but with the hardened way option – Great for someone who will convert to CNC, who would remove the X and Z Feed Motors anyway, so it is sold without these. This version has the hardened ways, which greatly extended life, especially when converted to CNC

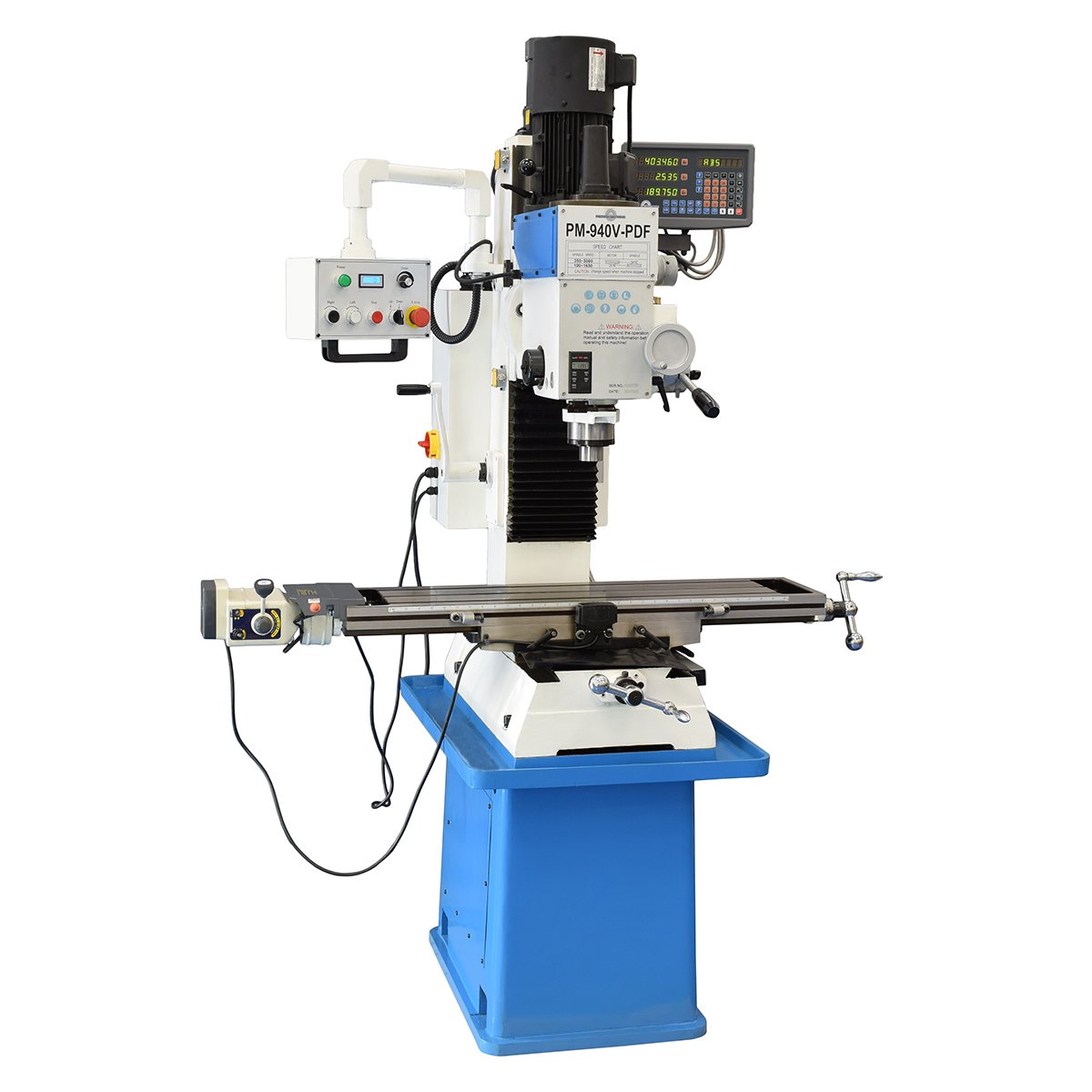

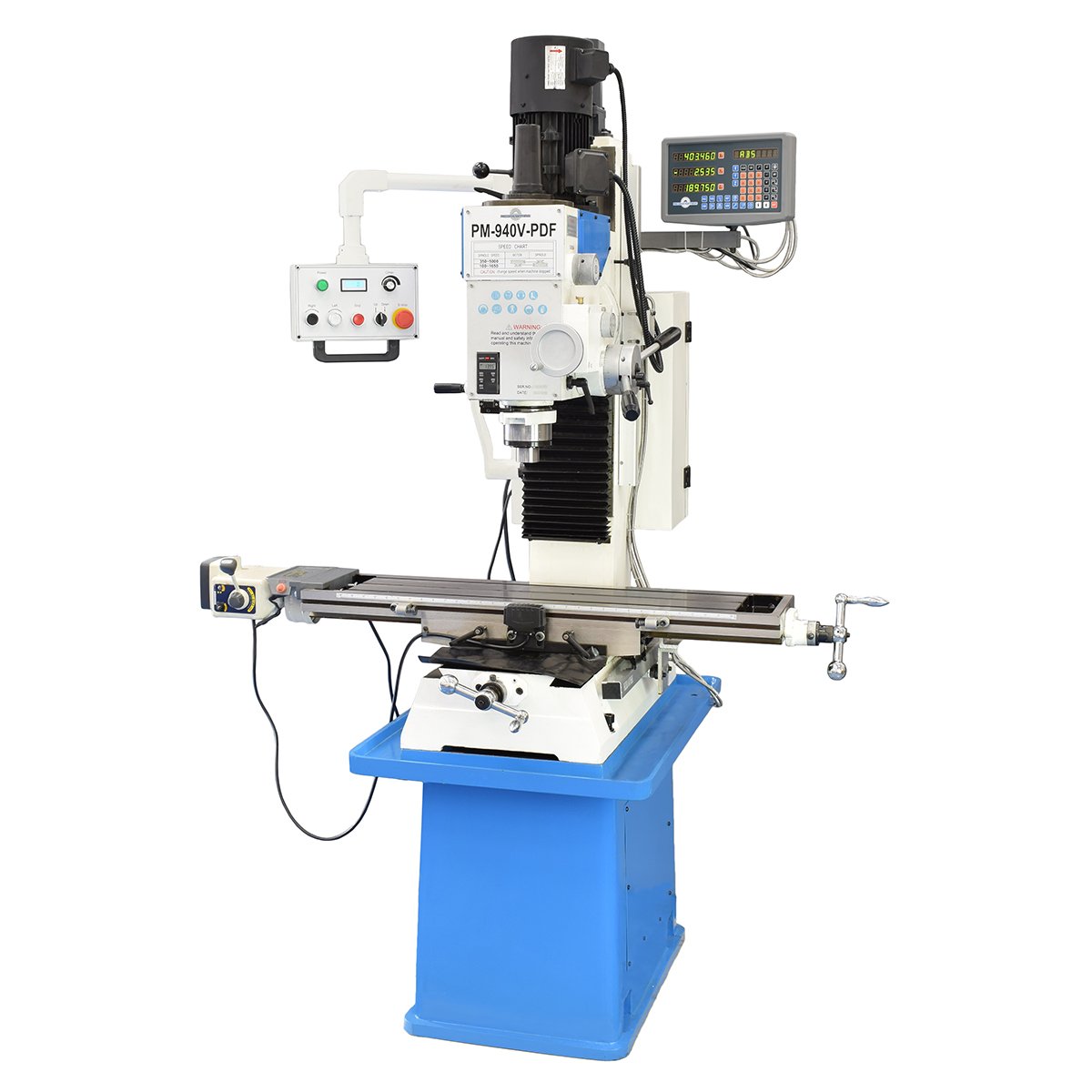

#3 PM-940V-PDF w/HRDWYS – With Power Down Feed on Spindle/Quill for Boring, also with Hardened Ways on X and Y Axis for better wear resistance – longer life in heavier use situations or over time. This model also includes an X Axis (Table) Power Feed.

#4 PM-940V-PDF w/HRDWYS&3axDRO – Same as #3 with the addition of 3 axis DRO Installed, So this model has all options, Power Down Feed on spindle, 3 axis DRO Installed, X Axis Power Feed, and Hardened Ways.
