Pfauter #PE-150, gear hobber, 1994

Pfauter PE-150 Gear Hobber, GE Fanuc 15-M PE

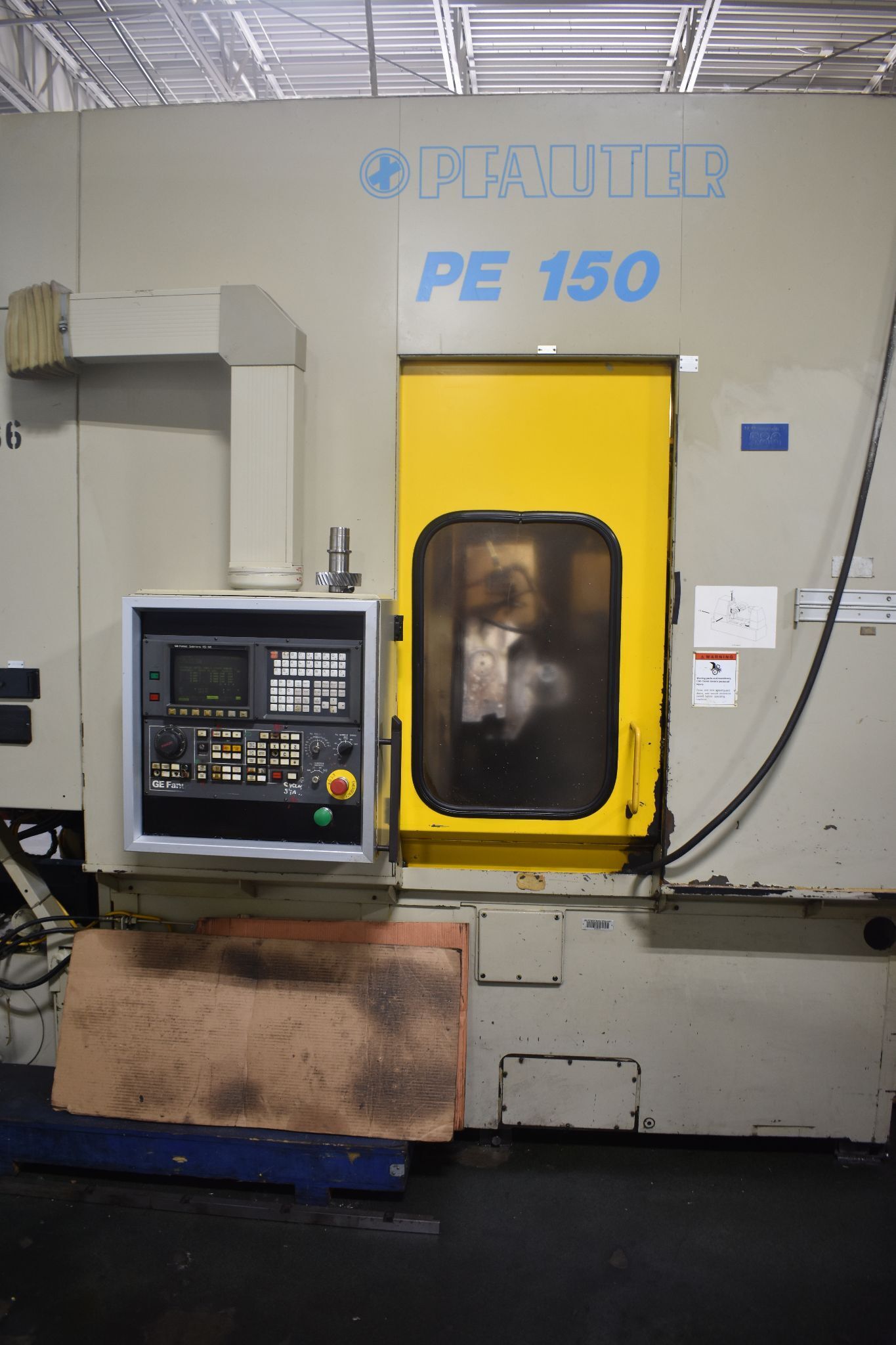

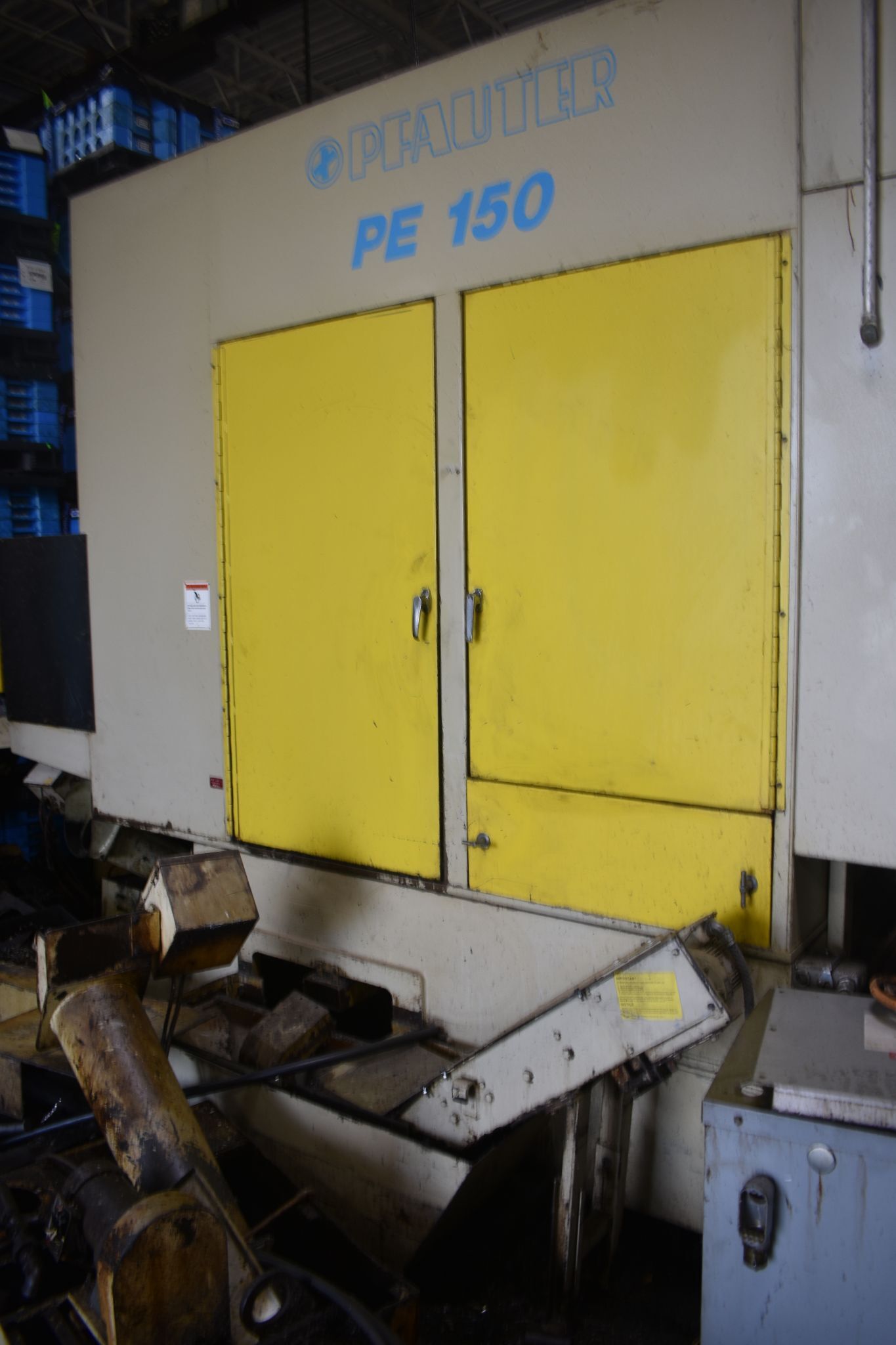

PFAUTER PE-150 GEAR HOBBER

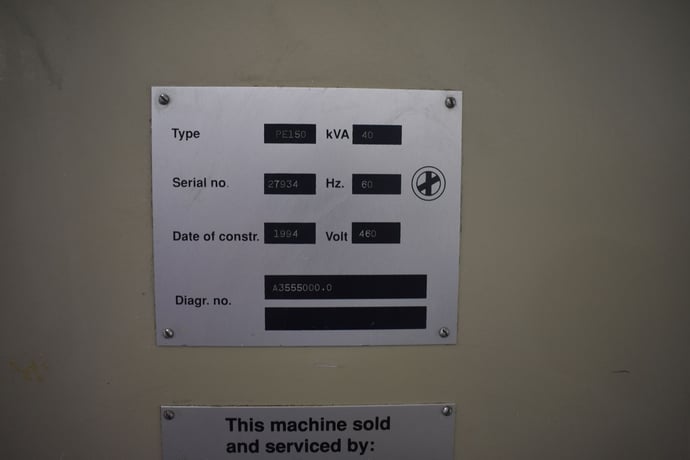

S/N 27934
STANDARD SPECIFICATIONS
Max Workpiece Diameter……..…………………………………..6”
Gear Width………………………………………………………...6”
Max Module……………………………………………………….4
Max Distance Cutter Centre – Clamping Area……………………6”
Milling Slide Swivelling…………………………………………...-/+ 45 Grad
Table Diameter…………………………………………………….6”
Table Bore Diameter……………………………………………….2”
Milling Arbor Diameter……………………………………………1”
Milling Spindle Turning Speeds…………………………………...150-600 U/min
Feed Range…………………………………………………………59”/min
Milling Cutter Dia.x Width…………………………………………5”x 9”
Milling Spindle Taper………………………………………………SK 40
Cutter Spindle – Workpiece Spindle………………………………..6”
Shifting……………………………………………………………....7”
Table Rotation Speed………………………………………………..1-80 U/min
Rapid Speed…………………………………………………………118”/min
Electrics……………………………………………………………..380/50 V/Hz
Table Power Requirement…………………………………………..50 KVA
EQUIPPED WITH

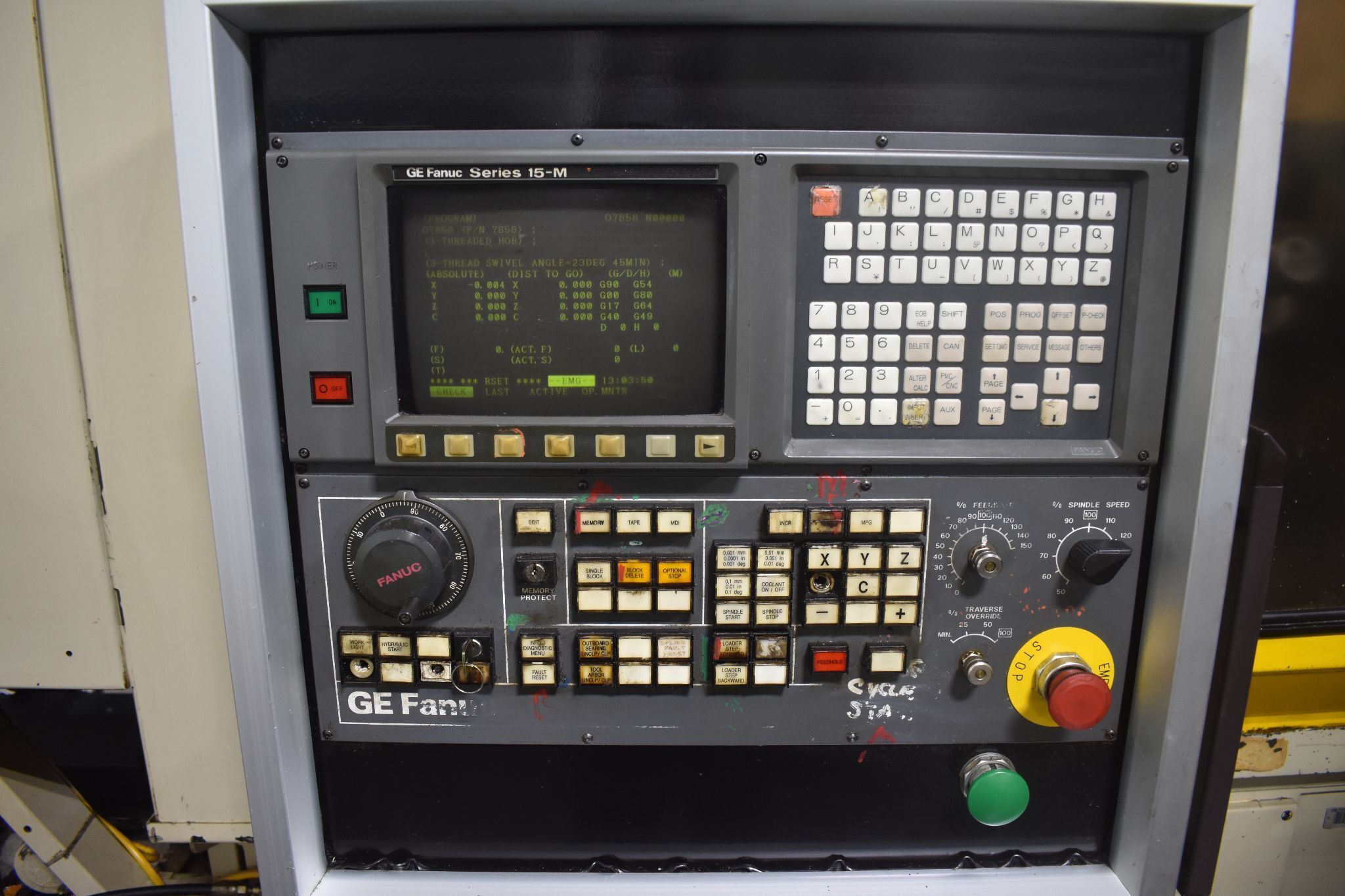

Fanuc 15 MPE control.
Specifications are deemed accurate, however, subject to verification or prior sale.
