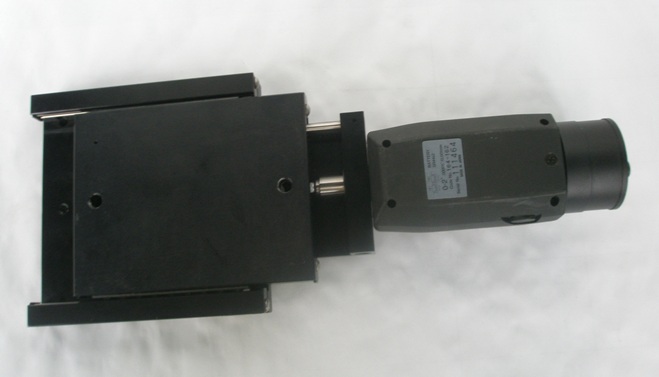

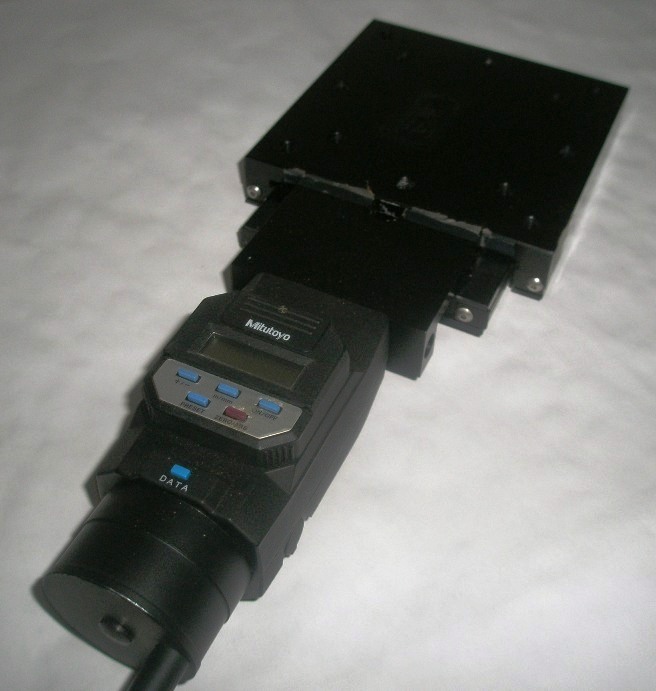

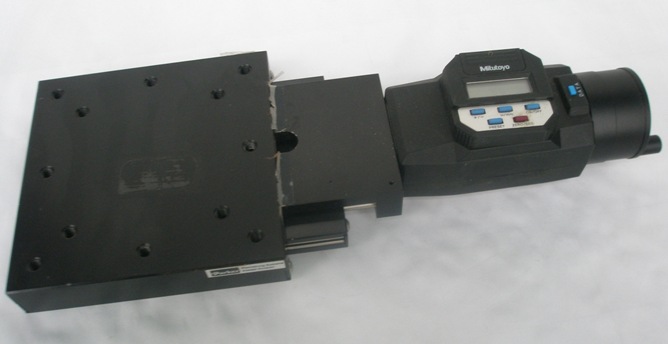

PARKER LEADSCREW DRIVEN BALL BEARING TABLE
INVENTORY # 3463
SPECIFICATIONS:
LOAD CAPACITY: 100 – 180 LBS
THRUST LOADING: 30 LBS
STRAIGHT LINE ACCURACY:
0.00008″ / IN OR 0.002 MM /25 MM
CONSTRUCTION: BLACK ANODIZED ALUMINUM
SIZE: 5” x 5” TOP SLIDE
TRAVEL: 2 3/8”
HEIGHT: 1”
DESCRIPTION:
ENGLISH/METRIC STAGES WITH ENGLISH/METRIC READOUTS
THIS SERIES POSITIONER OFFERS AN EXTREMELY SMOOTH LINEAR BALL BEARING GUIDE ALONG WITH PRECISE POINT-TO-POINT POSITIONING, WITHOUT BACKLASH OR SIDE PLAY.
TRAVELS FROM 4.00″ TO 12.00″ AND 100MM TO 300MM. CAN BE READ TO 0.001″ OR 0.01MM; RESPECTIVELY.
THE TABLES INCLUDE LOCKING THREAD INSERTS. LIKE UNITS ARE EASILY ASSEMBLED INTO X & Y CONFIGURATIONS AS WELL AS X. Y, AND Z CONFIGURATIONS.
EQUIPMENT INCLUDED:

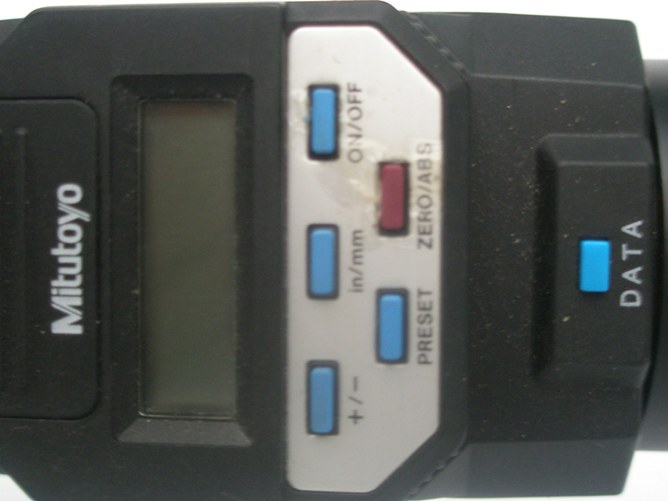

MITUTOYO DIGITAL COUNTER
HAND CRANK LEAD SCREW
VERY GOOD CONDITION
PRICE: $ 695.00
FOB OUR BALTIMORE, MD WAREHOUSE
Related
Inquire Further with Norman Machine Tool Ltd!
Buyers Who Viewed This Listing Also Viewed …
Parker, Hydraulic Quick Connect Hose Coupling, (6) 1-1/2" coupling, unuse
Parker Hannifin, 30-Series, Pneu Quick Couplers, 1/2" male pipe thread, B36E brass, 2.92" L, 1.52" max diameter, unused

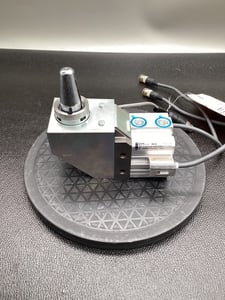

Parker wdhc-h-sd50-248-yf2p-03yb165 pneumatic cylinder used
