Pack West #120, Capper w/Capper Elevator, 3-Station, 6-Spindle, 150 CPM, 0.3"-2.7" outside dimension Capacity Size, 0.5"-9.9" outside dimension x 2"-15" H Container Size, 1900

Equipment Overview

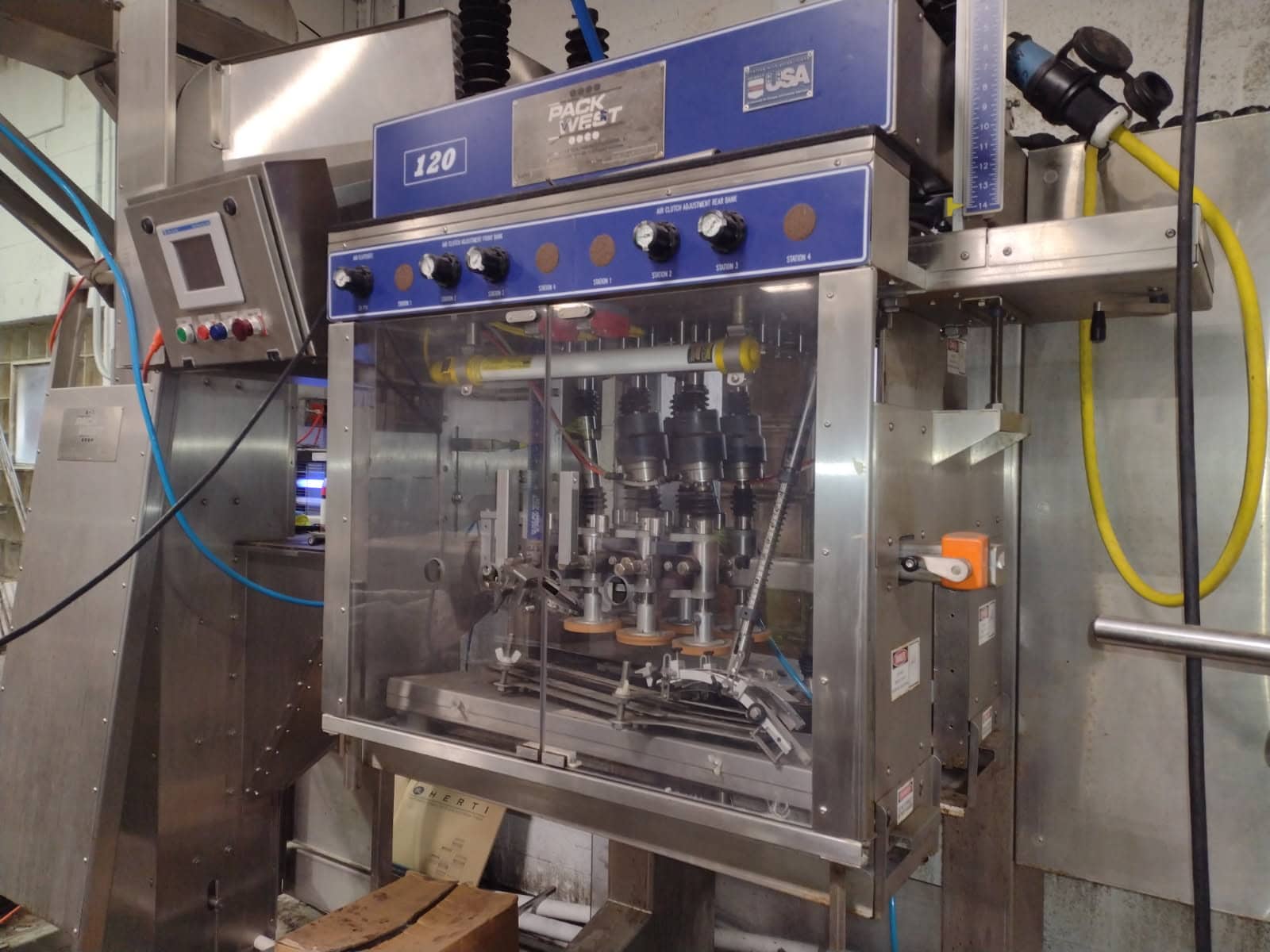

This Pack West Model 120 in-line spindle capper with a vertical cap elevator provides a complete stainless-steel capping solution with mid-to-high throughput capability. It features Allen-Bradley PLC control, 3-station torque quills, dual gripper belts, and a #7+2 vertical elevator feeding caps to a rotary sorter. Built for food-grade and light-washdown environments, this machine is ideal for nutraceuticals, beverage, and personal care lines.

Key Features and Specifications

– Throughput: Rated up to 120 CPM (OEM Spec)
– Cap Range: 8mm – 70mm OD (manual), currently configured for ~28–43mm caps
– Container Range: 12–175mm OD × 50–381mm height

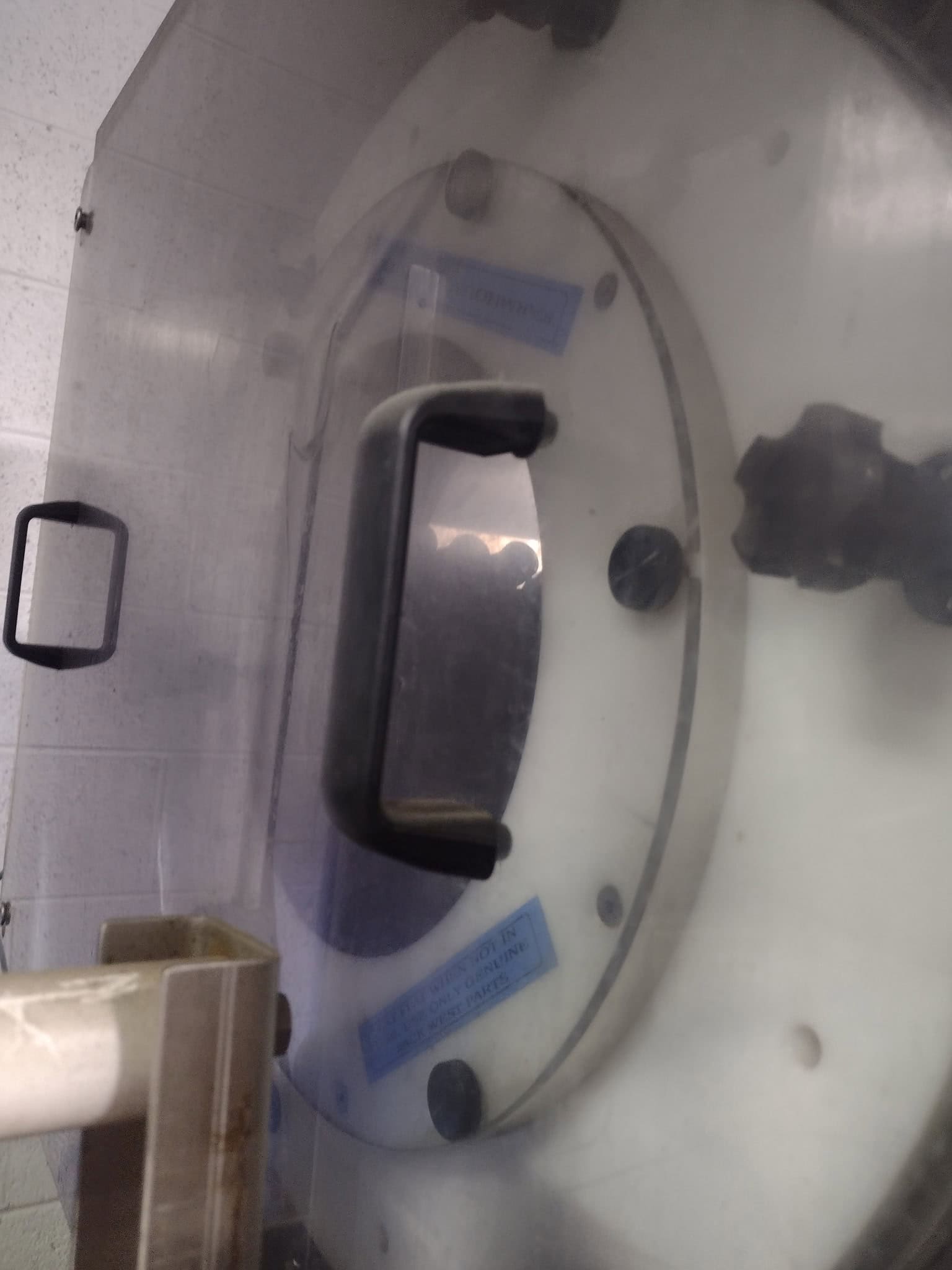

– Sorting: Rotary cap sorter with chute feeding “C” track and escapement

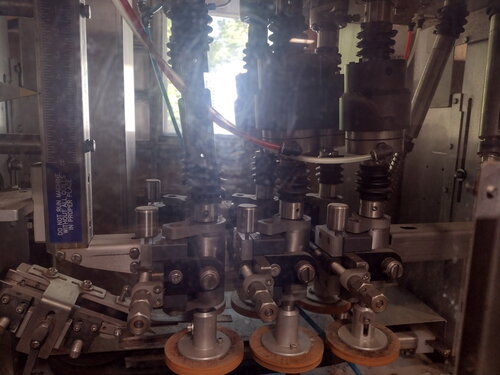

– Quill Torque: Air-clutch engaged torque quills (3 stations, 6 spindles)

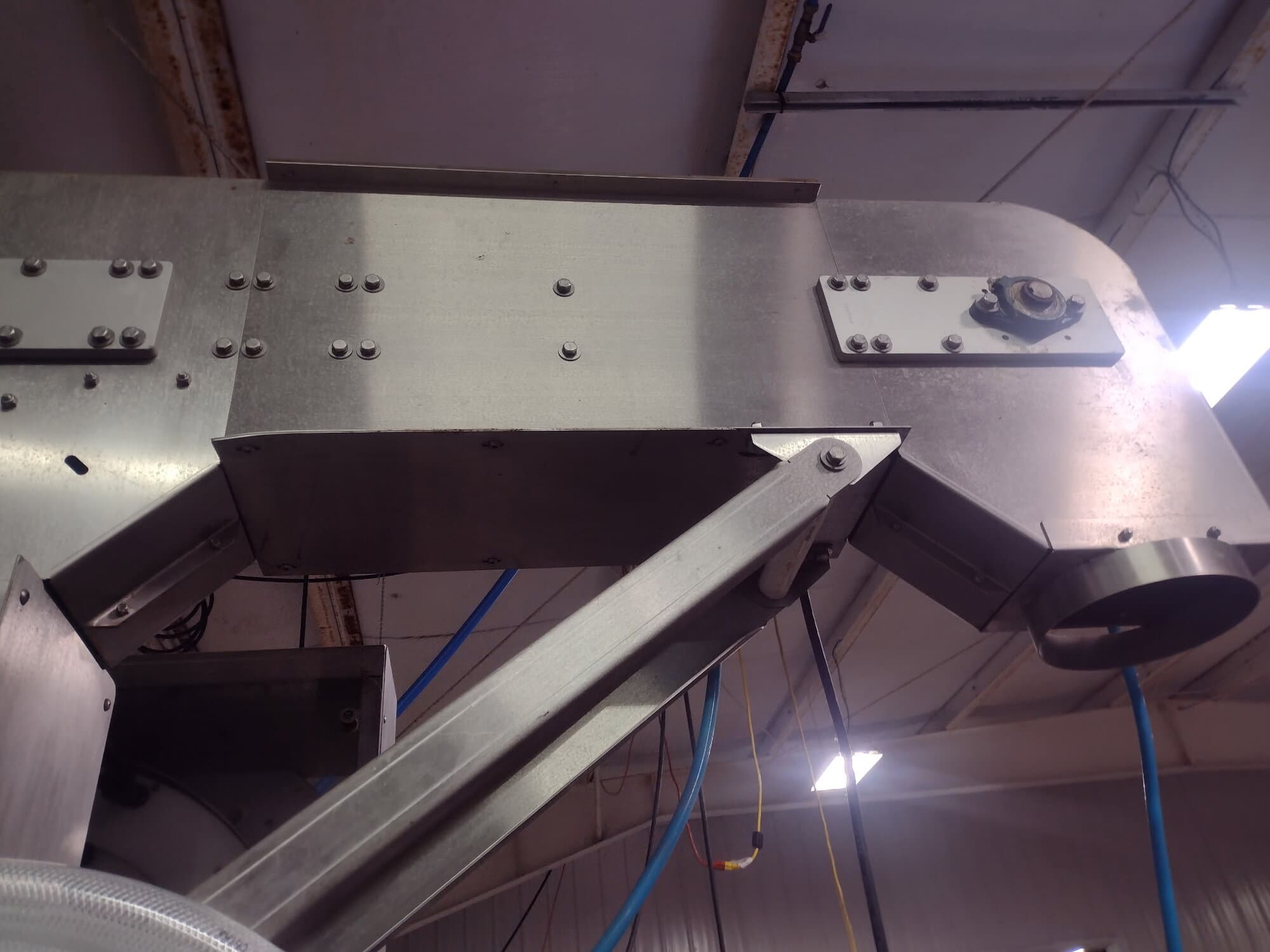

– Elevator: Vertical belt elevator (#7+2), integrated spillway
– Construction: 304 stainless frame, Lexan safety doors

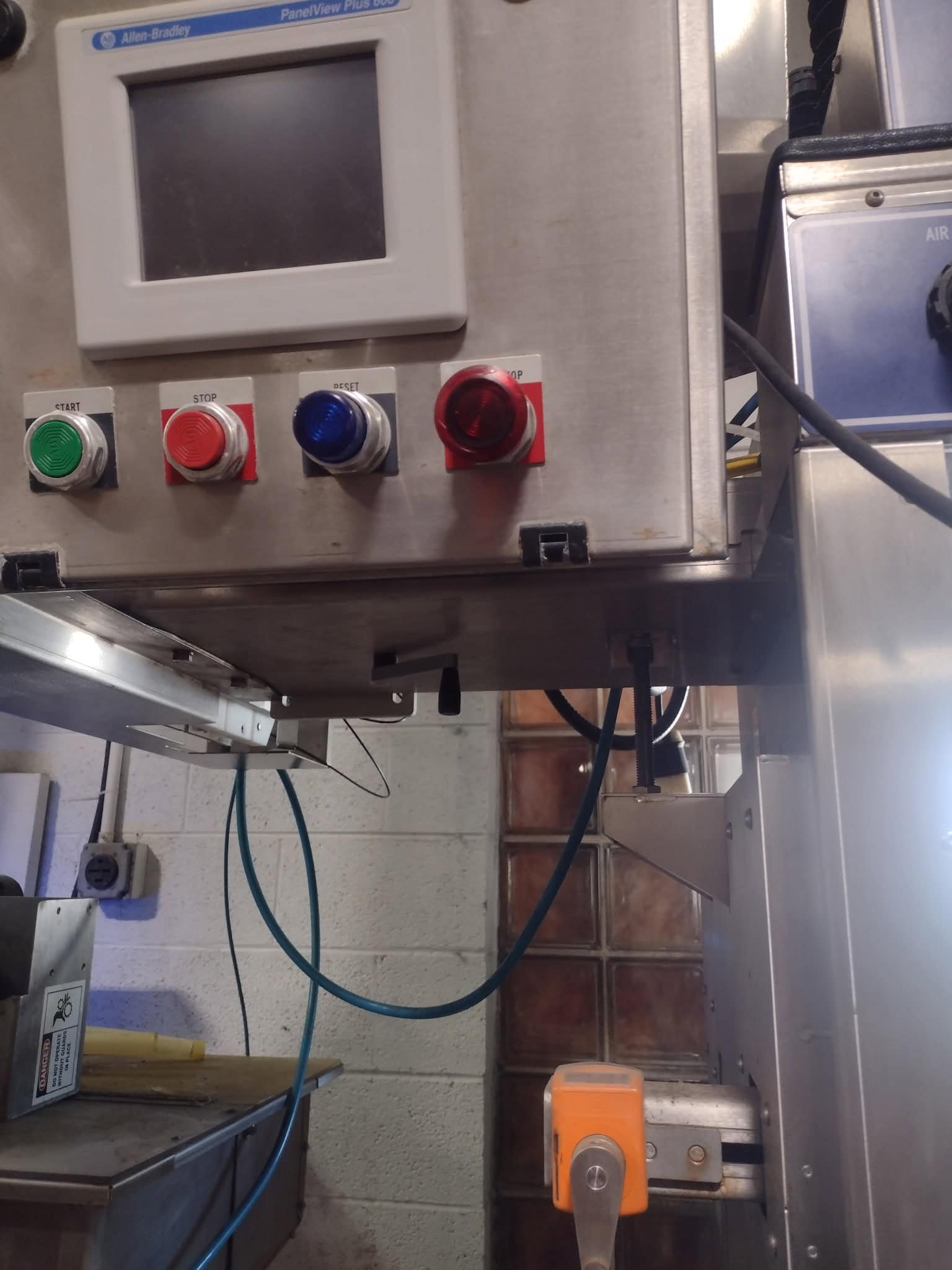

– Controls: Allen-Bradley PanelView Plus 600 HMI and CompactLogix PLC
– Power: 230V, 3-phase electrical, air clutch actuation

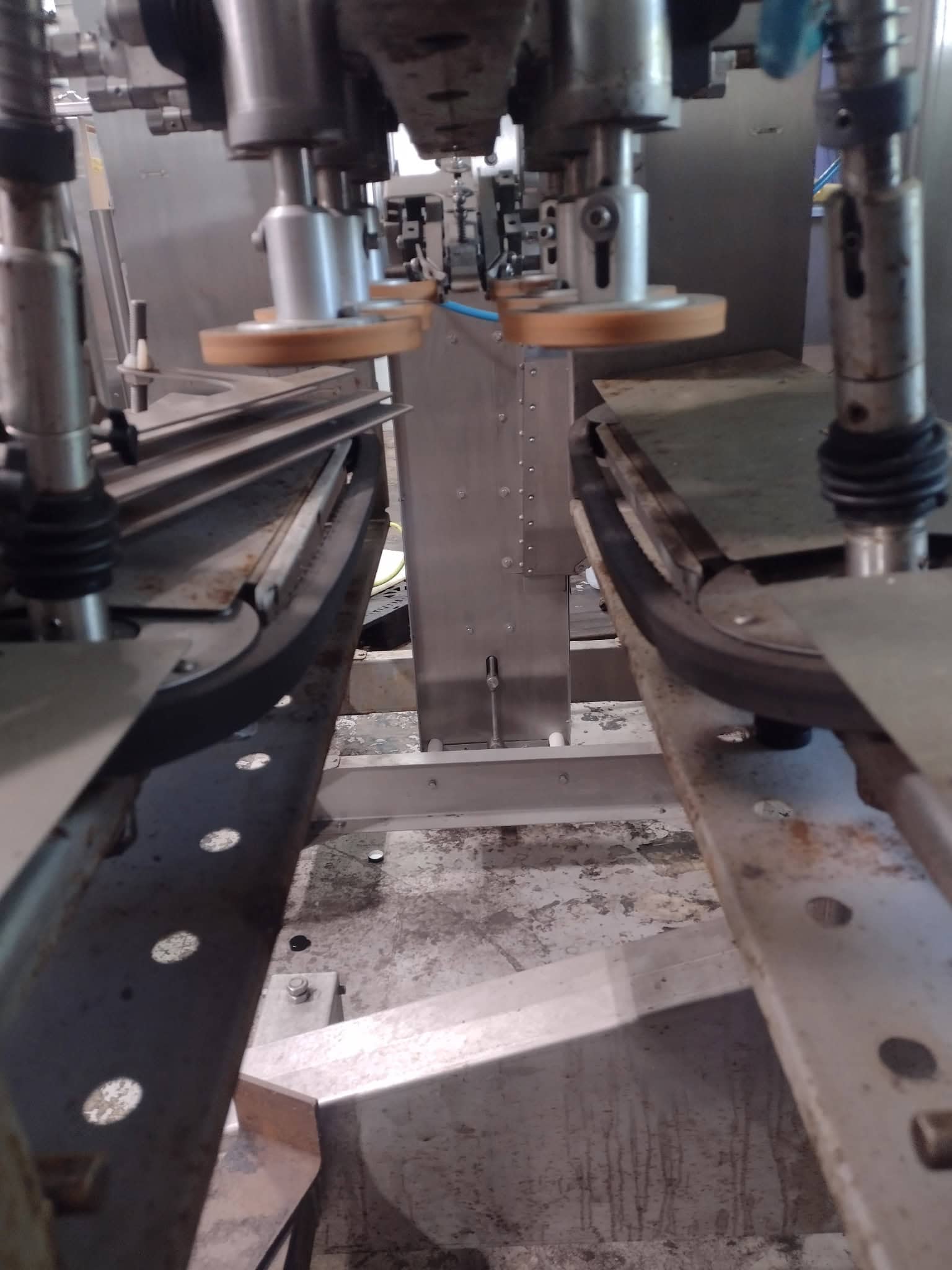

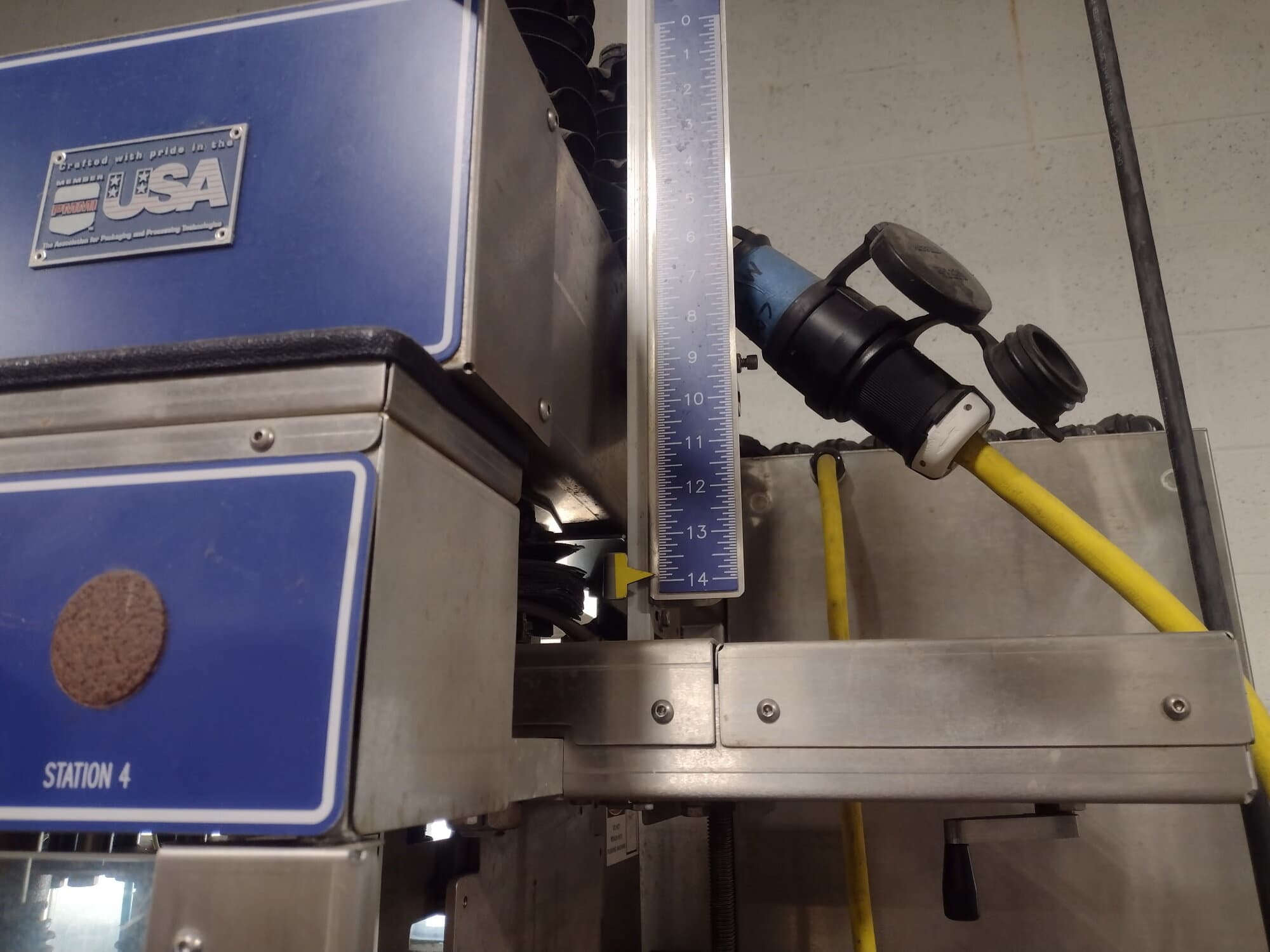

– Adjustability: Quill and gripper height adjustable, lower gripper belt removable
