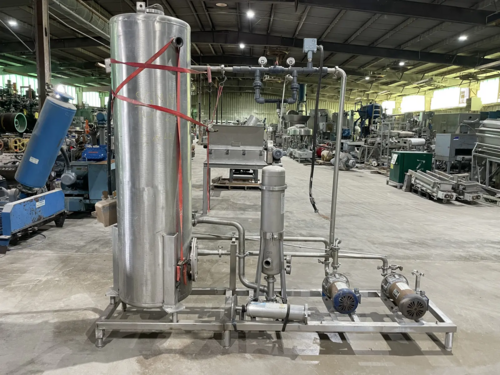

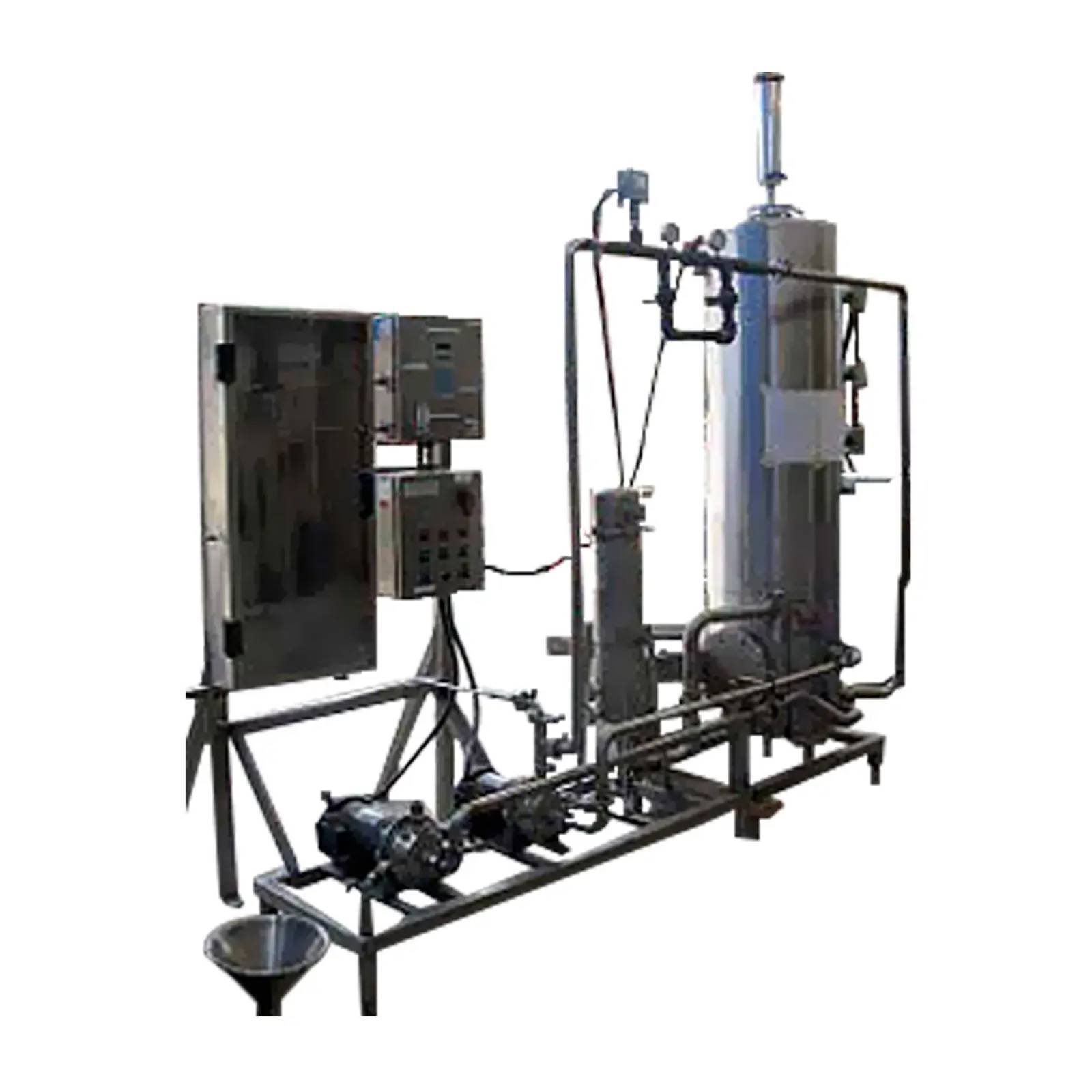

Ozocan Corporation #7, Ozone Generating System, 2 mg/L capacity, 100 GPM, 6000 Nominal Flow capacity, 2.8 lbs/day Ozone capacity, 30 gallon air receiver & 75 gallon reservoir Tanks, 1/3 HP pumps, 230/575 V, 1998

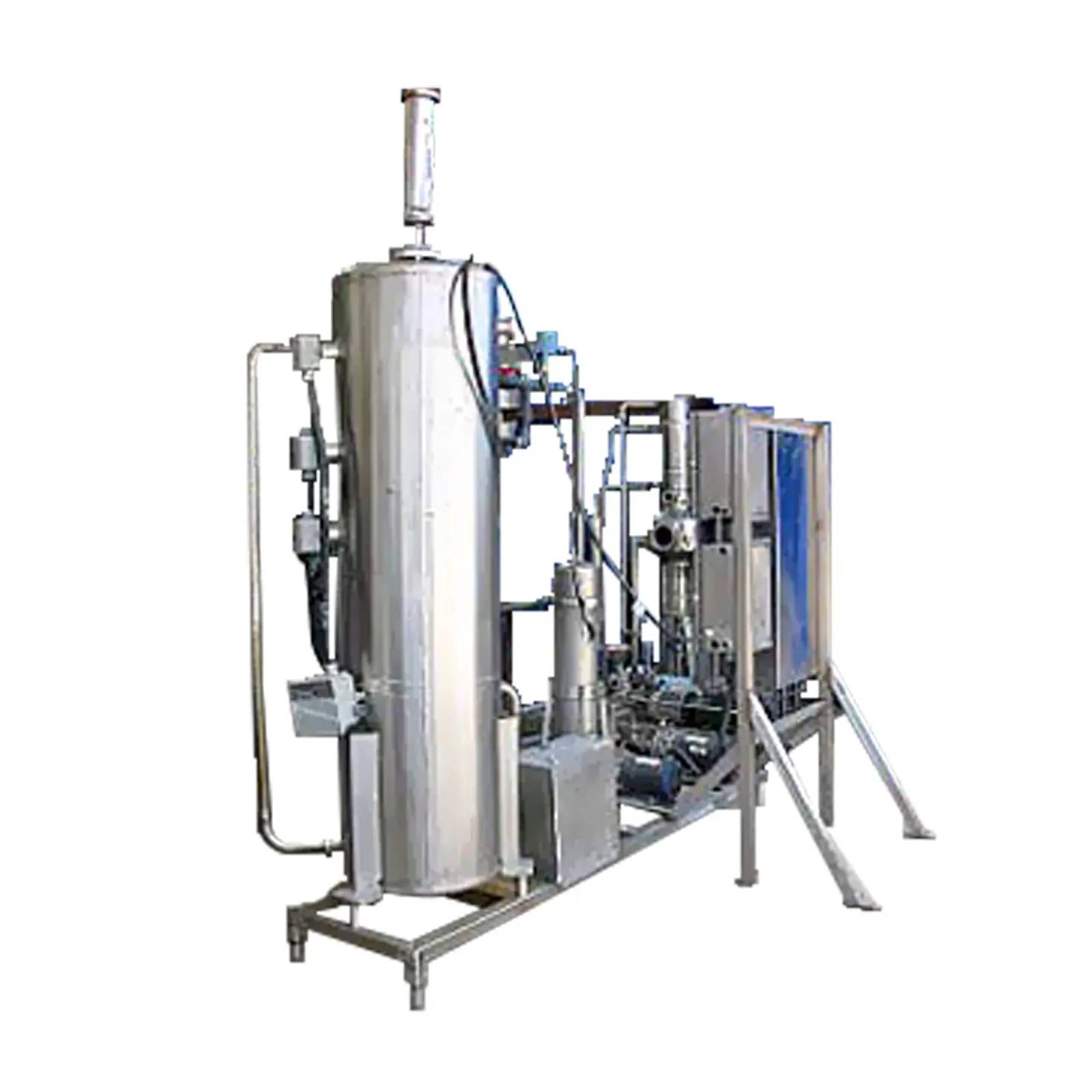

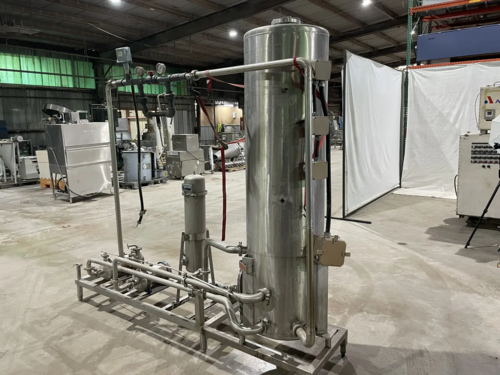

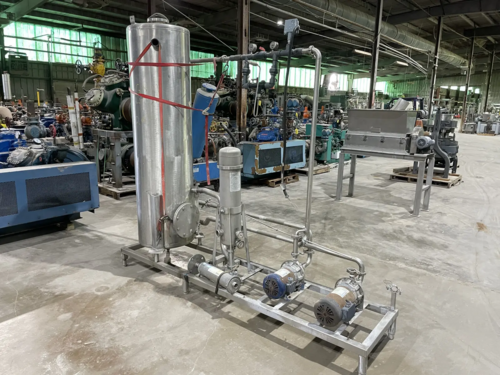

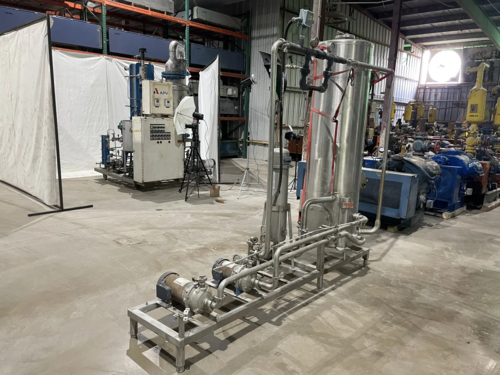

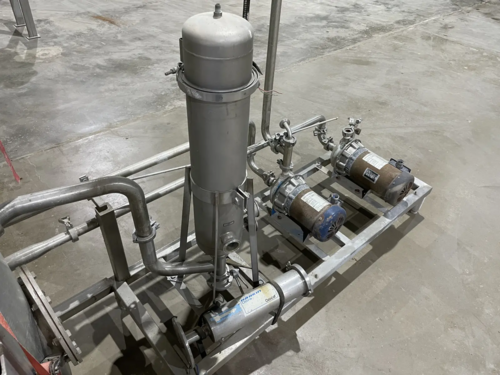

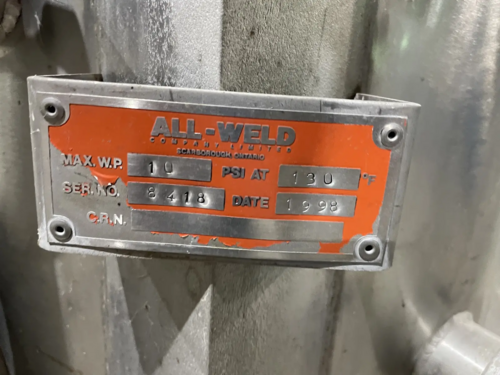

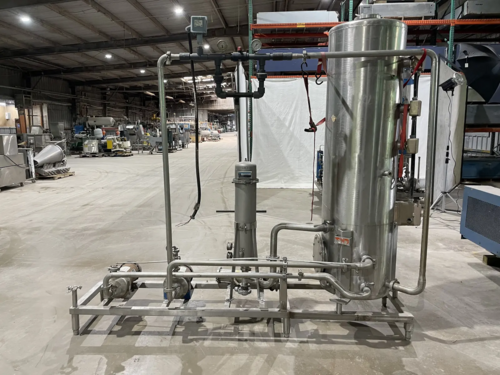

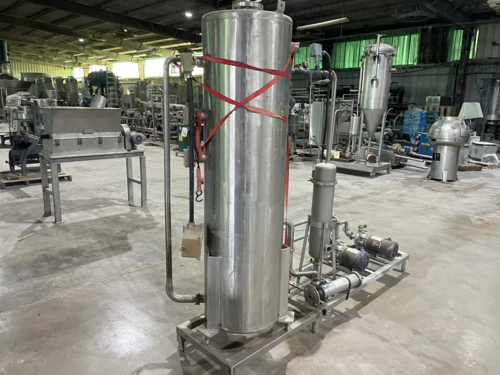

1998 Ozocan Corporation Ozotec Type S Ozone Generating System. Model: 7. S/N: 98205-01-HA2145. Capacity: 2mg/L to a flow rate of 100 gpm resulting in a residual of around 0.4 mg/L after mixing in the contact tank for a minimum of 4 minutes. Ozone capacity: 2.8 lbs. per day. Cooling water flow requirements: 40 gph. Power supply requirements: 575 V, 10 amps, 60 Hz, 3 phase this is stepped down to 230 V, 10 amps, 60 Hz. single phase. Unit features 2 centrifugal pumps. Recirculation pump 1: 316 stainless steel, with a 1 hp, 575 V, 2 amps, 60 Hz, 3 phase motor. Process pump 2: 316 stainless steel, 3 hp, 575 V, 7 amps, 60 Hz, 3 phase motor. Gast air compressor model: 7HDD-11T, 230 V, 10 amps, 60 Hz, single phase, with a 30 gal. air receiver. 75 gal. Reservoir tank, MAWP: 10 psi at 130F. The Ozotec Type S ozone generating system covers a wide range of applications to include drinking water disinfection and the removal of unwanted odors, colors and tastes, waste water disinfection and heavy metal oxidation. Overall dimensions: 14 ft. 2 in. L x 7 ft. 9 in. W x 9 ft. 6 in. H.(ACN240)(GA).
