Name: No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT, 15" 3-jaw chuck, 10 HP, #D41508
Brand: Babin
Availability: InStock

Manufacturer: Babin

Model: 24

Model No.: 24

Stock # D41508

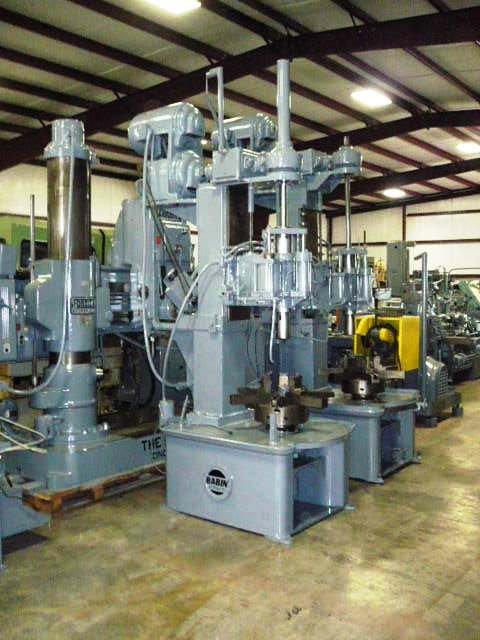

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 1

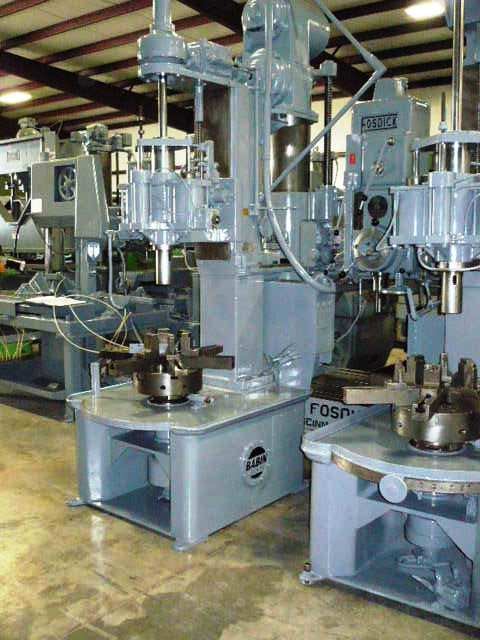

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 2

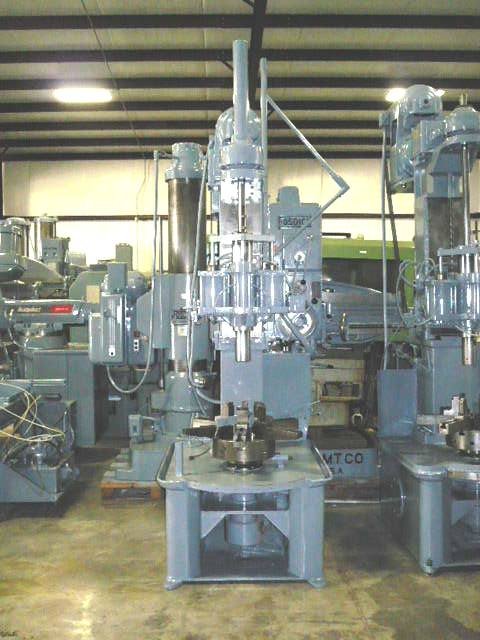

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 3

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 4

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 5

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 6

No. 24 Babin Circl-Matic, auto.bolt circle drill, 4-24 bolt circle, 33" swing, 6" str, 150-500 RPM, #5 MT - Image 7

7

For Sale by N & R Machine Sales

Surplus Record Dealer Since 1998

Navasota, TX

Randy Nevels

800-24...> Show Seller's Phone Number 800-245-3194 Let the seller know you found their listing on Surplus Record!

View More N & R Machine Sales ' Listings

Description

24" Used Babin Circl-Matic Automatic Bolt Circle Drill
Stock Number: D41508
Babin 24
Specification Description
Standard Bolt Circle Range 4 To 24
Standard Division Of Equal Spaced Holes 4 To 24
Max. Diameter Of Work Piece ( Swing ) 33"
Center Line Of Chuck To Front Of Base 17"
Drilling Capacity In Carbon Steel 2-1/8"
Spindle Stroke Maximum 6"
Spindle Speeds 150 To 500 Rpm's
Spindle Taper # 5 Morse
Chuck Size 15" 3 Jaw
Main Motor 10 Hp.
Machine Height 133"
Machine Width 50"
Machine Weight 5,560 Lbs.

Note: Machine Will Be Cleaned, Painted And
Cycled. Machine Will Have A New Spindle Drive.

Condition Very Good

Price: With New Spindle Drive And Motor
