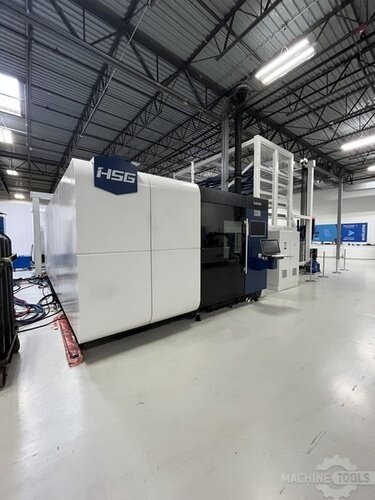

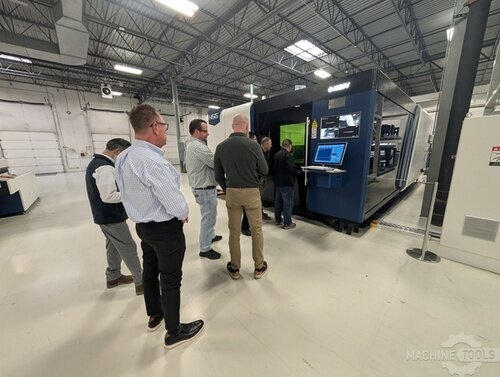

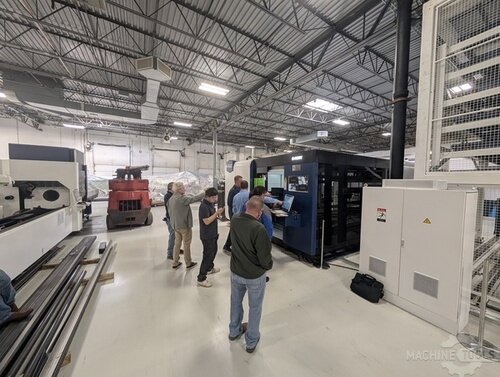

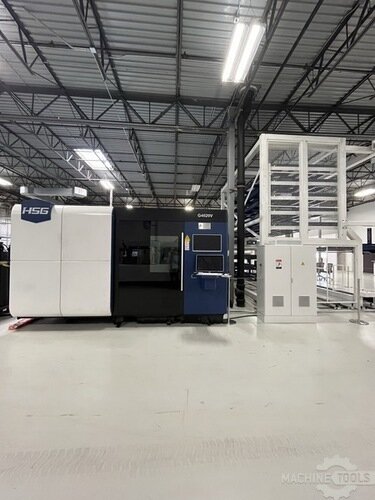

HSG #G4020V 6G, 30000 watt Raycus fiber laser with store4020 6 shelf automation, new

Main Configuration:

• Laser Source: Raycus 30kW

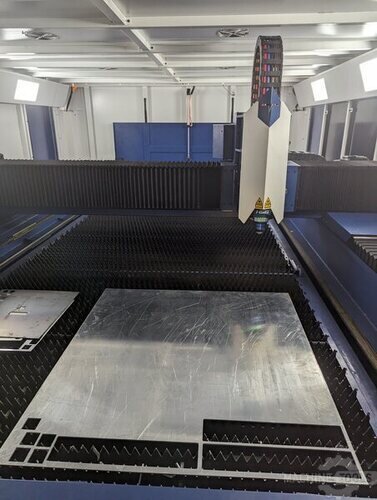

• Cutting Head: HSG

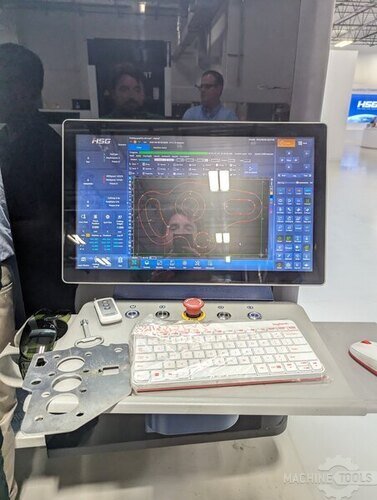

• Control System: AlphaT Plus

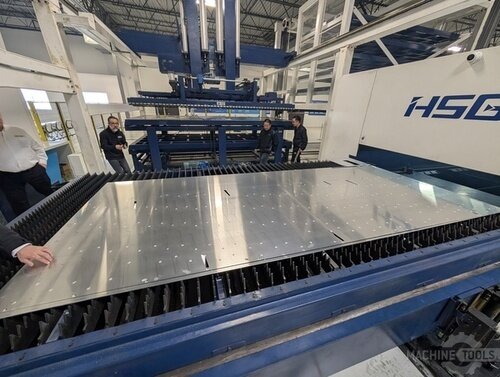

• Machine Bed: HSG

Standard Accessories:

1. Water Chiller

2. Dust Collector

3. Transformer & Voltage Stabilizer

4. OD6 Laser Protection Glass

5. Safety Light Curtains

6. Camera

7. Nesting Software

8. AC Room for Laser

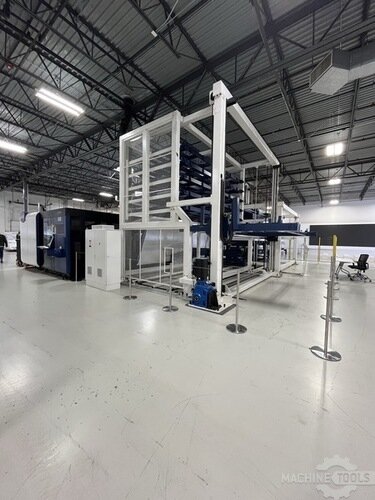

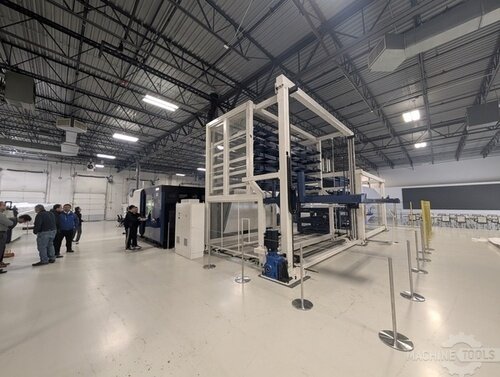

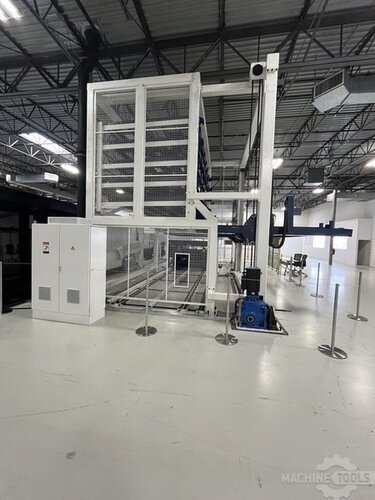

9. Store4020-6 Material Tower System

System Model: ALG1200 + Store4020-6
Application: Store Machine / Material Tower with Auto Loading-Unloading

Imperial Units

1. Number of Material Tower Layers: 6

2. Applicable Sheet Format: 157.5 × 78.7 in

3. Capacity per Layer: 6,614 lbs

4. Lifting Speed: 32.8 ft/min

5. Feed and Delivery Speed: 32.8 ft/min

6. Maximum Processing Sheet Size: 157.5 × 78.7 in

7. Minimum Processing Sheet Size: 31.5 × 31.5 in

8. Allowed Thickness per Piece: Stainless Steel 0.039–0.47 in, Carbon Steel 0.039–0.79 in

9. Max Sheet Processing Weight: ≤2,646 lbs

10. Translatory Velocity of Loading/Unloading Manipulator: ≤196.8 ft/min

11. Lifting Velocity of Loading/Unloading Manipulator: ≤39.4 ft/min

12. Air Supply Pressure: 72.5–116 psi

13. Electrical Exchange Trolley Capacity: 6,614 lbs

14. Electrical Exchange Trolley Speed: 32.8 ft/min

15. Phase: 3

16. Voltage: 380 V

17. Frequency: 50/60 Hz
