Description

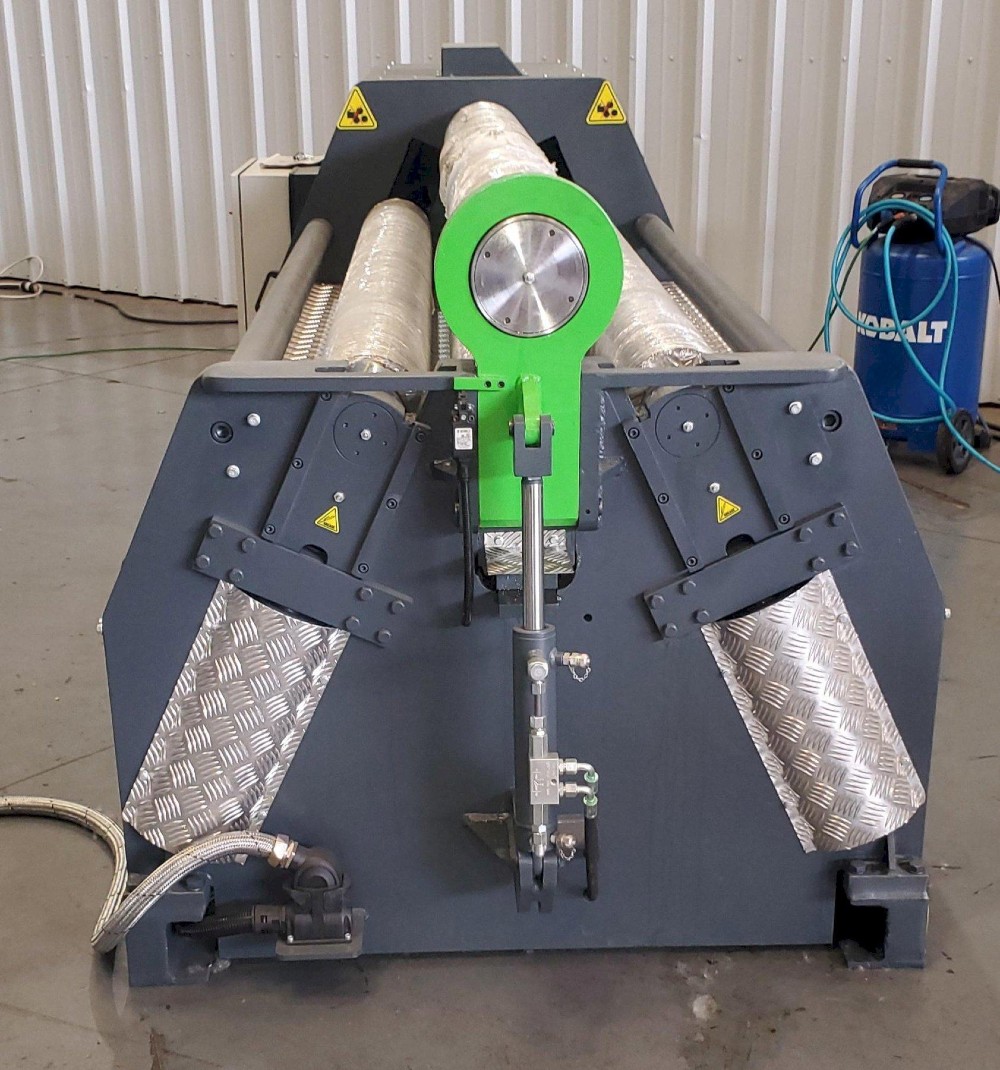

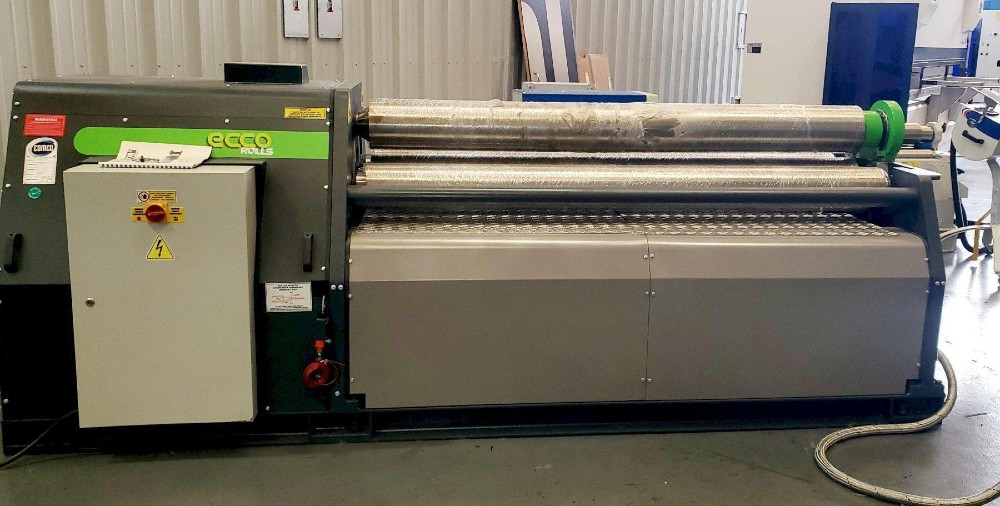

New ECCO Model 4RDP 180/6 Plate Bending Roll. Four Roll Double Pinch Type - Includes: 2 Speed Hydraulic Drive
Capacity - mild steel - 6' x 1/4"
Specifications:
Overall length of rolls - 80"
Diameter of all rolls – 7.08"
Motors - 4 HP drive motor; 1.5 HP hydraulic system motor
Net weight - approximately 7,360 Lbs
Dims - 152 x 54 x 51"
Features:
All steel frame
Most rigid frame, drop end and clamping roll parallelism unit
Machine frame stress relieved
Upper and lower pinch rolls driven
All rolls mounted in ball or roller bearings
Powered hydraulic adjustment of the lower pinching roll with independent pinching pressure adjustment
Powered hydraulic adjustment of the two side bending rolls, with push-button control and electronic digital readout for roll position
Design for lineal guided rear roll to minimize flat ends
Hydraulic drop end
Top roll permanently balanced when the drop end is opened
Standard Equipment:
Diameter of all rolls – 7.08"
Motors - 4 HP drive motor; 1.5 HP hydraulic system motor
Net weight - approximately 7,360 Lbs
Dims - 152 x 54 x 51"
Features:
All steel frame
Most rigid frame, drop end and clamping roll parallelism unit
Machine frame stress relieved
Upper and lower pinch rolls driven
All rolls mounted in ball or roller bearings
Powered hydraulic adjustment of the lower pinching roll with independent pinching pressure adjustment
Powered hydraulic adjustment of the two side bending rolls, with push-button control and electronic digital readout for roll position
Design for lineal guided rear roll to minimize flat ends
Hydraulic drop end
Top roll permanently balanced when the drop end is opened
Standard Equipment:
Main drive motor with magnetic brake
Hydraulic unit with motor and controls for lower roll and rear bending roll adjustment and for the hydraulic drop end SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc

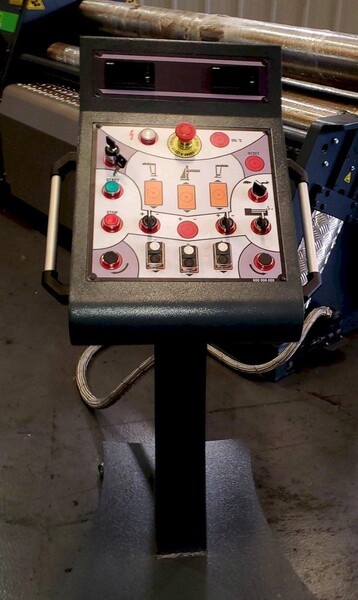

Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience)
Components from American and European sources
Electrics for 3/60/220 or 440, with overload and under voltage protection.
Low voltage at the controls.
Safety cable at front and rear of machine
Cone bending attachment
Powered tilting of side bending roll for cone rolling
Variable Pinch Roll Pressure
Electronic digital readout to indicate position of the rear bending roll
Grooves in lower rolls for 1/4", 3/8", 1/2" round bar (must be ordered from the factory to be included at no charge)
Metal enclosures
European made
Hydraulic unit with motor and controls for lower roll and rear bending roll adjustment and for the hydraulic drop end SAE 1050 high strength steel rolls heat treated (hardened) to 55 - 60 Rc
Portable control console mounted on wheels for operator convenience (allows operator to position for his/her convenience)
Components from American and European sources
Electrics for 3/60/220 or 440, with overload and under voltage protection.
Low voltage at the controls.
Safety cable at front and rear of machine
Cone bending attachment
Powered tilting of side bending roll for cone rolling
Variable Pinch Roll Pressure
Electronic digital readout to indicate position of the rear bending roll
Grooves in lower rolls for 1/4", 3/8", 1/2" round bar (must be ordered from the factory to be included at no charge)
Metal enclosures
European made
Instruction manual
FOB: Maryland
FOB: Maryland
Get Your Price from Federal Equipment Div!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!
JUST ADDED!

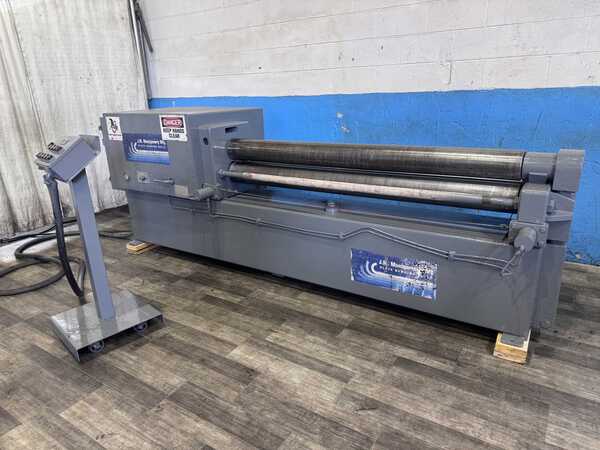

J M Montgomery 6' x 18 gauge J.M. Montgomery #7218H, Plate Bending Roll, 5 HP
