Manufacturer: Nakamura
Model: SUPER-NTMX
Year: 2013
Swing: 8.0
Chuck: 7
Centers: 38.6
Stock # 498986
For Sale by Clark Machinery Sales LLC
Surplus Record Dealer Since 2005
Troy Clark
410-25...> Show Seller's Phone Number 410-252-5494 Let the seller know you found their listing on Surplus Record!
Description

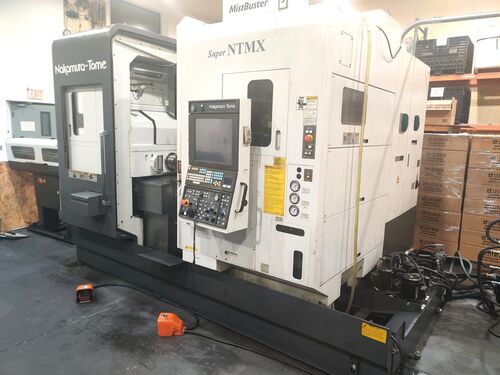

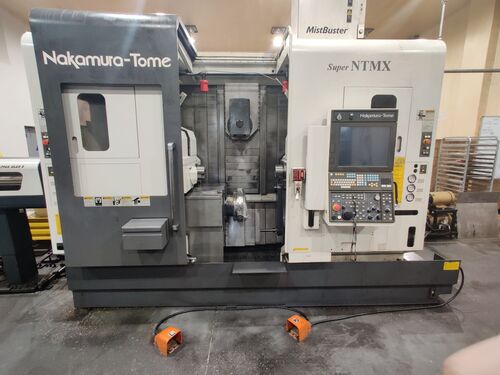

2013 NAKAMURA TOME SUPER NTMX
SPECIFICATIONS:
SWING OVER CROSS SLIDE........ 8.07"
MAX CUTTING DIAMETER.......... 7.87"
MAX CUTTING LENGTH............ 30"
DISTANCE BETWEEN CENTERS...... 38.58"
X-AXIS TRAVEL................. 22.44"
Y-AXIS........................ Yes
Y-AXIS TRAVEL................. 7.87" (3.93")
Z-AXIS TRAVEL................. 51.1"
CHUCK SIZE.................... 7"
BAR CAPACITY.................. 2"
SPINDLE MOTOR................. 15 hp
SPINDLE SPEED................. 5,000 RPM
SUB SPINDLE................... Yes
SUB SPINDLE - CHUCK SIZE...... 7"
SUB SPINDLE - BAR CAPACITY.... 2"
SUB SPINDLE - SPINDLE MOTOR... 15 hp
SUB SPINDLE - SPINDLE SPEED... 5,000 RPM
B-AXIS MILLING SPEED.......... 12,000 RPM
B-AXIS ROTATION............... 190 (95)
TURRET CAPACITY............... 24
LIVE MILLING.................. Yes
LIVE MILLING SPEED............ 12,000 RPM
TURRET 2 CAPACITY............. 24
TURRET 2 - X-AXIS TRAVEL...... 5.13"
TURRET 2 - Z-AXIS TRAVEL...... 25.9"
EQUIPPED WITH:

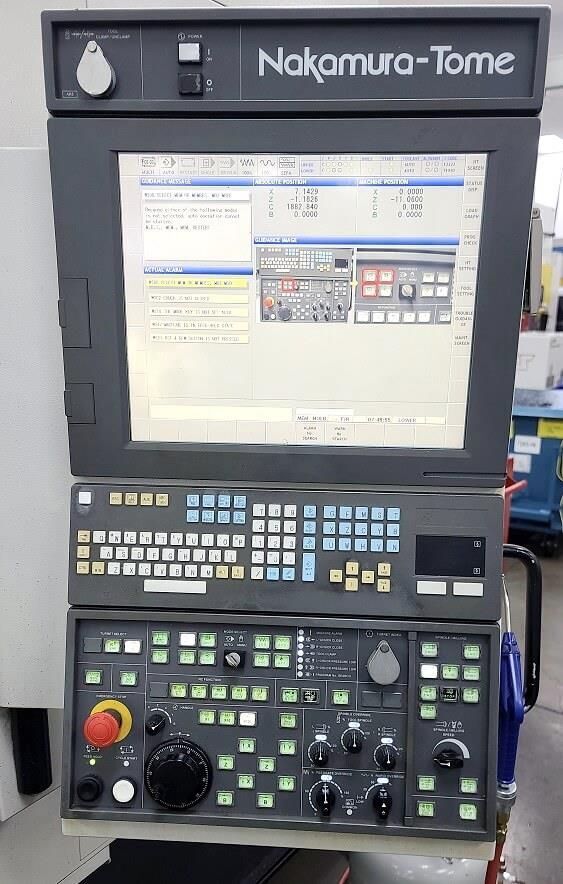

FANUC 31i-A5 2PATH CNC CONTROL
LNS ALPHA SL65-S BAR FEEDER (2014)
9-CONTROLLED AXES
5-AXES SIMULTANEOUS MACHINING (UPPER X1, Z1, C1[C2], Y, B1)
4-AXES (LOWER X2, Z2, C2[C1], B2)
SIMULTANEOUS TURNING UPPER & LOWER TURRETS
48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
THRU-SPINDLE COOLANT
HIGH PRESSURE COOLANT (1,000 PSI)
RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
PART CONVEYOR
PARTS CATCHER
SPINDLE CHILLER
MIST BUSTER MIST COLLECTOR
FIRE SUPPRESSION SYSTEM
INCLUDED TOOLING:
LOWER TURRET (14 HOLDERS):
(2) DRIVEN 90 DEGREE ER16 HOLDERS
(5) BORING BAR HOLDERS 1 DIA
(2) BORING BAR HOLDERS 1.25 DIA
(5) STICK TOOLING BLOCK

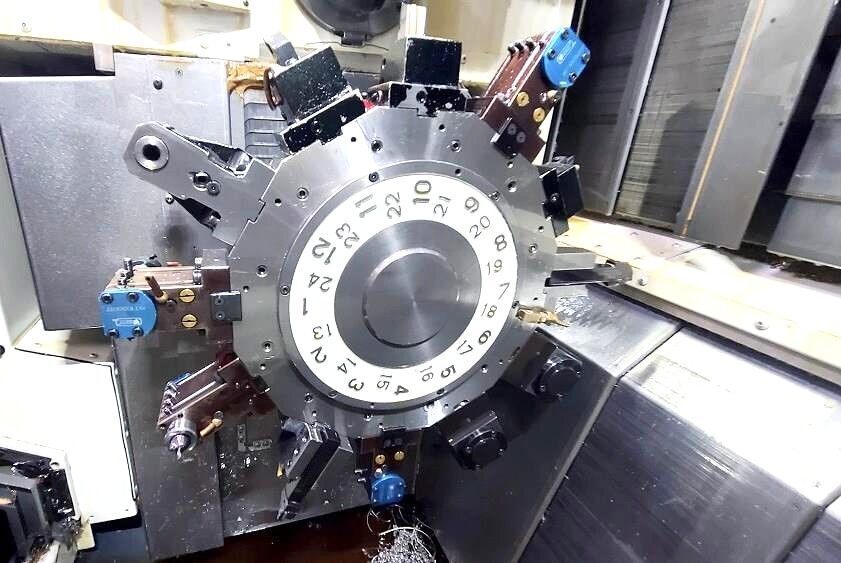

UPPER TURRET (63 HOLDERS):
(15) C4 EXTENSIONS
(6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
(15) ER20 HOLDERS
(10) ER32 HOLDERS (LYNDEX NIKKEN)
(4) INTERNAL BORING TOOL HOLDERS (PH HORN)
(1) PRECISION BORING HEAD
(2) CUTOFF BLADE HOLDER
(2) OD TURNING HOLDERS
(1) SIDE-LOC HOLDER
(1) BORING BAR HOLDER
(6) SHRINK FIT HOLDERS
** PRICE NEW AS EQUIPPED: $650,000+
** MACHINE CUTTING PRIMARILY ALUMINUM
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
SPECIFICATIONS:
SWING OVER CROSS SLIDE........ 8.07"
MAX CUTTING DIAMETER.......... 7.87"
MAX CUTTING LENGTH............ 30"
DISTANCE BETWEEN CENTERS...... 38.58"
X-AXIS TRAVEL................. 22.44"
Y-AXIS........................ Yes
Y-AXIS TRAVEL................. 7.87" (3.93")
Z-AXIS TRAVEL................. 51.1"
CHUCK SIZE.................... 7"
BAR CAPACITY.................. 2"
SPINDLE MOTOR................. 15 hp
SPINDLE SPEED................. 5,000 RPM
SUB SPINDLE................... Yes
SUB SPINDLE - CHUCK SIZE...... 7"
SUB SPINDLE - BAR CAPACITY.... 2"
SUB SPINDLE - SPINDLE MOTOR... 15 hp
SUB SPINDLE - SPINDLE SPEED... 5,000 RPM
B-AXIS MILLING SPEED.......... 12,000 RPM
B-AXIS ROTATION............... 190 (95)
TURRET CAPACITY............... 24
LIVE MILLING.................. Yes
LIVE MILLING SPEED............ 12,000 RPM
TURRET 2 CAPACITY............. 24
TURRET 2 - X-AXIS TRAVEL...... 5.13"
TURRET 2 - Z-AXIS TRAVEL...... 25.9"
EQUIPPED WITH:
FANUC 31i-A5 2PATH CNC CONTROL
LNS ALPHA SL65-S BAR FEEDER (2014)
9-CONTROLLED AXES
5-AXES SIMULTANEOUS MACHINING (UPPER X1, Z1, C1[C2], Y, B1)
4-AXES (LOWER X2, Z2, C2[C1], B2)
SIMULTANEOUS TURNING UPPER & LOWER TURRETS
48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
THRU-SPINDLE COOLANT
HIGH PRESSURE COOLANT (1,000 PSI)
RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
PART CONVEYOR
PARTS CATCHER
SPINDLE CHILLER
MIST BUSTER MIST COLLECTOR
FIRE SUPPRESSION SYSTEM
INCLUDED TOOLING:
LOWER TURRET (14 HOLDERS):
(2) DRIVEN 90 DEGREE ER16 HOLDERS
(5) BORING BAR HOLDERS 1 DIA
(2) BORING BAR HOLDERS 1.25 DIA
(5) STICK TOOLING BLOCK
UPPER TURRET (63 HOLDERS):
(15) C4 EXTENSIONS
(6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
(15) ER20 HOLDERS
(10) ER32 HOLDERS (LYNDEX NIKKEN)
(4) INTERNAL BORING TOOL HOLDERS (PH HORN)
(1) PRECISION BORING HEAD
(2) CUTOFF BLADE HOLDER
(2) OD TURNING HOLDERS
(1) SIDE-LOC HOLDER
(1) BORING BAR HOLDER
(6) SHRINK FIT HOLDERS
** PRICE NEW AS EQUIPPED: $650,000+
** MACHINE CUTTING PRIMARILY ALUMINUM
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
