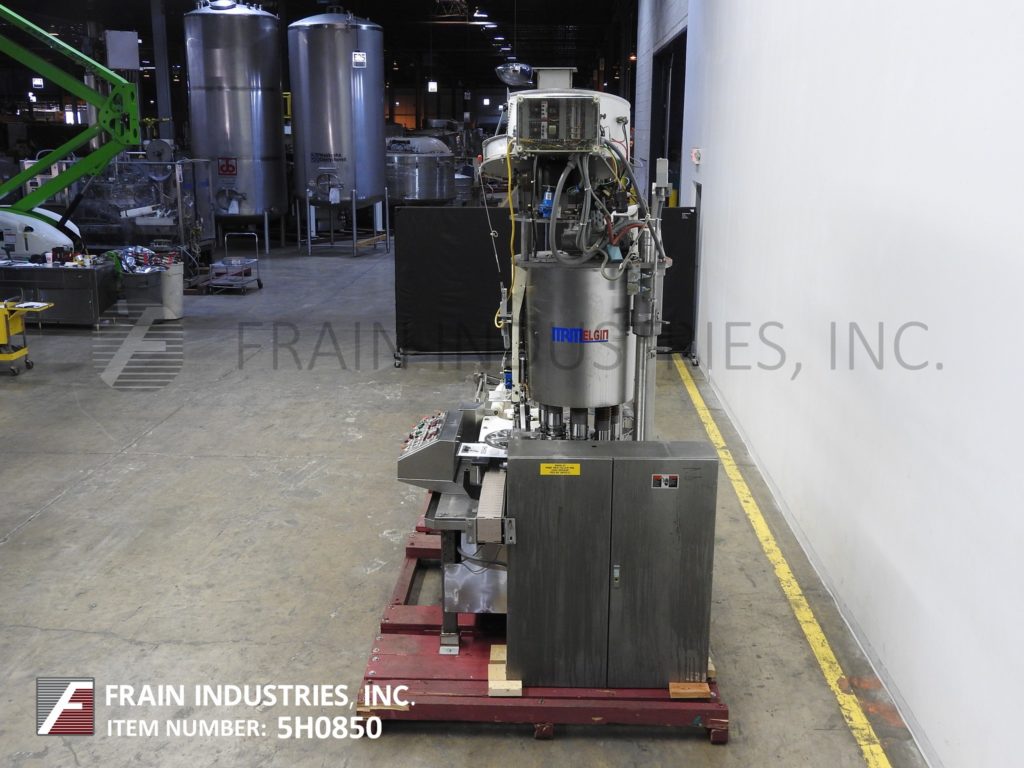

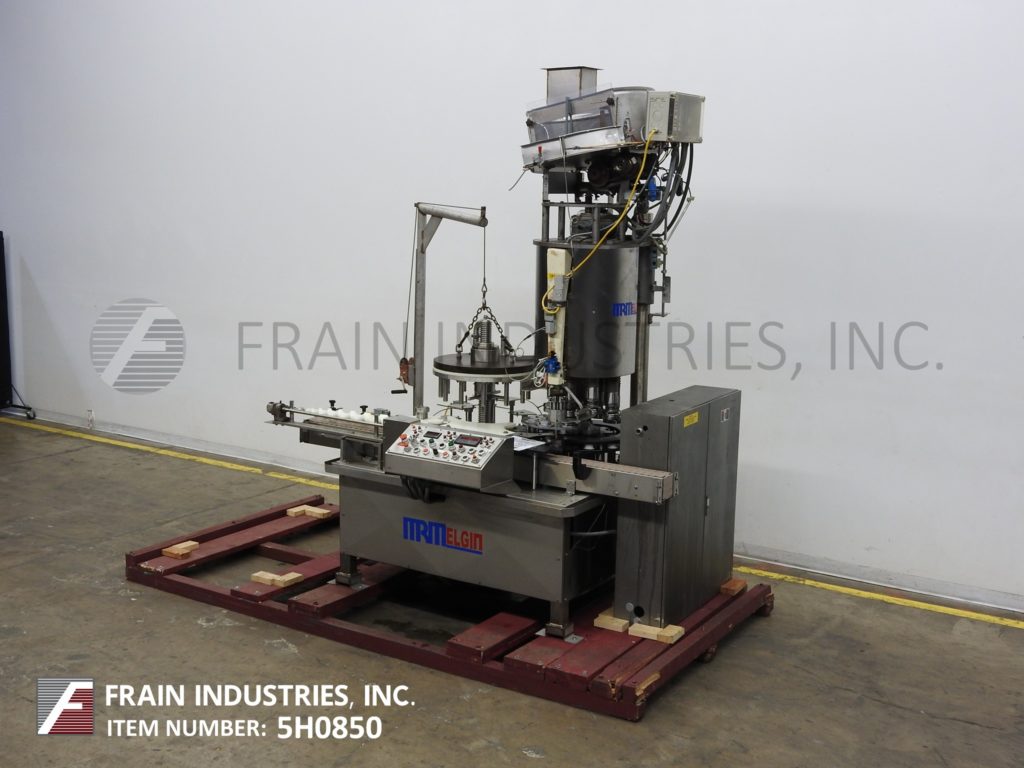

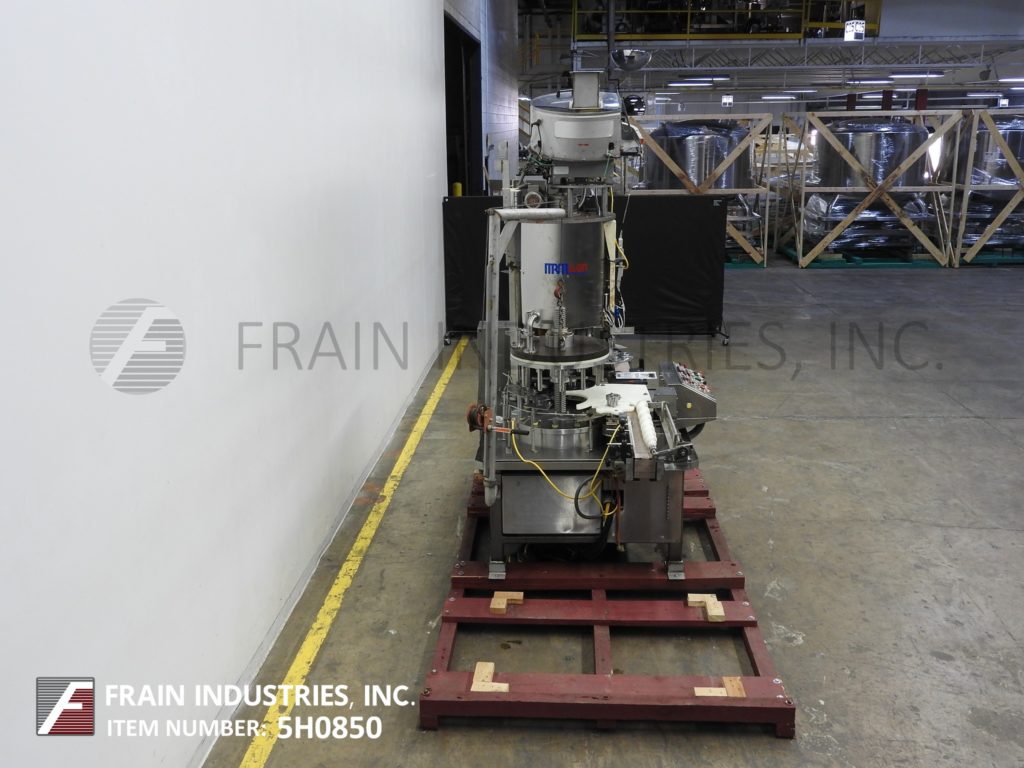

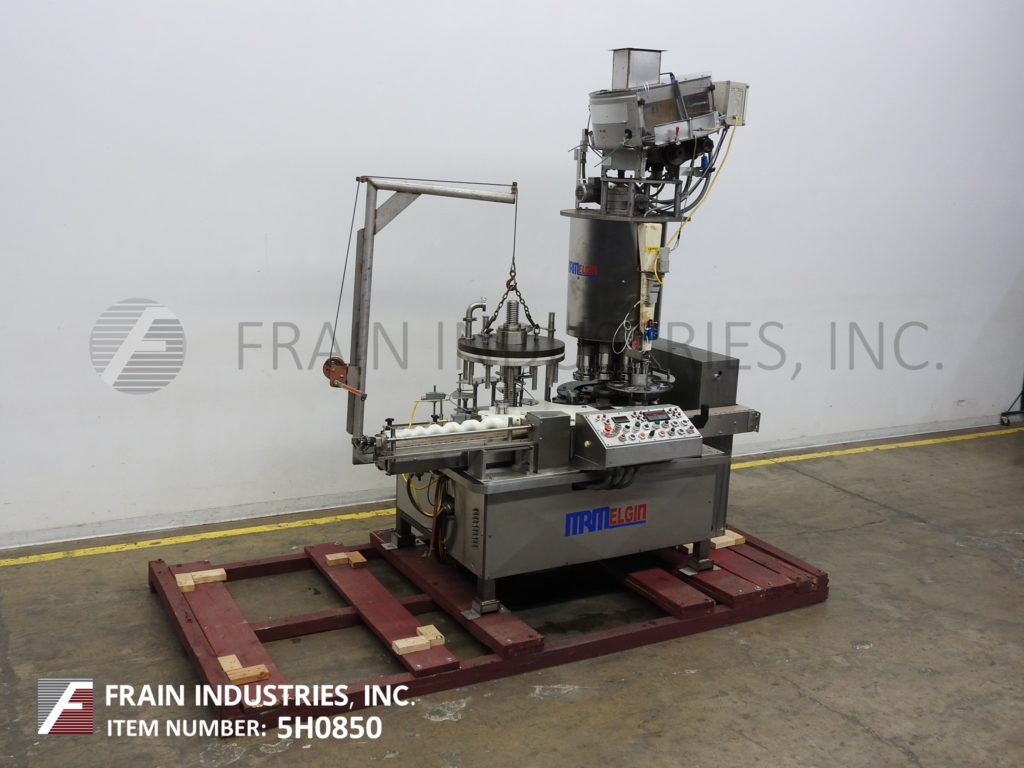

MRM Elgin / Zalkin, Stainless Steel, Monoblock 12 head filling and 8 head capping system, worm screw to star wheel in feed and discharge

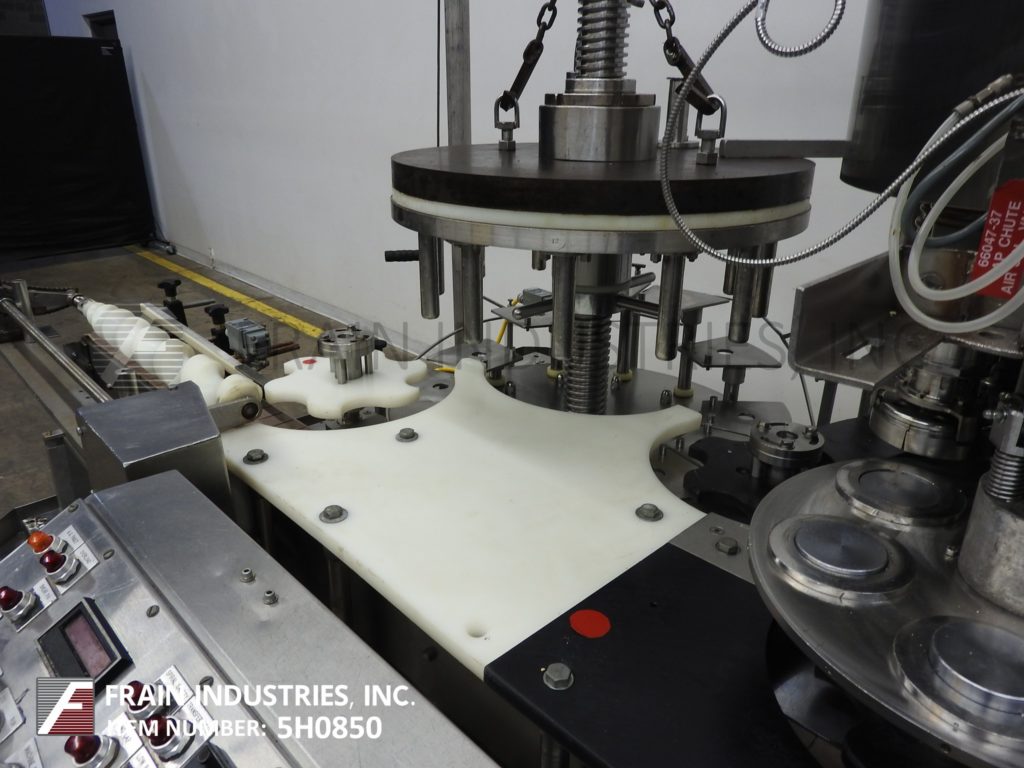

MRM Elgin / Zalkin, stainless steel, monoblock 12 head filling and 8 head capping system with number of containers per minute – depending on materials, application and machine configuration. Equipped with 100" long x 3-1/2" wide container belt conveyor with worm screw to star wheel in feed and discharge, MRM Elgin Versa 12 head time pressure filler has 1" OD nozzles, set on 5-1/2" centers with 6" wide x 6-1/2" long container lift pedastals. Fill volumes: 5cc to gallons with accuracies +/- 0.5%. Zalkin 8 head rotary torque open chuck capper set on 7" centers cap size range 15mm to 40mm with 24" ID cap hopper / feeder. Control panel has filler, conveyor and pump, jog, run, reverse, cap turret and sorter on / off switches with start, stop, e-stop push buttons, no container / no fill / no cap. Mounted on stainless steel base frame with drip rim.

OAD: 100" L x 60" W x 84" H
