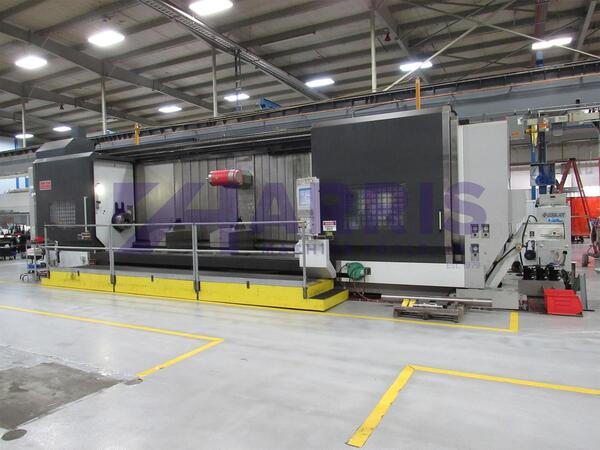

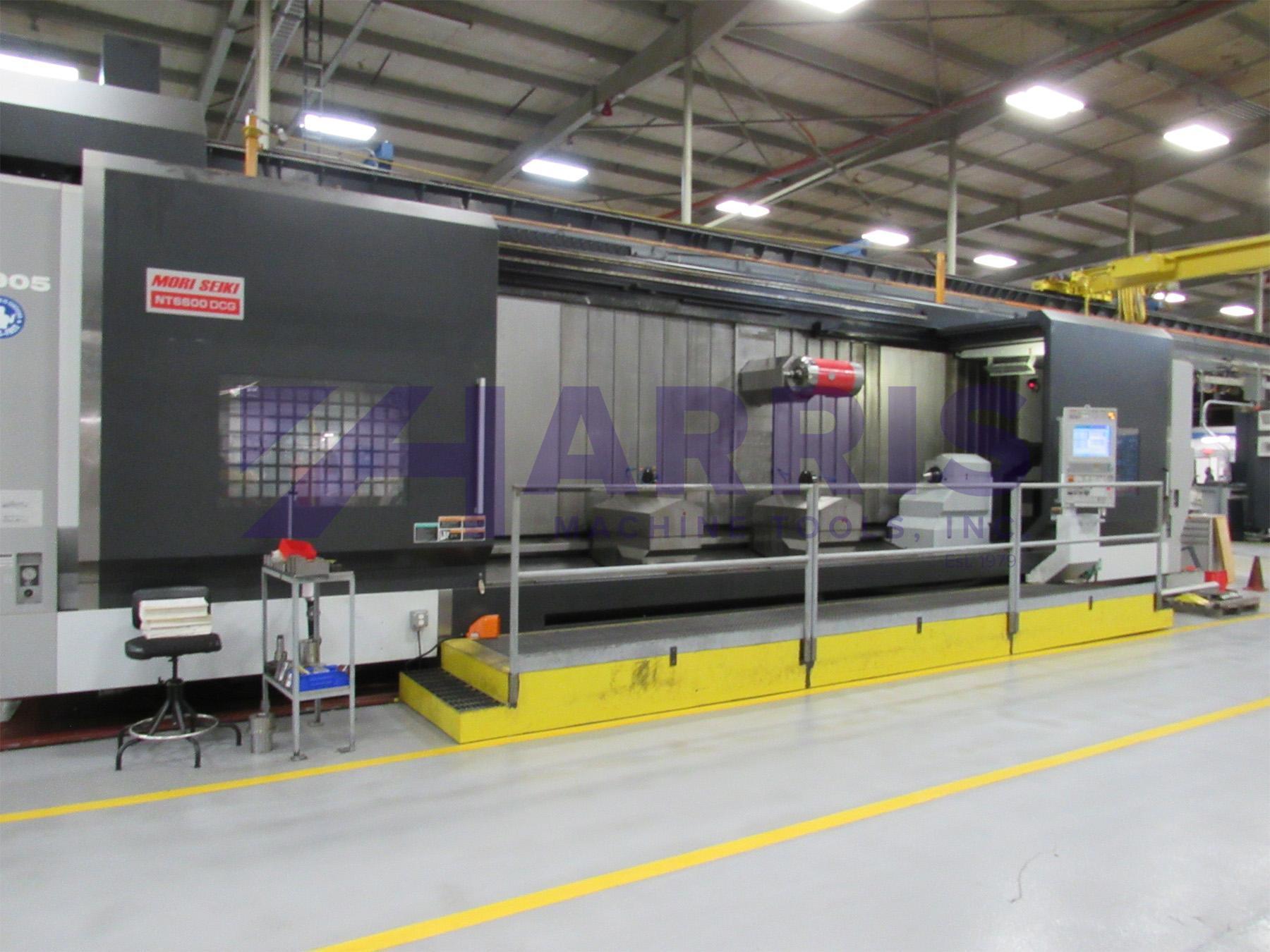

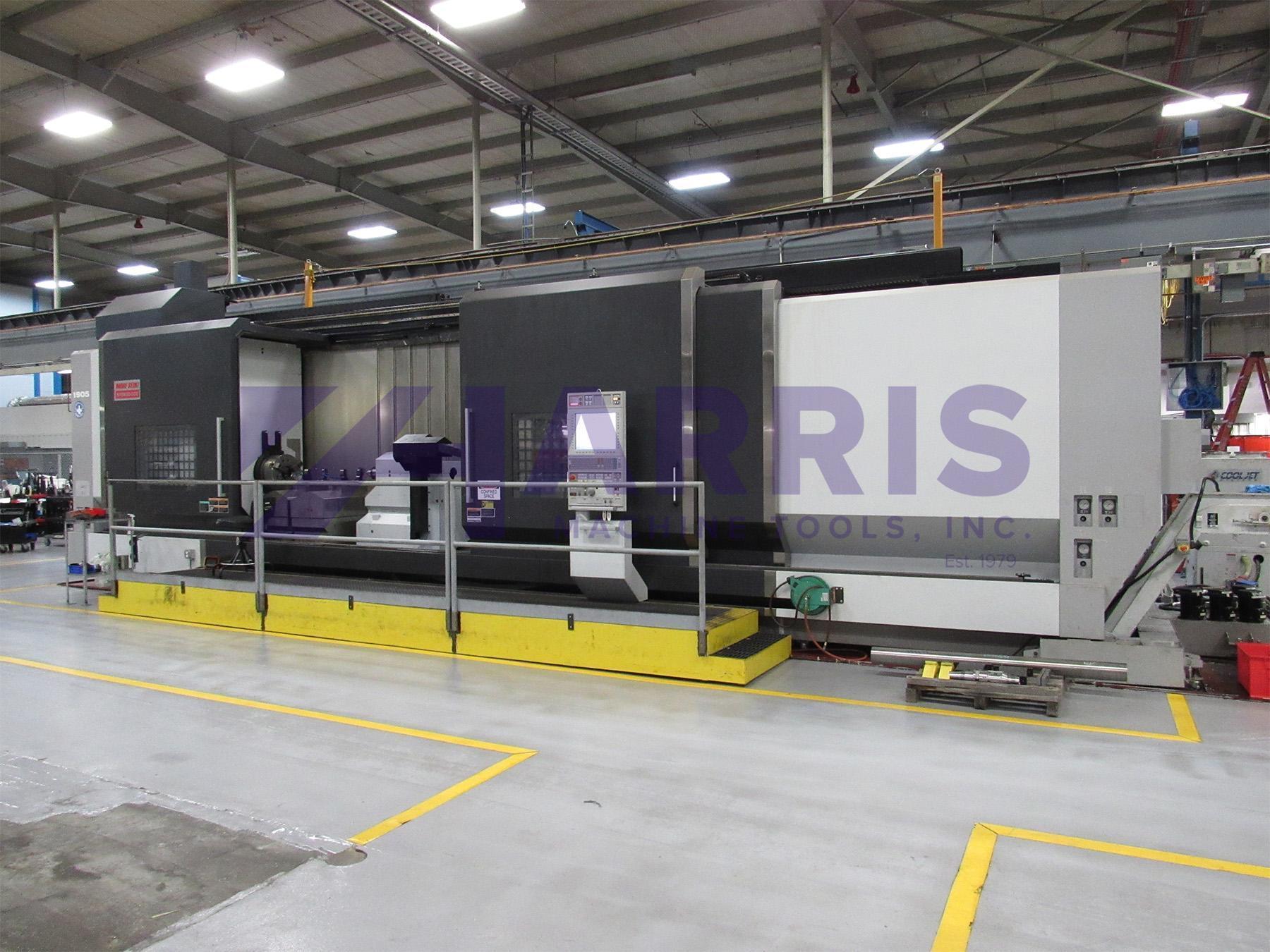

Manufacturer: Mori Seiki
Model: NT-6600DCG/6000B
Year: 2012
Swing: 42.0
Chuck: 20
Bar Capacity: 6.4
Stock # 19681
For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Sales Dept.
713-46...> Show Seller's Phone Number 713-462-5800 Let the seller know you found their listing on Surplus Record!
Description
MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
20" HYDRAULIC CHUCK

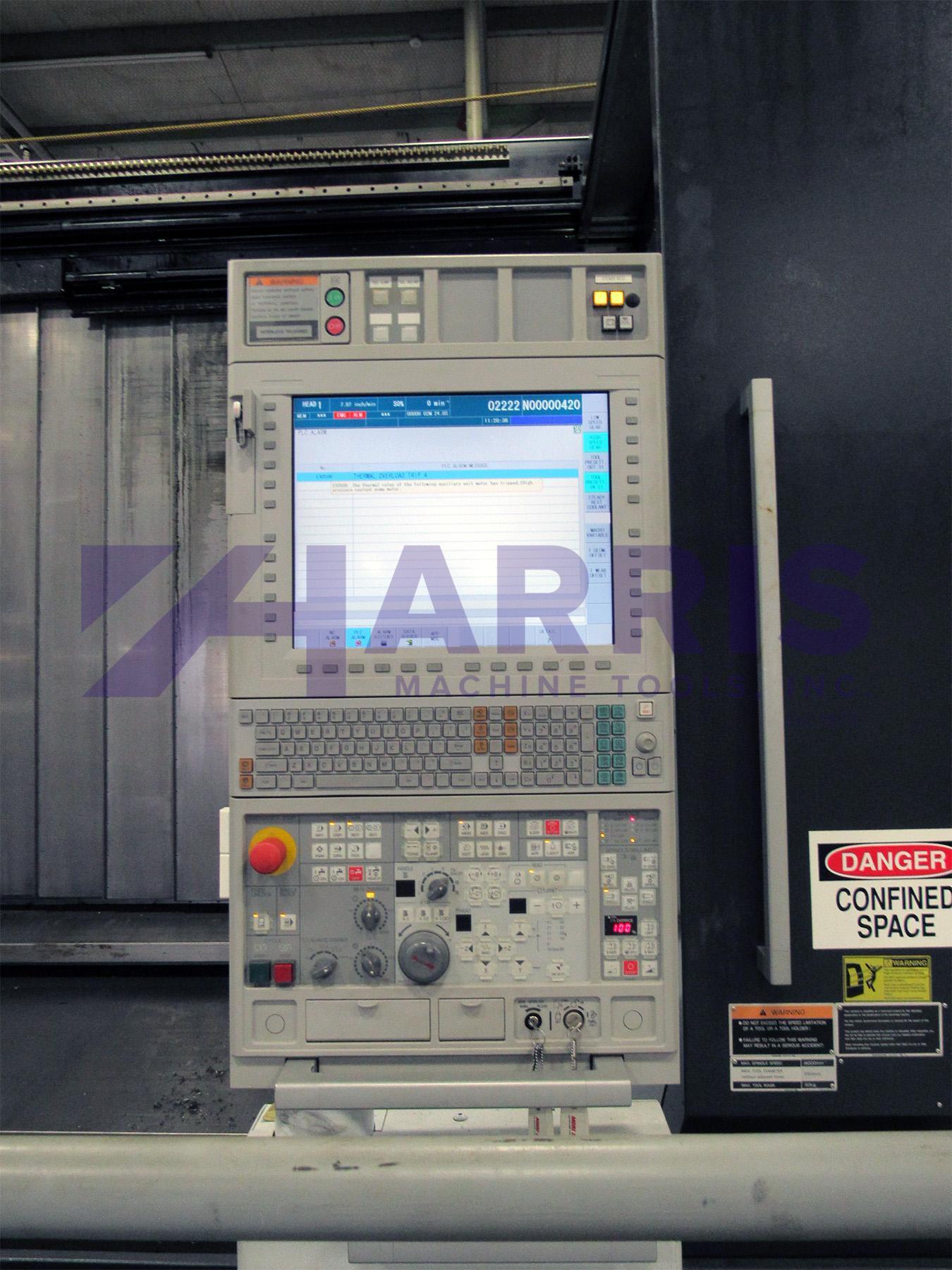

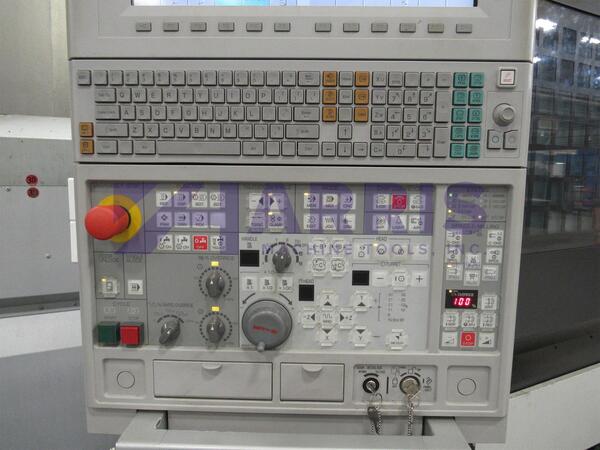

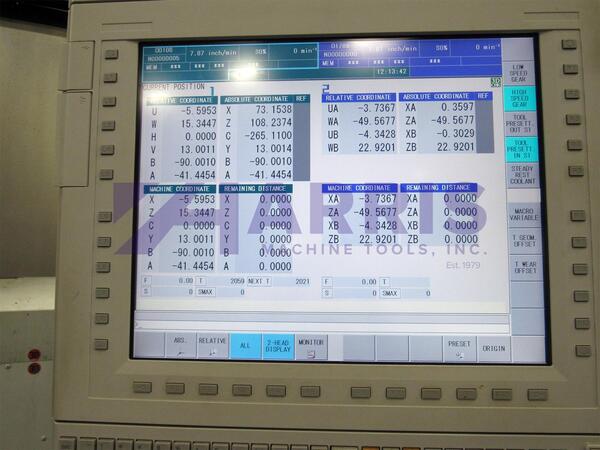

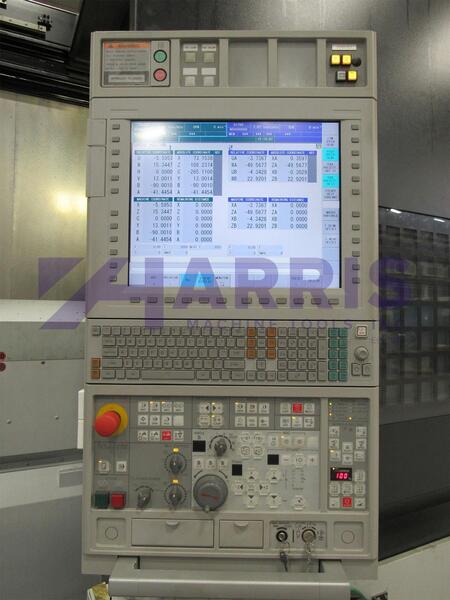

FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
Additional Control Options:
Machine Options:
Tool Presetter
Automatic Tool Length Measurement System
Additional Machine Specs:
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
20" HYDRAULIC CHUCK
FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Machine Options:
Tool Presetter
Automatic Tool Length Measurement System
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
Right Hinge-Type Chip Conveyor

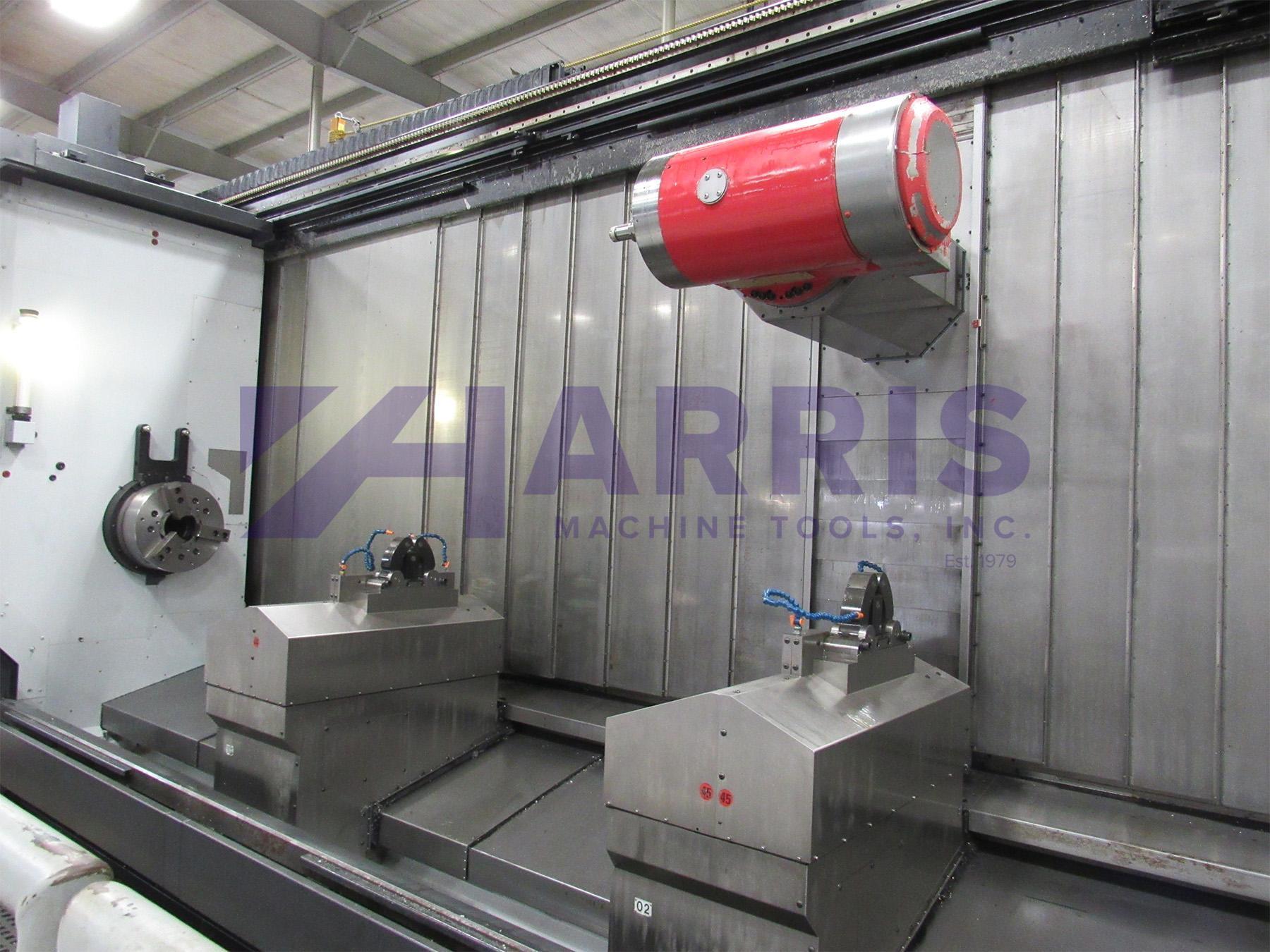

(2) Programmable Automatic Steady Rests (8" capacity)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
Machine Hours: 49,625
Spindle Hours: 4,798
Machine Hours: 49,625
Spindle Hours: 4,798
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
