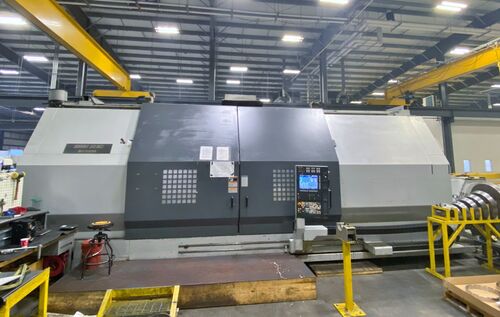

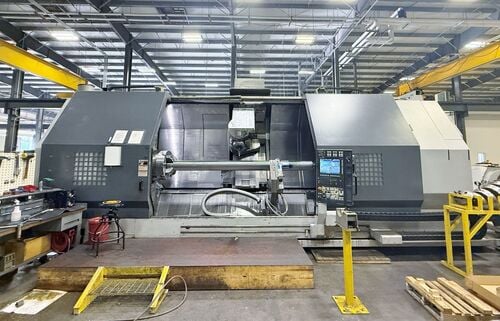

Mori Seiki #MT-4000C/3000, 37" diameter x 120" length turn, 1k RPM, 50 HP, 24" chuck, 10.8" bore, 120 ATC, tailstock & steady rest, B-Axis MillTurn rebuilt 2023, 1k psi coolant, 2007 AS-IS

2007 MORI SEIKI MT4000C/3000
SPECIFICATIONS:
MAX CUTTING DIAMETER........... 37"
MAX CUTTING LENGTH............. 120"
X-AXIS TRAVEL.................. 39.6"
Y-AXIS......................... Yes
Y-AXIS TRAVEL.................. 11.81 (+/- 5.9")
Z-AXIS TRAVEL.................. 124"
CHUCK SIZE..................... 24"
SPINDLE BORE................... 10.8"
SPINDLE NOSE................... A1-20
SPINDLE MOTOR.................. 50 hp
SPINDLE SPEED.................. 1,000 RPM
RAPID TRAVERSE RATE - X-AXIS... 944 in/min.
RAPID TRAVERSE RATE - Y-AXIS... 944 in/min.
RAPID TRAVERSE RATE - Z-AXIS... 787 in/min.
B-AXIS SPINDLE MOTOR........... 20 hp
B-AXIS MILLING SPEED........... 6,000 RPM
B-AXIS SPINDLE TAPER........... CAPTO C8
B-AXIS TOOL POSITIONS.......... 120
B-AXIS TRAVEL.................. -120 DEGREES/+105 DEGREES
Weight......................... 95000
EQUIPPED WITH:
COMPLETELY REBUILT MILLING SPINDLE IN 2023

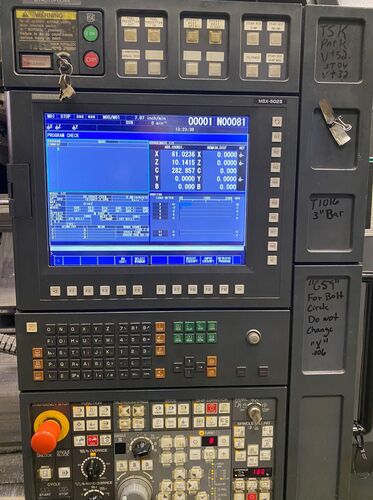

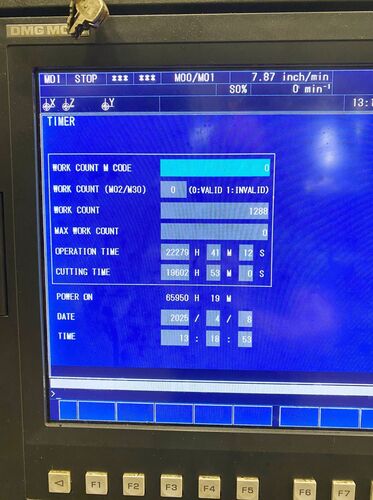

MORI SEIKI MSX-502III CONTROL

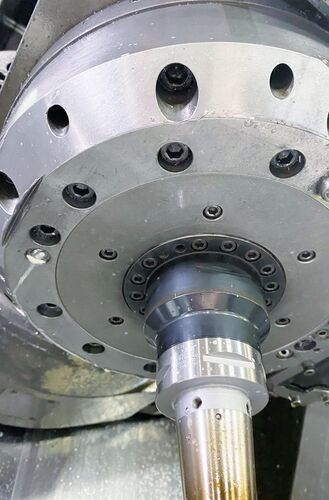

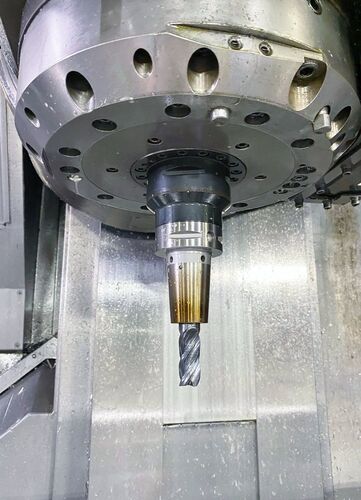

B-AXIS MILLING SPINDLE (6,000 RPM, CAPTO C8)
Y-AXIS
50 HP TURNING SPINDLE

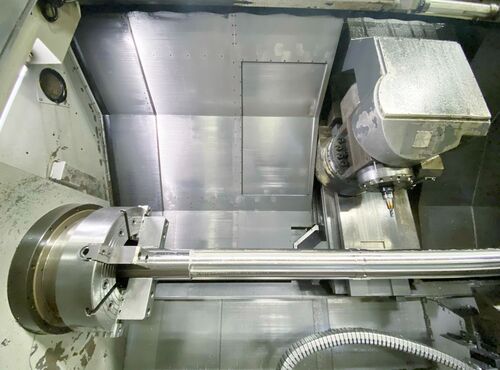

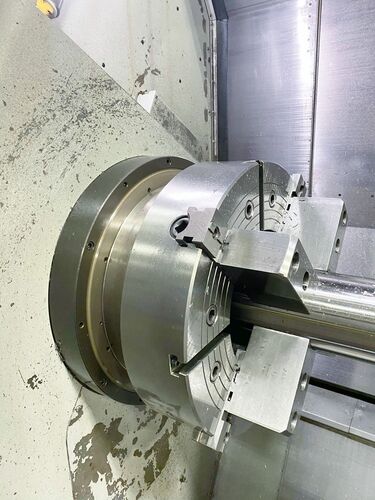

24, 4-JAW BISON MANUAL CHUCK
10.8 SPINDLE BORE
3000MM/120 CUTTING LENGTH
120 TOOL POSITIONS

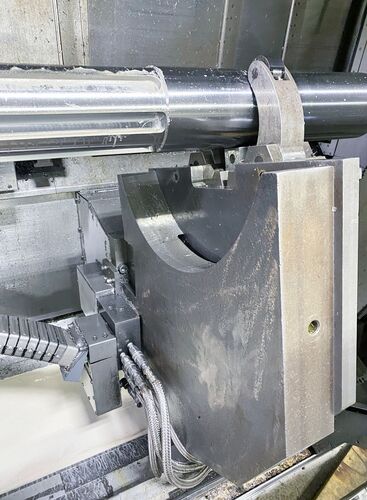

ROHM SLZ-325 HYDRAULIC STEADY REST (1.5 9.4 CAPACITY)
LONG BORING BAR ATTACHMENT (NEEDS REALIGNMENT)

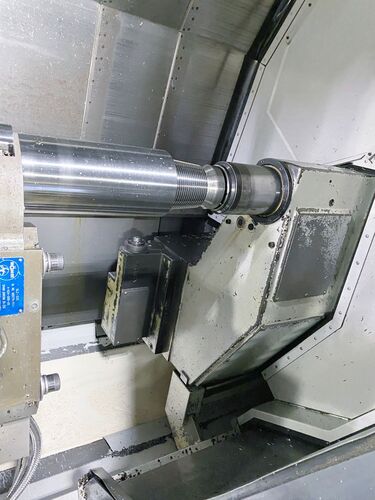

TAILSTOCK
CHIP CONVEYOR
COOLJET HIGH-PRESSURE COOLANT UNIT (1,000 PSI)
ROYAL MIST COLLECTOR (FX1200)
** MACHINE CUT PRIMARILY 4140 STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $1,000,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** B-AXIS MILLING SPINDLE WAS SENT TO JAPAN & COMPLETELY REBUILT IN 2023
** LONG BORING BAR ATTACHMENT NEEDS TO BE REALIGNED IN ORDER TO FUNCTION
** THE MACHINE HAS ISSUES WHEN DOING WRAP MILLING. IT CANNOT MAINTAIN TOLERANCES LESS THAN .02.
** HOWEVER, THE MILLING IS FULLY FUNCTIONAL & CAN HIT .002 TOLERANCE WITH THE C-AXIS BRAKE ENGAGED
