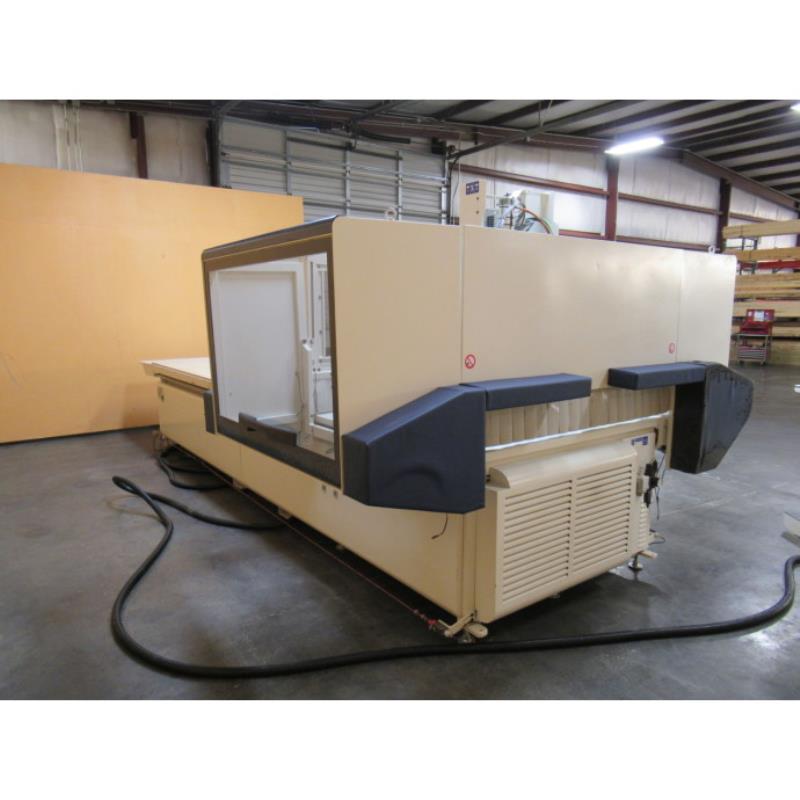

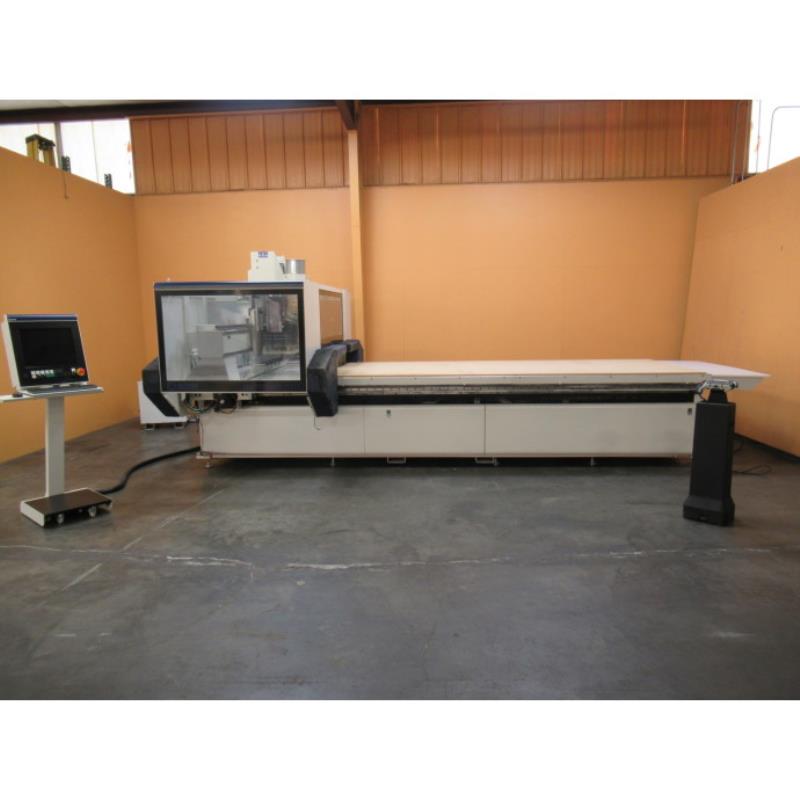

Morbidelli #N-100, flat table machine, 5' x12'tbl., 166.54" X, 78.15" Y, 9.84" Z, 24k RPM, 14 ATC, boring, 2017

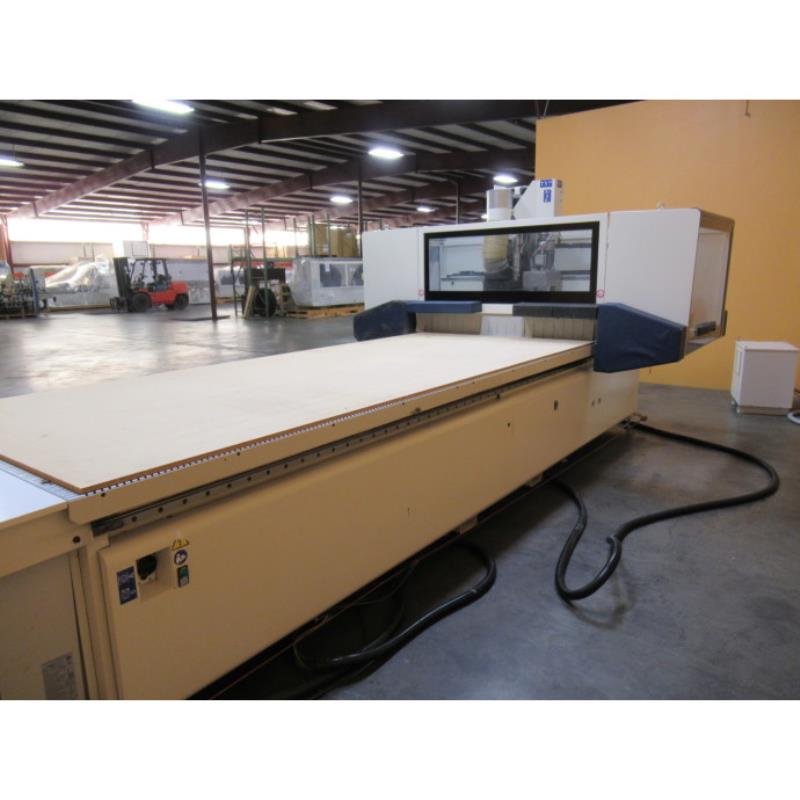

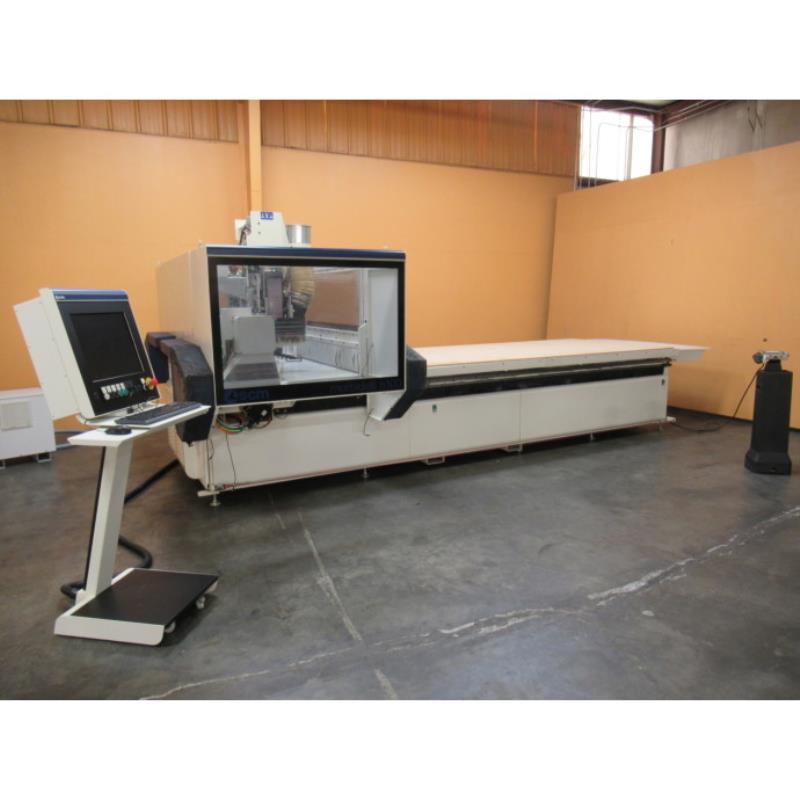

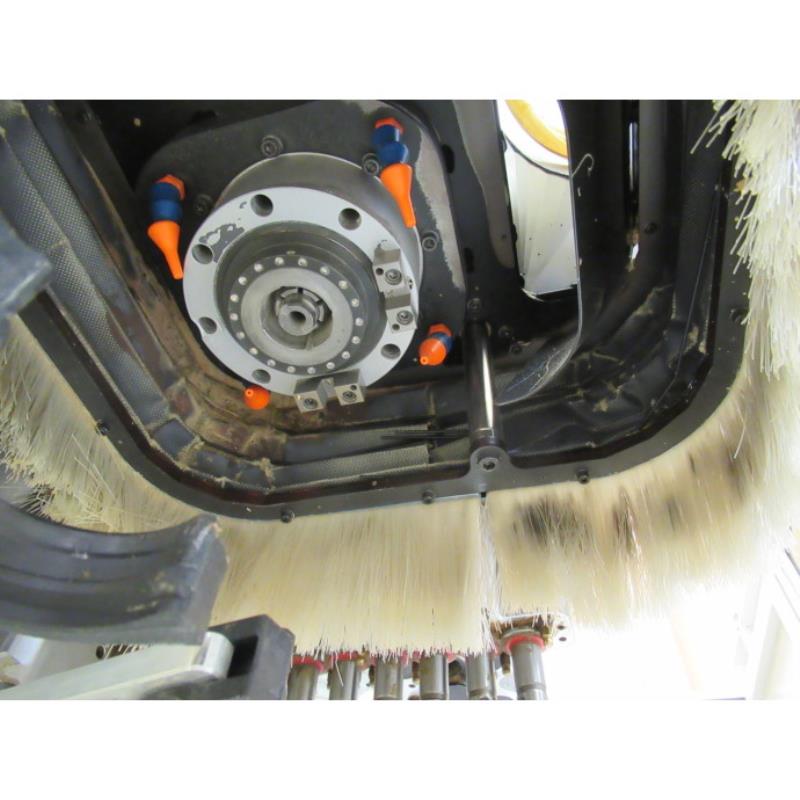

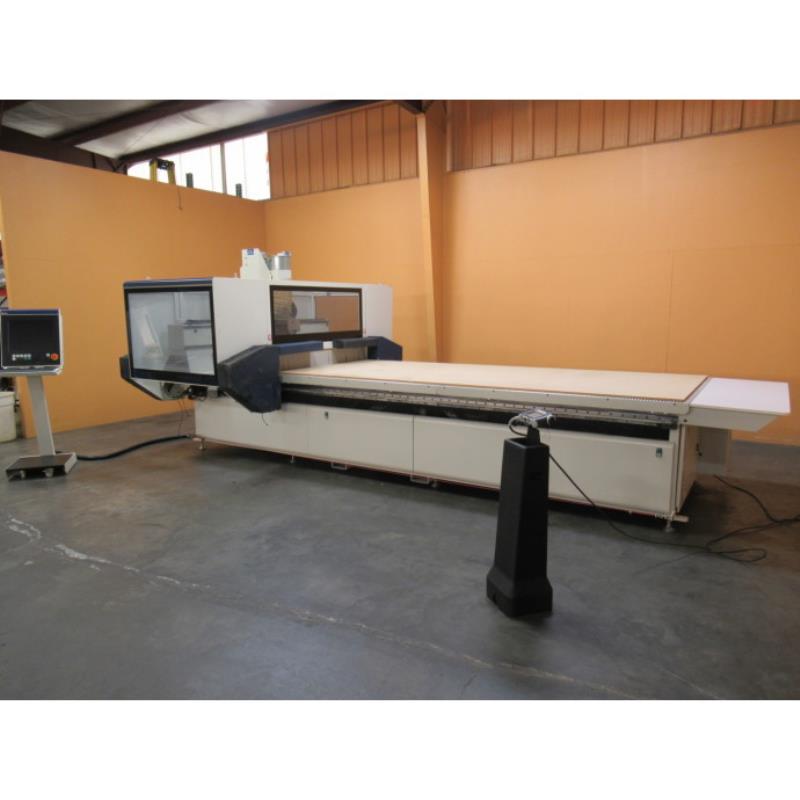

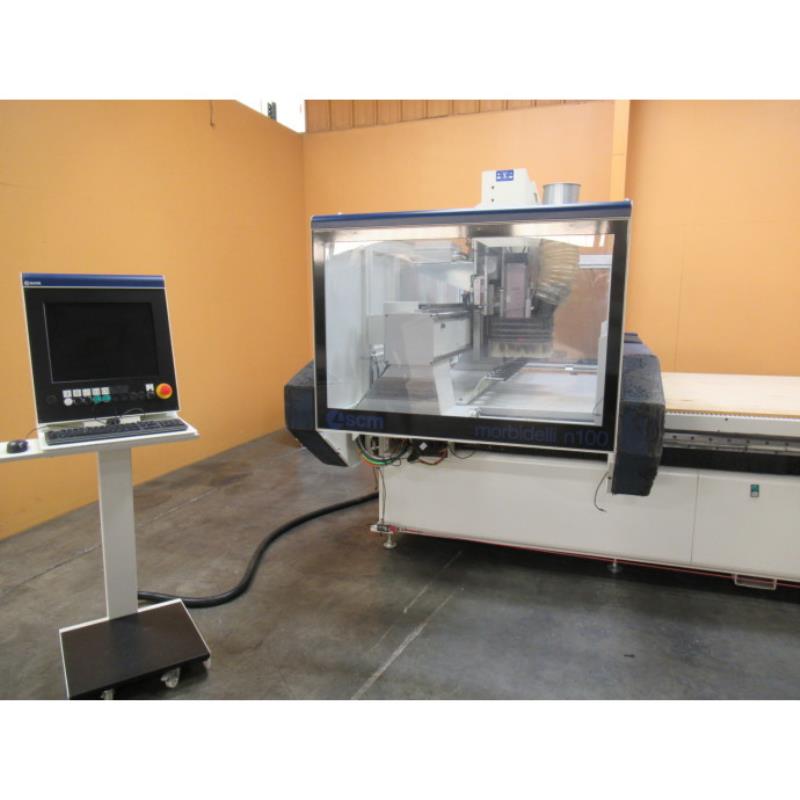

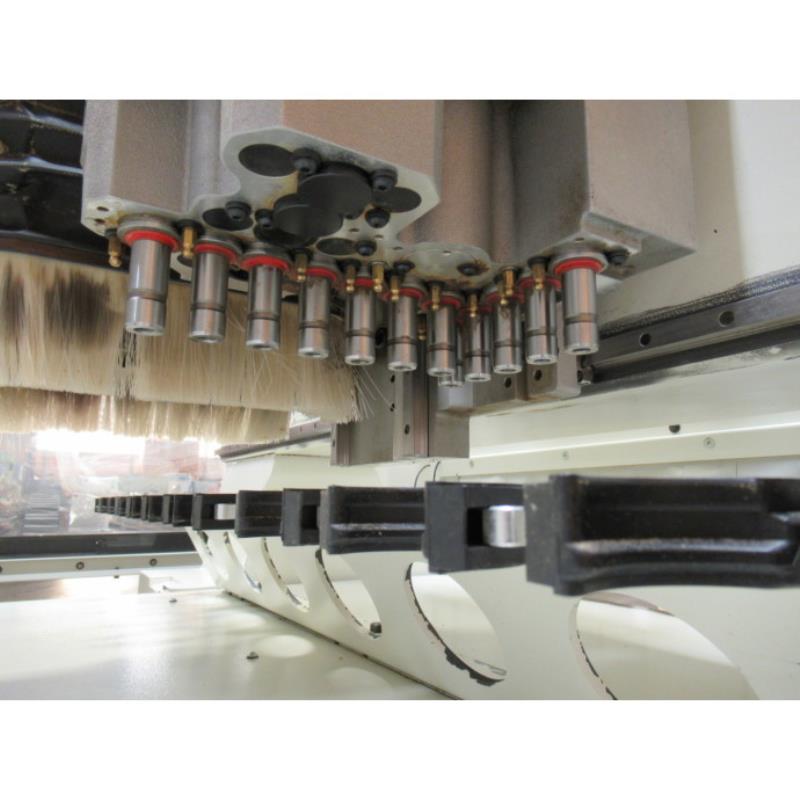

MORBIDELLI - N 100 15: Flat Table Machine with ATC, Boring, Rake -- Specifications: 5' x 12' Worktable 13 HP (S6) air cooled electro spindle with HSK F 63 quick release tool holder 1,500 to 24,000 RPM inverter-controlled spindle speed Aluminum solid worktable that can nest full sheets or be used for routing smaller components 14-Position tool changer mounted to side of machine (12) Vertical drills: (7) in X axis and (5) in Y axis X/Y maximum positioning speeds is 35 meters/min (115 feet/min) Z axis stroke 250 mm (9.84") Maximum panel passage 150 mm (5.90") (2) 300 m/H vacuum pumps Mobile console with 17" LCD display with Windows 7 operating system XILOG PLUS Operator Interface and Xilog Maestro Cad Cam free form software with labeling. 7" color universal remote-control pendant allows for the effective management of all machine functions from movement of controlled axes in manual jog mode to loading and execution of a program. Fitted with a USB port which allows for a quick load and setup of new programs. Air-Conditioned electrical cabinet. Safety bumpers on both sides of the mobile unit allows for safe movement while saving space by eliminating caging around the machine. Electronic tool detecting length (touch probe) allows for detecting tool length without running a test program Dust Collection: (1) 200 mm (7.87") on router (1570 cfm) Operating air pressure with 3/4" ID hose 7 ATM (102 psi) Autotransformer allows choice of 208/230 or 460 volt 3 phase operation
