For Sale by Machinery Central
Surplus Record Dealer Since 2020
Denis Frankenberger
502-21...> Show Seller's Phone Number 502-219-7311 Let the seller know you found their listing on Surplus Record!
Description
Description:
3" MODERN "3K-LH" automatic pipe-tube-bar cutoff lathe in used condition. Features Allen Bradley control, 20' automatic bar-feed, overhead micrometer stop, and exit roller conveyor. Specs: 1/4"-3" capacity, 5 HP motor, 130-2000 RPM spindle speed.
Spec Sheet:

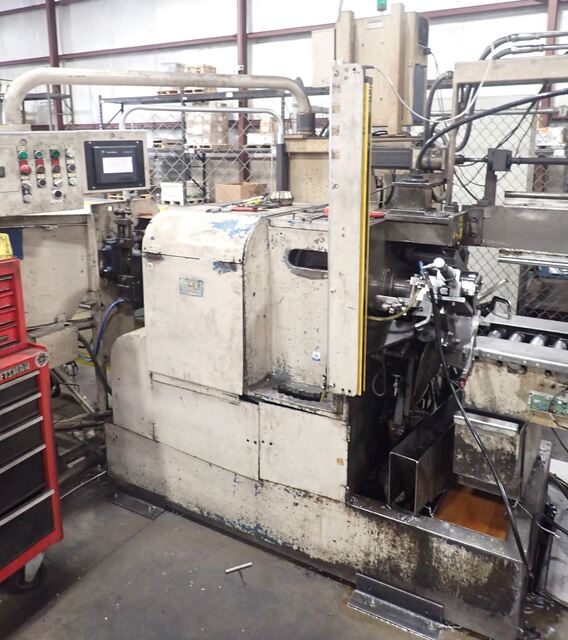

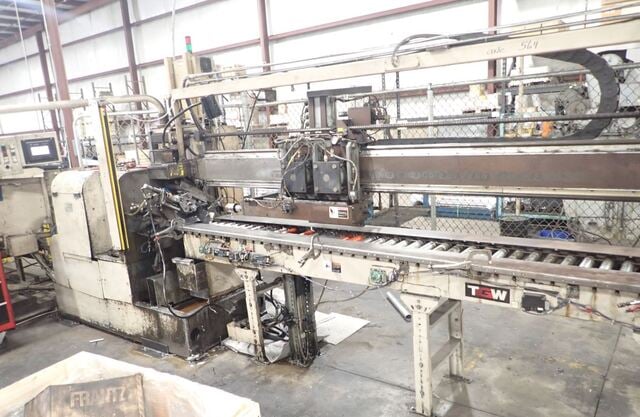

3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE
Serial No 3K3225LH, Model 3K-LH
EQUIPPED WITH:

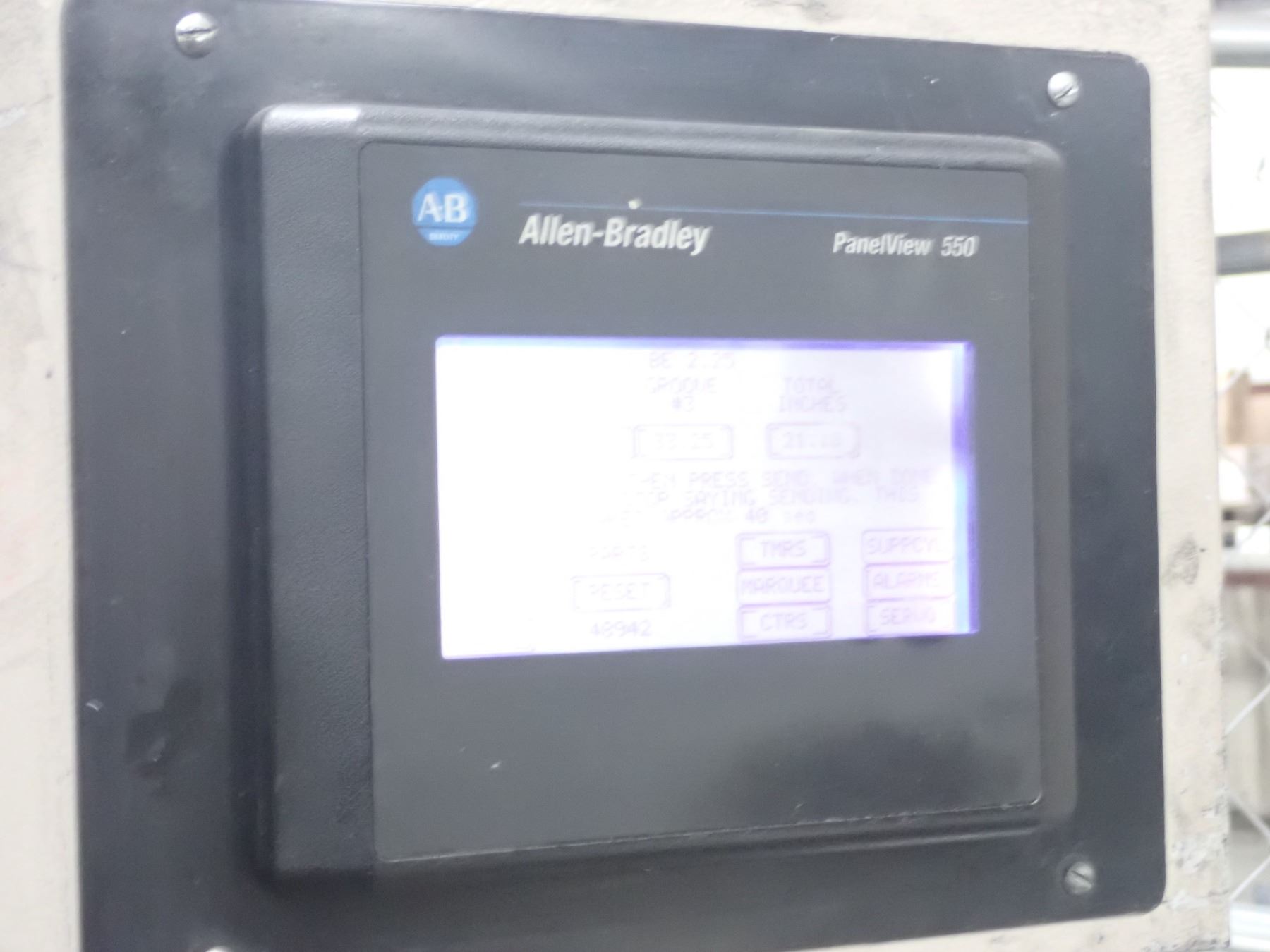

Updated Allen Bradley Panel View 550 PLC Controls

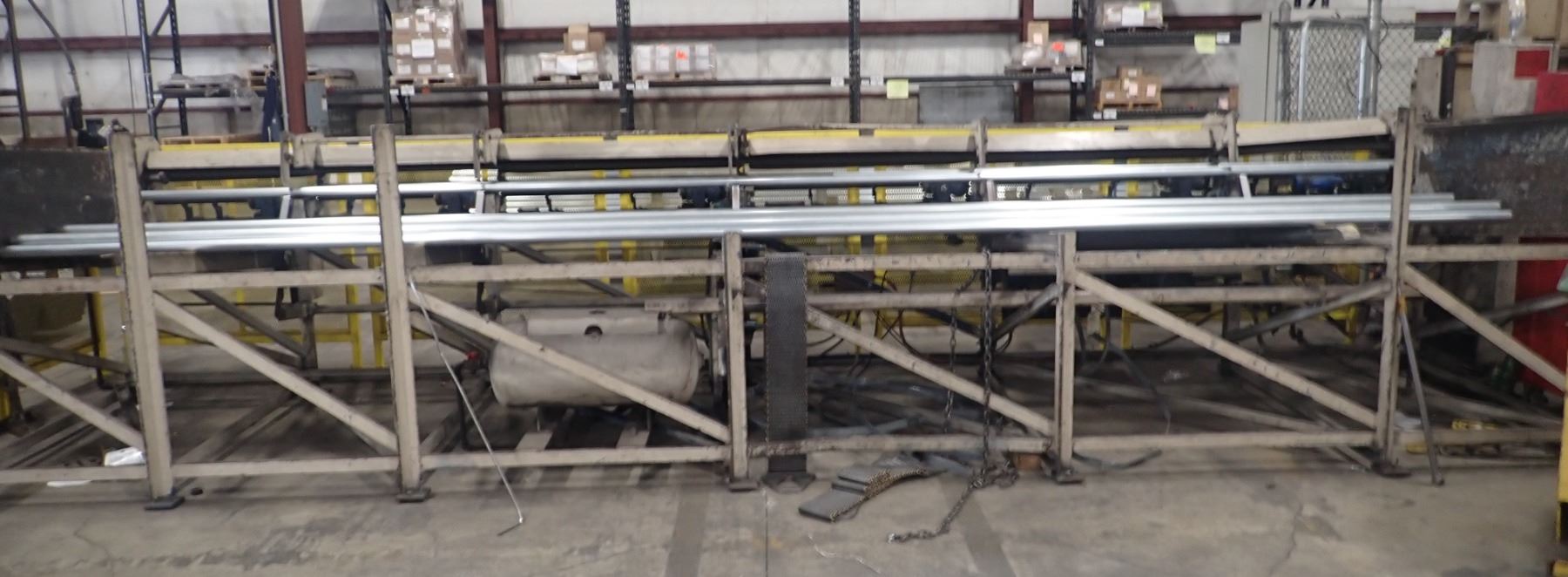

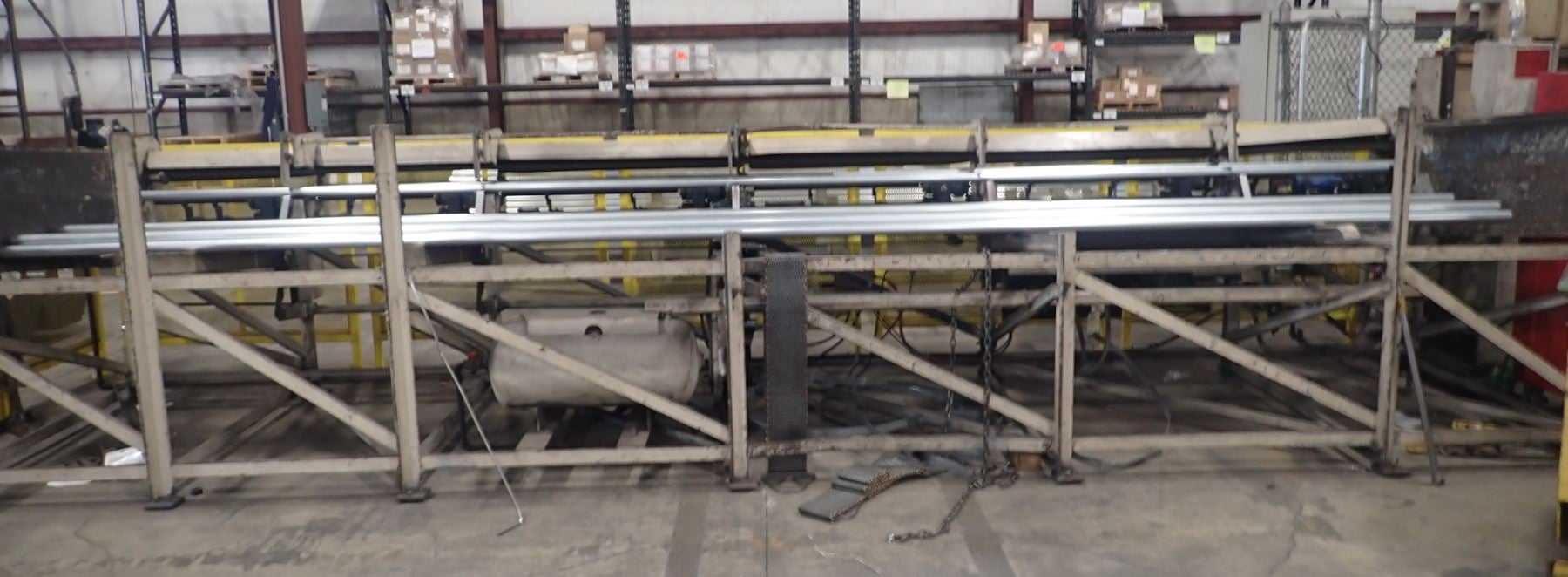

20' Modern Automatic Bar-Feed System
11' Overhead Micrometer Stock-Stop
Allowing 8' Cut-Off Length
Front and Rear Cut-Off Slides

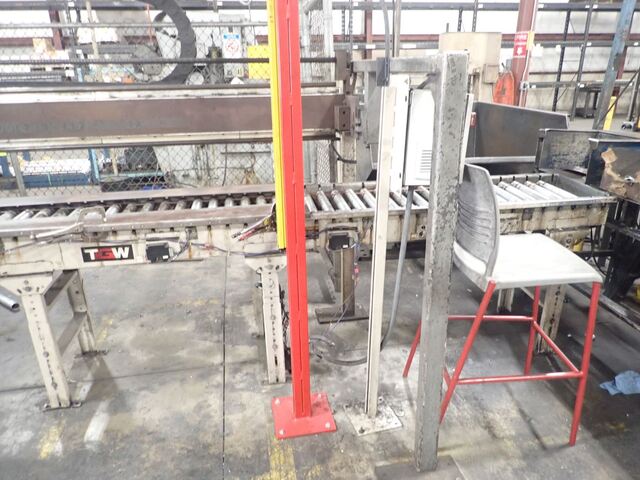

15' Exit Roller Conveyor
CATALOG SPECIFICATIONS:
Diameter Capacity, Minimum 1/4" 6MM
Diameter Capacity, Maximum 3-1/8" 79MM
Wall Capacity, Maximum 1-1/2" 38MM
Solid Bar Capacity, Maximum 3" 76MM
Stock-Stop Length Adjustment 8'
Spindle Speeds, Range 130 to 2000 RPM
Stock Feed Rate 160 FPM 49 MPM
Main Motor, Horsepower/RPM 5 HP
Motor Voltage 440 Volts
F.O.B. OUR WAREHOUSE
3" MODERN "3K-LH" automatic pipe-tube-bar cutoff lathe in used condition. Features Allen Bradley control, 20' automatic bar-feed, overhead micrometer stop, and exit roller conveyor. Specs: 1/4"-3" capacity, 5 HP motor, 130-2000 RPM spindle speed.
Spec Sheet:
3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE
Serial No 3K3225LH, Model 3K-LH
EQUIPPED WITH:
Updated Allen Bradley Panel View 550 PLC Controls
20' Modern Automatic Bar-Feed System
11' Overhead Micrometer Stock-Stop
Allowing 8' Cut-Off Length
Front and Rear Cut-Off Slides
15' Exit Roller Conveyor
CATALOG SPECIFICATIONS:
Diameter Capacity, Minimum 1/4" 6MM
Diameter Capacity, Maximum 3-1/8" 79MM
Wall Capacity, Maximum 1-1/2" 38MM
Solid Bar Capacity, Maximum 3" 76MM
Stock-Stop Length Adjustment 8'
Spindle Speeds, Range 130 to 2000 RPM
Stock Feed Rate 160 FPM 49 MPM
Main Motor, Horsepower/RPM 5 HP
Motor Voltage 440 Volts
F.O.B. OUR WAREHOUSE
Inquire Further with Machinery Central!
