Manufacturer: Mitchell
Stock # 53145
For Sale by Bass Machinery LLC
Surplus Record Dealer Since 2009
Sales
419-24...> Show Seller's Phone Number 419-243-2277 Let the seller know you found their listing on Surplus Record!
Description

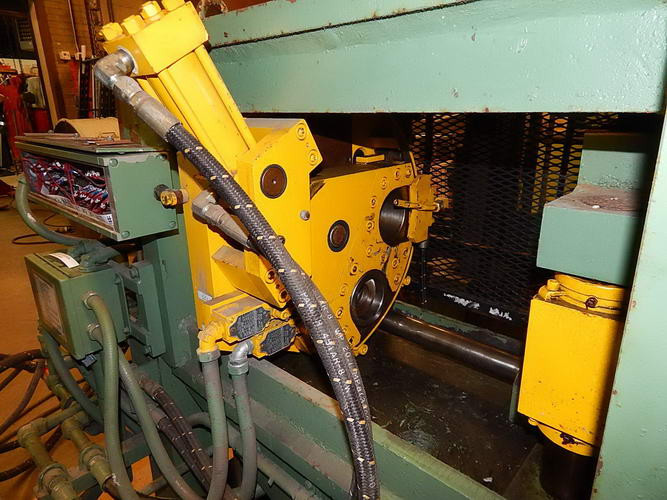

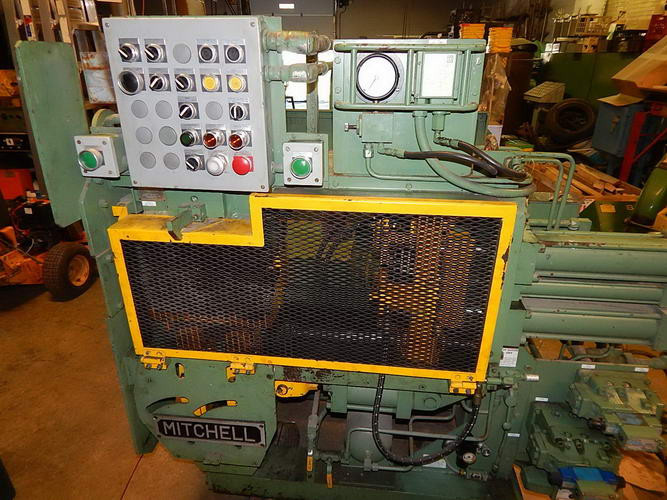

33,000 Lb. MITCHELL Hydra-Push 2-Die Hydraulic Push Pointer
SPECIFICATIONS:
Capacity: Rated - 33,000 Lbs. @ 1989 PSI
Maximum - 41,480 Lbs. @ 2500 PSI
Die Holder: 2-Hole Swing Type Rotary
Die Pocket: Accepts 4" and 3" (with Adaptor)
Die Casing Diameters
Automatic Cycle:
(1) or (2) Die Reduction
in Point Mode or Nibble Mode:
Die #1: to 4 Nibble Strokes, Fully Adjustable
Die #2: to 4 Nibble Strokes, Fully Adjustable
Point Length:
Automatic by (3) Position Selector Switch, Adjustable
Travel of Dies, Max.: 12"
Length of Gripper Jaws: 13"
Die Index Mechanism: Hydraulic Cylinder
Clamping Mechanism: Hydraulic Cylinder and Double Toggle
Material Gripper Jaws: Octagonal
Quick Rotate Type
8-Sided
Current Grip Sizes: .625", .687", .750", 812", .875", .937", 1", 1.062"
EQUIPPED WITH:

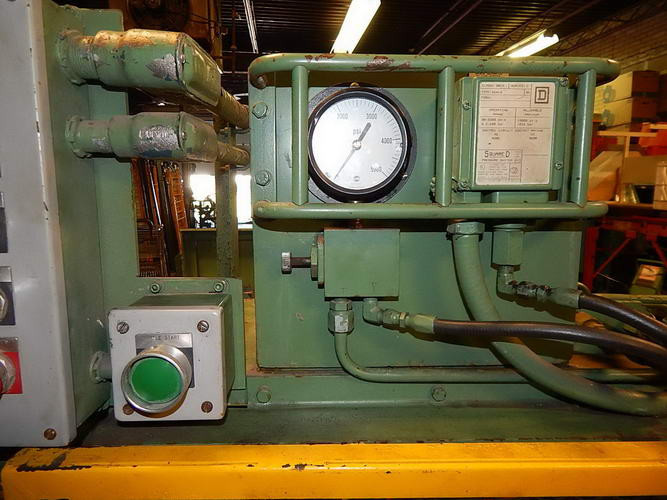

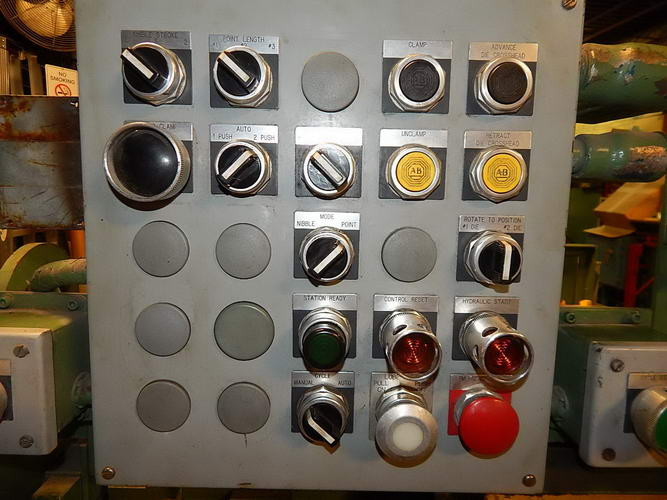

Push-Button and Controls
Vickers Valves
Complete Stand with Legs and Braces are Included
NOTE: Originally rolled into the line, pointed and then rolled back
out of the way. Original wheels are still available.

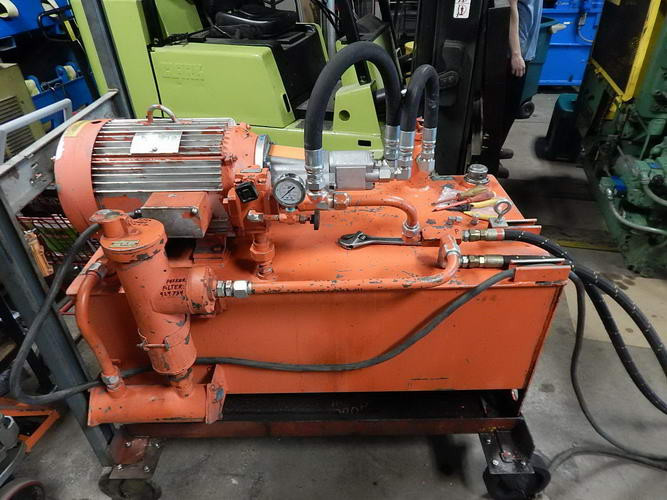

MOTOR DATA: 15 HP Lincoln Hydraulic, 230/460/60/3, 1750 RPM
1/2 HP Reliance Coolant, 230/460/60/3, 1140 RPM
CONDITION: Rebuilt by Mitchell

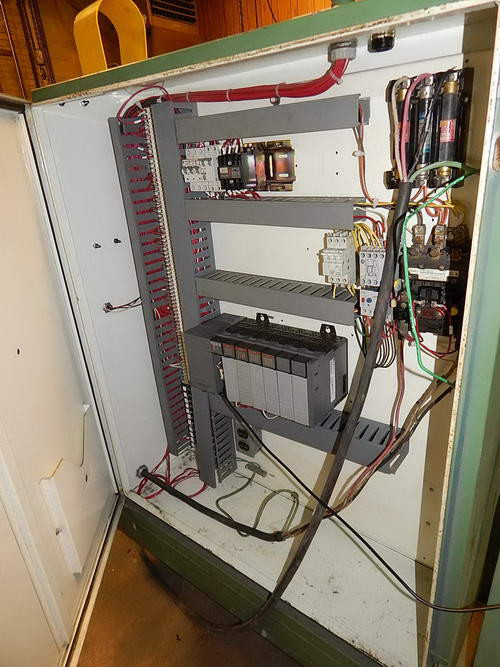

New PLC and Hydraulic Pump 2017
SPECIFICATIONS:
Capacity: Rated - 33,000 Lbs. @ 1989 PSI
Maximum - 41,480 Lbs. @ 2500 PSI
Die Holder: 2-Hole Swing Type Rotary
Die Pocket: Accepts 4" and 3" (with Adaptor)
Die Casing Diameters
Automatic Cycle:
(1) or (2) Die Reduction
in Point Mode or Nibble Mode:
Die #1: to 4 Nibble Strokes, Fully Adjustable
Die #2: to 4 Nibble Strokes, Fully Adjustable
Point Length:
Automatic by (3) Position Selector Switch, Adjustable
Travel of Dies, Max.: 12"
Length of Gripper Jaws: 13"
Die Index Mechanism: Hydraulic Cylinder
Clamping Mechanism: Hydraulic Cylinder and Double Toggle
Material Gripper Jaws: Octagonal
Quick Rotate Type
8-Sided
Current Grip Sizes: .625", .687", .750", 812", .875", .937", 1", 1.062"
EQUIPPED WITH:
Push-Button and Controls
Vickers Valves
Complete Stand with Legs and Braces are Included
NOTE: Originally rolled into the line, pointed and then rolled back
out of the way. Original wheels are still available.
MOTOR DATA: 15 HP Lincoln Hydraulic, 230/460/60/3, 1750 RPM
1/2 HP Reliance Coolant, 230/460/60/3, 1140 RPM
CONDITION: Rebuilt by Mitchell
New PLC and Hydraulic Pump 2017
Get Your Price from Bass Machinery LLC!
Buyers Who Viewed This Listing Also Viewed …
Mitchell, 3-die push pointer, 50000 lb @ 2000 PSI, 14" die travel, 16" gripper jaw length, 3" opening between jaws, 1975
Category: Pointers (Including Forging Pointers)
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Mitchell
Year: 1975
ARE CATALOG SPECFICATIONS AND MUST BE VERIFED BY PURCHASER.
JUST ADDED!

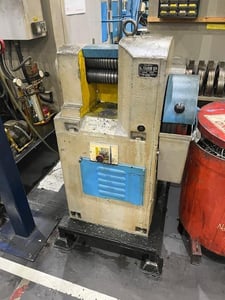

1/4"-5/16" Wire Pointer
