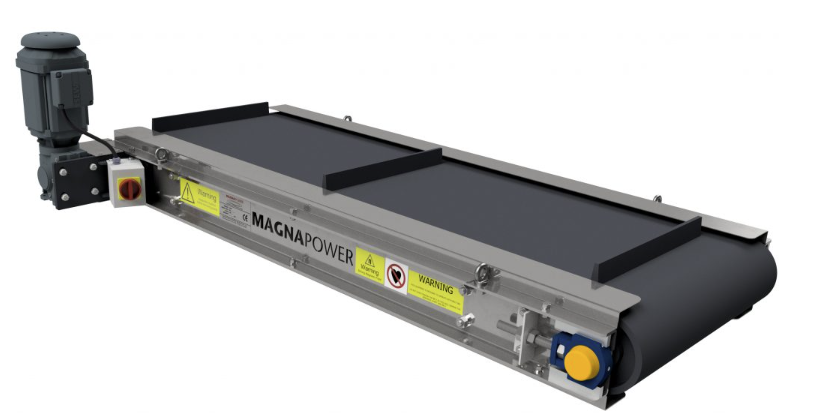

Magnapower #OCP3310E, crossbelt magnetic separator, 32" x 70", new

  Play Video

Mounts above a 32 (1500mm) wide or narrower belt (See drawing for details)
Up to 10" (250mm) working gap
MODEL AND CLASSIFICATION:
* Model: OCP 3380E Overband Magnet
* Type: High-Intensity Permanent Magnet System
* Design: Deep field, high-intensity non-deteriorating compact permanent magnet with alternating poles to contain magnetic flux
PERFORMANCE AND CAPACITY:
* Maximum Primary Conveyor Belt Width: 800 mm
* Typical Working Gap: 250 mm (Approx. 10")
* Magnetic Flux Density: 8,200 gauss 2/cm @ 250 mm
* Magnetic Width: 825 mm
* Performance Rating: High-intensity field comparable to rare earth systems at the working gap
MOTOR AND DRIVE:
* Motor Power: 1.1 kW
* Electrical Supply: 400/460V / 3 Phase / 50/60 Hz
* Belt Speed: 1.3 mtrs/sec (Approx. 4.26 ft/s)
* Drive Options: Available in Electric or Hydraulic configurations
* Drive Features: Integrated electrical isolator included
* Service Weight (Drive Component): 20 kg
DIMENSIONS AND WEIGHT:
* Overall Length: 1666 mm
* Overall Width: 1113 mm
* Overall Height: 509 mm
* Suspension Centers (Length): 850 mm
* Suspension Centers (Width): 801 mm
* Lifting Centers (Length): 650 mm
* Lifting Centers (Width): 801 mm
* Total Mass: 651 kg
* Maximum Suspension Point Load: 359.5 kg per eyebolt
CONSTRUCTION AND MATERIALS:
* Framework: Stainless Steel construction
* Cleaning Belt Width: 700 mm
* Mounting Hardware: Integral lifting eyes for suspension
* Guarding: Standard safety guards included
INSTALLATION NOTES:
* Safety: Open magnetic field; formal risk assessment required upon installation
* Magnetic Interference: All equipment within 1000 mm of the magnet underside must be constructed from non-magnetic material
* Discharge Requirements: Client-supplied non-magnetic discharge chute required, positioned under belt edge
* Placement: Position unit between conveyor idlers where possible for maximum efficiency
