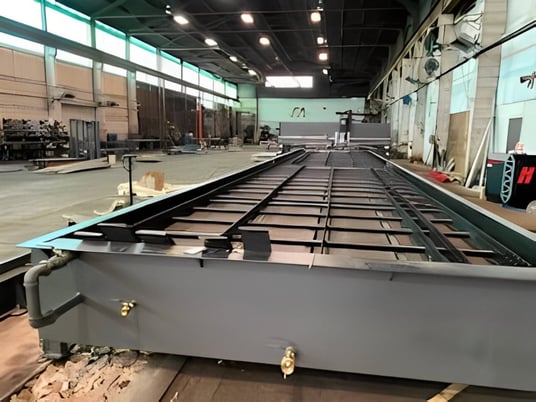

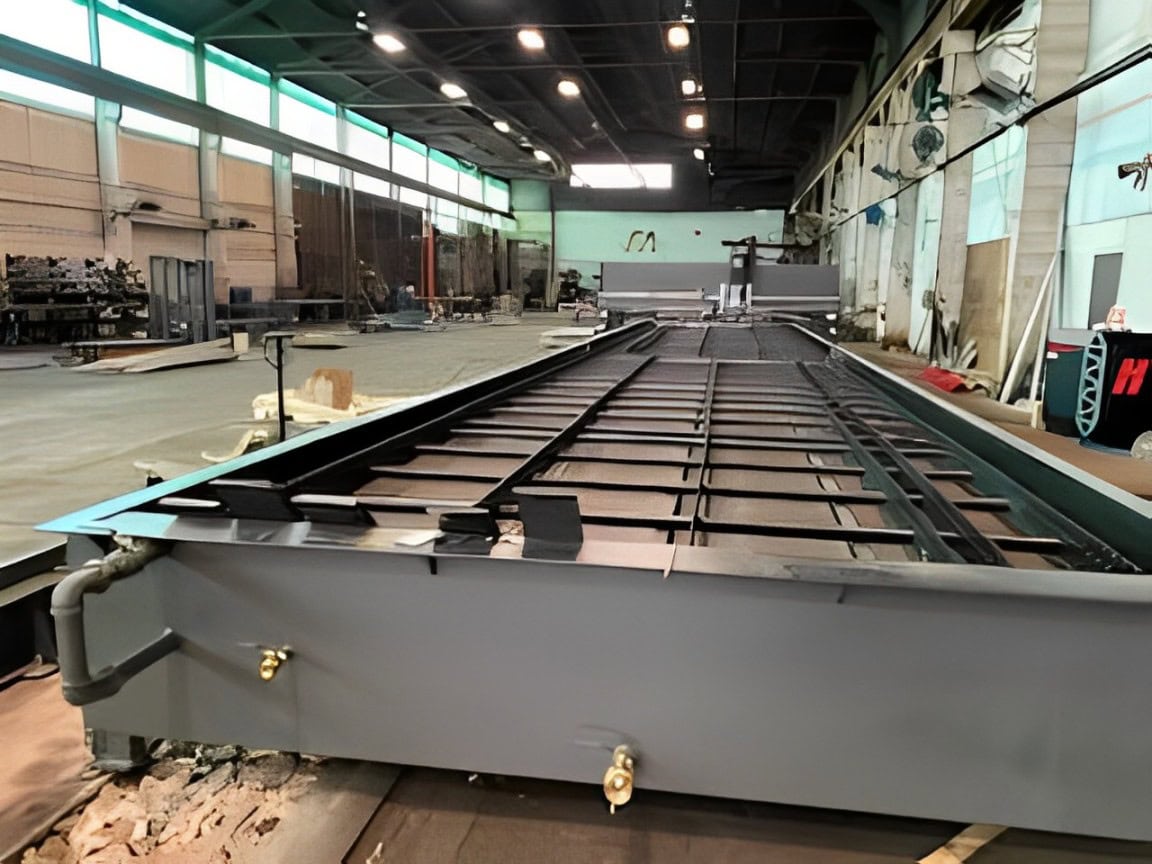

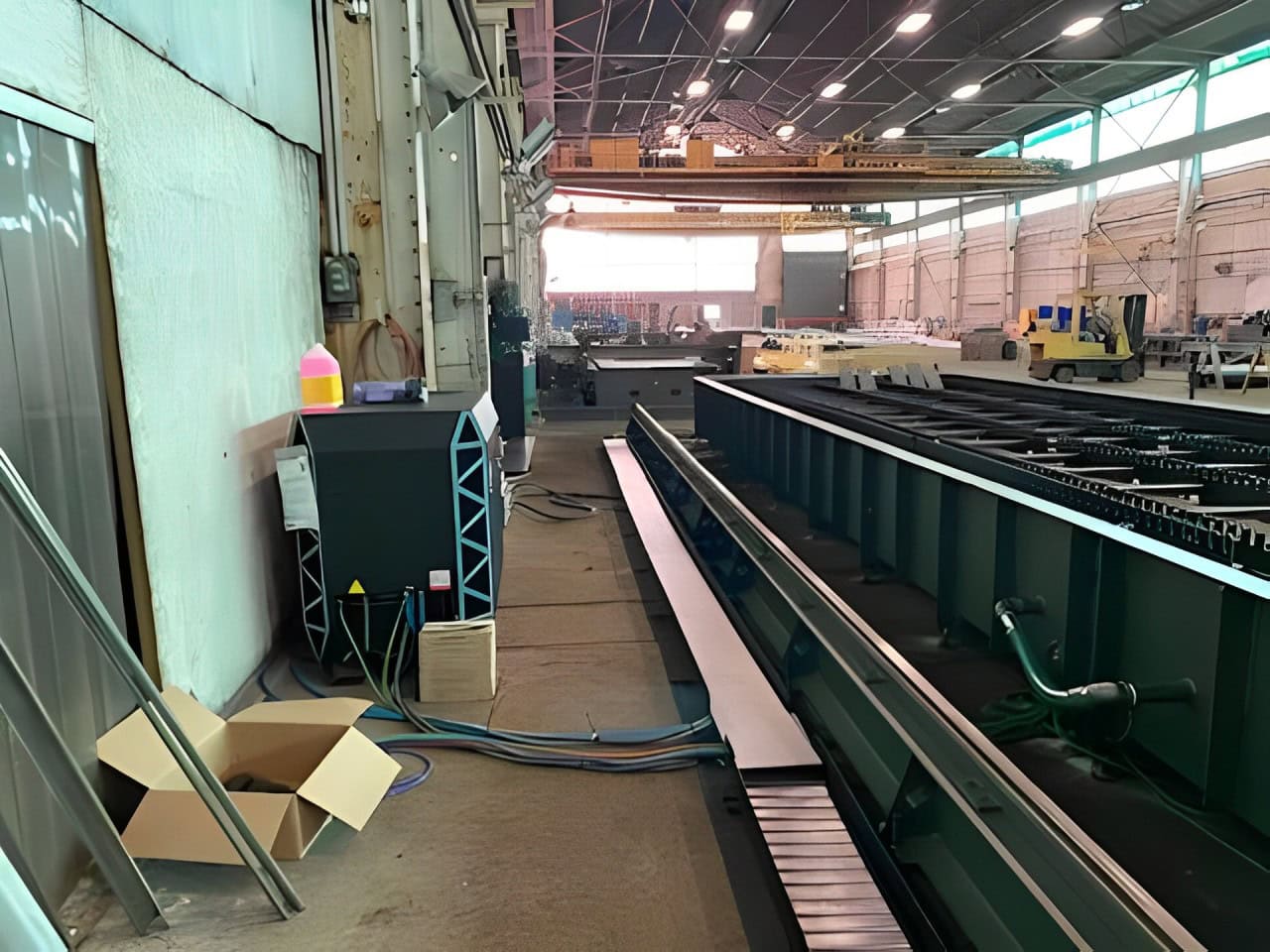

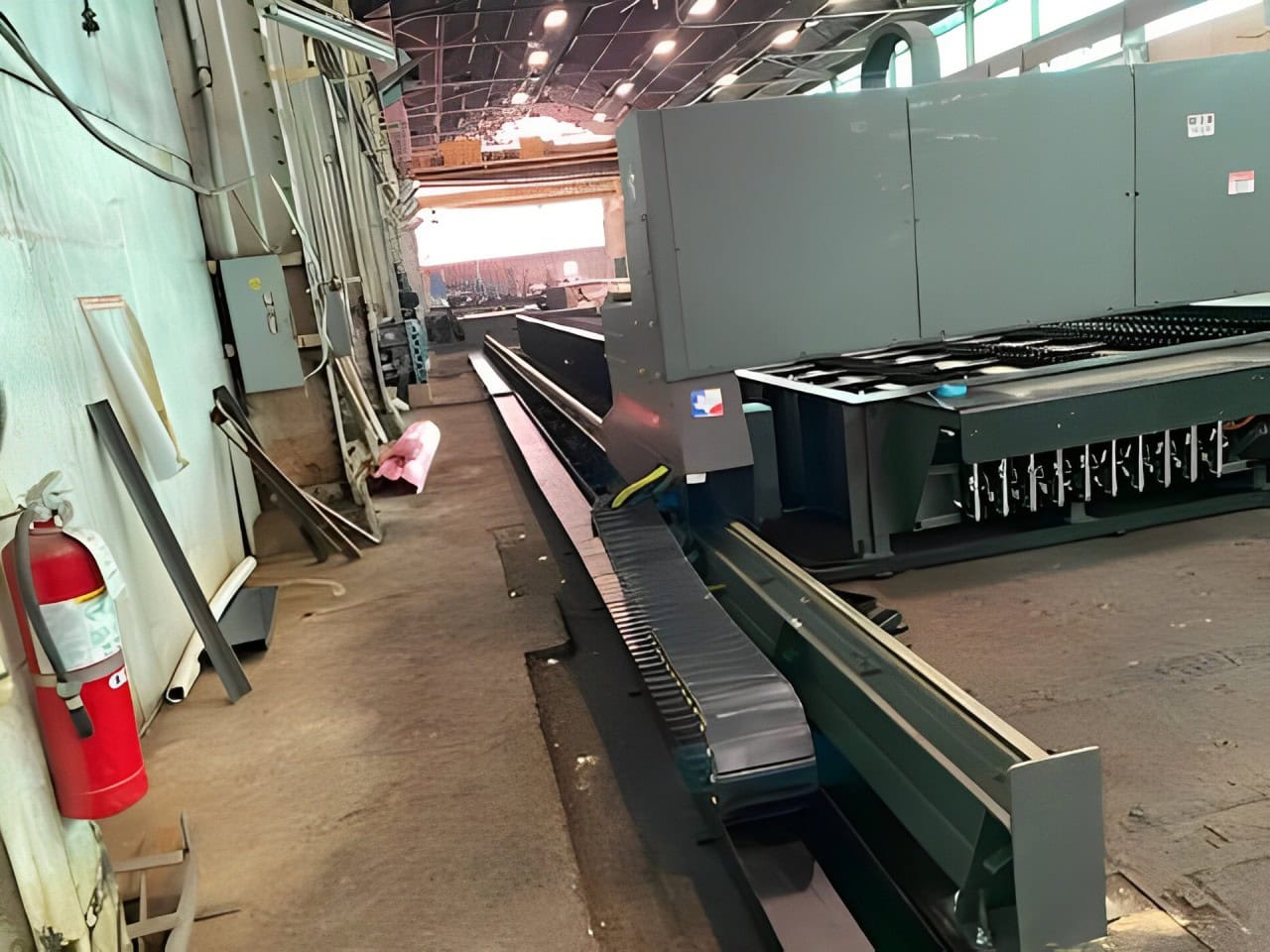

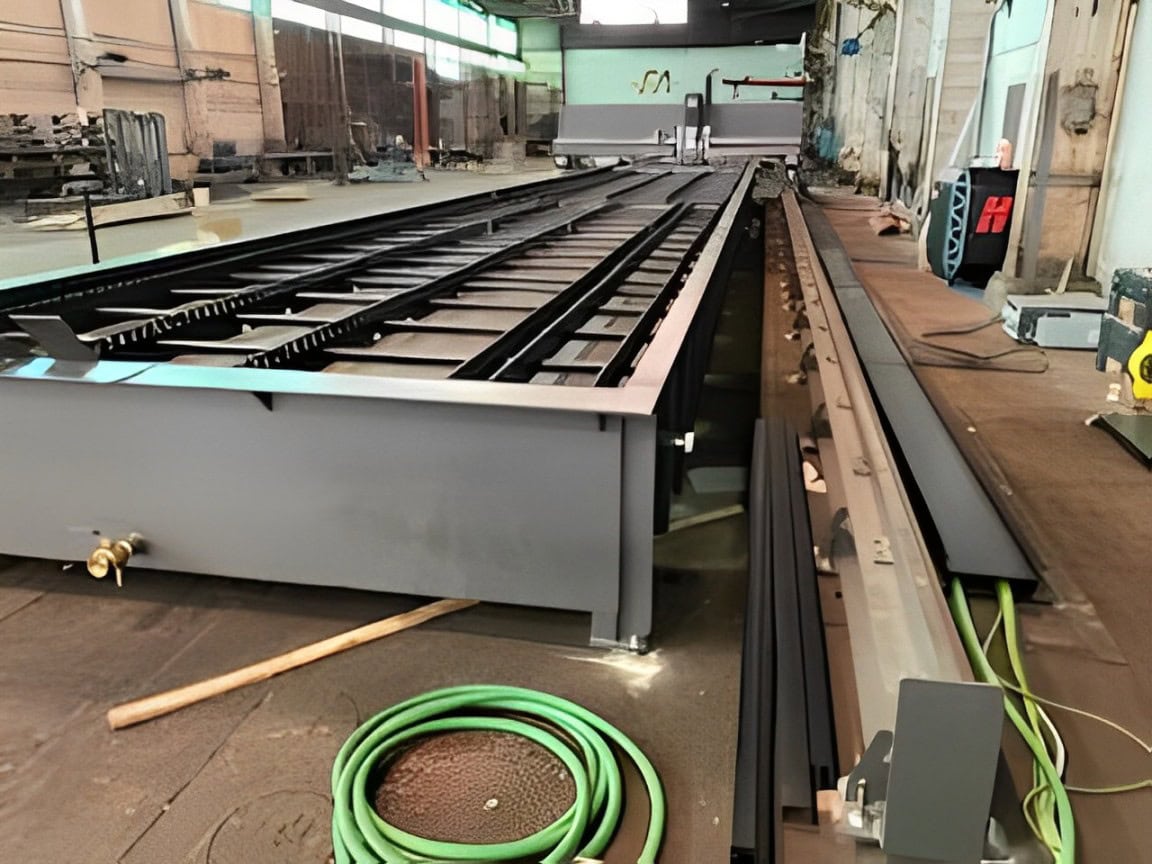

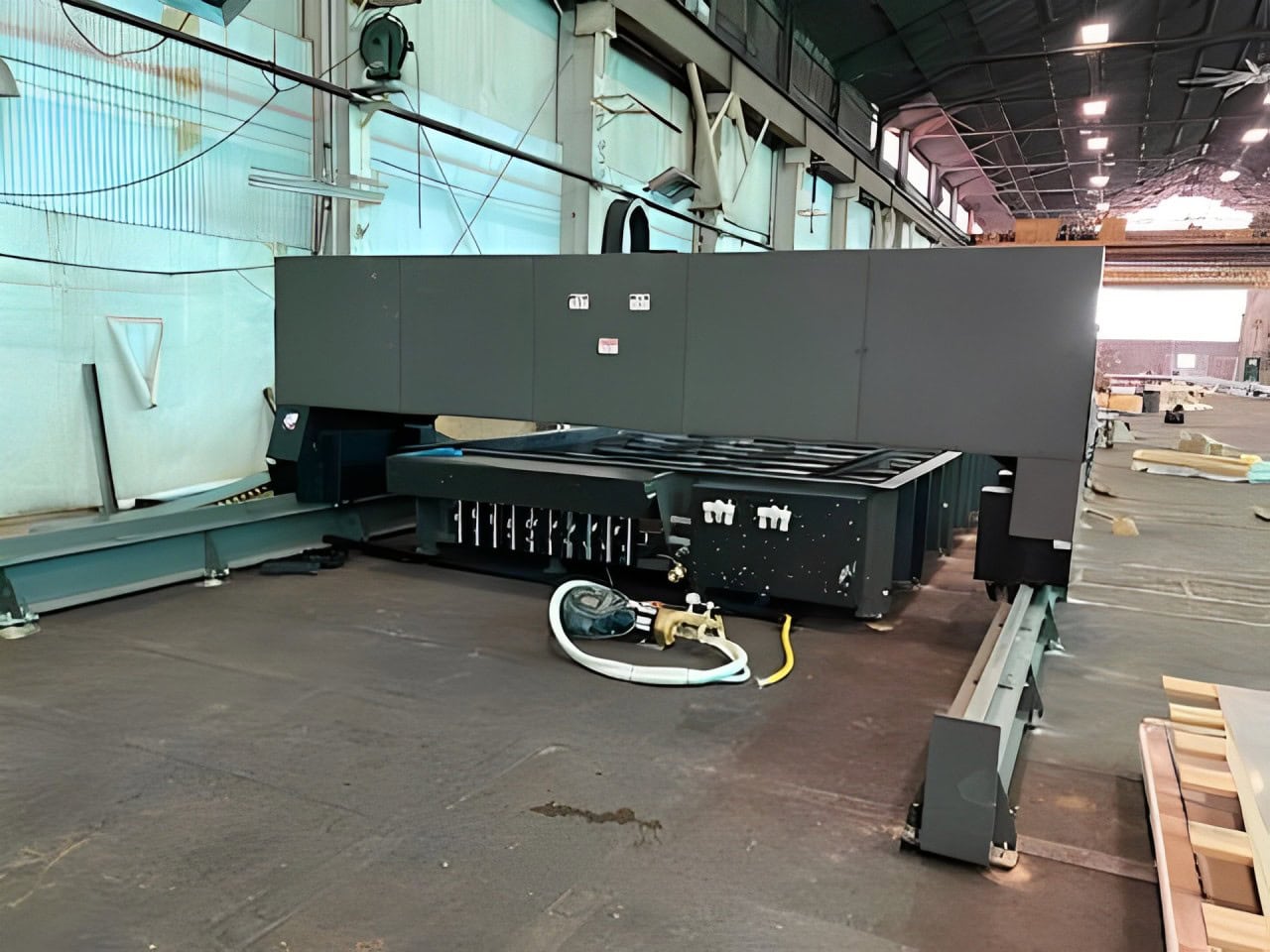

Lone Star #Commander-III, CNC Plasma Oxy Fuel Table, 10' x 60', Hypertherm XPR170, 2020

60FT CRANE RAIL, SINGLE ZONE WATER TABLE.

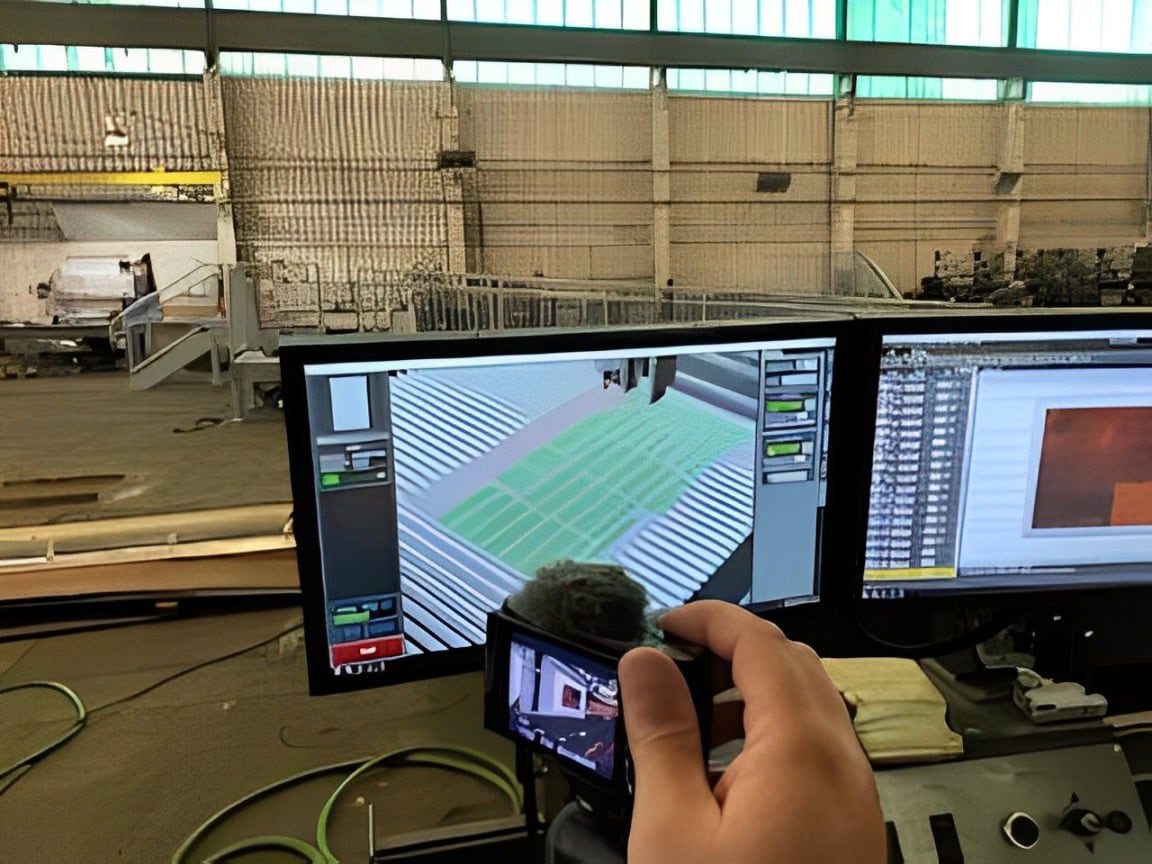

HYPERTHERM EDGE CONNECT TC CNC AND SOFTWARE, HYPERTHERM SENSOR TORCH W/LIFTER AND XPR170 PLASMA SYSTEM VWI.
PRONEST PLASMA PKG.
MANUAL BEVEL HEAD FOR PLASMA STATION AND MAX 100CO DRILL PKG.

Effective cutting width: 10 ft. 11 inches
Distance between inside main H-Beam to inside Subordinate H-Beam: 14ft. 11 inches
Table Size 10′ x 60′
Max Thickness Cut:
Mild steel (argon assist) 1-9/16″ (40 mm)
Mild steel (standard air) 1-3/8″ (35 mm)
Stainless steel 7/8″ (22 mm)
Aluminum 1″ (25 mm)
Rapid Traverse Speed: 1500 ipm
Max Number of Plasma Stations: 3
Max number of oxy fuel other other tools: 5
Voltage: 110V 20A, 120V 20A, 230V 15 A

Machine Upgrades include: Pneumatic braking system, holds machine still while in the drilling process Upgrades machine to 35mm HiWin linear bearings and rails on all axes
Upgraded gantry to double beam construction. Beams have antivibration foam inside Upgrades the motors to 1.75KW
