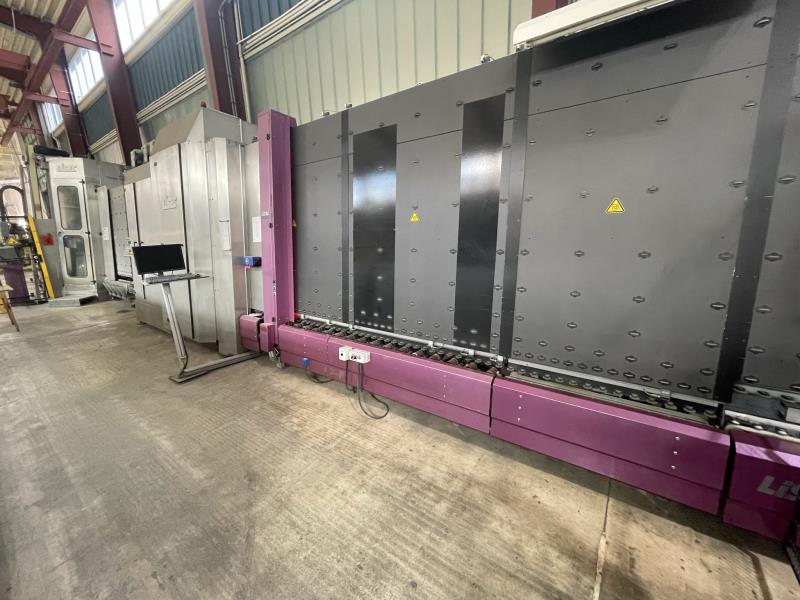

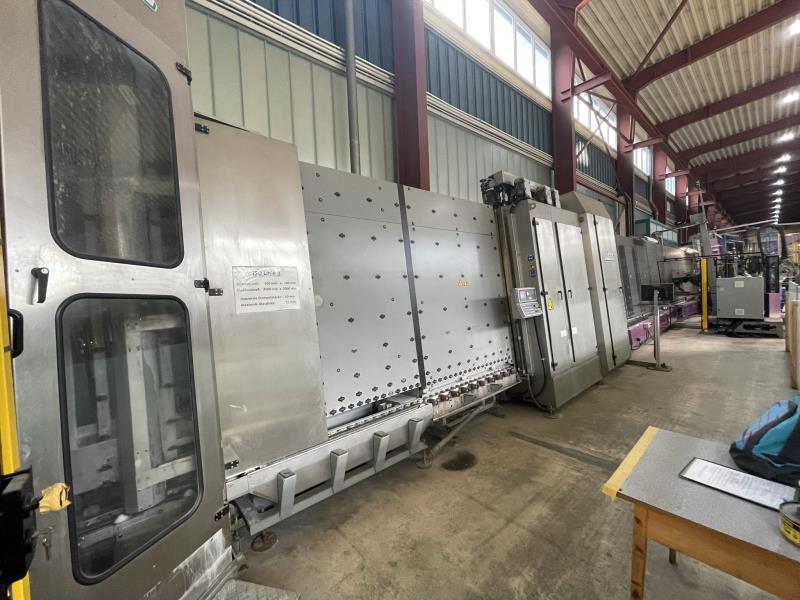

Lisec #LV-20/35-VSA, Automated Insulating Glass Line, 78" x 138" max dimension, 3-15 mm glass thickness, 2009

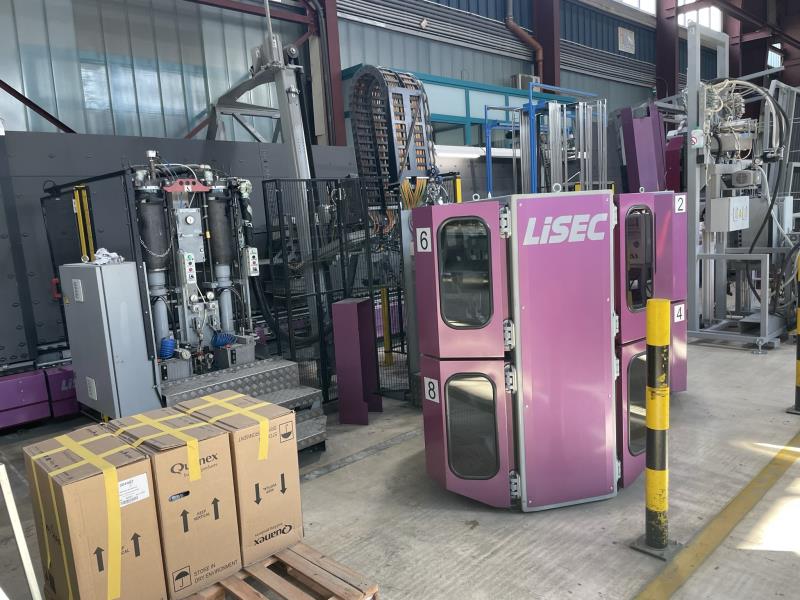

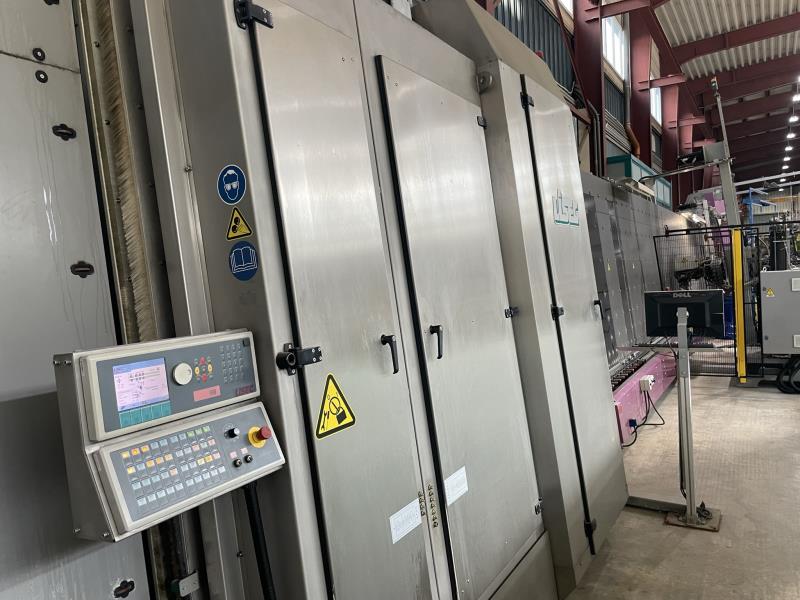

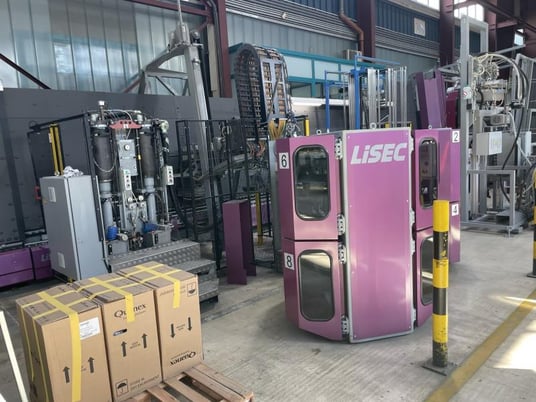

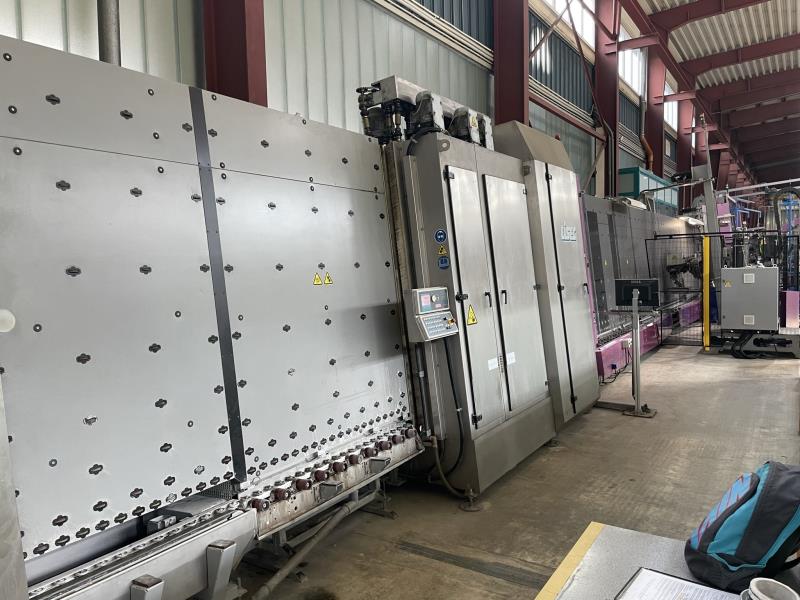

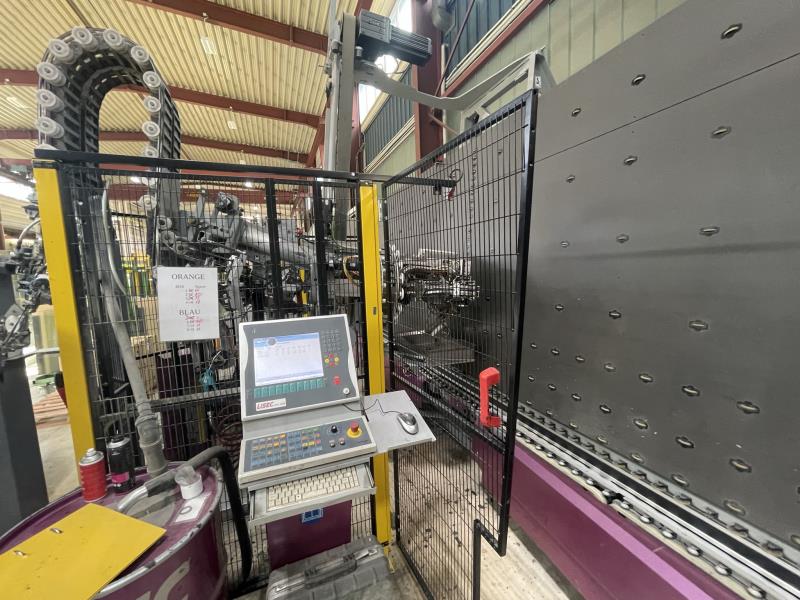

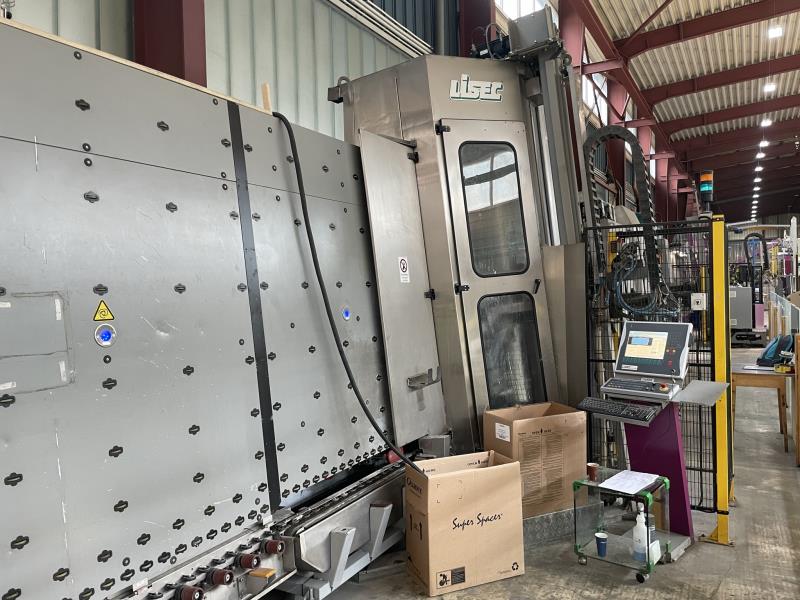

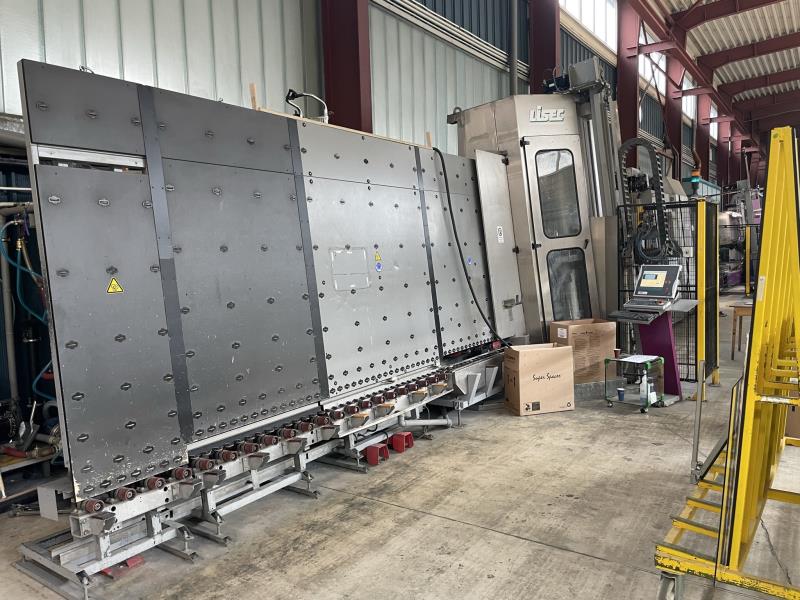

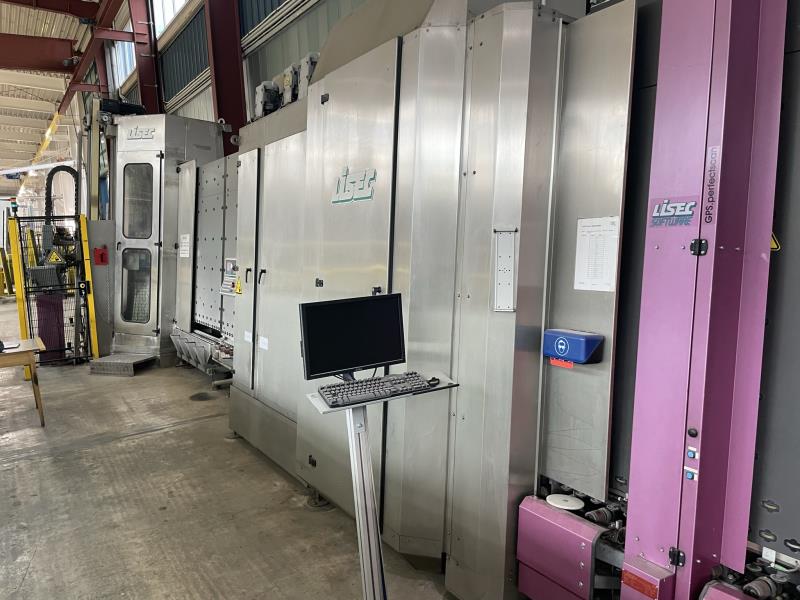

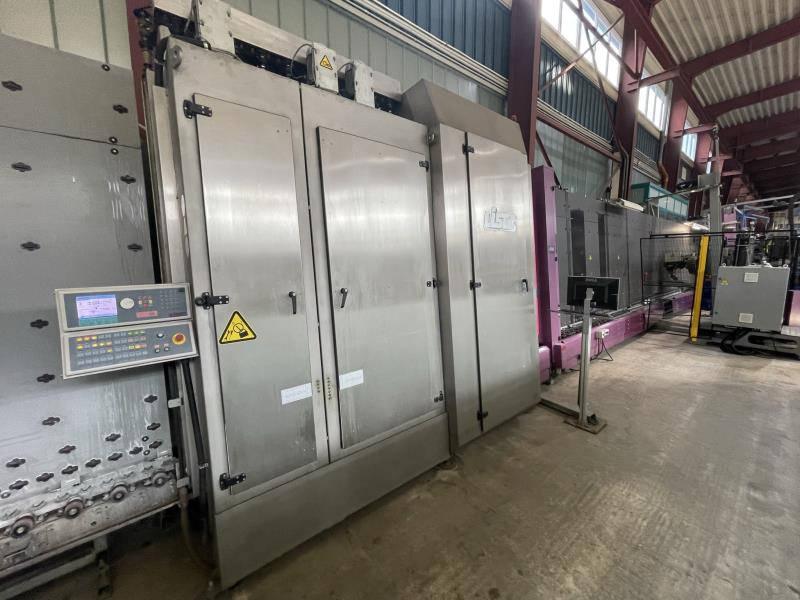

LISEC LV-20/35 VSA Automated Insulating Glass Line With SUPER SPACER - 2000 x 3500 mm Insulating Glass line for assembly of double or triple insulating glass units. The loading zone at the inlet is designed to feed the washer in a timely manner. Using a 6-brush washer and drying zone ensures cleanness of the single sheets before frame mounting and insulating glass assembly.Final visual quality checks are done at the frame mounting station. The press finalizes this automated process before manual takeoff and secondary sealing. Working direction: from Left to Right. This line is capable of doing shapes and stepped units, double and triple glass units as well as the capability of doing both flexible & rigid spacer frames. Specifications::Max. dimension: 2000 x 3500 mm (78" x 138")Min. dimension: 350 x 180 mmTotal thickness: ISO: 12 to 60 mmGlass thickness: 3 to 15 mmSZR: 12 to 18 mmGorgian Bars : NoGas type: ArgonFor double and triple units, shaped units accessing LISEC shape catalogueModels: according to the model catalog LISEC radius limit 250 mmSealant: PU Fenzi Poliver GP-SL (Polyurethane)Consists Of The Following Equipment Components: LISEC "KSR" Arrising MachineVertical compact grinding machine for the seaming of glass sheets on all four sides in a fully automatic cycle. The glass edges are ground by wet-diamond belts which simultaneously process the front and rear side of a glass edge. The grinding head moves on a vertical guide unit and can also rotate 360 degrees, allowing it to reach all four sides of a glass sheet. This grinding process achieves a perfect and gentle seaming of glass edges with the shortest cycle timesLISEC "RTVB-35/20WE" Inlet ConveyorLISEC "VHW 20/6M" Vertical Washing MachineAutomatic 6-Brush Washing and drying system for glass panes with infinitely variable adjustment of the glass thicknesses. With LOW-e capability.LISEC "GPS Perfect Scan" Quality ScannerGPS.perfectscan - the software of the LiSEC glass scanning system - inspects glass surface and body according to architectural regulations for the visual quality of glass (e.g. Austrian ÖNORM B 3738 or German Hadamar). The visual scan of the pane (see Scanning functionality) is done with high resolution. LISEC "RSVN-35/20U" Outfeed ConveyorLISEC "VSA-35/20 D1 + 4" Fully Automatic Super Spacer Applicator Robot [2011]Fully automated vertical station for the application of flexible spacer frames on glass sheets. After feeding in the glass sheet to the reference point, the auxiliary frame mounting stops automatically adjust to the bottom and front vertical glass edge. The operating height of transport is 520 mm at a 6 incline. Minimum processing height is 180 mm with a minimum processing length of 250 mm. LISEC "RTVB-11/20 ST" Inlet ConveyorLISEC "RAL" – Automatic Frame ApplicatorLISEC "RSV" – Manual Frame Mounting StationLISEC "SSV-20" Automated Corner Tape Application System for Flexible Spacers + Optional Special ShapesSystem for sealing the final cor
